About The KEF Ci200RR-THX In-Ceiling Speaker

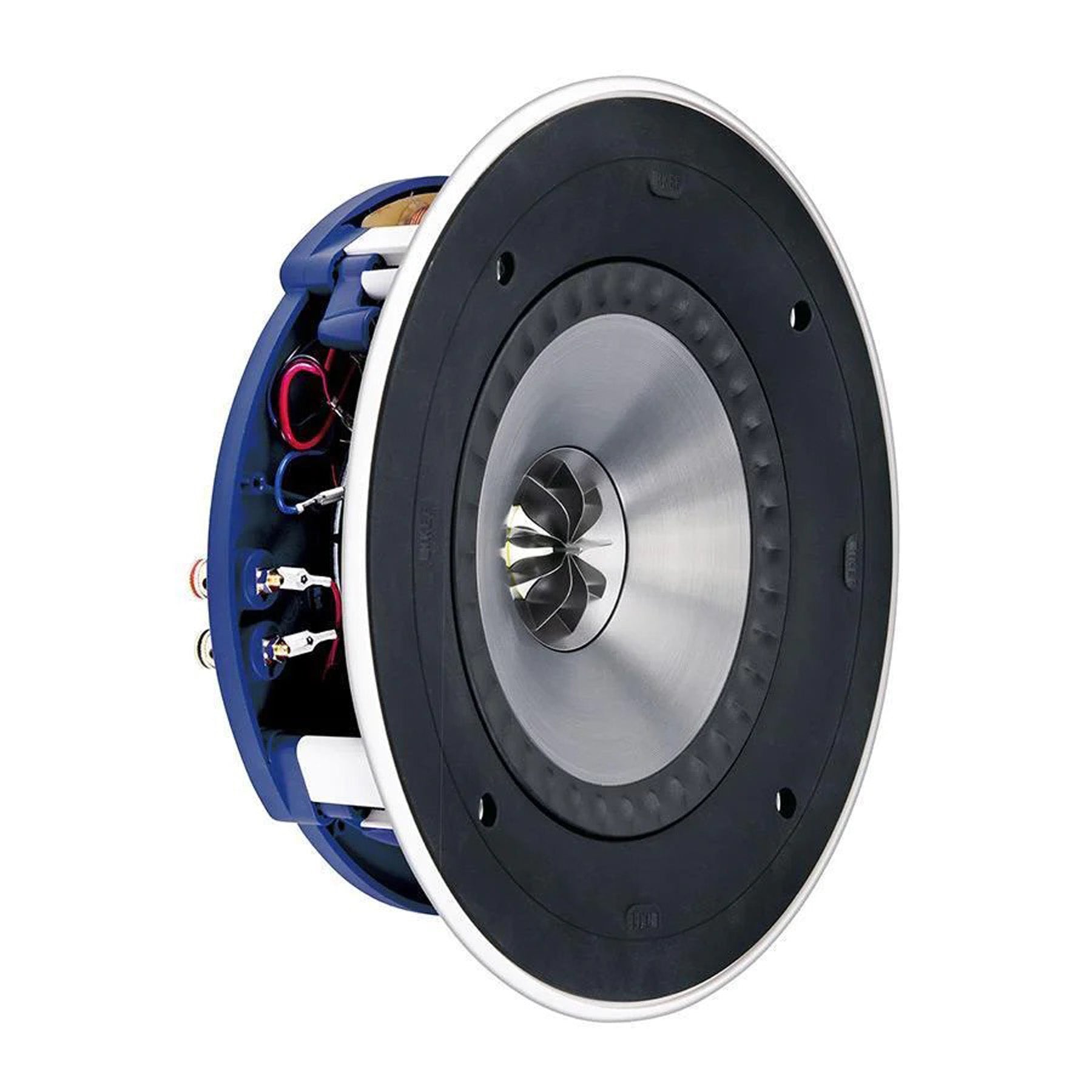

The KEF Ci200RR-THX is an ultra-high-performance coincident point source loudspeaker designed for in-ceiling or in-wall flush mount installations. It features patented Uni-Q® technology with a 38 mm high frequency tweeter mounted in the acoustic centre of the 200 mm low frequency woofer delivering exceptionally wide dispersion and hi-fidelity audio across a large listening area. The Ci200RR-THX is IP64 and THX® Ultra2™ certified and specifically engineered to maintain exceptional sound quality at high outputs exceeding 105dB. Its performance and design characteristics make the Ci200RR-THX the ideal choice for foreground, background, speech, and cinematic applications including 3D immersive audio formats such as Dolby® Atmos™.
KEF "Sit Anywhere" Uni-Q® Technology: This proprietary driver array places the tweeter in the acoustic centre of the woofer delivering wide dispersion with consistent sound characteristics throughout the room. Because the high and low frequencies originate from the same point in space, acoustic lobing problems common to other speaker designs are virtually eliminated and imaging is greatly improved to effectively shift the sound to appear as if it's originating from behind the video screen.
Tangerine Waveguide™: In addition to protecting the driver, the Tangerine Waveguide further enhances dispersion allowing for 120 degrees of coverage.
Large 38mm High Frequency Tweeter: The high-power handling aluminium dome tweeter has a wide frequency response and can continuously deliver extremely high output with no audible distortion.
Weather Resistant: Manufactured using a proprietary plating and powder coating process, the KEF Ci200RR-THX is UV protected and designed to withstand harsh operating environments.
IP64 Certification: The speaker passed official IEC testing to ensure that splashing water would have no harmful effects on assembly components.
Ultra-Thin Bezel (UTB): To maintain a premium aesthetic appearance, the ABS bezel was carefully engineered to be as thin as possible while maintaining the necessary structural rigidity.

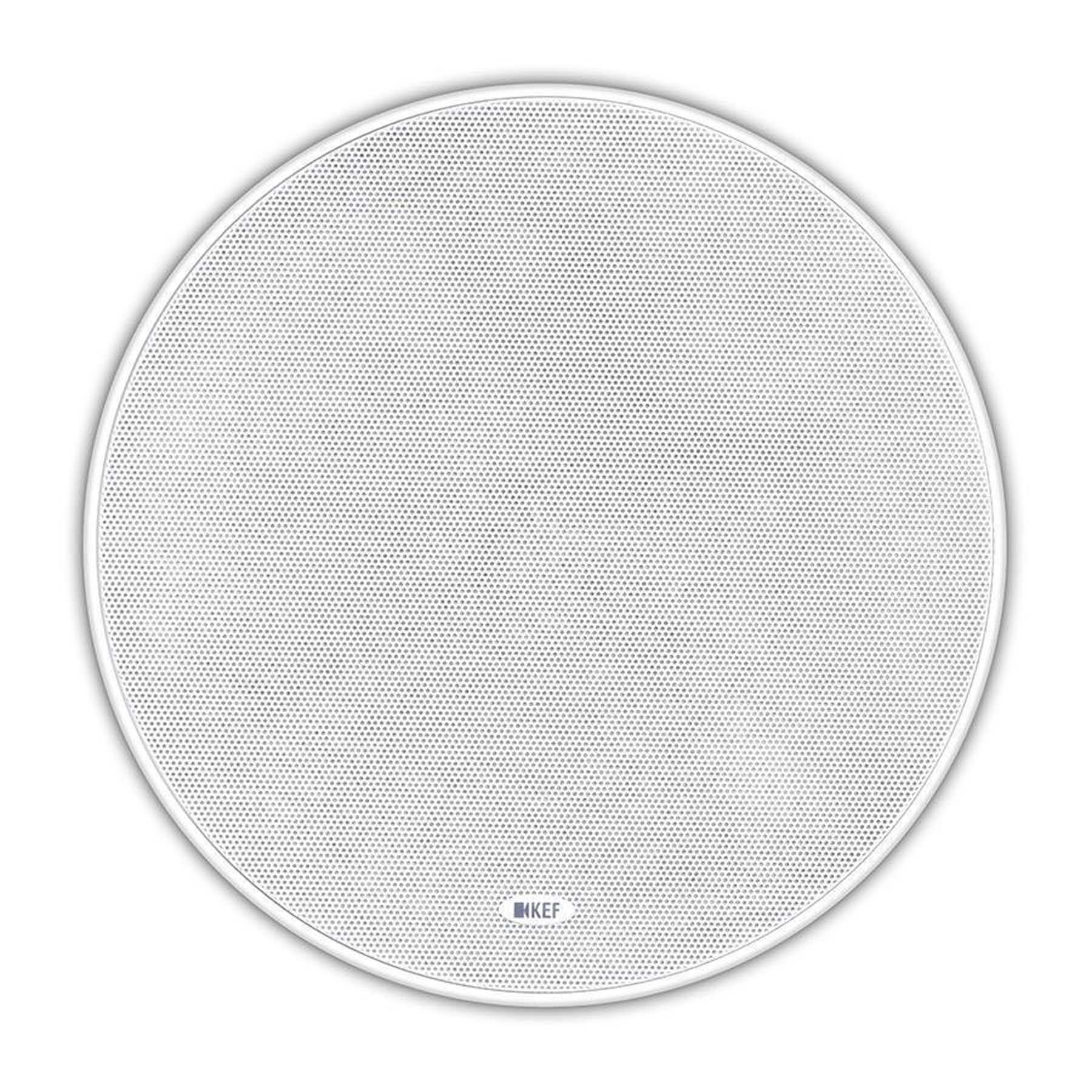

Magnetic Grille: For security and ease of installation the grille attaches by a powerful magnetic circuit and can be painted to match any décor.
THX® Ultra2™ Certification: The KEF Ci200RR-THX endured nearly 500 THX laboratory tests to ensure it delivers full impact entertainment experiences just as the artist intended.
Universal Cut-Out: All KEF 200mm in-ceiling round speakers utilise the same diameter opening for ease of installation and flexible component selection.
Gold-Plated Spring Loaded Binding Posts: This design improves ease of installation and guarantees consistent wire clamping pressure to ensure proper electrical transfer.
Covered Crossover Circuit: The cover adds structural rigidity to the speaker assembly while protecting the electrical crossover components from potential damage.
Our Take
For those of us that have not only a need for In-Ceiling speakers, but a desire for something that has been designed to sound good, KEF is a company you can trust. Looking at the improvements they've made over the years shows clearly that they are thinking about the specific use of the speaker in the home environment and even in the future.
You'll enjoy superior In-Ceiling performance with any of the KEF custom speaker range. The Ci200RR-THX's are suitable for rear surround or Dolby Atmos speakers in an upmarket home theatre setup, as well as in multi-room stereo music systems where you want top shelf performance.
For the consummate handy man or woman, installing the KEF Ci200RR-THX is a relatively straight forward DIY job. Alternatively, if this sounds like the sort of job you'd prefer a professional to take care of, please email us at shop@audiotrends.com.au for a quote on delivery and installation in Metropolitan Melbourne.
Main Features & Specifications
- Design: Dual Concentric 2-Way In-Ceiling Speaker – Sold Individually
- Ideal for an elite in-ceiling music system, or as overhead effects channels in a KEF home theatre system
- "LCR" design is also suitable for use as a left, centre, or right-channel speaker
- THX Certified Ultra for accurate tonal reproduction and high output
- 5" (38mm) Vented Aluminium Dome Tweeter with 'Tangerine' waveguide
- 8" (203mm) Custom-Designed Woofer with oversized magnet
- Uni-Q® driver array technology provides wide sound dispersion and excellent overhead coverage in your room
- Tweeter and Woofer are concentrically mounted to provide a wide "sweet spot"
- Frequency Response: 33-28,000 Hz (±6 dB)
- Recommended Amplifier Power: 10-190 Watts
- Sensitivity: 90 dB
- Impedance: 8 Ohms
- Ultra-Thin Bezel and Paintable Magnetic Grille provide seamless integration into your décor
- IP64 Splash Resistance Rating
- Gold-Plated, spring-loaded binding posts
- Optional Rough In Frame: RIF200R
- Included Accessories: Paintable Magnetic Grille (White), Cutout Template, Installation Manual
- Diameter: 290mm
- Depth: 132.6mm
- Cut Out Dimensions: 238mm
- Mounting Thickness
- Ceiling Thickness (Maximum): 37mm
- Ceiling Thickness (Minimum): 6mm
- Mounting Depth from Surface: 126.5mm
- Weight: 3.6 kg
- Manufacturer's Warranty: 5 Years + 1 Extended Year when Registered at KEF.com
Note: Features & Specifications Subject To Change Without Notice. E&OE.
