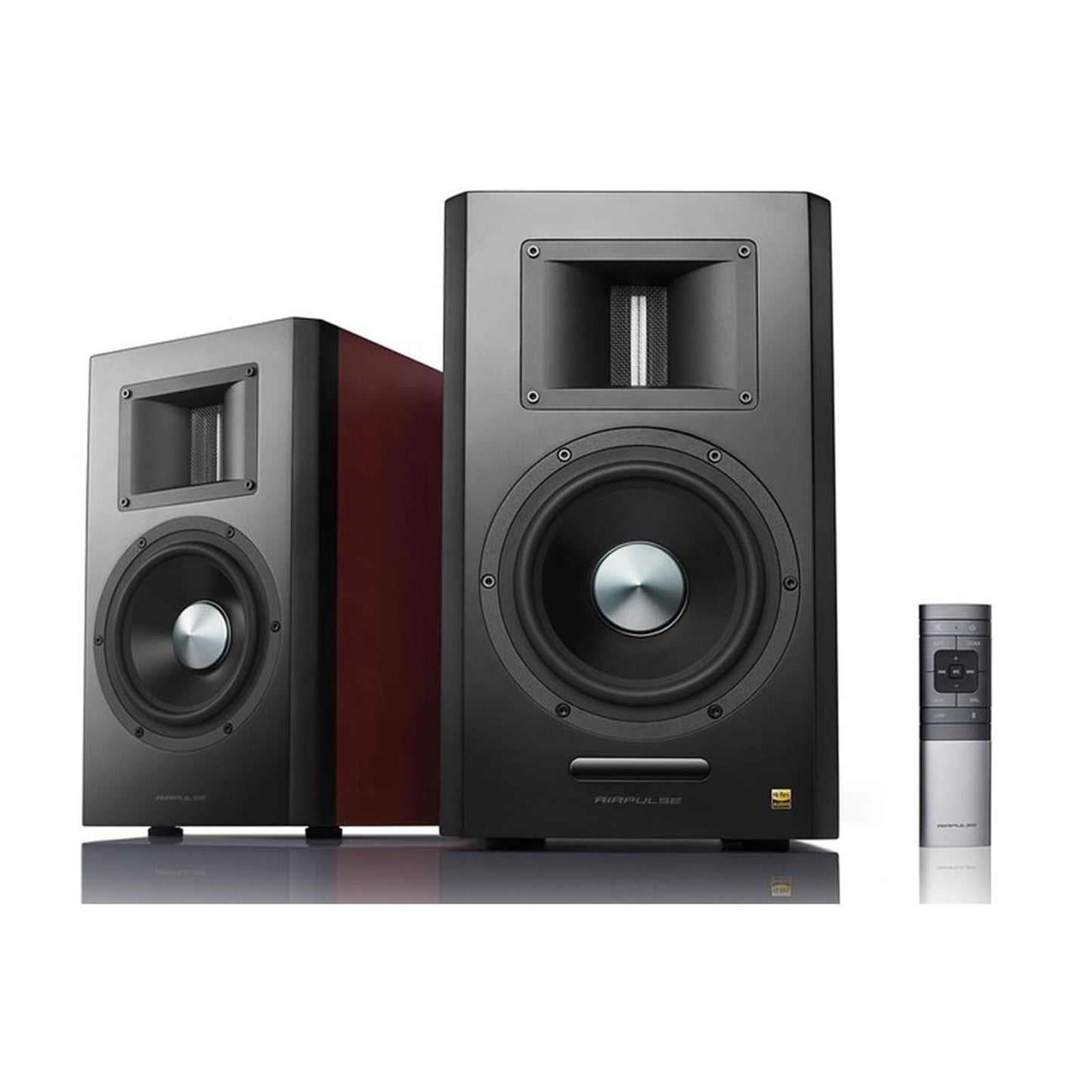

About The Airpulse A300 Active Speakers
Play audio from nearly any source with the Airpulse A300 Bluetooth Speaker System. This system has optical, digital coaxial, balanced stereo XLR, USB Type-B, and stereo RCA inputs, plus Bluetooth connectivity with aptX for wireless connectivity with your compatible devices. The speakers consist of a 6.5" mid-woofer and an aluminium ribbon tweeter to provide full-range audio at up to 80W per channel to fill your space with sound.
All connectivity is via the powered right speaker, which connects to the passive left speaker with the included speaker cable. A remote control, optical cable, stereo RCA cable, and stereo RCA to 3.5mm adapter are all included for instant connectivity.
Cabinet Construction: The A300 cabinet is built with 25mm thick rigid MDF with cherry wood veneer finished in a satin lacquer. Internal bracing supports and stabilizes the drivers and helps minimize cabinet resonance. To further reduce sound coloration, the cabinet interior is fully lined with 36mm thick waved sound absorption material. The oval shaped vent tube in the A300 is carefully designed to minimize wind noise. The internal wiring is made by Transparent Cable for enhanced accuracy and minimal signal loss.
Horn-Loaded Ribbon Tweeter: The horn-loaded ribbon tweeter of the A300 inherits the mechanism of the tweeter in the Airpulse 7001 near-field monitor speaker. The thin aluminium ribbon diaphragm has high sensitivity, superb transient response, extended frequency range and well-defined resolution. The meticulously formulated horn shape produces directional and optimized high frequencies from the ribbon tweeter, so they are aimed at the listeners, minimizing unwanted effect from room reflection. This also leads to superior imaging which results in full and three dimensional sound with each detail well defined.
6.5" Aluminium Cone Low-Distortion Mid-Woofer: The mid-woofer is a 6.5" (165mm) driver with an anodized aluminium alloy cone suspended in a heavy-duty, rigid cast magnesium alloy frame. The Proprietary Aluminium Alloy Cone (PAAC) of the mid-woofer was designed from analysis of all types of cone geometry and materials using a Klippel Laser Doppler Interferometer. It features a large underhung motor structure with a high-gauss neodymium magnet and a 50mm diameter edge-wound, copper-clad aluminium ribbon voice coil to gain maximum linear excursion and control that also reduces the weight of the driver, allowing the speaker to have a fast transient response as well as total loss-modulation distortion.
Larger voice coils have less power compression because they run at a cooler operating temperature. Sonically, this means a more realistic dynamic representation of the music. The cooler running temperature of the voice coil also has the added benefit of a more reliable loudspeaker, since a cooler voice coil means less chance of speaker failure.
For uncompromised performance, the A300 mid-woofer uses a rigid cast-magnesium alloy frame. Its rigidity reduces speaker coloration, and its material helps to dissipate heat efficiently from the voice coil much faster than a typical steel speaker frame, which all leads to increased dynamics and power handling, and ultimately, a satisfying musical experience.
Low-Distortion Signal Processing & Amplification System: The entire digital system is built on a multi-core signal processor – the XMOS XU216, a powerful 16-core audio processor based on XMOS xCore200 architecture, which boasts to have up to 2000 MIPS processing horse power. With its unique parallel structure, it is well equipped for timing-sensitive signal process like audio, especially audio with high sample rate. The dual clock structure at the output stage effectively avoids signal modification between different sample rates and can further reduce signal distortion.
Fully Digital Amplifier: The amplifier section of the A300 is composed of three TAS5754 Class D amplifiers from Texas Instruments. This component combines a high input sample rate support and a high output PWM carrier frequency to help achieve low background noise and distortion. The up-to 192 kHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of the signal. Its 768 kHz output PWM carrier frequency – twice the 384 kHz of other Class-D amplifiers – is even more suitable to drive the high-sensitivity ribbon tweeter. Each channel's mid-woofer is driven by one TAS5754 connected in parallel bridge mode. The third TAS5754 is connected in bridge mode for the left and right channel ribbon tweeters.
The analogue front end uses Texas Instruments components. With their configuration, the chipsets work at 96 kHz, offering a frequency response up to 40 kHz. The wide-range input frequency response helps guarantee thorough signal acquisition at very low distortion. To avoid cross-talk between the two analogue ports, the A300 uses a relay instead of a semiconductor switch.
The SPDIF receiver is the Texas Instruments PCM9211, which supports up to 216 kHz input sample rates. With a very low output jitter, the unpacked audio signal can be delivered to the XMOS processor with virtually zero loss.
The USB audio interface supports the UAC2 audio application and an input sample rate of up to 192 kHz. This audio application effectively avoids signal degradation and dynamic range loss due to the computer's onboard DAC and provides a new method for high-definition audio playback. The Bluetooth audio receiver is built on Qualcomm's Bluetooth 5.0 chipset, which supports aptX decoding and offers enhanced audio playback quality over SBC Bluetooth.
Take Control of Your Sound: The A300 comes with a wireless remote control used for taking control of your sound. You can switch between inputs, change volume, mute the sound and turn the whole speaker system on or off easily from the comfort of your seat.
Our Take On The Airpulse A300 Active Speakers
The A300 is like a bigger, bolder version of the excellent A100. It looks a little larger and sounds a lot larger with a powerful 6.5" (165mm) aluminium cone mid/woofer helping to give more dynamic impact down low. Flexibility is still the key with these Airpulse A300 Active Speakers. They can play back hi-res audio through the optical, coaxial and USB digital inputs as well as handle legacy components such as a CD player or iPod through the RCA or XLR analogue inputs. You can even plug a turntable in as long as it has a phono stage built in or attached. You can adjust the tone via bass and treble controls on the back panel and the handy remote control lets you turn the A300 on, select inputs, turn the volume up and down and mute the system, all from the comfort of your chair. The latest Bluetooth 5.0 lets you stream all the music you want from your smart device and the A300 sounds much bigger than its size while doing it. Convenience, good sound, stylish design and an especially nice satin lacquer cherry wood finish combine to offer an incredibly attractive and capable active speaker that will happily fit into all sorts of situations.
Main Features & Specifications
- Design: Remote Control Powered Speakers with Analogue & Digital connections
- Tweeter: Horn Loaded Aluminium Folded Ribbon Tweeter
- Mid-Woofer: 6.5 inch (165mm) Aluminium Cone Mid-Woofer
- Amplifier System: Digital Amplifier with Xmos Processor
- Power Output: Tweeter L/R: 10W + 10W, Mid-Woofer L/R: 70W + 70W
- Frequency Response: 40Hz - 40KHz
- Signal-Noise Ratio: ≥90dB(A)
- Connections
- Left/Right Speaker link connections
- Aux Stereo Analogue RCA input
- Aux Stereo Analogue XLR input
- USB-B Digital input (supports up to 192 kHz sample rate)
- Optical Digital input (supports up to 192 kHz sample rate)
- Coaxial Digital input (supports up to 192 kHz sample rate)
- Bluetooth 5.0 with aptX
- IEC Power Socket
- Rear Panel Controls: On/Off, Volume, Bass, Treble
- Remote Controls: On/Off, Input Selection, Volume Up/Down, Mute
- Input Sensitivity
- RCA: 700 ± 50mV
- Balanced: 1,150 ± 50mV
- USB: 550 ± 50mFFs
- Optical: 500 ± 50mFFs
- Coaxial: 500 ± 50mFFs
- Bluetooth: 500 ± 50mFFs
- Hyper-Rigid Cast-Magnesium Alloy Frame Woofer
- Internal Wiring by Transparent Cable
- 25mm thick high strength MDF with Satin Lacquer Finish
- Qualcomm's Bluetooth V5.0 chipset
- 2 x 384 KHz Class-D amplifier
- Included Accessories: Remote control, 3.5mm jack to 2 RCA socket adaptor plug, 2 RCA to 2 RCA analogue audio cable, Speaker connecting cable, USB connecting cable, Optical digital audio cable, Power cable, User manual,
- Available Finishes: Satin Lacquer Cherry Wood
- Cabinet Size (WxHxD): 225 x 385 x 340mm each
- Weight: 24kg pair
- Manufacturer's Warranty: 3 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
