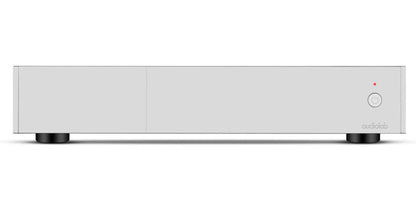

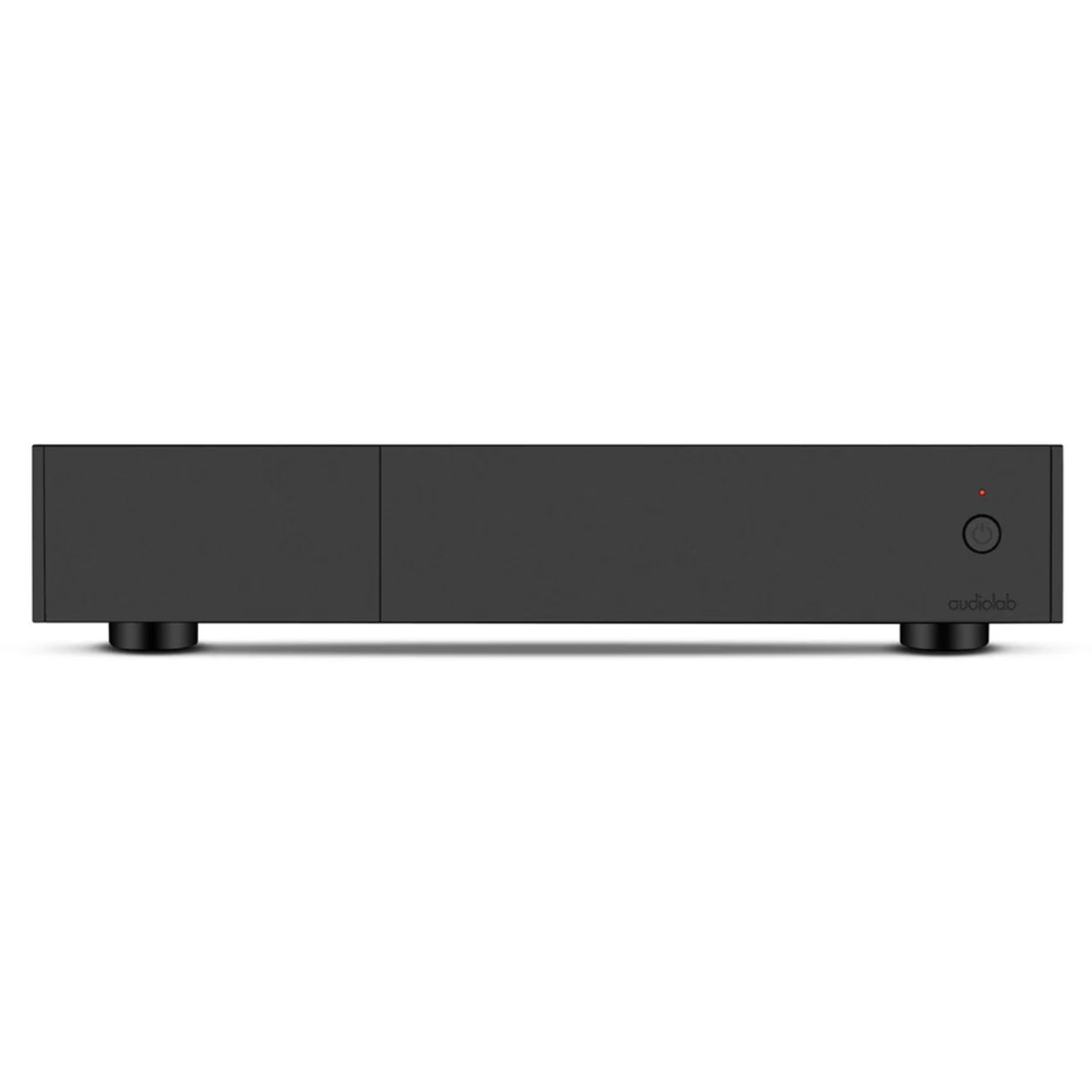

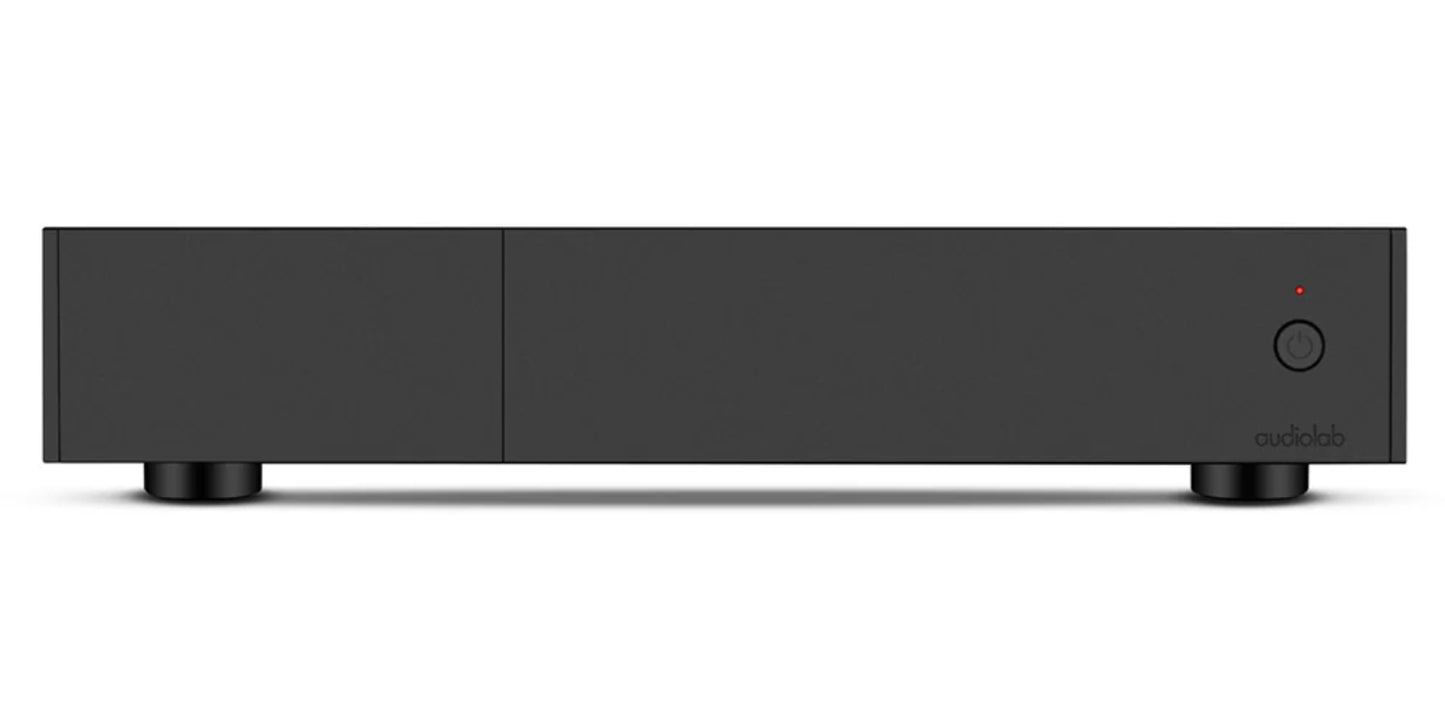

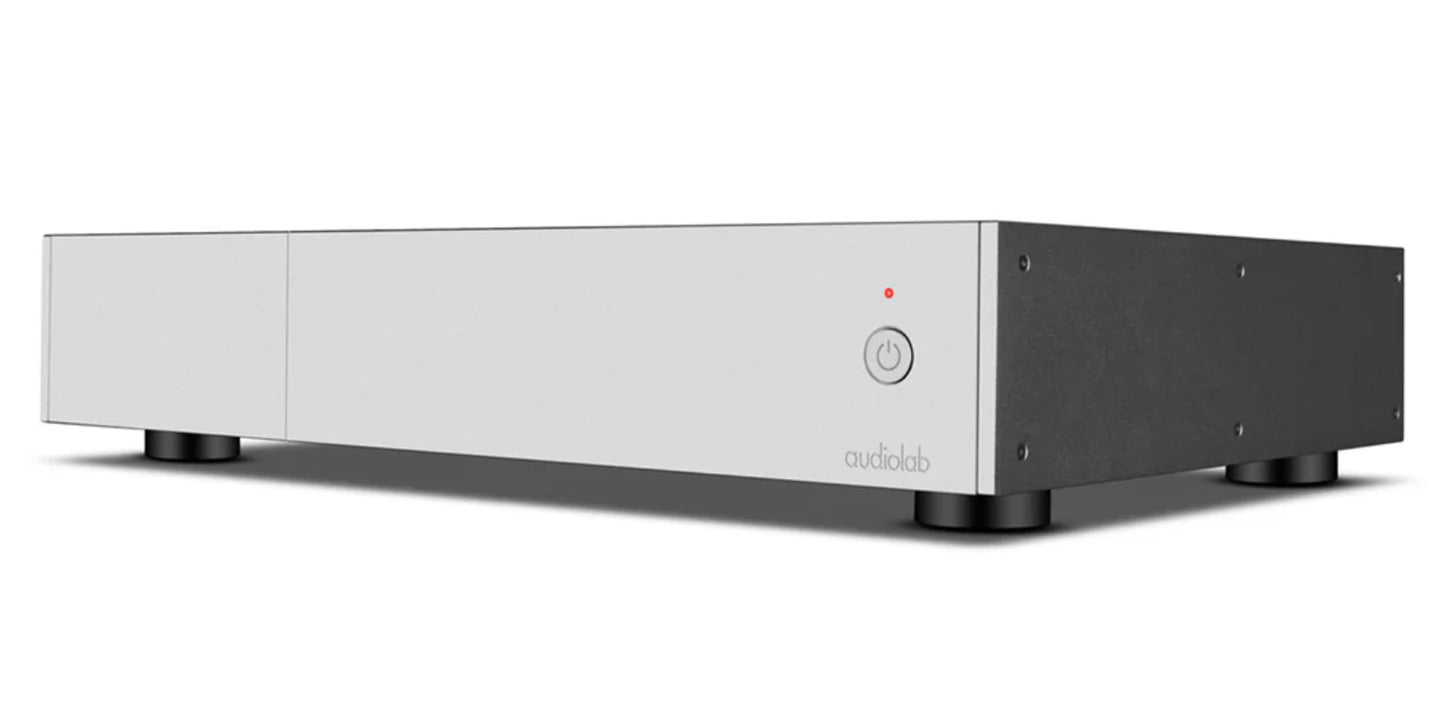

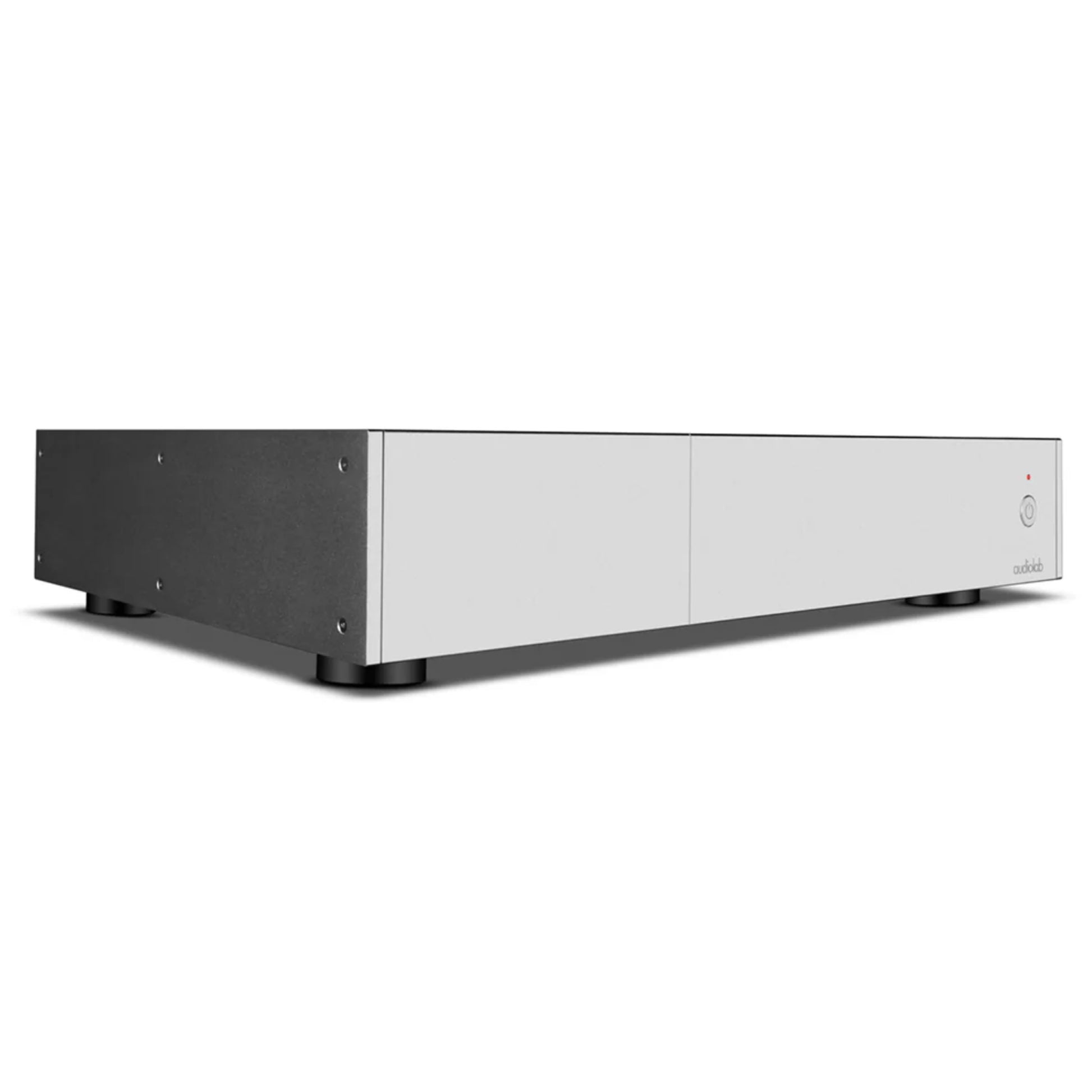

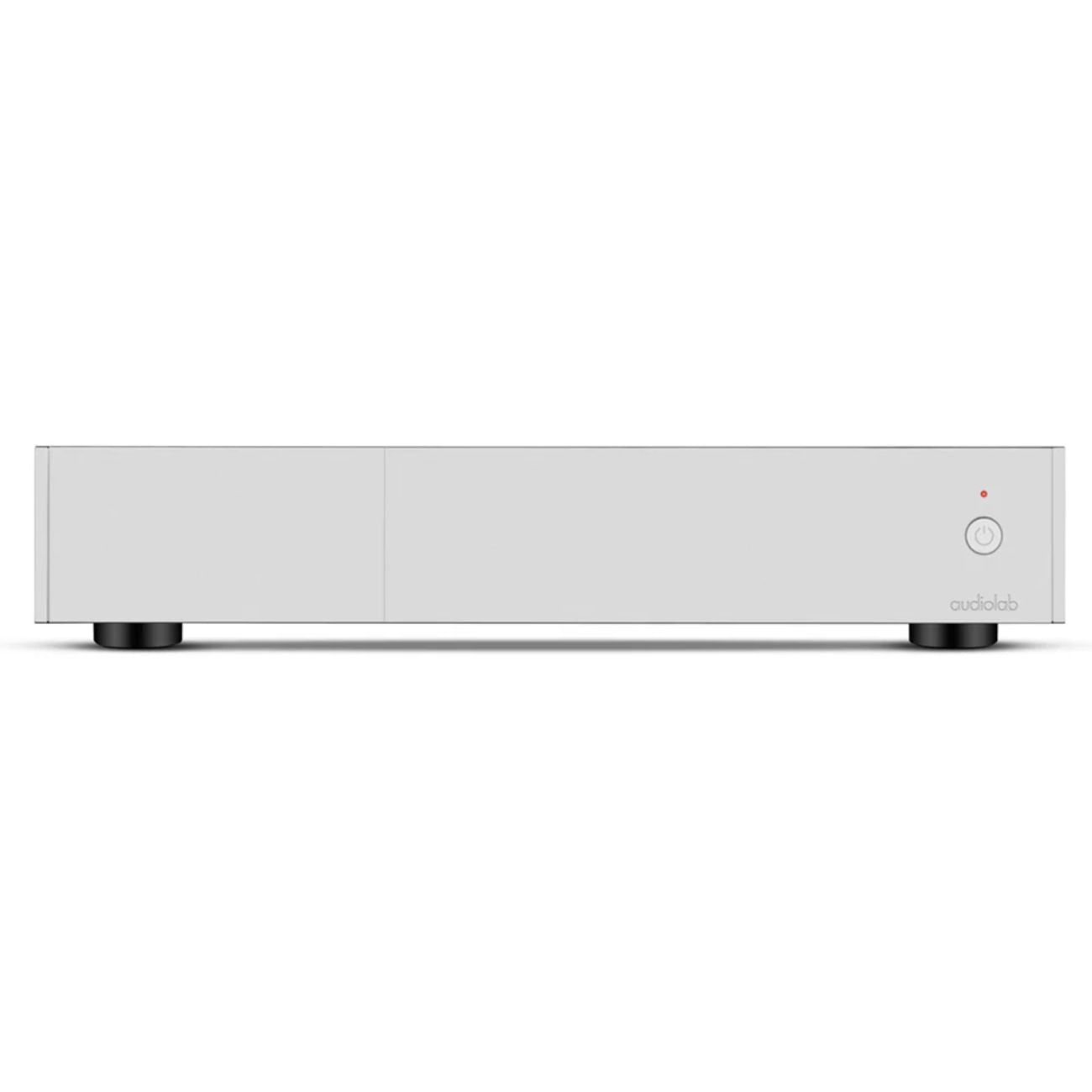

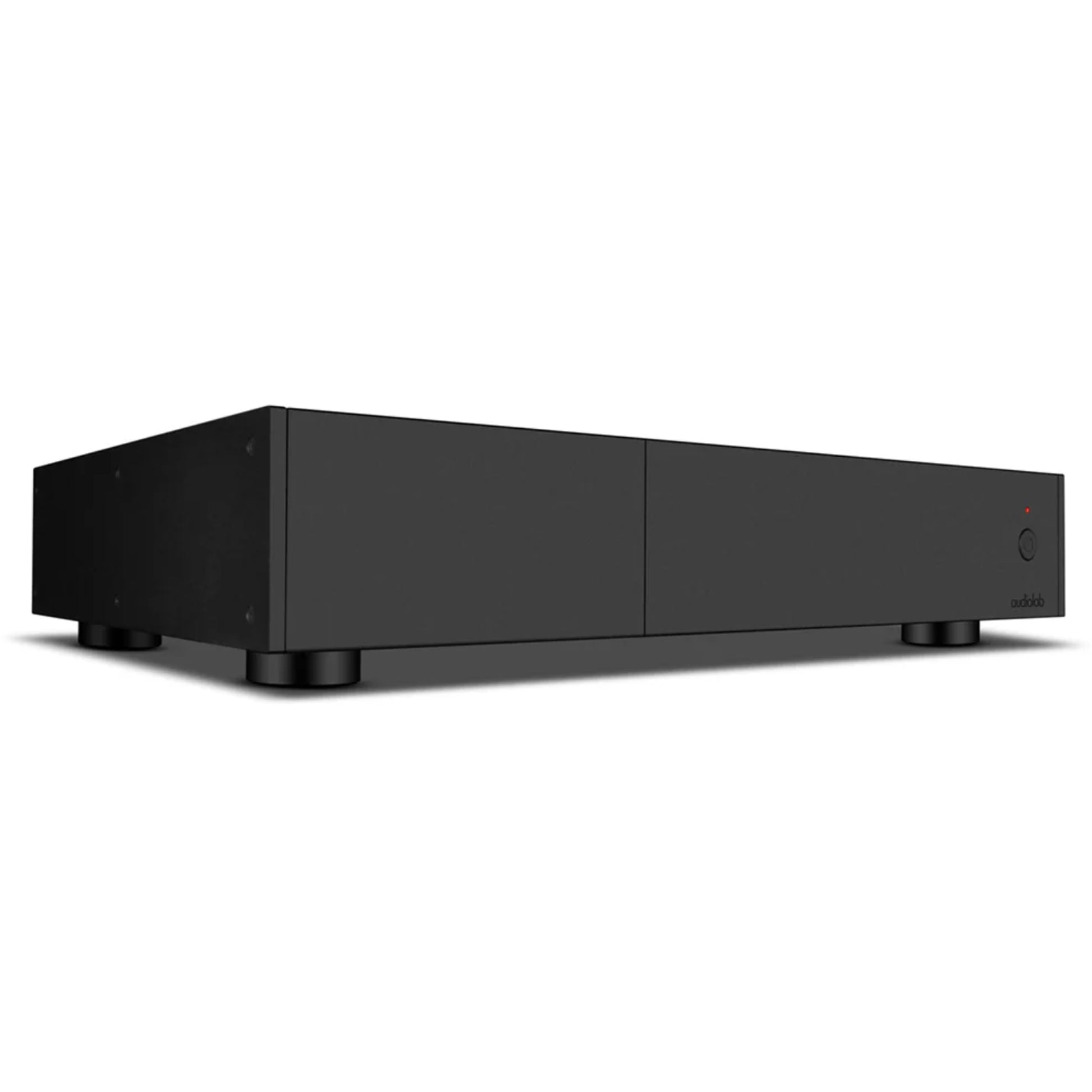

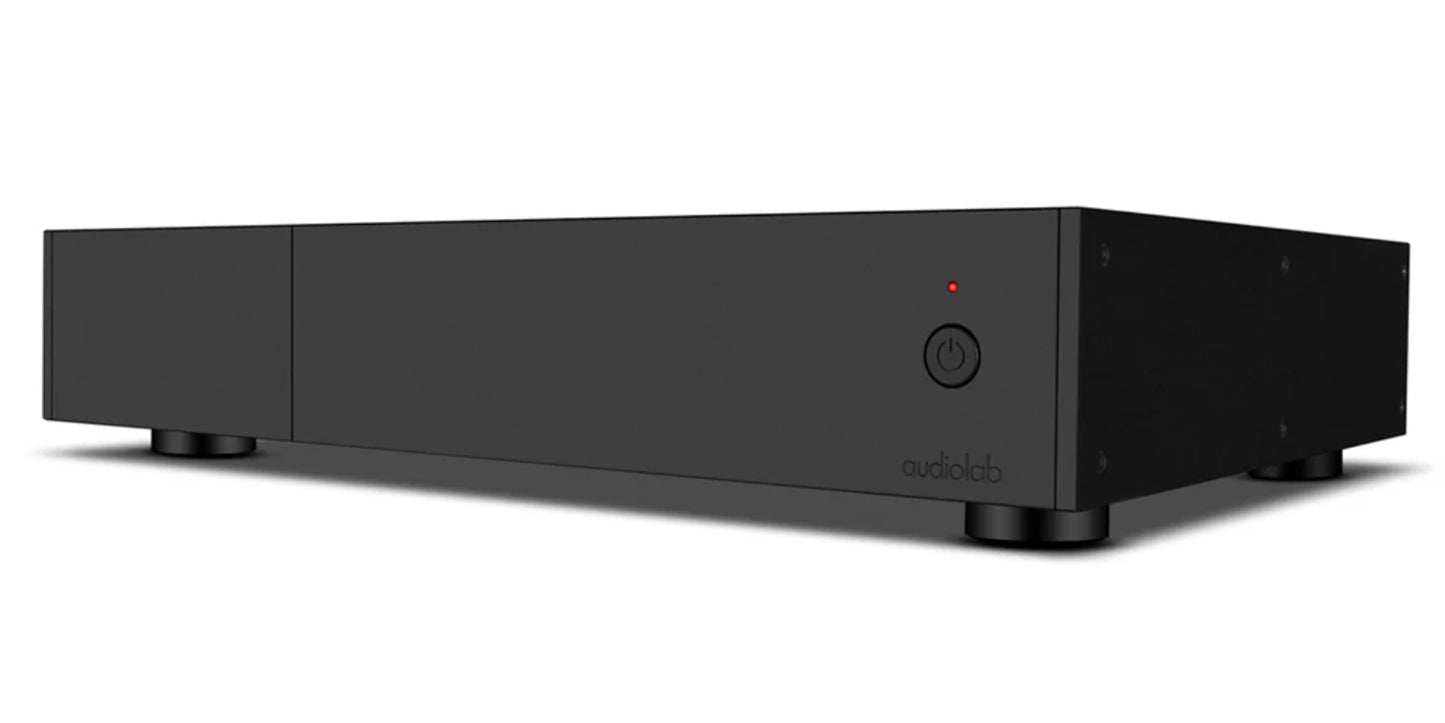

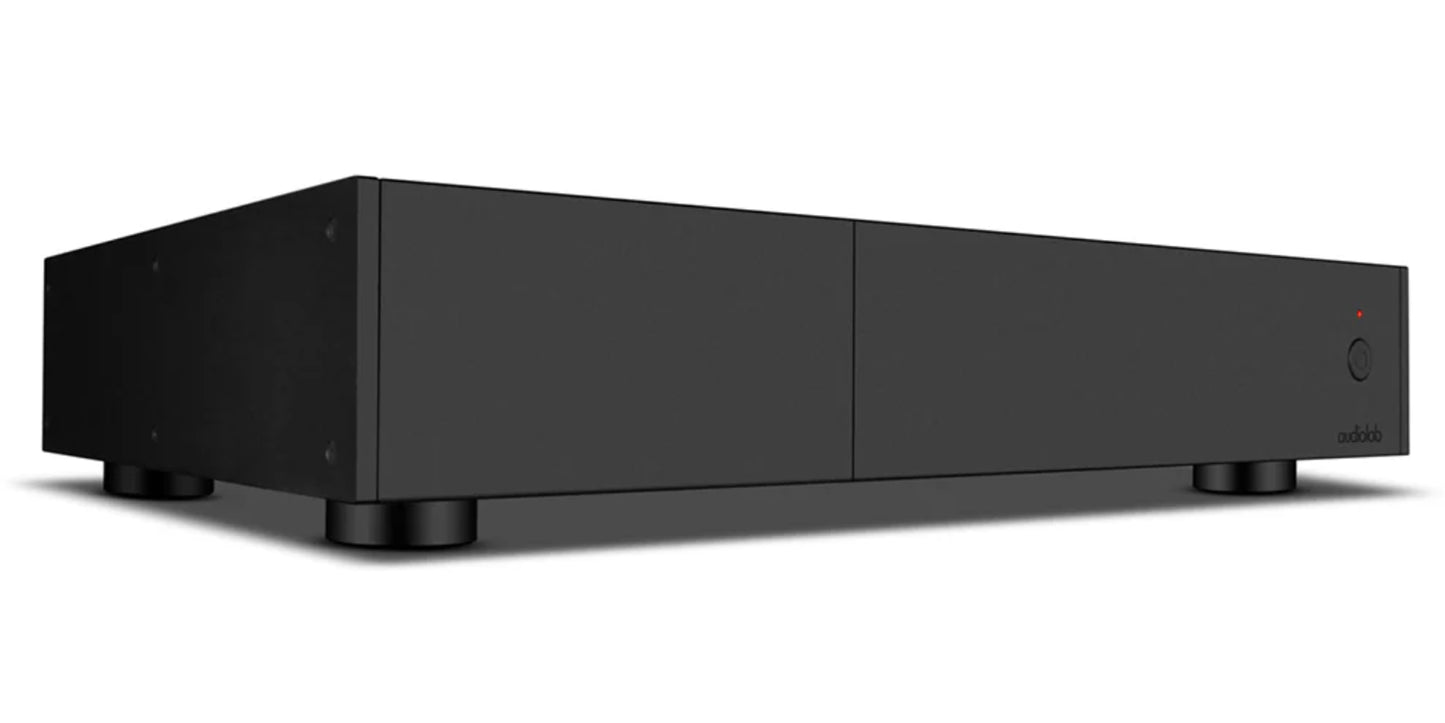

Audiolab 9000P Power Amplifier
The introduction of the Audiolab 9000P power amplifier marks the logical progression of the 9000Q preamplifier, offering a dedicated power solution for the series. Designed to complement the 9000Q, the 9000P extends the functionality and performance of the range, catering to those seeking high-fidelity audio with exceptional clarity and control. This dedicated power amplifier exemplifies Audiolab's commitment to delivering superior sound quality and system flexibility.
Central to the 9000P's performance is Audiolab's signature CFB (Complementary Feedback) topology, which ensures linearity and excellent thermal stability. By maintaining idle current independently of the output transistors' temperature, this design achieves consistent and reliable operation. The amplifier is powered by a custom 320VA toroidal transformer, paired with 60,000uF of reservoir capacity, enabling it to deliver impressive dynamic range and maintain firm control over musical performance, regardless of complexity.
Single or Dual Set-Up: The 9000P delivers 100W per channel into 8 Ohms, perfectly matching the 9000A and providing seamless integration with the 9000Q. However, the amplifier's versatility truly shines with its bridged-mode functionality, inspired by the success of the Audiolab 8300MB mono amplifier. When used as a monoblock, the 9000P can deliver an astounding 300W into 8 Ohms, offering exceptional power for demanding audio setups. This dual functionality ensures the 9000P meets the needs of both stereo and high-power configurations.
An Outstanding Performer: In line with the sleek design of the 9000 series, the 9000P is impeccably constructed, boasting a robust build and a refined finish. Its versatility makes it suitable for various roles, whether as a stereo amplifier, a monoblock for higher power, or an enhancement to an existing system. At its price point, the 9000P is virtually unmatched, offering a combination of exceptional specifications, outstanding performance, and elegant design. With its unparalleled versatility and capability, the 9000P sets a new benchmark in the world of high-fidelity audio.
Our Take On The Audiolab 9000P
The Audiolab 9000P power amplifier is a standout addition to the 9000 series, designed to pair seamlessly with the 9000Q preamplifier while delivering exceptional performance and flexibility. Central to its design is Audiolab's Complementary Feedback (CFB) topology, which ensures consistent linearity and thermal stability, supported by a custom 320VA toroidal transformer and 60,000uF of reservoir capacity for impressive dynamic range and precise control. Delivering 100W per channel into 8 Ohms in stereo mode or a remarkable 300W in bridged monoblock configuration, the 9000P offers versatility for various system setups. Encased in a robust, elegant chassis, this amplifier embodies Audiolab's commitment to superior sound quality, sleek design, and unmatched value, making it a top choice for audiophiles seeking high-fidelity audio.
Main Features & Specifications
- Design: 100 Watt Stereo Power Amplifier, 300 Watts Mono

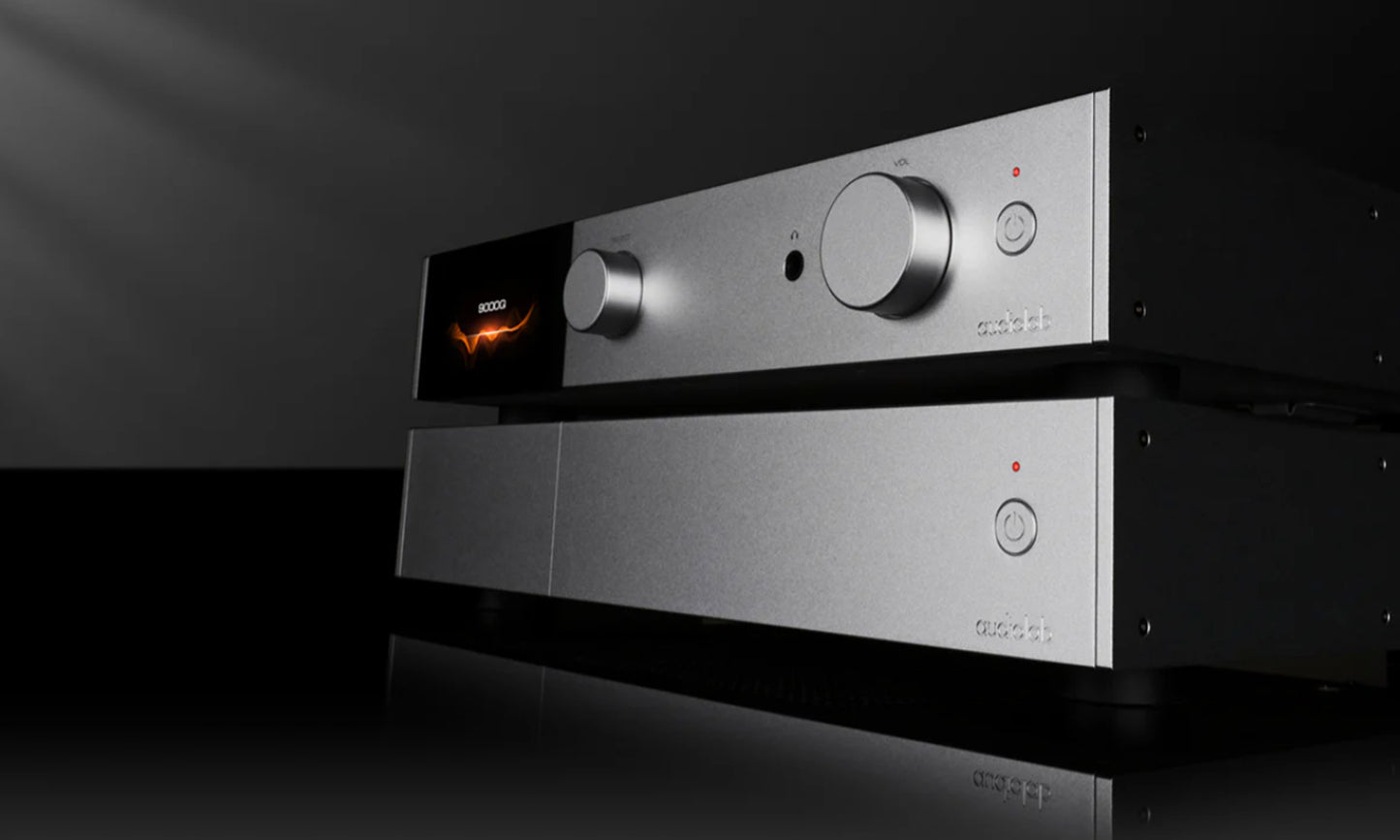

- The fully balanced Audiolab 9000Q Preamplifier is the perfect companion for the 9000P
- Design Philosophy and Core Technology
- Class AB power amplifier
- CFB (Complementary Feedback Technology)
- Stereo/Bridge mode

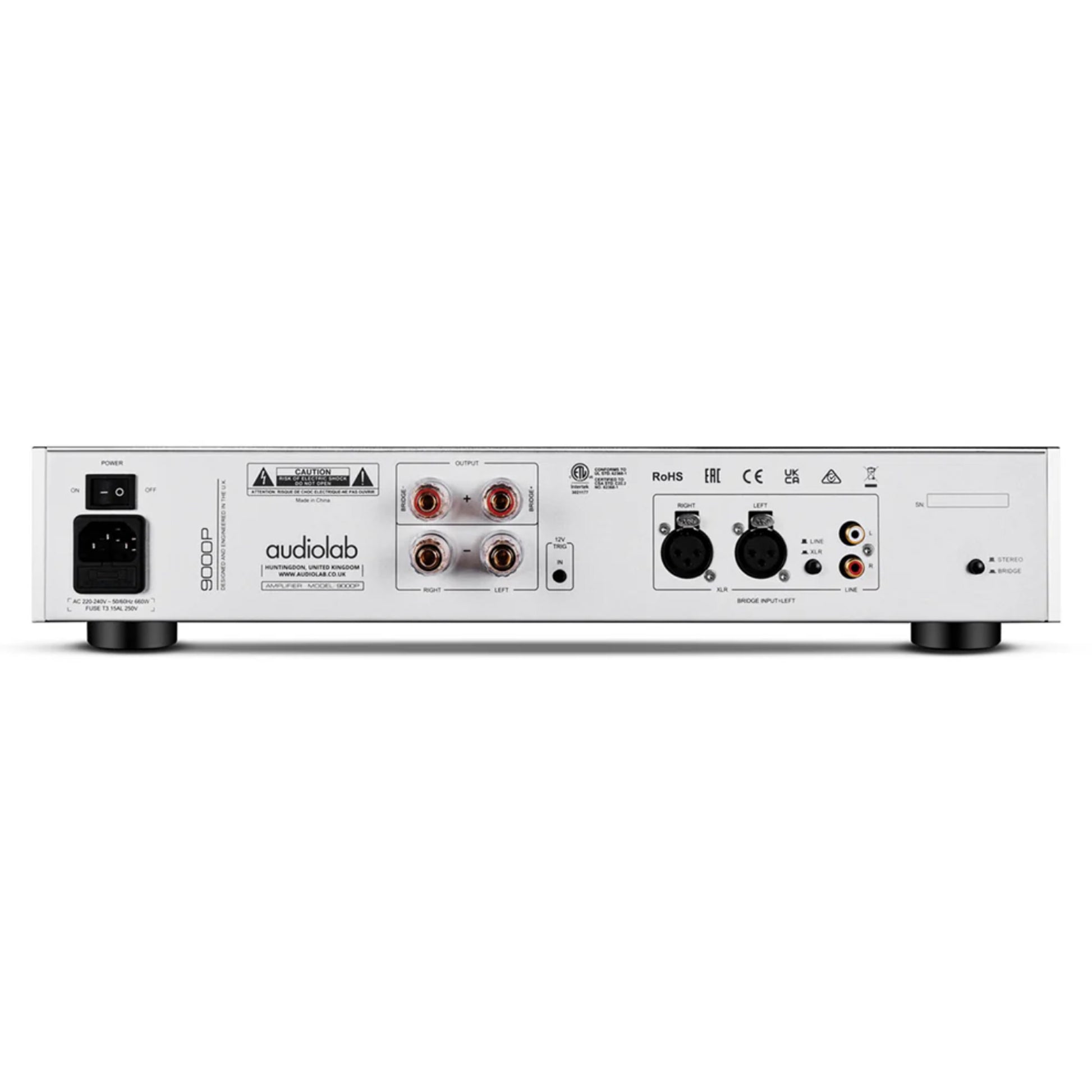

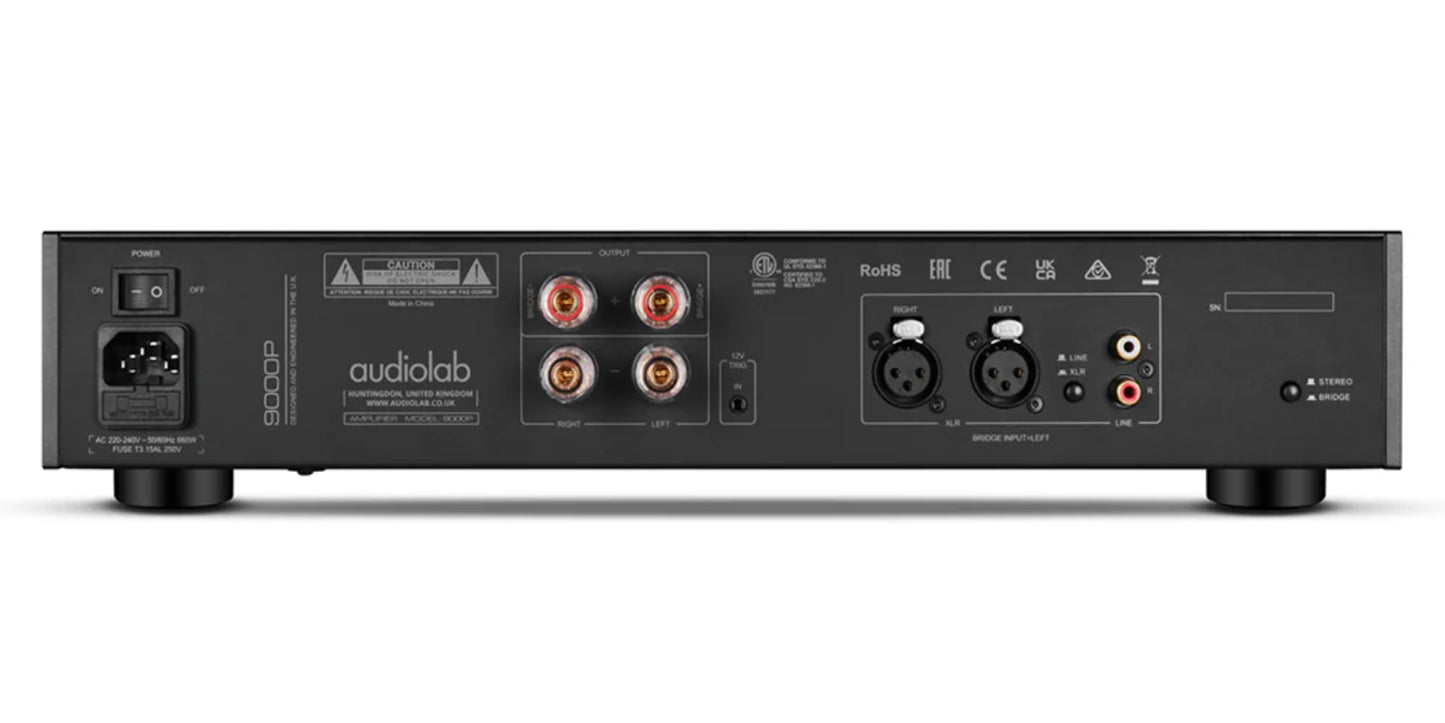

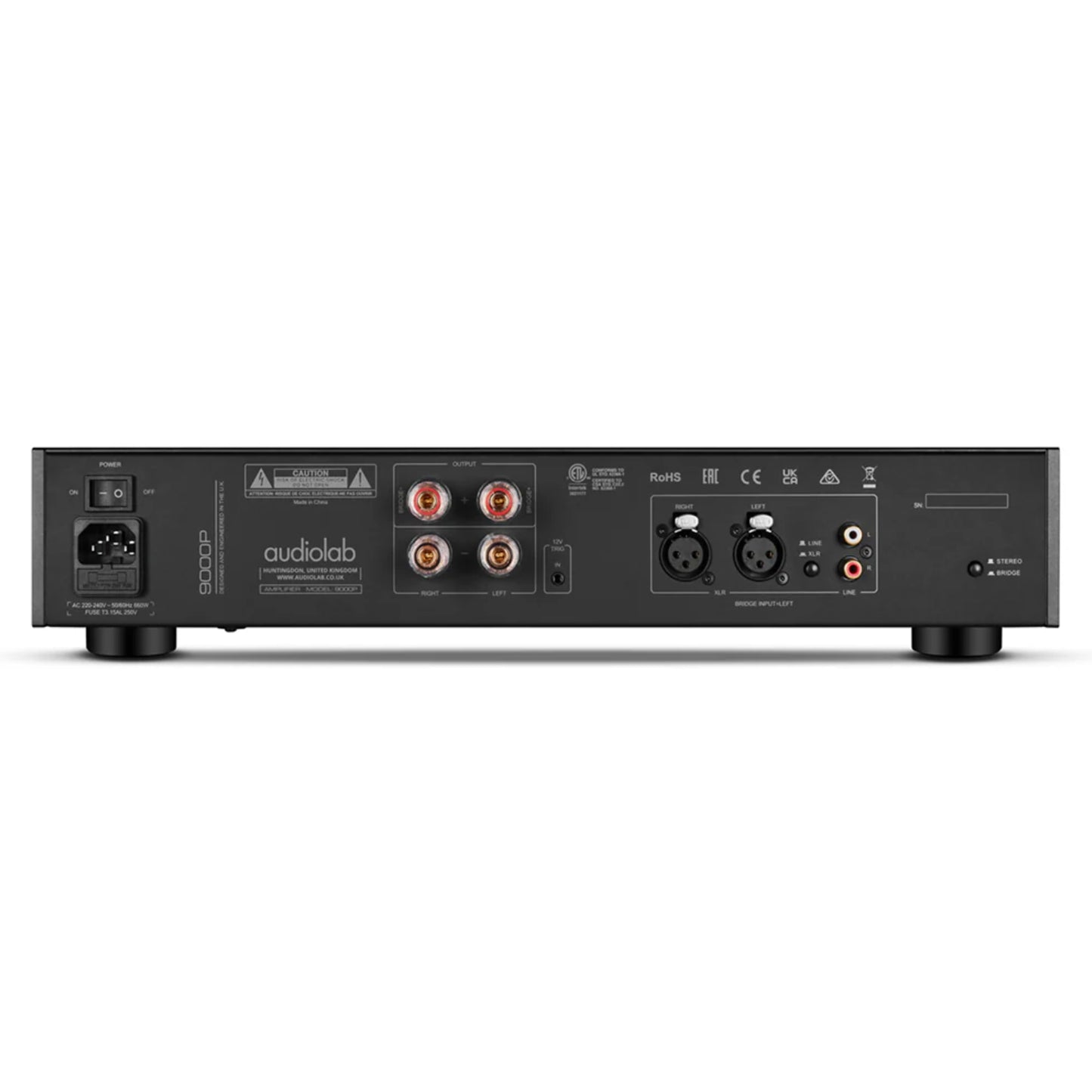

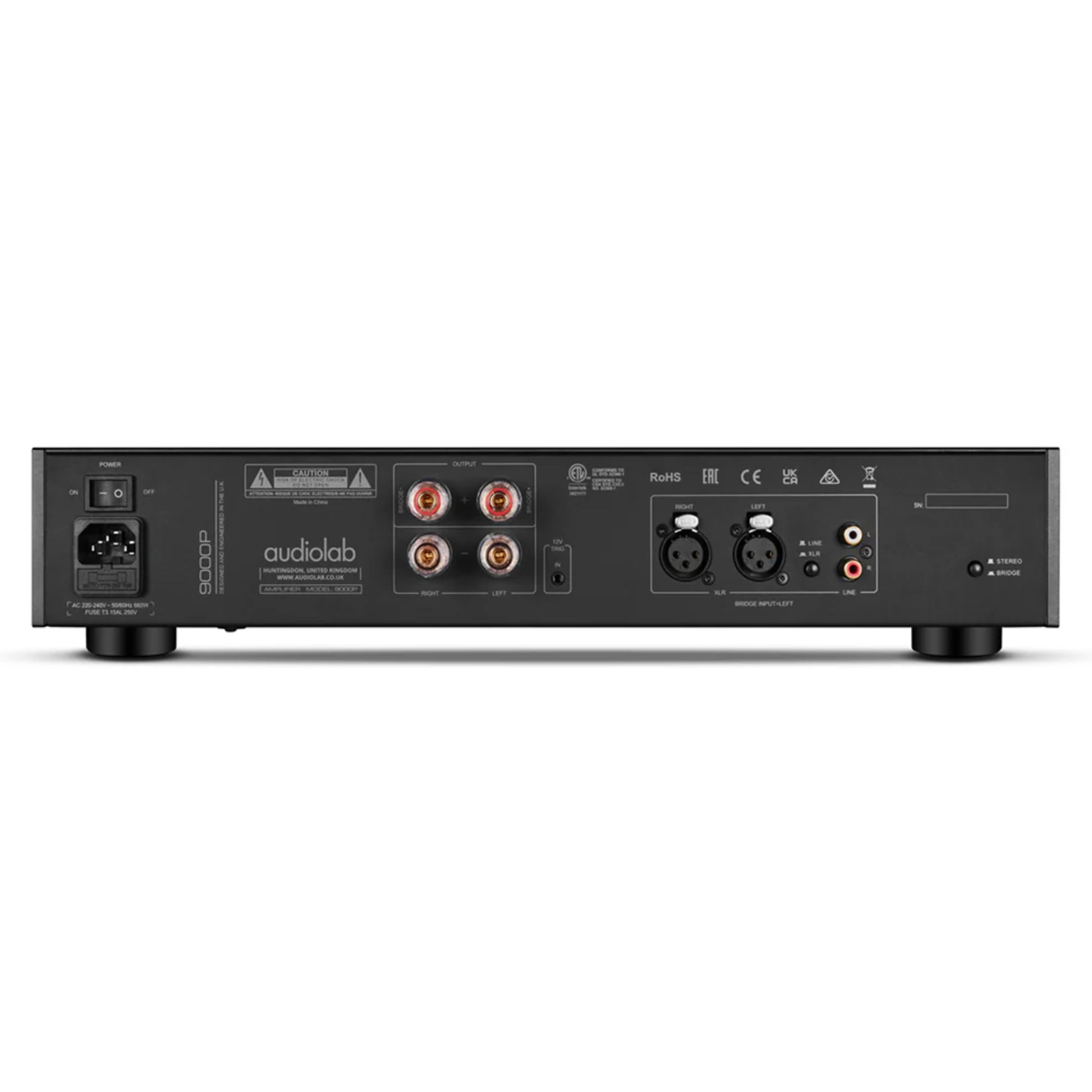

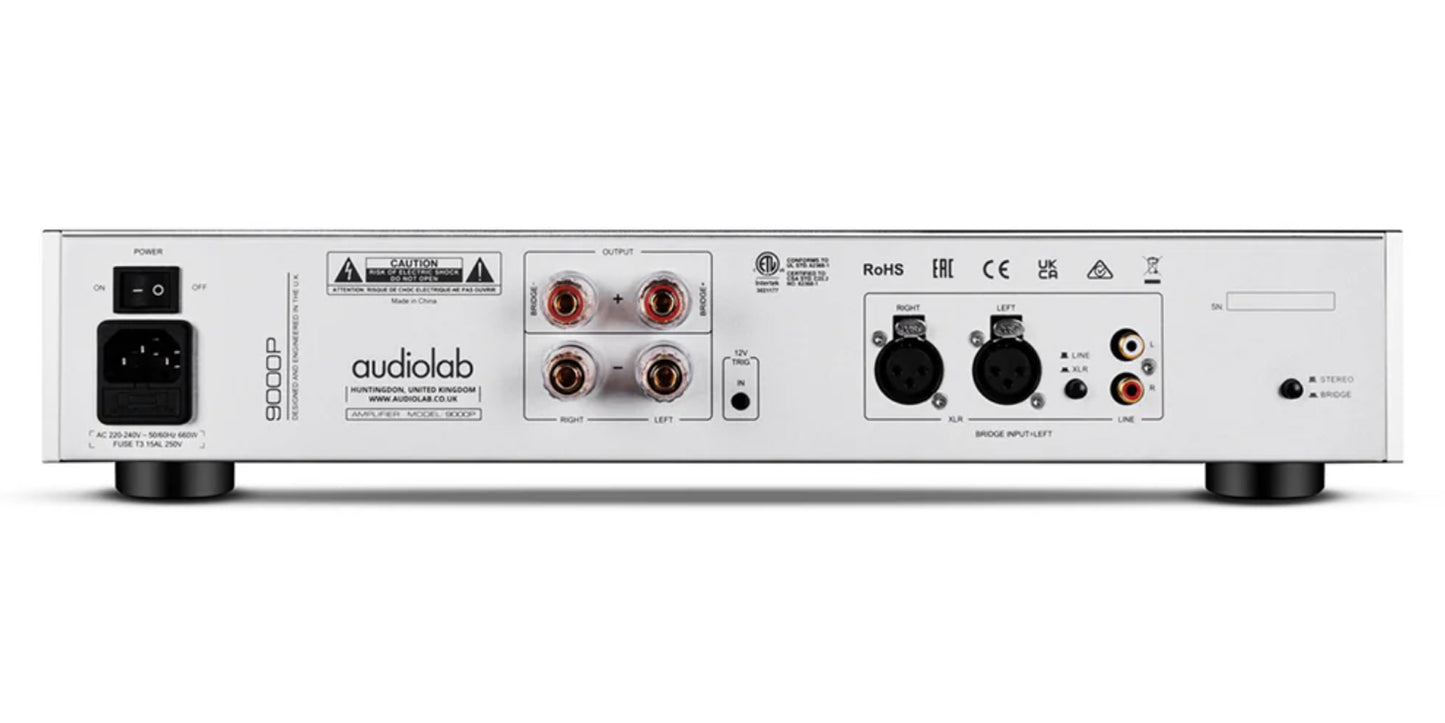

- Inputs: 1 x Analogue, 1 x XLR, 1 x 12V Trigger
- Outputs: Stereo Speaker Outputs
Power Amplifier Section
- Gain: 29dB (RCA) / 23dB (XLR)
- Rated Power Output
- Stereo: 2 x 100W (8 Ohms, THD <1%)
- Stereo: 2 x 160W (4 Ohms, THD <1%)
- Bridged (Mono): 300W (8 Ohms, THD <1%)
- Bridged (Mono): 380W (4 Ohms, THD <1%)
- Frequency Response: 20Hz - 20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD): <0.002% (1kHz)
- Input Sensitivity
- 1Vrms (RCA)
- 2Vrms (XLR)
- Input Impedance: 10k Ohms
- Signal-to-Noise Ratio (S/N): > 112dB (A-weighted)
- Output Current: 15A
General
- Standby Power Consumption: <0.5W
- Supplied Accessories: Power Cord, User Manual
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance

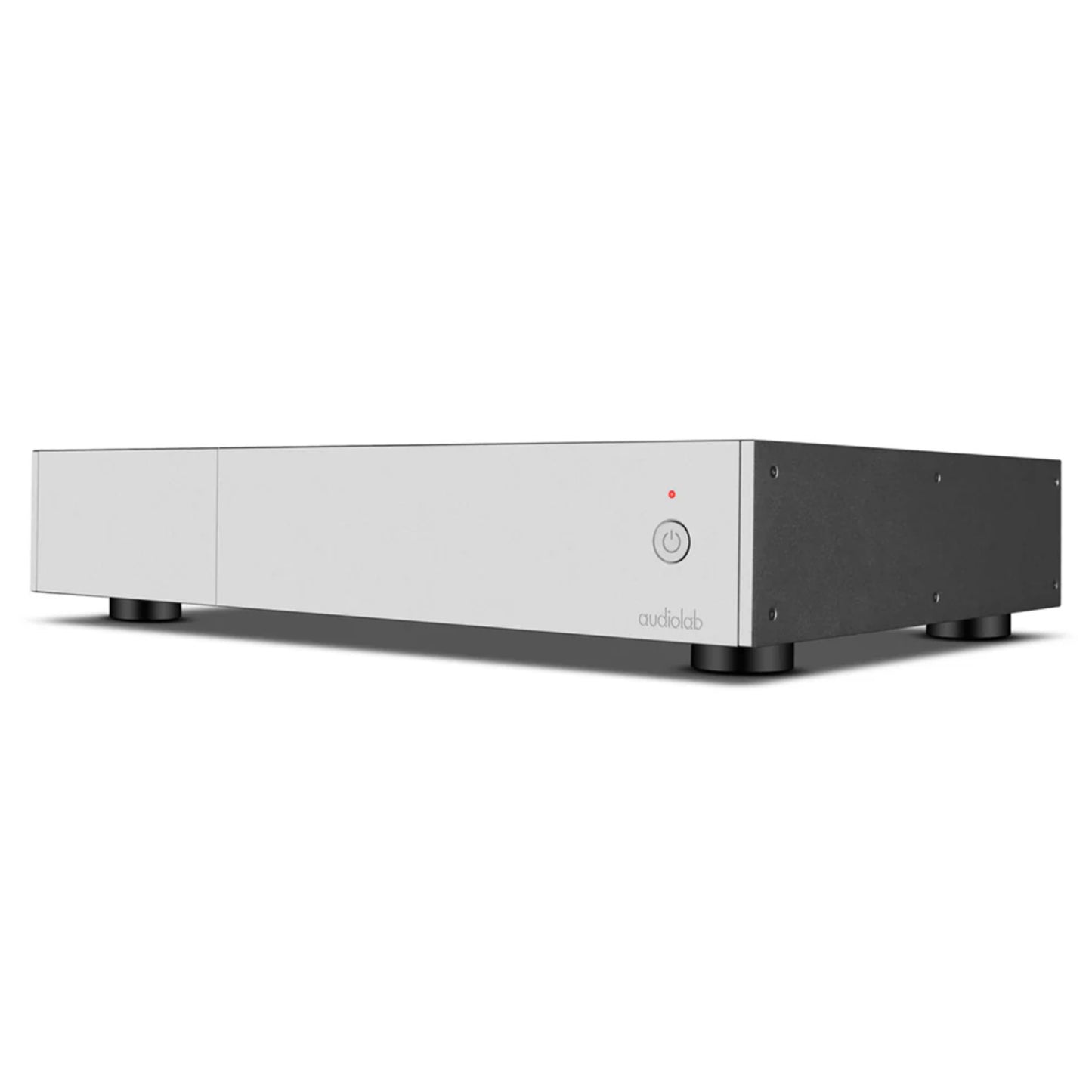

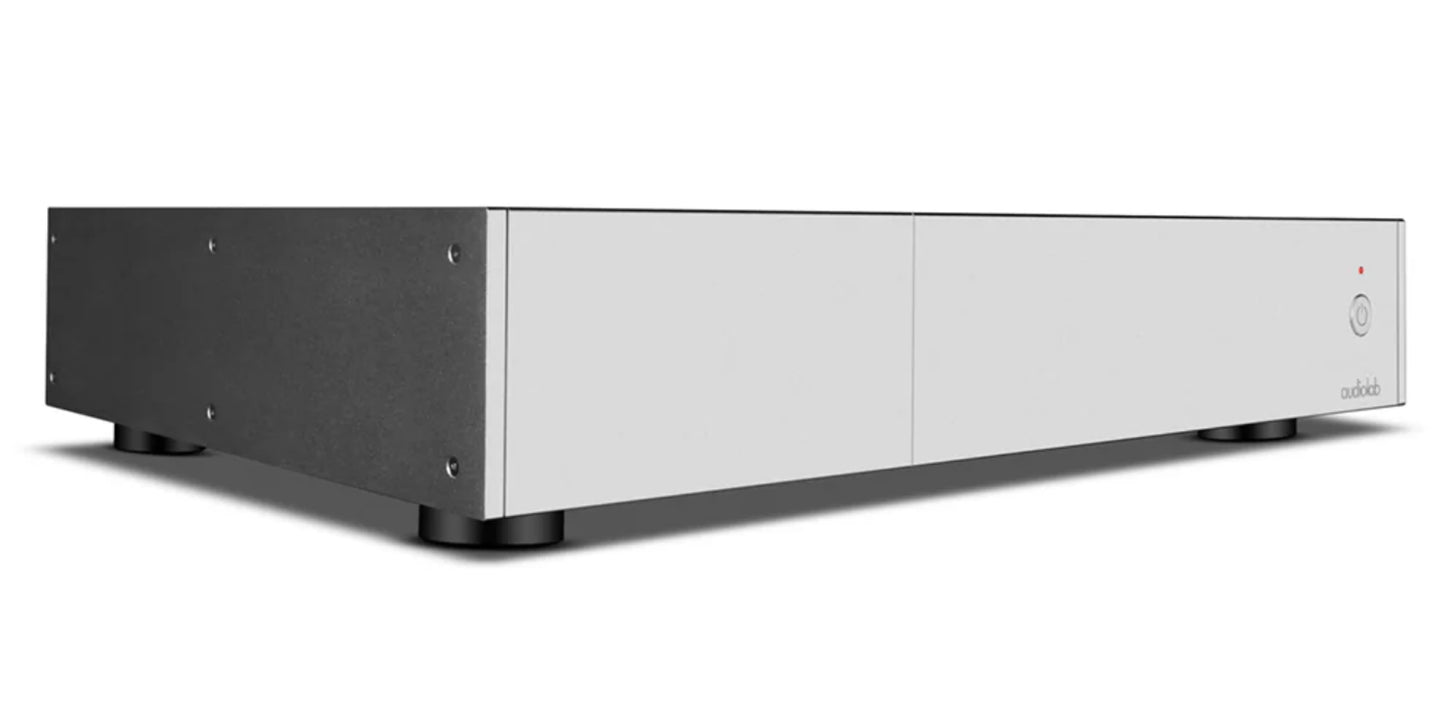

- Available Finishes Black, Silver
- Dimensions (WxHxD): 444 x 90 x 327 mm
- Weight: 9.2 kg
- Manufacturer's Warranty: 2 Years
- Learn more about Audiolab
Note: Features & Specifications Subject To Change Without Notice. E&OE.
