About The Bowers & Wilkins CWM7.5 S2 In-Wall Speaker
In-Wall speakers serve very different needs than traditional, freestanding speakers. Good ones like the CWM7.5 S2's will serve customers who want very good quality for either multi-room or surround sound speakers.

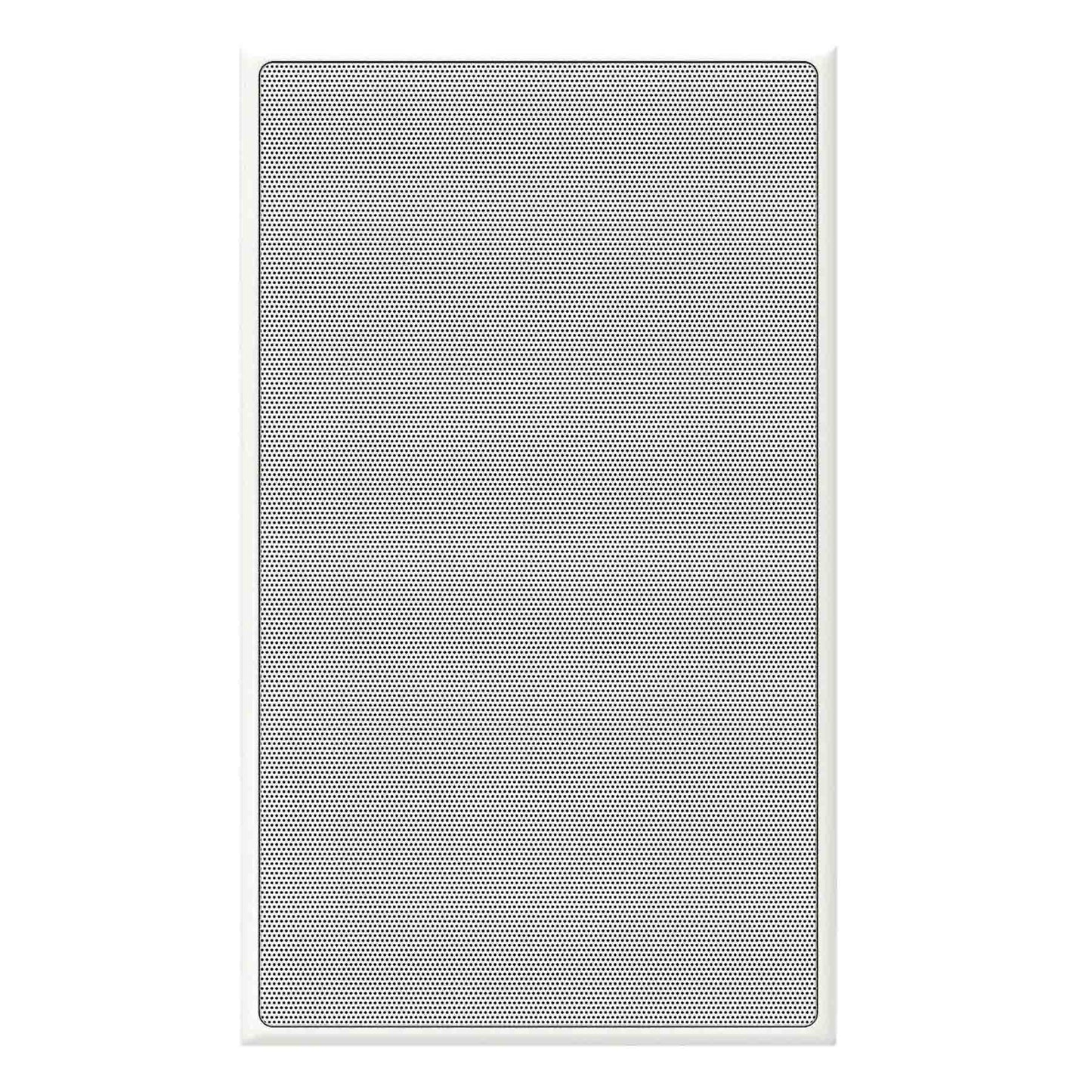

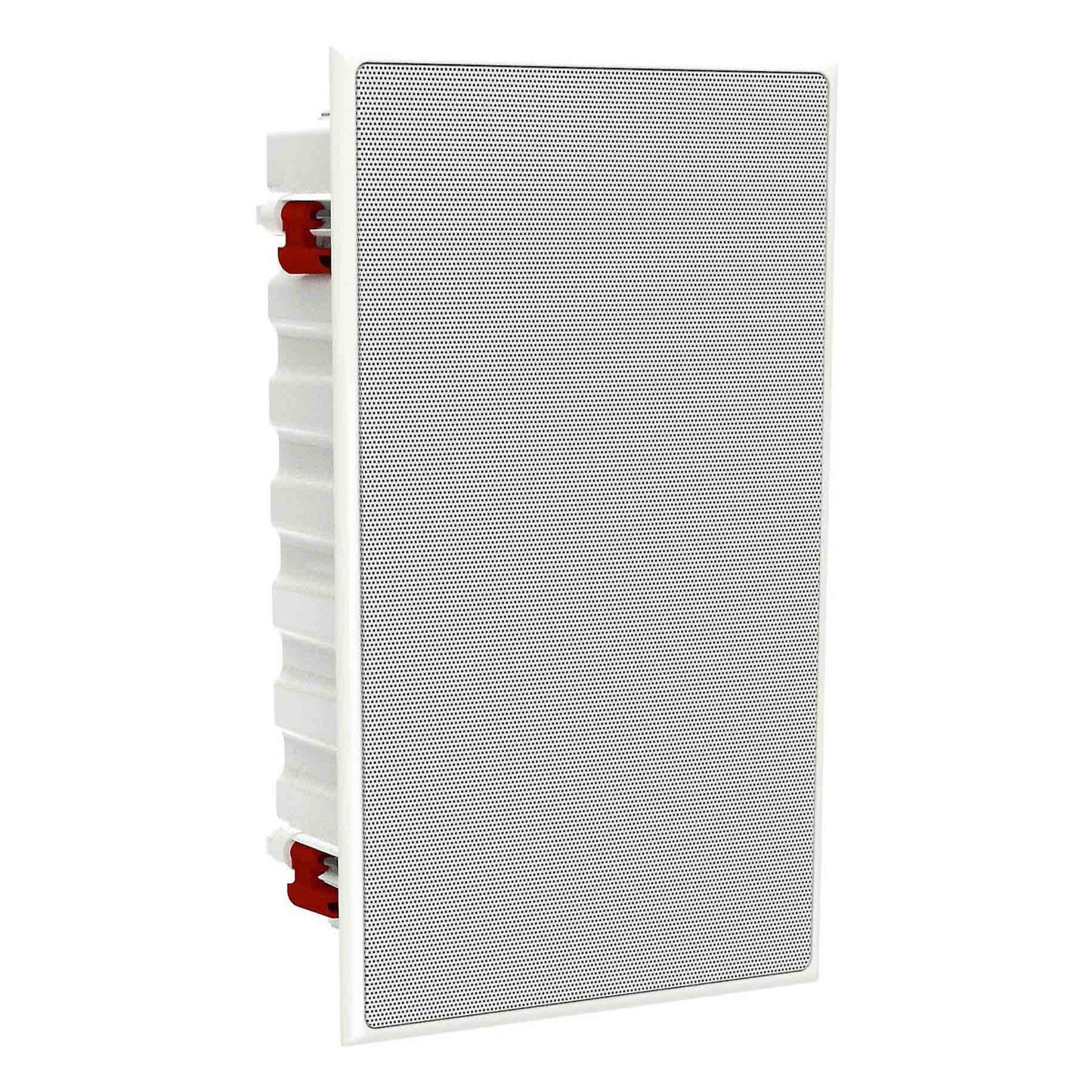

Hide the hardware and reveal the true quality of the music. From two-channel hi-fi to multi-room audio and home theatre. Bowers & Wilkins Custom Installation speakers are capable of delivering sound that is, quite simply, out of sight. Each model in the Series is designed to be installed neatly into wall or ceiling, fitting virtually flush to the surface. The only visible evidence of each speaker is its slimline grille and frame, which can be painted to blend perfectly with your interior style.
So forget cabinets, forget cables and focus all your attention on the pure aesthetics of your living or work space. While Bowers & Wilkins Custom Installation speakers are made to disappear from view, they produce a sound that's anything but shy and retiring. Harnessing the same Bowers & Wilkins technologies found in recording studios around the world, the speakers will fill a room with stunningly lifelike, three-dimensional sound. The result is a series that's near invisible to the eye, but infinitely pleasing to the ear.

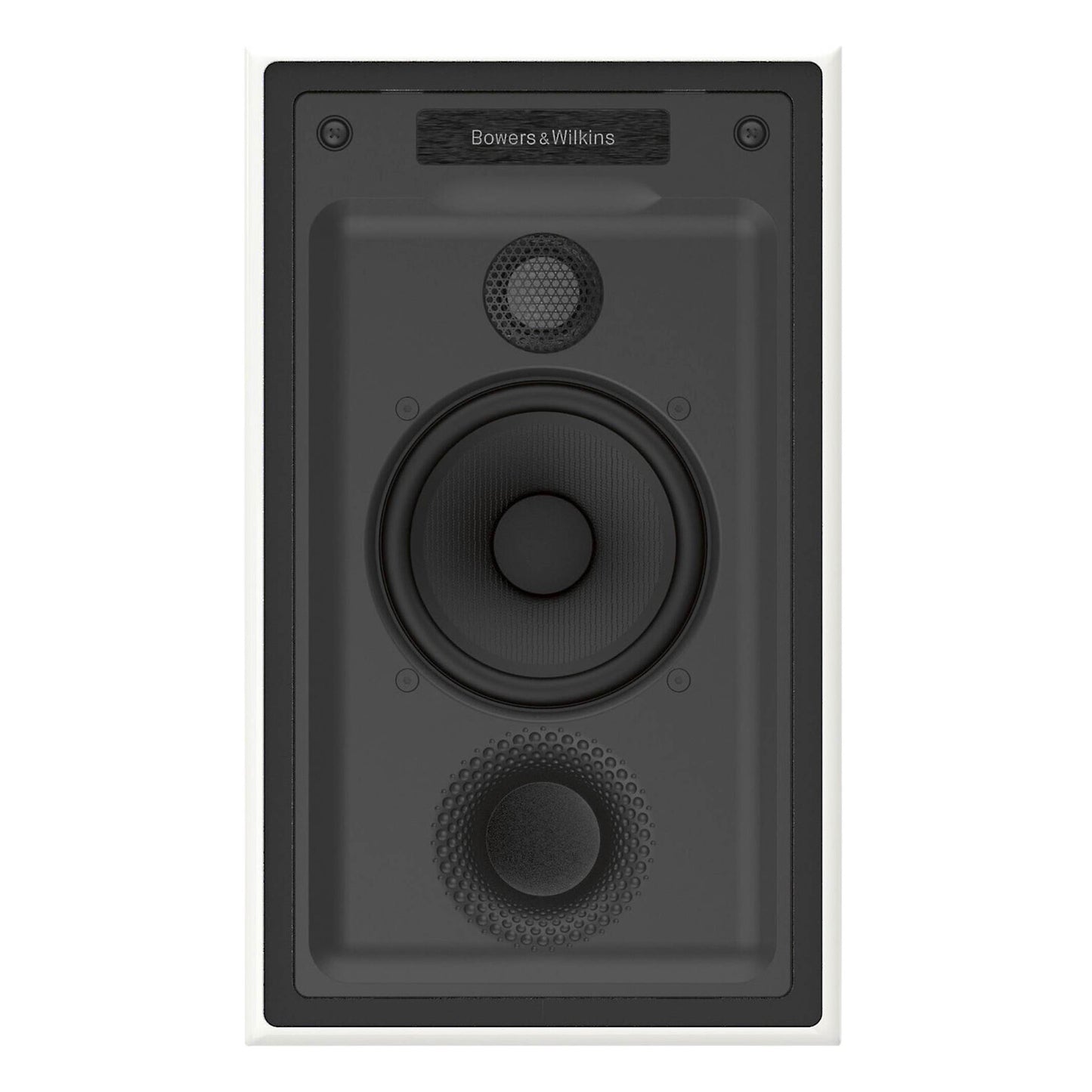

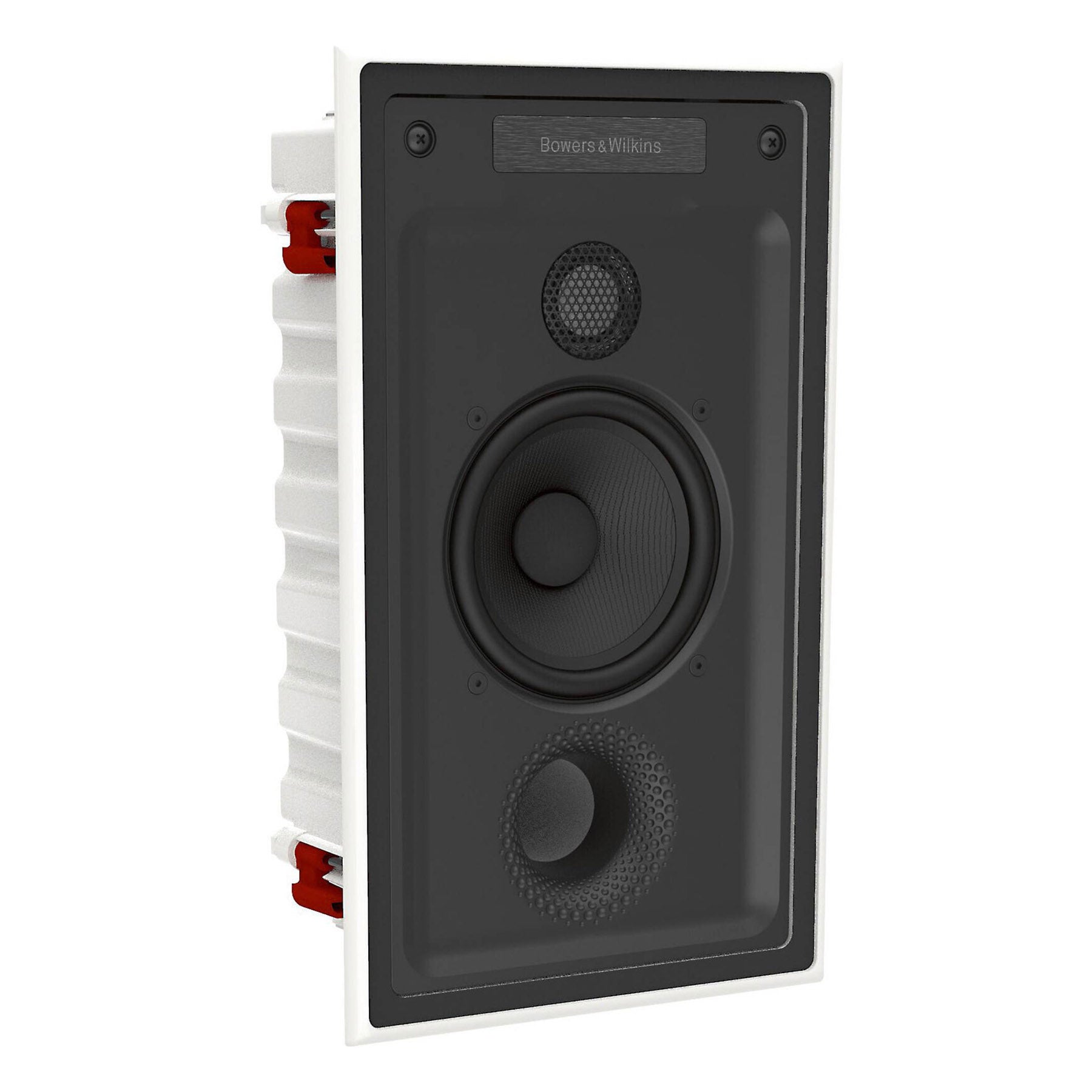

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5") bass/mid-range Continuum cone driver plus a 25mm (1") Carbon Dome tweeter, coupled to a forward-firing Flowport™ for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It's an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.
The amplifier power output range is suggested at 25 - 150 Watts per channel which covers the majority of amplifiers and most consumer needs. We would recommend a maximum input of around 120 Watts per speaker which is very loud!

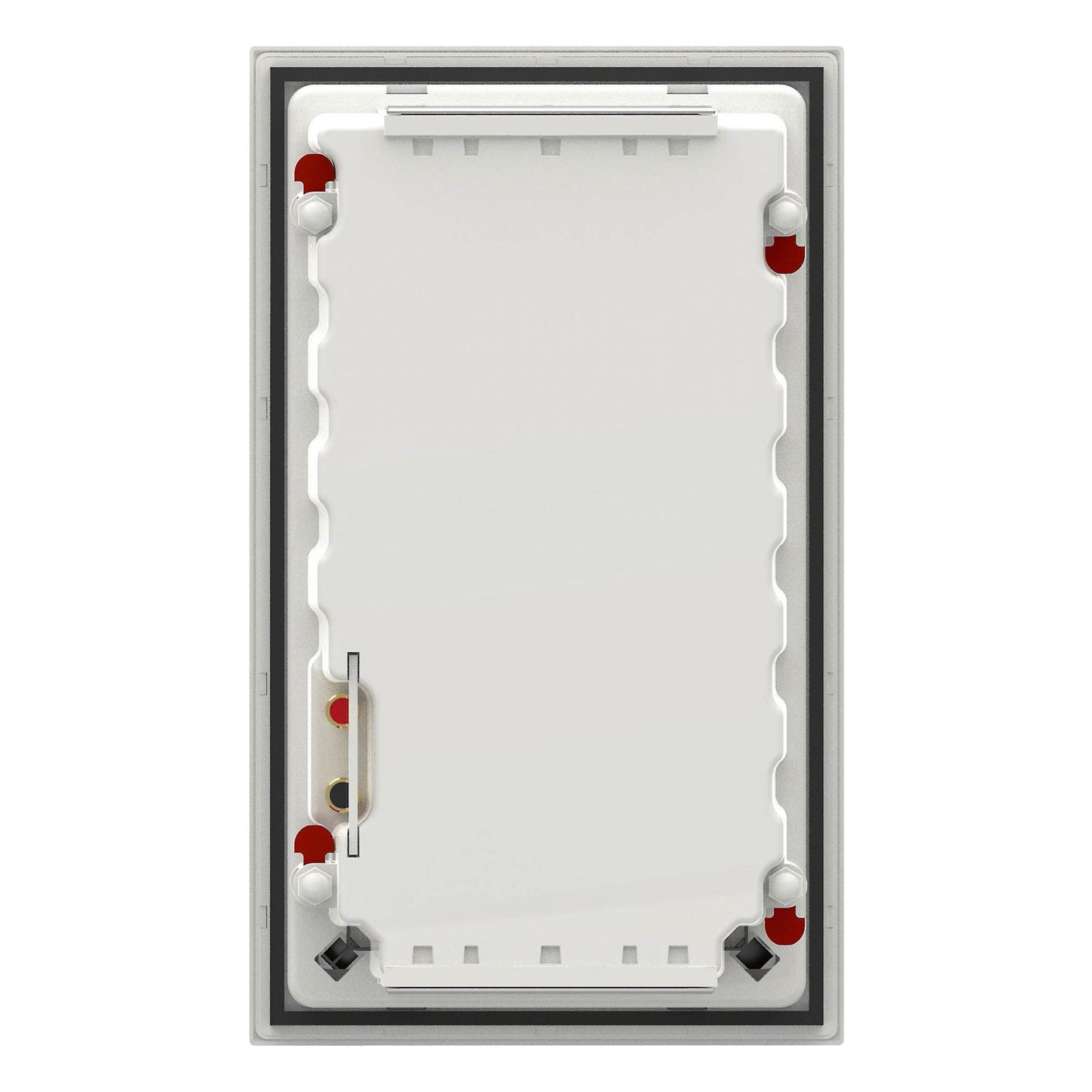

Installation couldn't be easier thanks to the QuickDogs™ fixing system - a nifty little Bowers & Wilkins invention - and plug-and-play connection.
Advanced Technology: Trickle down technology from the high-end home audio series has now found its way into the entire CM Series. The advanced Carbon Dome tweeters are exceptionally rigid, deliver extremely uniform and instantaneous power response ensuring nice, clear highs. The advanced Continuum Cone mid/bass drivers have larger than average, computer-optimised magnets and high-power motor structures that promote natural and detailed sonic reproduction with outstanding extended bass response. The crossover networks are very sophisticated by any standards.
Research - Building Projects: If you are reading this material as part of research of a new building product, then you may be surprised to know that on average in the USA, 65% of all new homes built have multi-room sound in some description specified as a standard feature. Although we don't have the exact figures for Australia, we're fairly confident that it will be the same or even more. Australian's love new technology.
But sadly, the big home builders have looked at this as simply a profit opportunity and unless you organise otherwise will install what are known as "contractor series" speakers. If you guessed that these were bottom of the pile quality, you'd be right! A wrong decision here means you are stuck with bad sound and until the day you move or have them replaced.
Tip: Due to a simple lack of knowledge, many consumers think that custom install speakers are a cheap option/alternative to other types of speakers. However, good quality custom install speakers need some serious engineering to work well in your ceiling or wall. Some models have 'boxes' that you can specify which protect not just from the elements but also meet one-hour fire-proof specifications.
Buyer Beware: There are dozens if not hundreds of In-Wall and In-Ceiling brands on the market. In fact, if you order enough, the Asian manufacturers will put any name you like on them! Don't laugh, because it is actually happening and boy are they cheap... but also nasty - real nasty!
The good news is that you can now buy In-Ceiling & In-Wall Speakers that actually deliver very good sound and UK brand Bowers & Wilkins is living proof - everything they put their name to is designed in house including their In-Wall and In-Ceiling products which although mostly unseen could be referred to as "buried treasures."
Our Take On The Bowers & Wilkins CWM7.5 S2
By purchasing products like the Bowers & Wilkins CWM7.5 S2's you will be better off and eliminate all the headaches and disappointments with lower quality products. Additionally, they have an extremely rigid, high-strength chassis with a unique and easy-to-install mounting bracket system. However, with a lowish 86dB sensitivity rating they absolutely need a 'beefy' or high-current amplifier capable of delivering substantial amounts of power to get them sounding their best. We cannot stress this point enough, otherwise you may have problems if you connect to a lower powered amp even though Bowers & Wilkins state differently! Maybe if you play music or movies similar to an elevator then you may be OK but definitely not if you like to even occasionally turn up the volume.
For those of us that have not only a need for In-Wall speakers, but a desire for something that has been designed to sound as good as possible, Bowers & Wilkins is a company you can trust. Looking at the improvements they've made in the different lines over the years, shows clearly that they are thinking about the specific use of the speaker in the home environment and even in the future. The products are also compliant with the latest international environmental standards for end-of-life disposal.
You'll enjoy superior performance at a competitive price with any of the Bowers & Wilkins CM Series custom speaker range. The CWM7.5 S2's are suitable for many surround speaker applications in a home theatre set-up where something better than just "also ran" performance is a requirement. We recommend a subwoofer to complete the system. Of course we can arrange professional installation of these speakers with our in-house Custom Installation Team. Please call and speak with us for more details.
Main Features & Specifications
- Design: 2-Driver, 2-Way In-Wall Speaker – Sold Individually
- Tweeter: 25mm (1") Carbon Dome Tweeter
- Mid/Bass: 130mm (5") Continuum Cone Mid/Bass Driver
- Recommended Amplifier Power: 25 Watts - 150 Watts RMS
- Frequency Range: 43Hz - 33kHz, -6dB
- Frequency Response: 45Hz - 28kHz, ±3dB
- Impedance: 8 Ohms (nominal) – 3.8 Ohms minimum
- Sensitivity: 86dB
- Harmonic Distortion 2nd and 3rd harmonics (90dB, 1m)
- <1% 90Hz - 33kHz
- <0.5% 120Hz - 33kHz
- Finish: White - can be painted
- Frame Height: 356mm
- Frame Width: 212mm
- Depth (Behind Surface): 102mm
- Cut-Out Height: 331mm
- Cut-Out Width: 187mm
- Cut-Out Height (with PMK): 336mm
- Cut-Out Width (with PMK): 192mm
- Reservoir Box Height: 385mm
- Reservoir Box Width: 181mm
- Protrusion: 8mm
- Weight: 3.8kg
- Designed In England
- Manufacturer's Warranty: 5 Years. (Covers faulty workmanship and materials, but not abuse).
Note: Features & Specifications Subject To Change Without Notice. E&OE.
