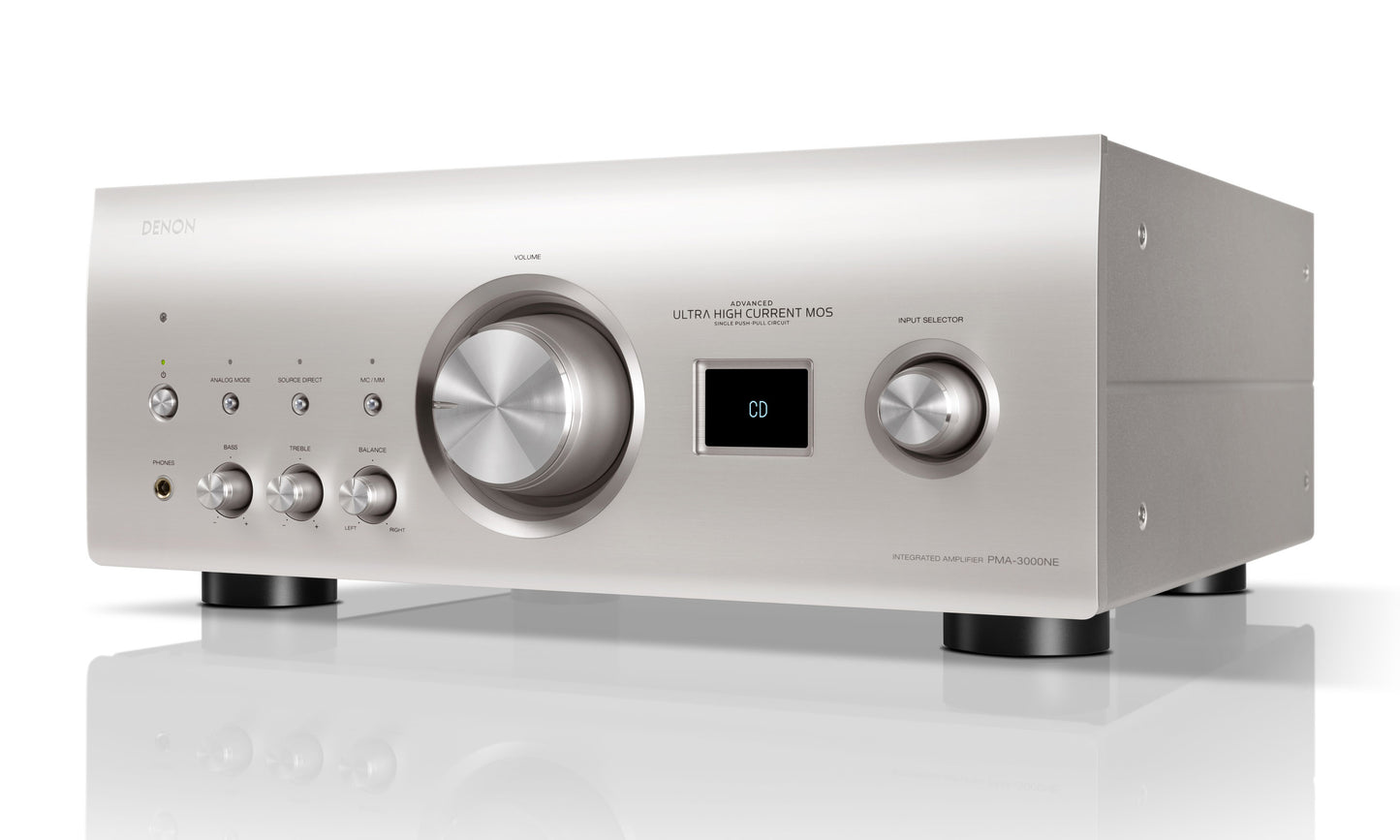

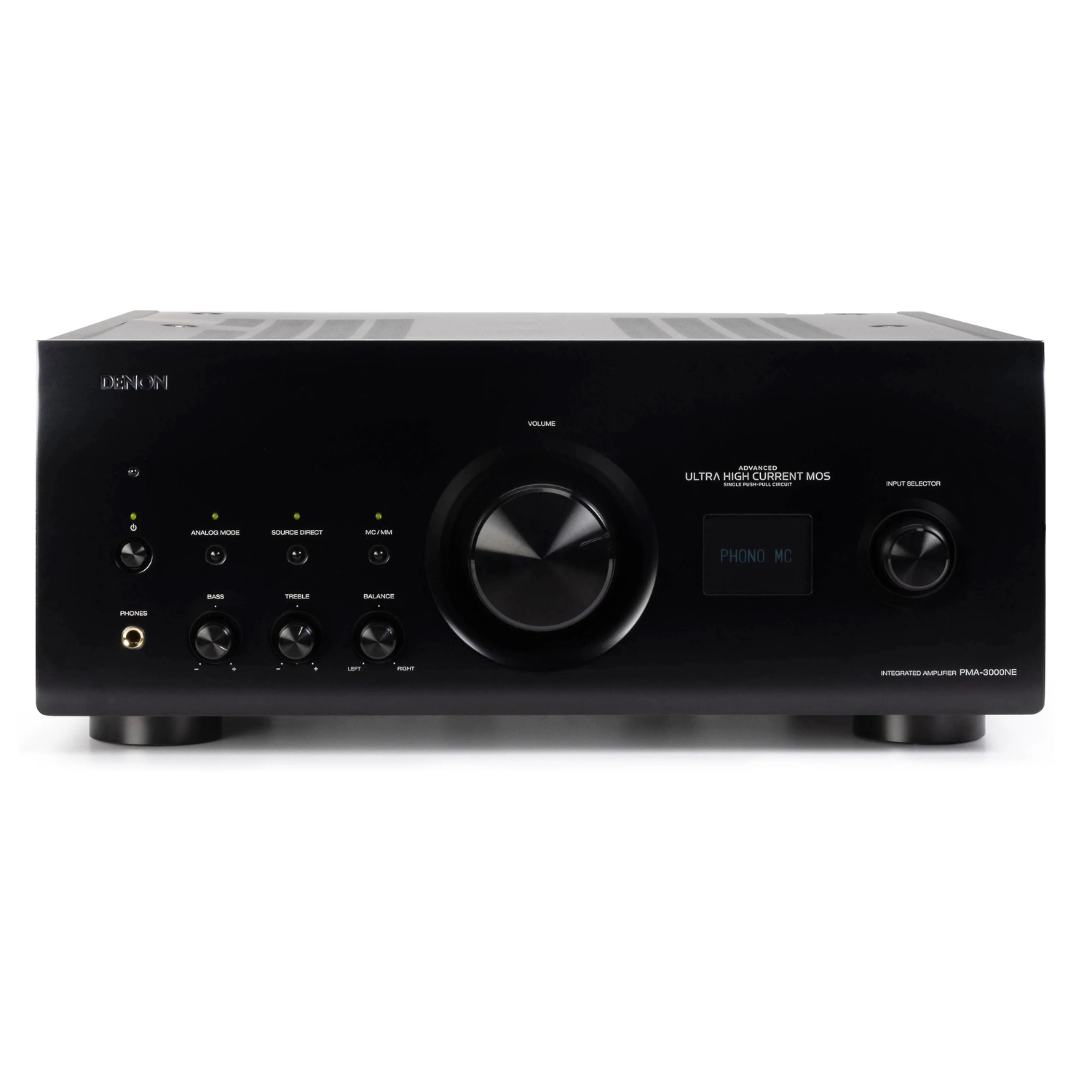

About The Denon PMA-3000NE Integrated Amplifier
Experience audio excellence redefined with the Denon PMA-3000NE. Delivering 160W per channel at 4 Ohms/80W per channel at 8 Ohms, this powerful amp drives speakers with clarity and linearity. With versatile digital connections, 384kHz/32-bit support, Pure Analogue Mode, and an MM/MC phono stage, it delivers superior sound in any scenario.
Drives Even the Most Demanding Speakers: A push-pull amplifier, delivering 160W/channel into 4 Ohms and 80W/channel into 8 Ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly Integrate High-Resolution Digital Audio: Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32-bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your Vinyl Collection's Full Potential: The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
Analogue Mode: Analogue mode bypasses digital circuitry for a pure, all-analogue sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
Precision Control: Microcontroller-managed volume, balance, and tone controls offer precise digital adjustments with the feel of analogue. It's the ultimate blend of modern functionality and old-school charm.
Ultra AL32 Processing: Denon's Ultra AL32 Processing analogue waveform reproduction technology uses data interpolation algorithms to achieve smooth high-resolution output, with a waveform that closely matches the original. Algorithms support PCM input signal resolutions up to 384kHz/32-bit, performing upsampling to smooth out the waveform and deliver richly detailed, expressive sound that's faithful to the source.

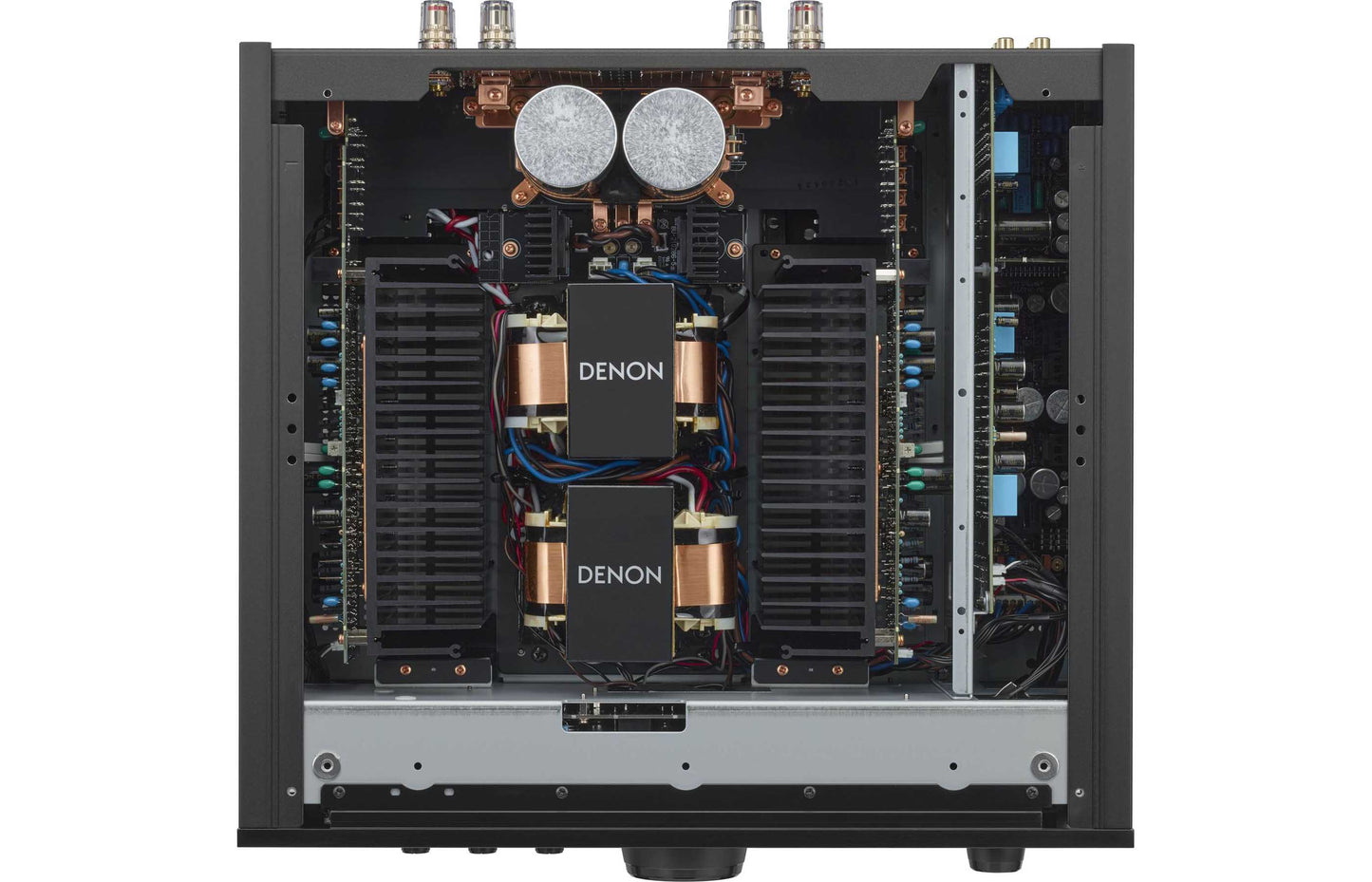

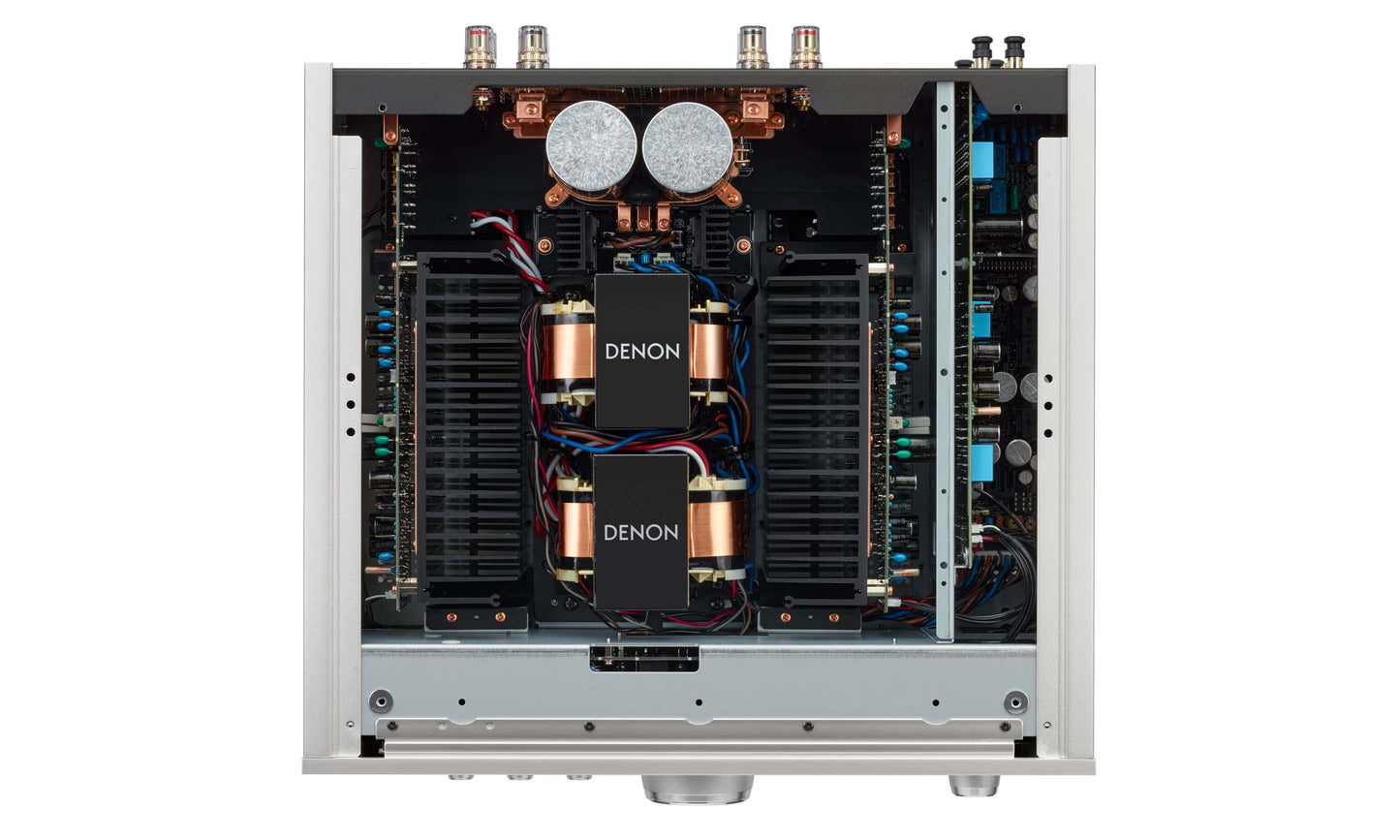

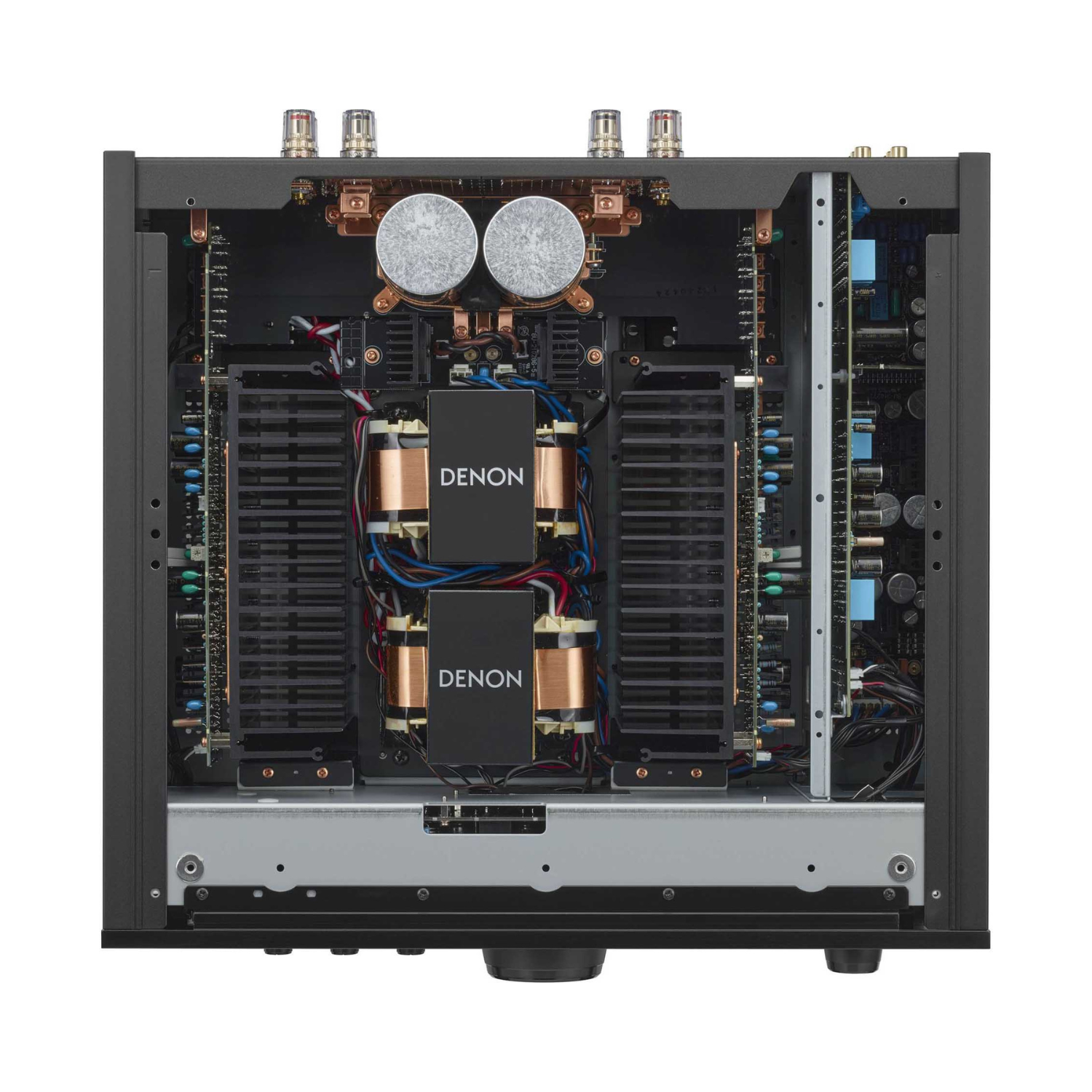

Advanced Amplifier Design: Advanced UHC-MOS Single Push-Pull Circuit, paired with a differential 1-stage amplifier, effortlessly drives even the most demanding speakers, with a highly linear output stage ensuring stunning clarity at any volume.
Support for High-Resolution Audio: Able to decode high-resolution audio ALAC, FLAC, and WAV lossless files up to 384 kHz/32-bit, as well as DSD files up to 11.2MHz, the PMA-3000NE lets you enjoy each note exactly as the artist intended.
High-Performance MM/MC Phono Stage: Unlock your vinyl collection's full potential with the PMA-3000NE's high-performance phono stage, which supports both MM and MC cartridges for the truest sonic reproduction regardless of cartridge type. Featuring a phono equalizer for exceptional stability in the high-frequency range, it excels when paired with high-quality cartridges like the Denon DL-103R. A high-gain design and "simple & straight" circuitry minimize distortion, delivering the pure sound of vinyl in all of its warmth and depth.
Digital Audio Inputs: Versatile connections let you integrate high-resolution audio from your computer, media players, and other digital sources. Optical and coaxial inputs support 192kHz/24-bit audio and a USB Type B input supports PCM files up to 32-bit/384kHz or 11.2 MHz DSD, reproducing high-resolution sound with a wide dynamic range for a truly immersive listening experience.
110+ Years of Firsts in Audio Technology: For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our Sound Master. Prepare to hear sound differently.
Tuned by the Denon Sound Master: Each Denon product is tuned by Shinichi Yamauchi, the Denon Sound Master, to provide the truest sonic reproduction, so you can trust that you'll experience your favourite music exactly as the artist intended.
Our Take On The Denon PMA-3000NE
Experience wonderful sonic fidelity with the Denon PMA-3000NE Integrated Amplifier, a powerhouse delivering 160W per channel at 4 Ohms and 80W per channel at 8 Ohms, effortlessly driving even the most demanding speakers. Its advanced UHC-MOS Single Push-Pull Circuit and differential 1-stage amplifier ensure stunning clarity and linearity across all volumes. Seamlessly integrate high-resolution digital audio with versatile connections supporting up to 384kHz/32-bit, while Ultra AL32 Processing guarantees smooth, expressive sound. The PMA-3000NE also excels with vinyl, featuring a high-performance MM/MC phono stage and Pure Analogue Mode for the most authentic listening experience. Crafted with over 110 years of Denon's audio expertise and tuned by the renowned Denon Sound Master, this amplifier delivers music exactly as the artist intended.
Main Features & Specifications
- Design: Integrated Stereo Amplifier with DAC

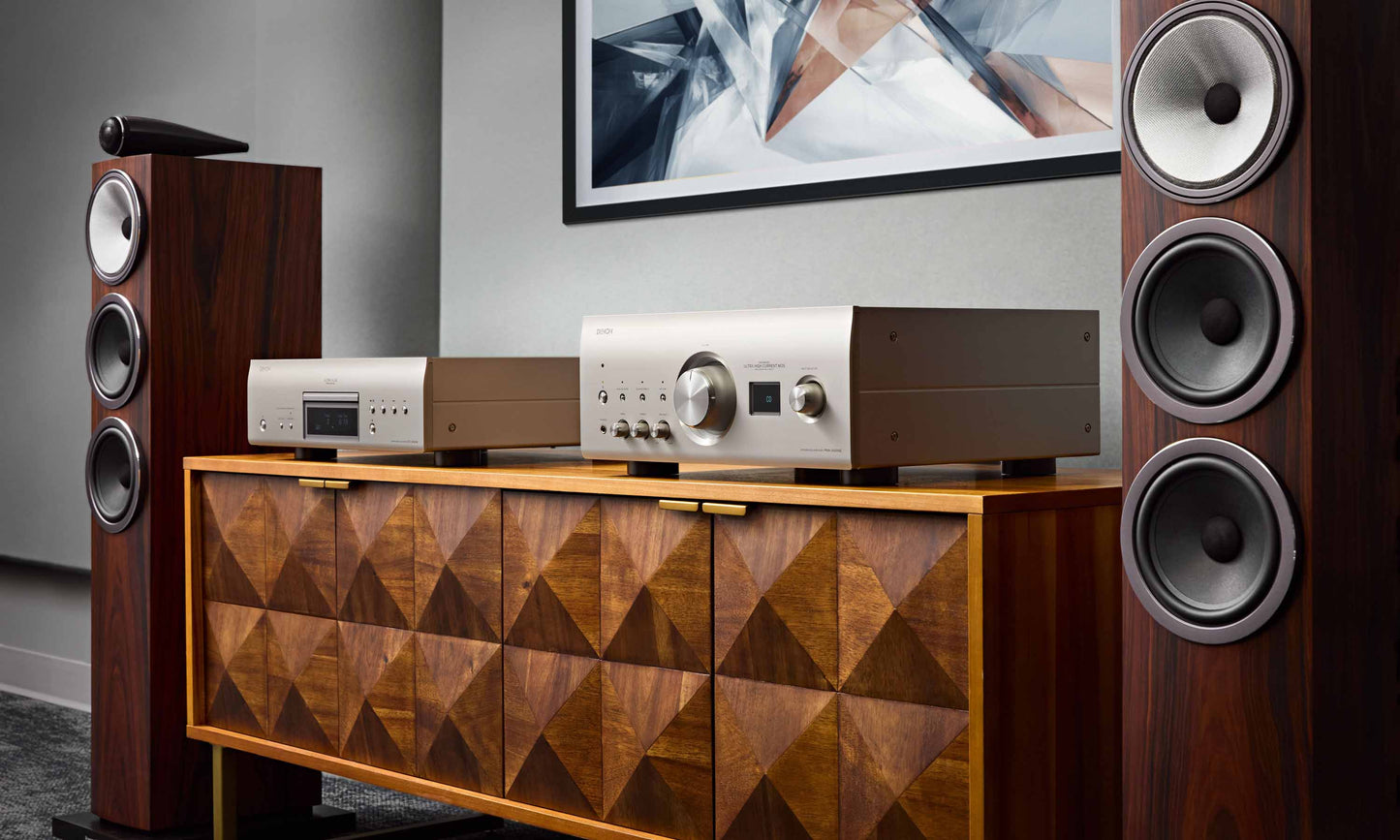

- Perfect Match for the Denon DCD-3000NE Super Audio CD Player (sold separately)
- 80 Watts x 2 channels into 8 Ohms (20-20,000 Hz) at 0.07% THD
- 160 Watts x 2 channels into 4 Ohms (20-20,000 Hz)
- 4 Ohm capability allows use with a wide range of speakers
- Built-In DAC supports high-resolution audio up to 32-bit/384 kHz
- DAC master clock eliminates digital jitter
- Advanced AL32 Processing Plus upsamples digital audio sources
- Source Direct mode bypasses tone control circuits for cleaner sound
- Analogue Amp Mode disables digital circuitry for warm all-analogue sound
- Advanced Ultra High Current single push-pull circuit power amplifier

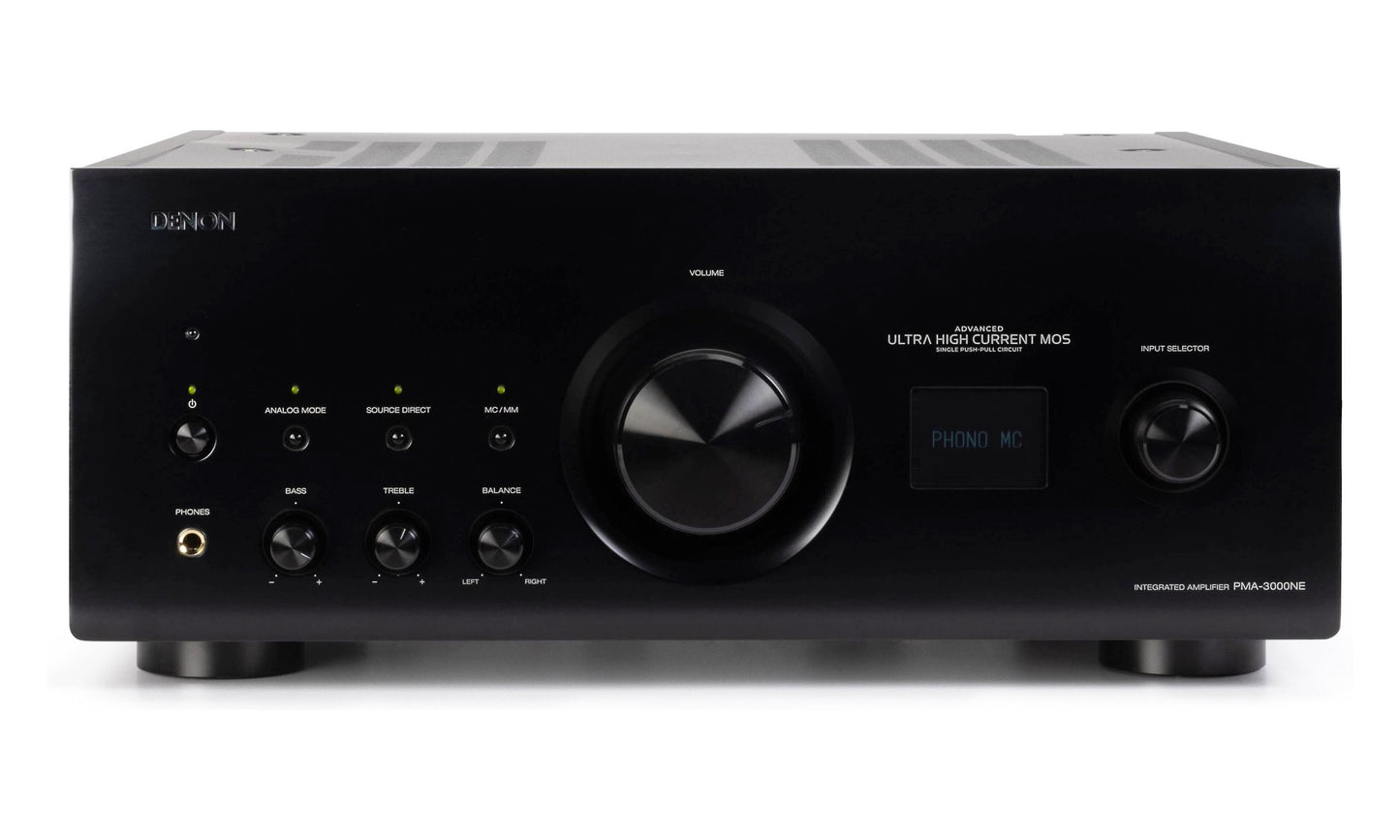

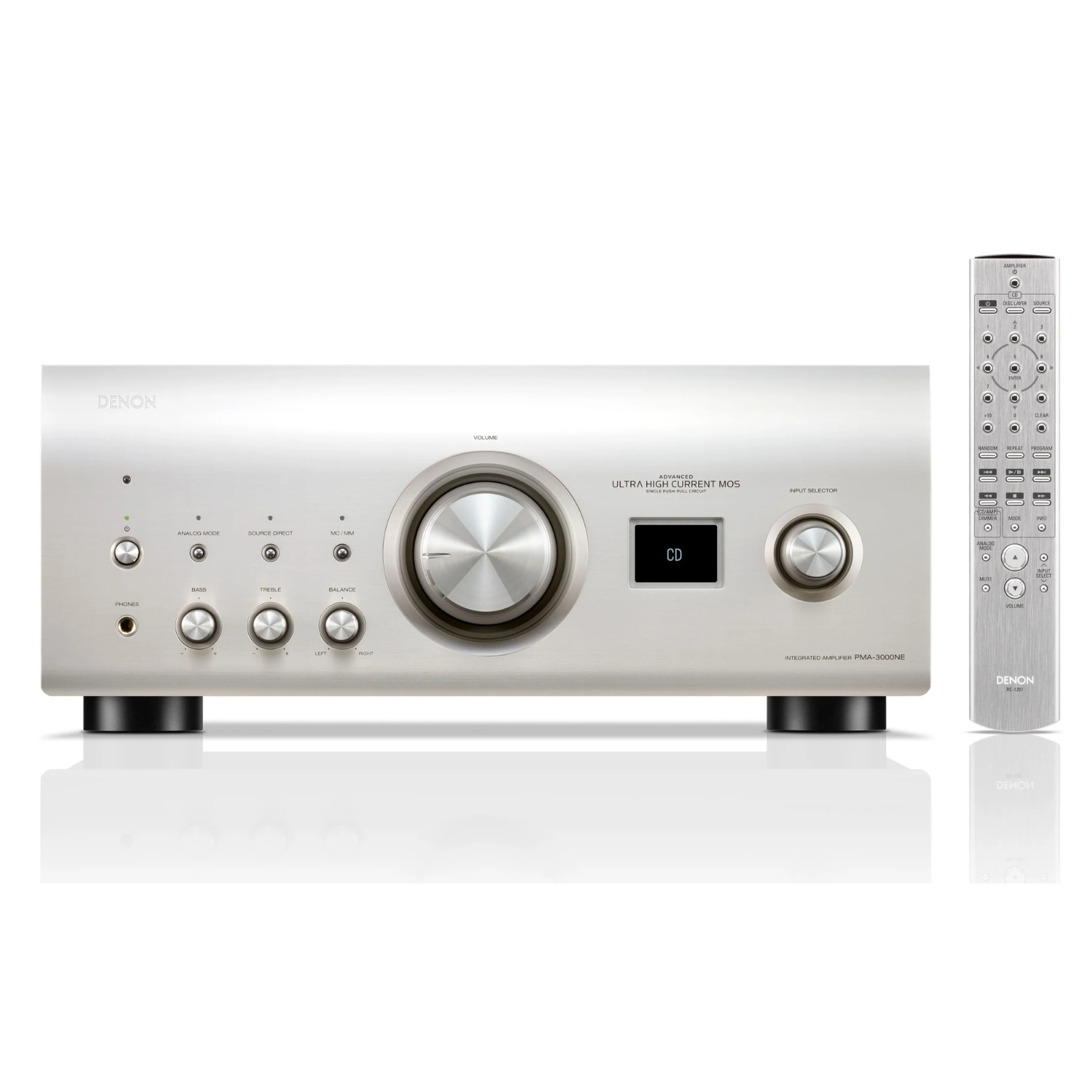

- Front-Panel source display
- Front-Panel bass, treble, and balance controls
- Signal-To-Noise Ratio: 107 dB (line in), 89 dB (moving magnet), 74 dB (moving coil)

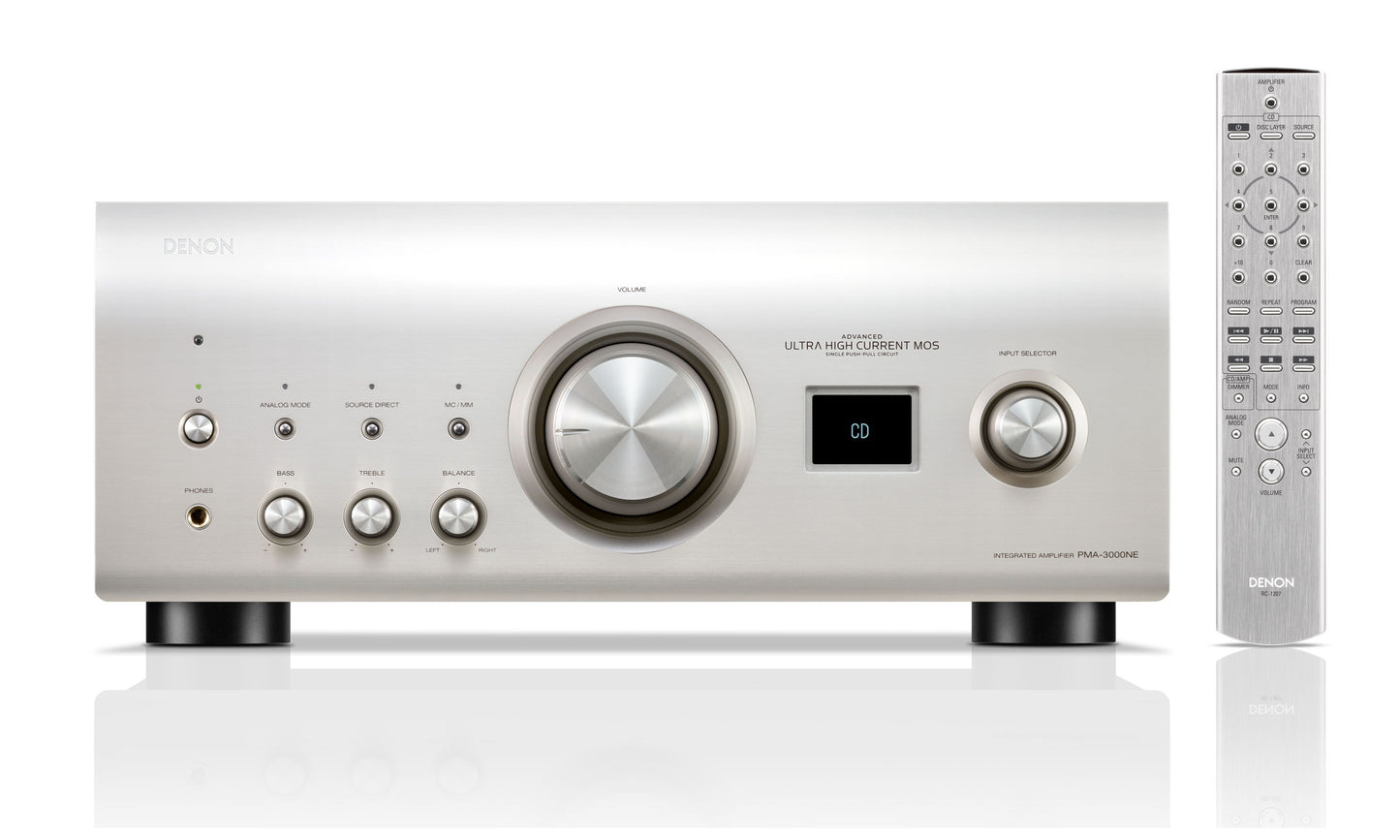

- Remote Control included

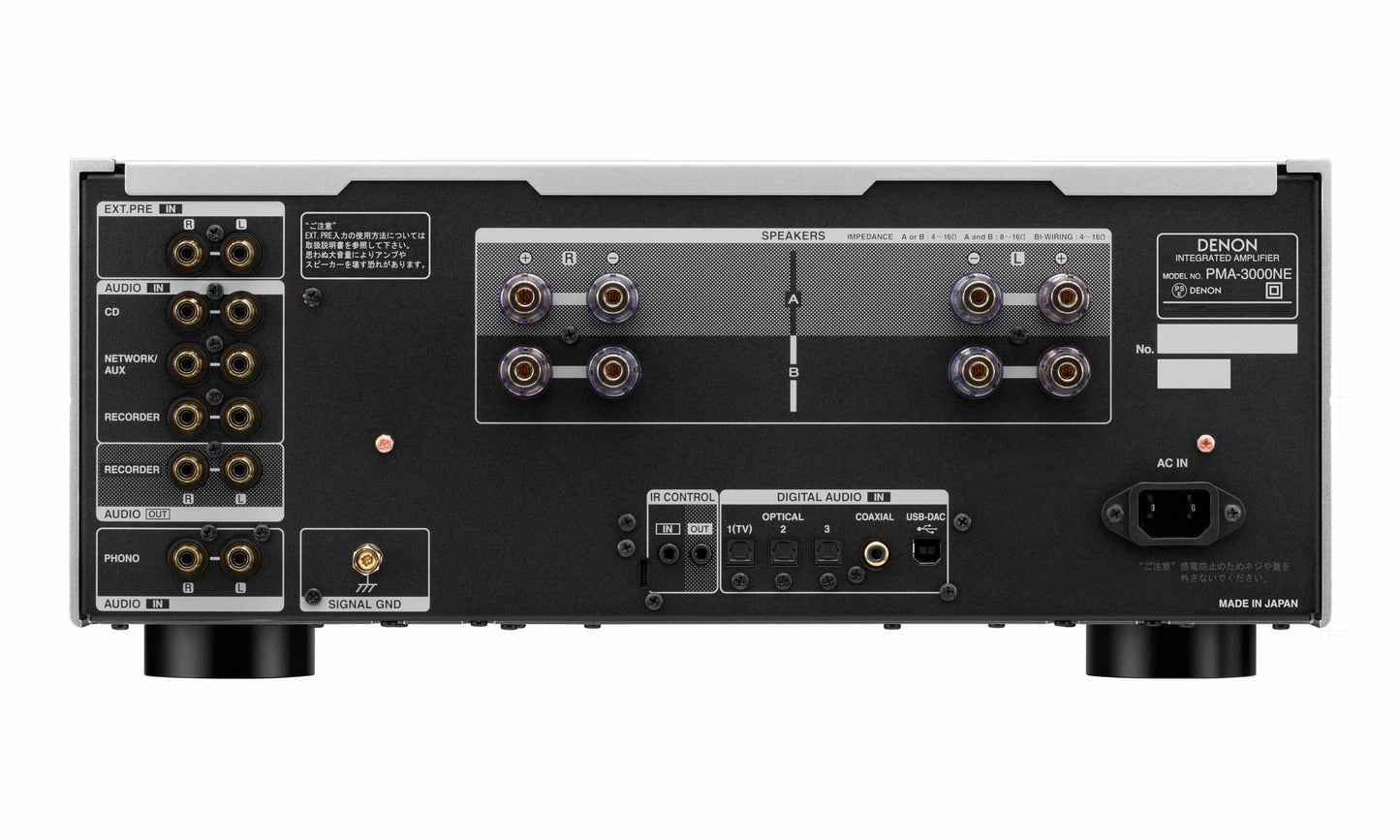

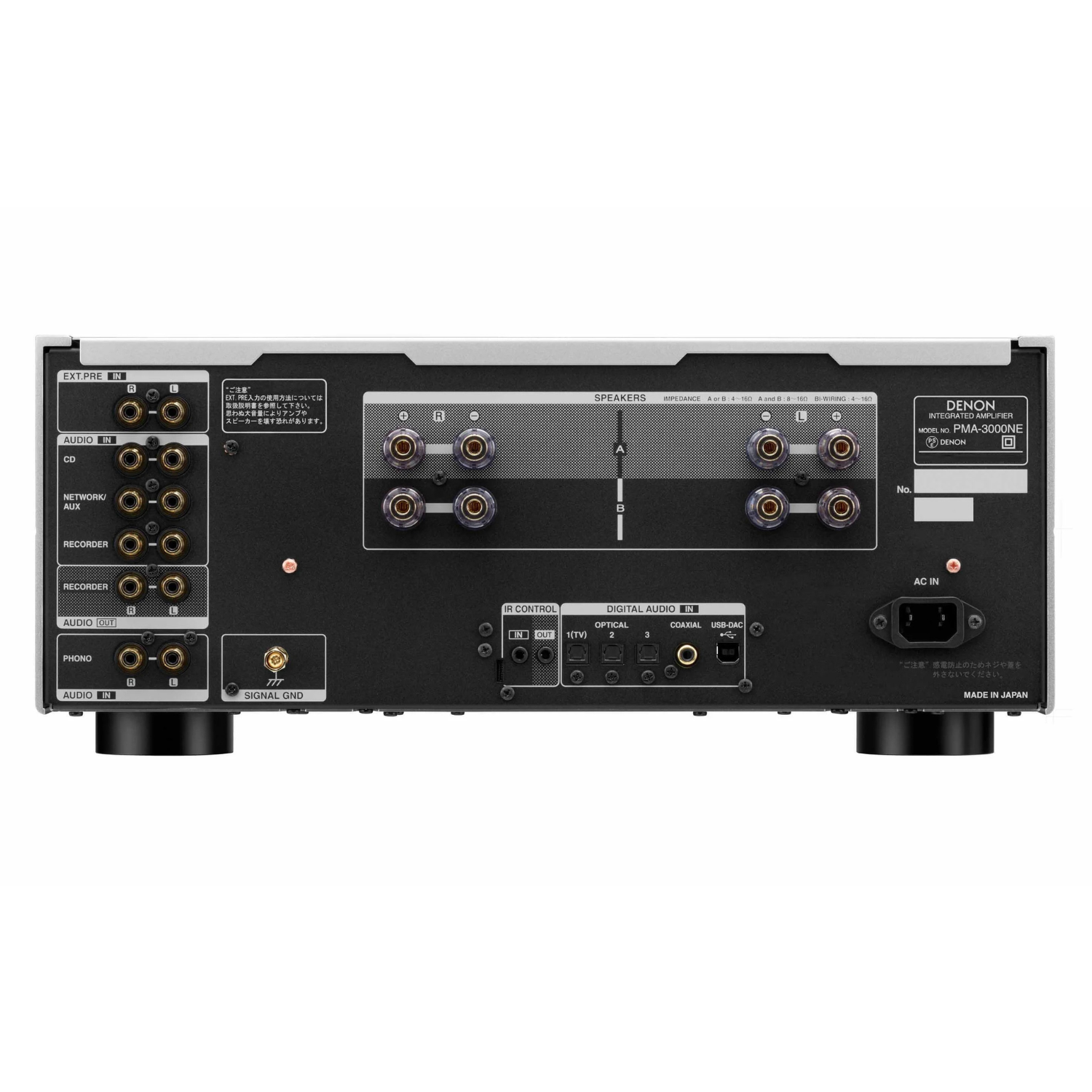

Connections
- 3 Optical and 1 Coaxial Digital Audio inputs (all support PCM signals up to 24-bit/192kHz)
- Rear-Panel Type-B USB input supports high-resolution PCM files up to 32-bit/384kHz or 11.2 MHz DSD
- 3 Analogue RCA line-level stereo inputs
- Dedicated Phono input for turntables with moving magnet (MM) and moving coil (MC) cartridges
- Analogue RCA line-level stereo output for recording
- Analogue RCA line-level stereo preamp input lets you connect a separate preamp and use the PMA-3000NE as a power amp
- Built-In headphone amplifier with full-size 6.35mm (1/4 inch) jack
- Gold-Plated binding posts for two pairs of speakers
General

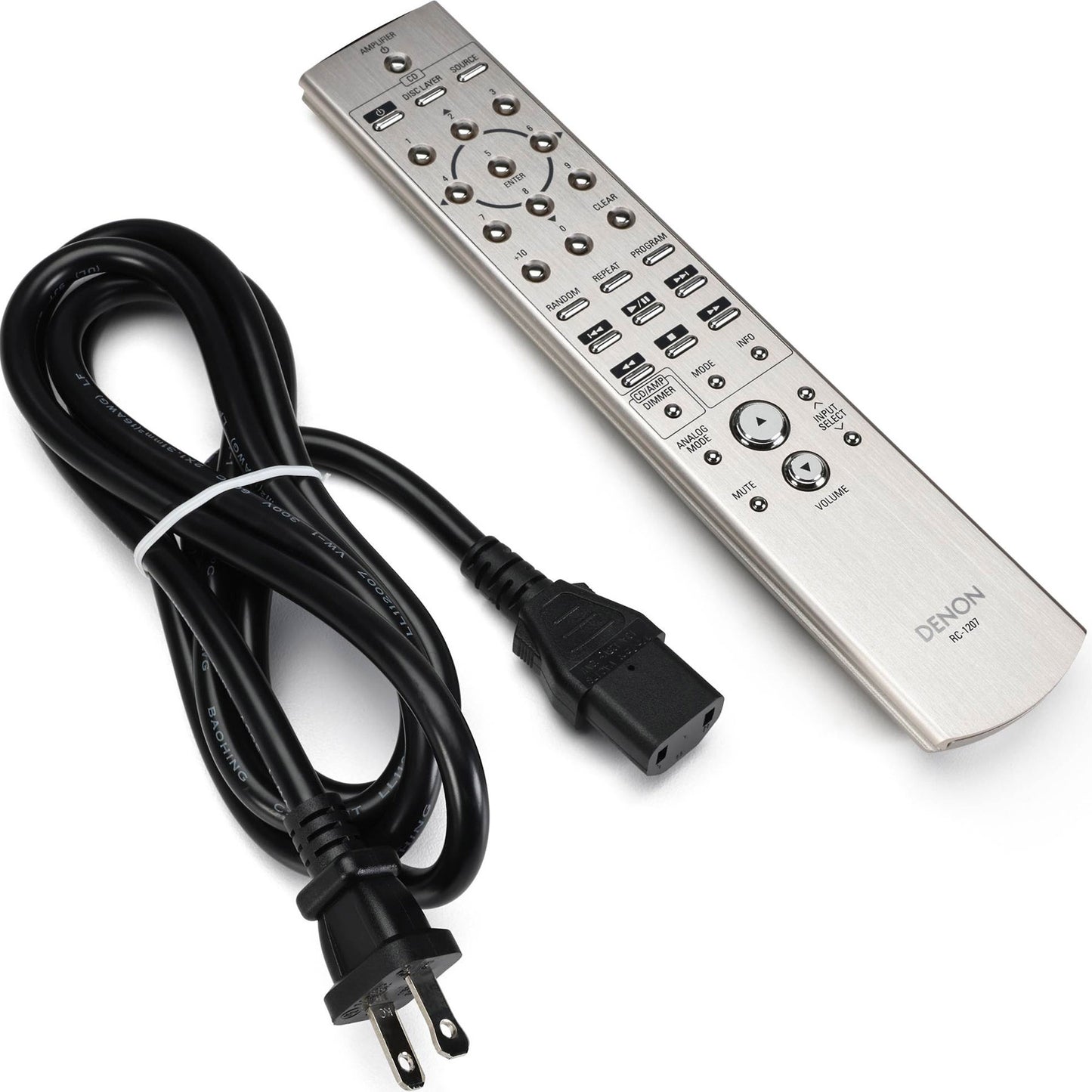

- Included Accessories: AC Power Cable, Remote Control (RC-1207), 2 "AAA" Batteries, Quick Start Guide, Safety Instructions, Warranty Information
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance

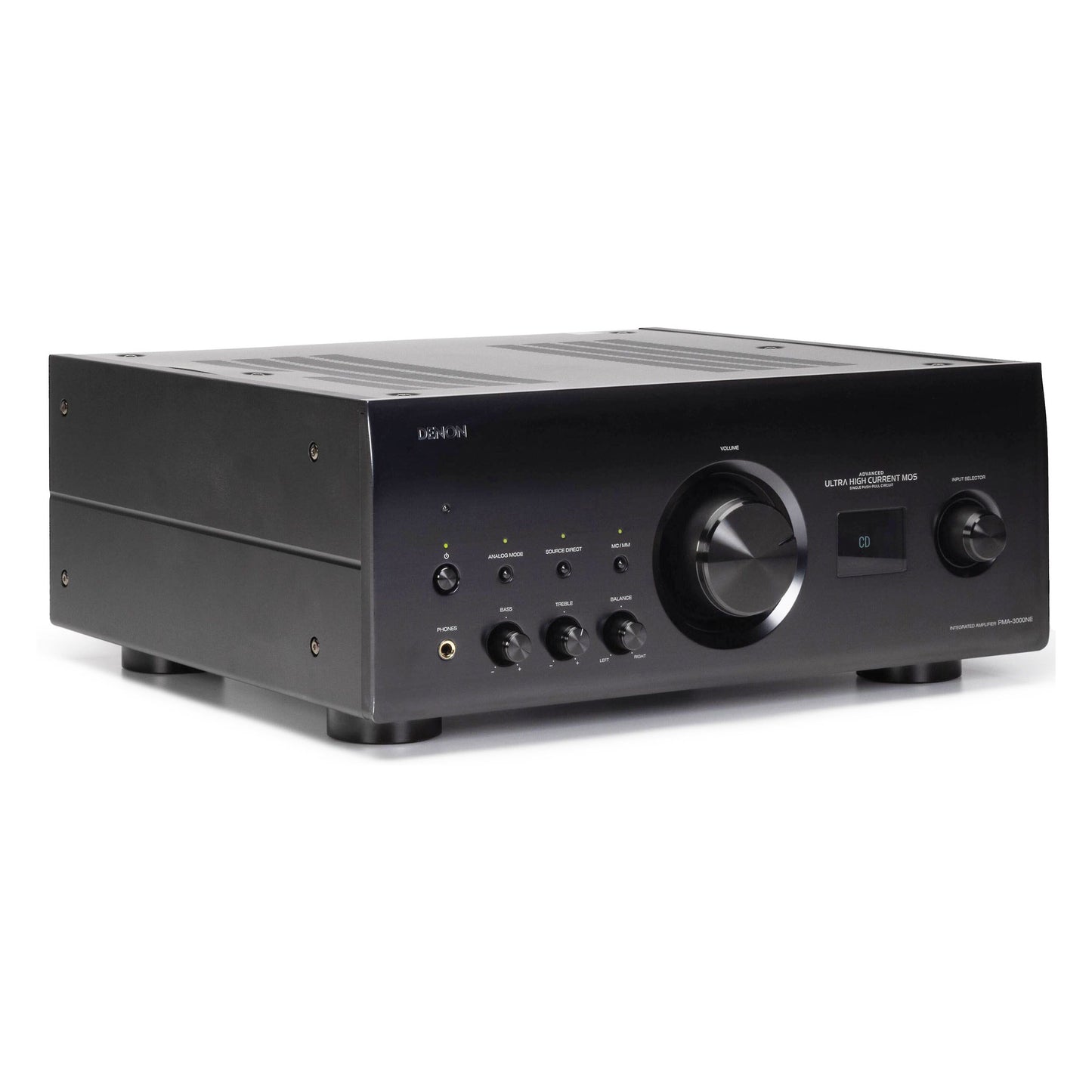

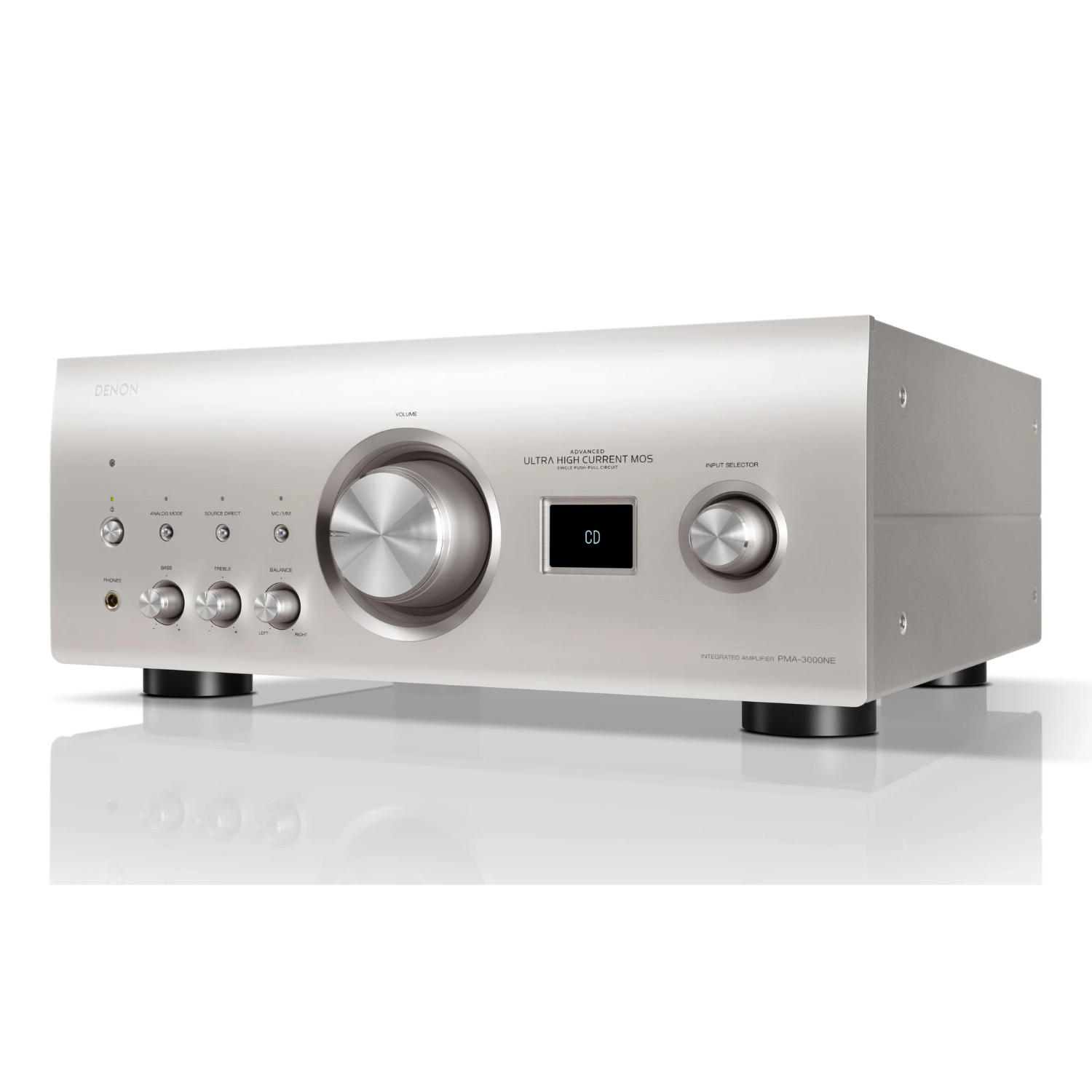

- Available Finishes: Black or Silver
- Dimension (WxHxD): 434 x 182 x 443mm
- Weight: 24.6 kg
- Manufacturer's Warranty: 2 Years
- Made in Japan
- Learn more about Denon
Note: Features & Specifications Subject To Change Without Notice. E&OE.
