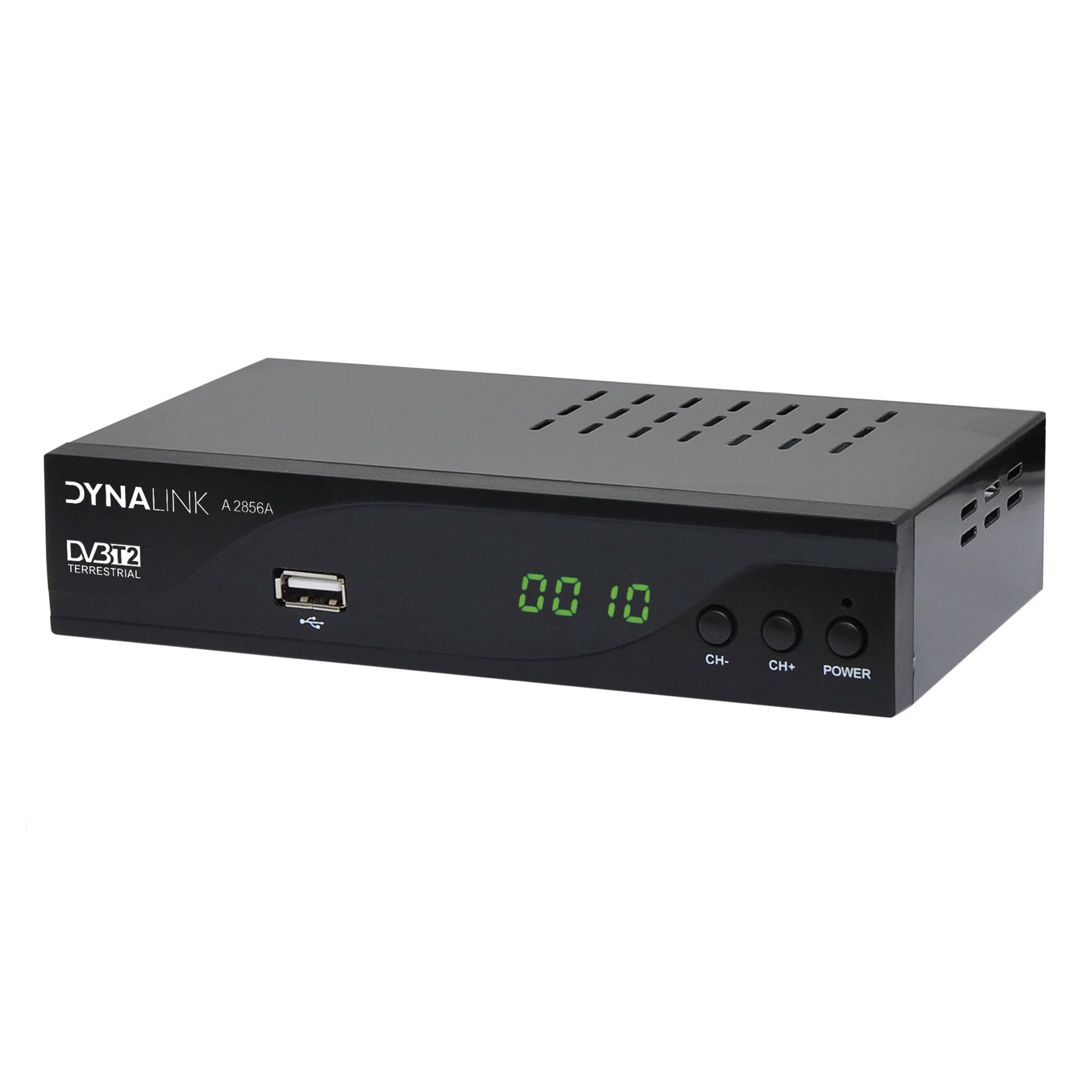

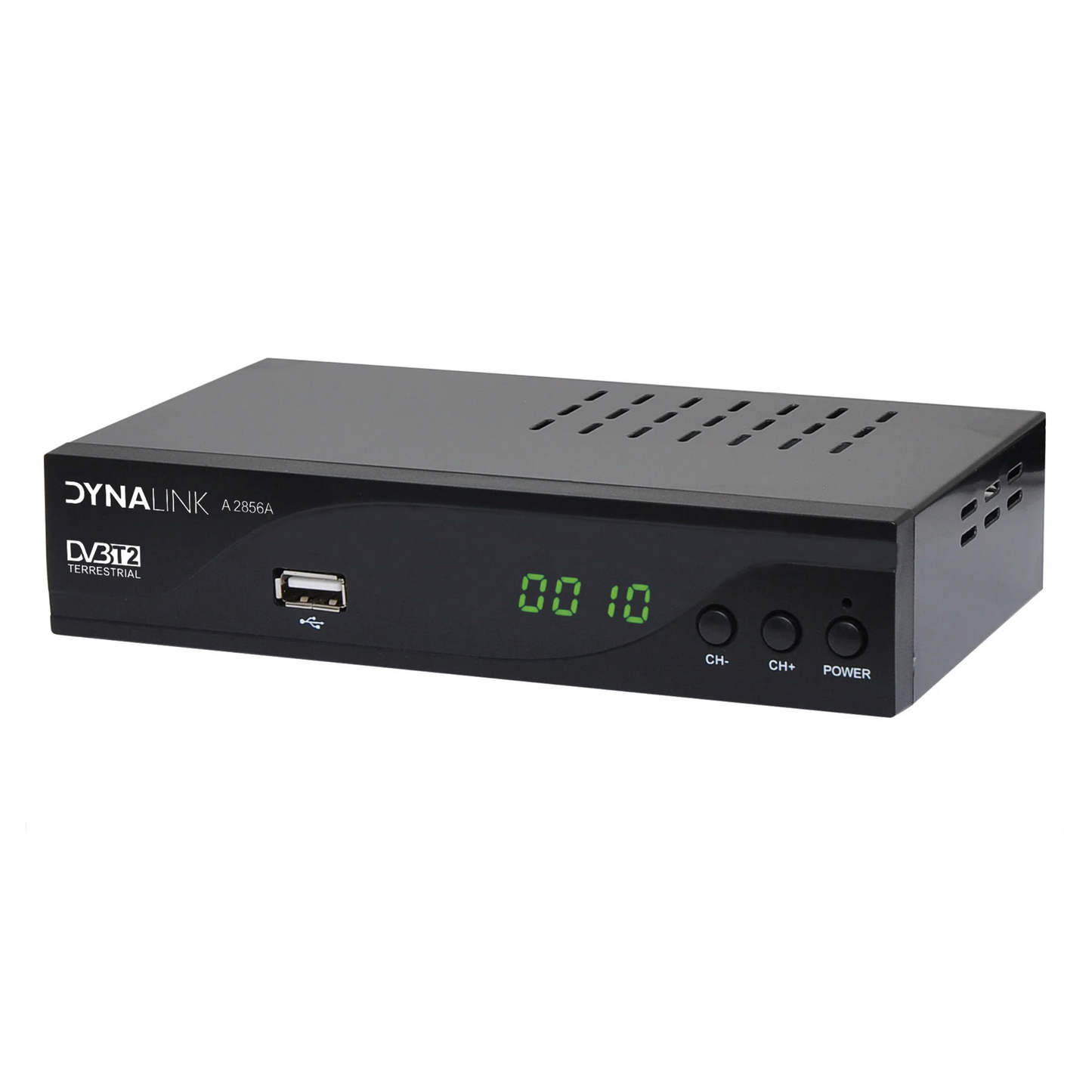

Dynalink A2856A High Definition Digital Set Top Box with PVR Function
The Dynalink A2856A is a High Definition Digital Set Top Box with Digital Video Recording abilities. Give any Home Cinema Projector or TV, even older analogue models, access to the latest Australian digital channels and record up to 500 hours of live TV.
This set-top box is easy to use and connects to your TV via HDMI or analogue connections, giving you a sharp High Definition picture. The digital audio output means no sacrifice to audio quality if you're using a dedicated amplifier or surround sound receiver.
Make use of the USB connection on the front of the unit and record your favourite shows, or play media stored on an external hard drive. The Dynalink A2856A is a media hub made for Australian audiences and TVs.
Media Hub For Your Home: Have your own digital Movie/TV show collection stored on a hard drive? To access your own media files, simply plug in your external USB Hard Drive, to the USB port on your Dynalink A2856A. This set-top box supports external storage devices up to 500GB.
Files can be accessed by using the full function remote control. The handy Rewind, Fast Forward, Play, Pause and Stop buttons make navigating digital content a breeze. Much more convenient than playing off a laptop!
Record To USB: The Dynalink A2856A can be used to record your favourite TV shows while you're watching, or while you're away. Set your recording up via the Electronic Program Guide (EPG) to schedule a recording, or use the Manual Timer.
Record one program while watching another from the same network. For example, you can record a program on ABC Kids while you watch ABC News.
To Playback recorded programs simply use the full function remote control.
Main Features & Specifications
- High Definition Digital Set Top Box (HD MPEG4)
- USB PVR ready for recording
- MPEG-4 AVC/H.264 HP@L4
- Favourite Service list editing
- Parental Lock Facility
- Supports Teletext
- IR Remote Control
- Fully DVB-T compliant
- HDMI cable included

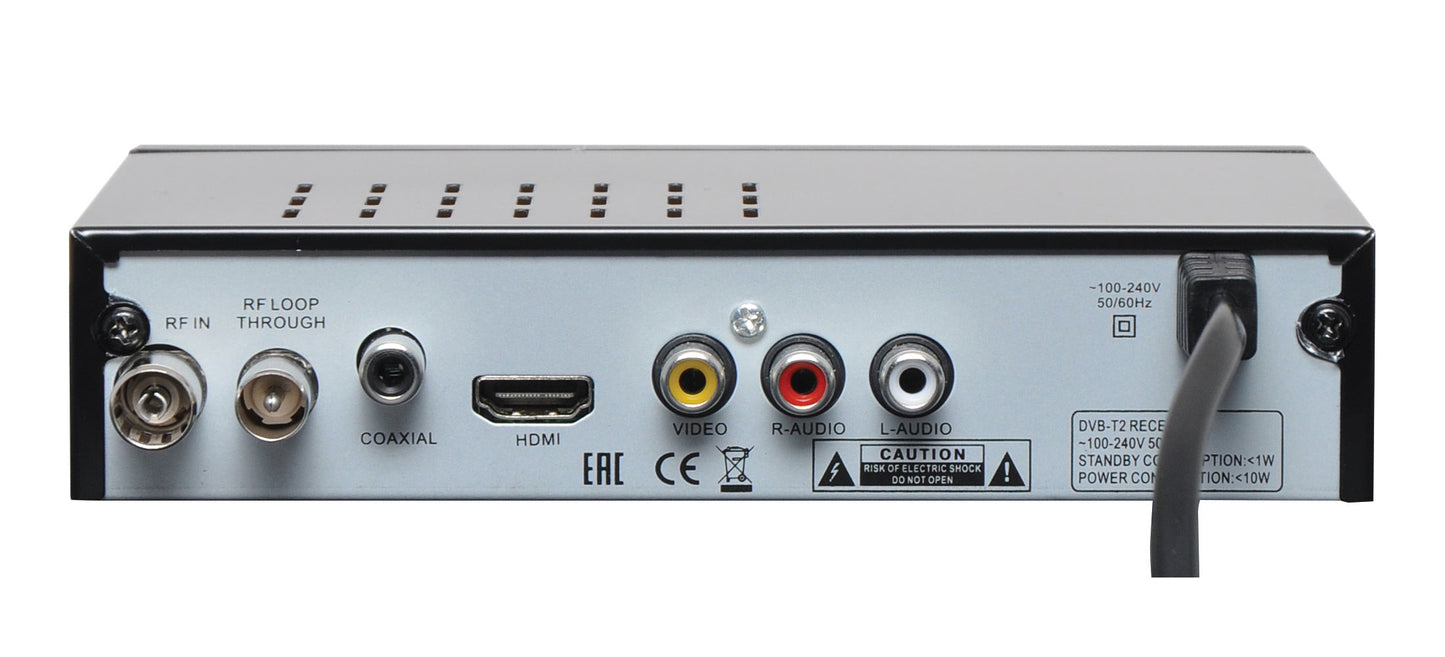

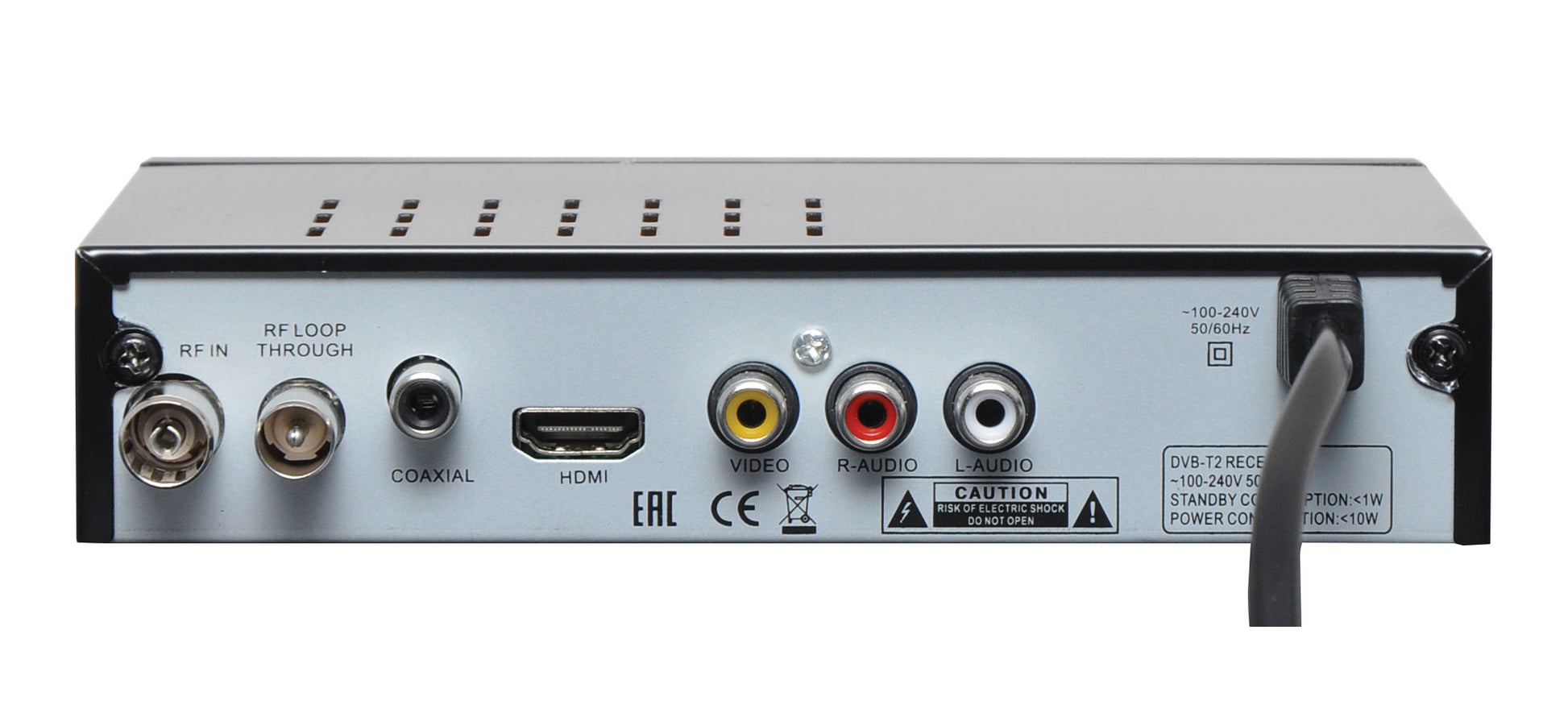

- HDMI and composite outputs
- 7-day Electronic Program Guide (EPG)
- Multi-language subtitle output supported
- Tuner
- Input Frequency: VHF: 170-230MHz, UHF: 470-860MHz
- RF Input Level: -78 ~ - 20dBm
- RF Bandwidth: 7MHz and 8MHz
- Modulation: QPSK, 16QAM, 64QAM, 256QAM
- Video
- Decoder Format: MPEG4 AVC/H.264 HP@L4, MPEG2 MP@MP.HL
- Output Format: 480i/480p/576i/576p/720p/1080i/1080p
- Output Port: HDMI, CVBS (Composite)
- Audio
- Decoder Format: MPEG-1 (layer 1,2,3), WMA, AC3
- Audio Output: Coaxial, Stereo RCA, HDMI
- USB 2.0
- Supported Capacity: 500GB
- Supported Media: MP3, WMA, JPEG, BMP, AVI, MKV
- Power
- Supply Voltage: 220-240V ~ 50/60Hz
- Power Consumption (Maximum): <10W
- Power Consumption (Standby): <1W
- Remote control batteries: 2 x AAA (included)

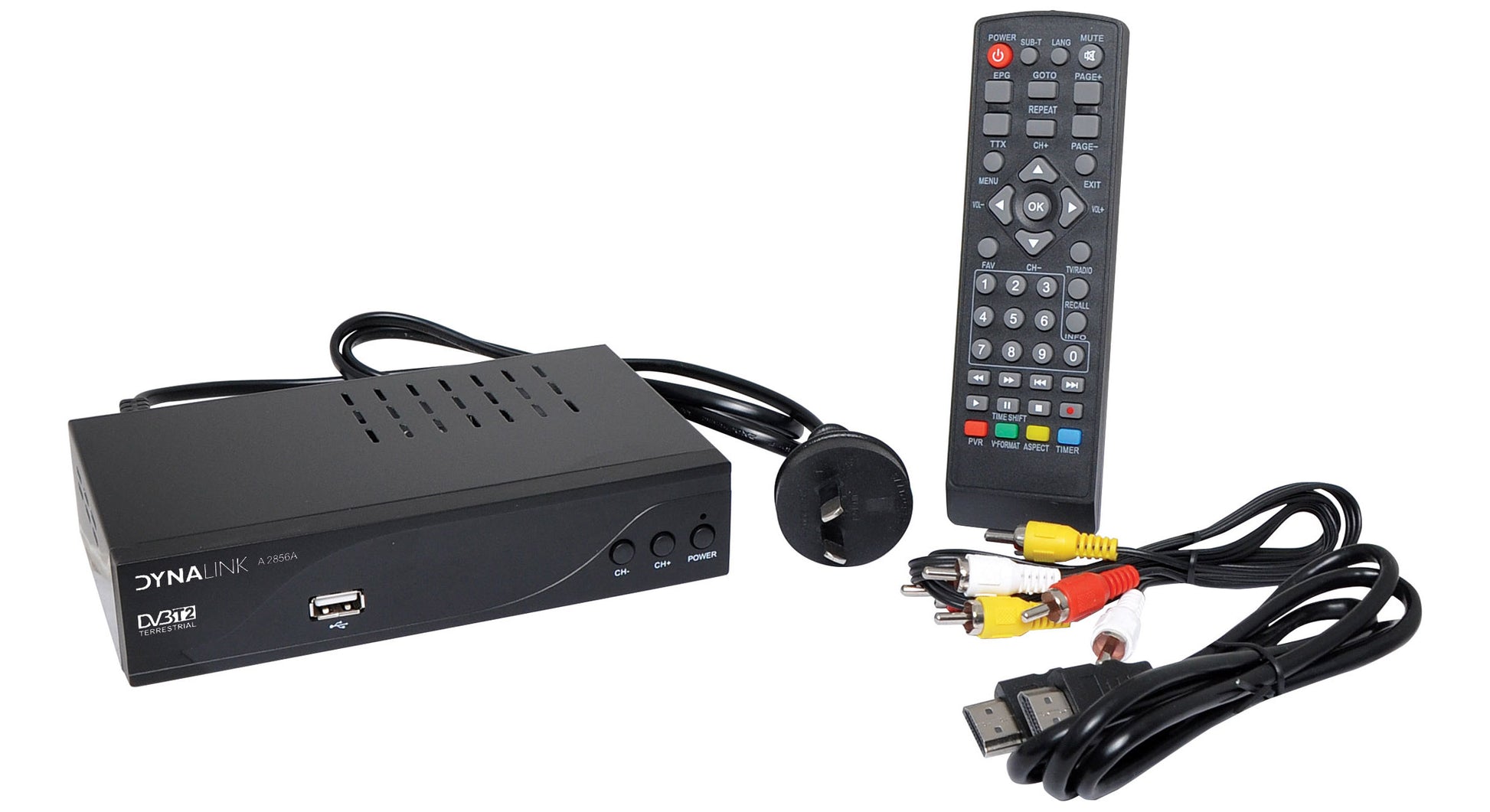

- Included Accessories: Remote Control, 2 x AAA Batteries, Instruction Manual, HDMI Cable, AV RCA Cable
- Dimensions (WxHxD): 168 x 37 x 106mm
- Weight: 0.3 kg
- Manufacturer's Warranty: 1 Year
Note: Features & Specifications Subject To Change Without Notice. E&OE.
