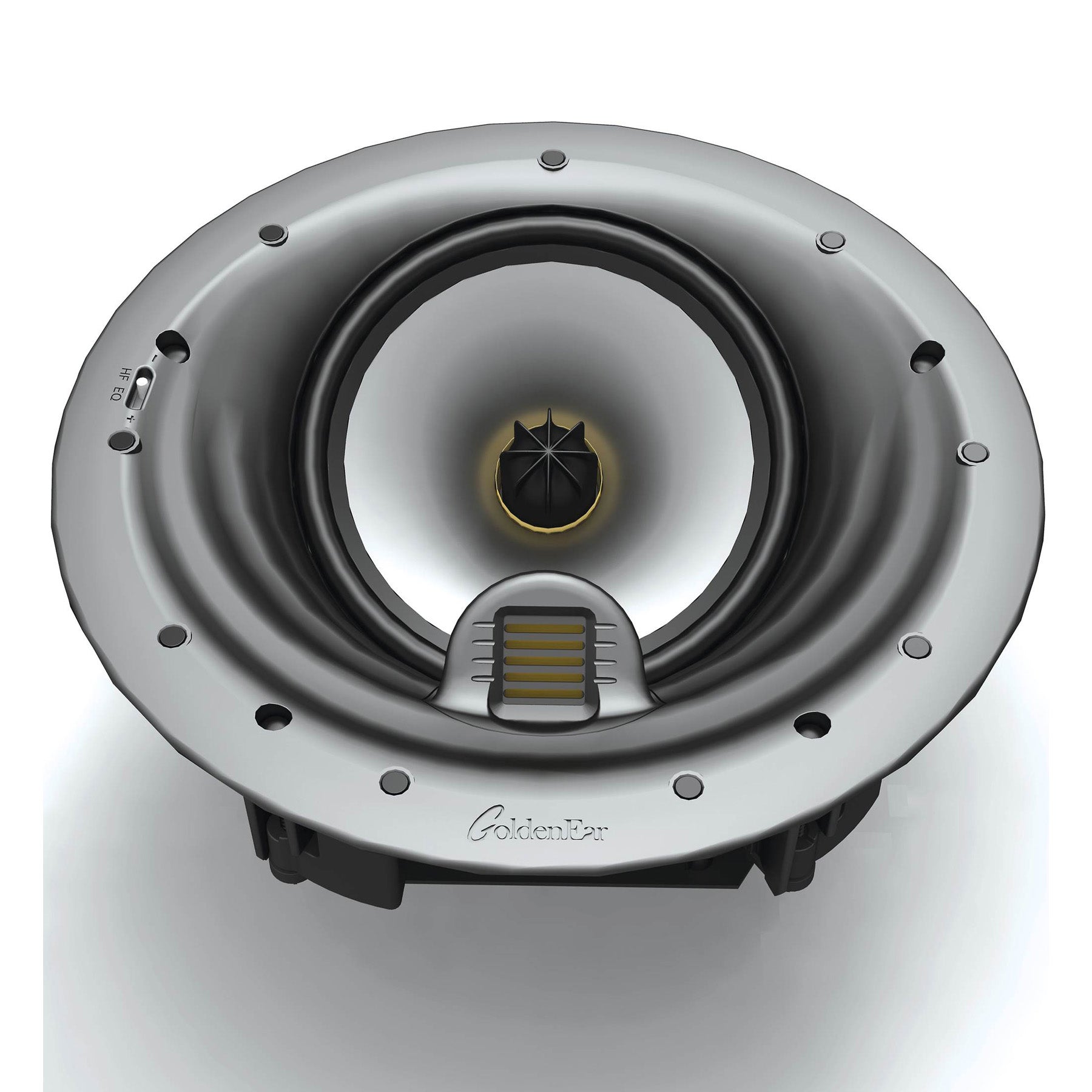

About The GoldenEar Invisa HTR 7000 In-Ceiling Speaker
The Invisa Home Theatre Reference 7000 is designed for use as a ceiling-mounted main front stage left, right, or centre speaker in high-quality home theatre or music systems, as well as for use as a side or rear surround speaker. In many installations it is also perfect as a height channel speaker.
It has a flat, round, magnetically attached micro-perf grille that covers the mounting flange for an attractive, nearly "invisible" look. The drivers are mounted at precisely calculated angles so that they face the normal listening position for exceptional imaging, superior frequency response, remarkable clarity and precise focus.
The driver complement combines the same superb 7″ high-definition cast-basket driver used in the acclaimed Aon 3, with one of GoldenEar's signature technology HVFR™ tweeters. A complex crossover network, with a high-frequency equalization switch, assures perfect blending.
In order to achieve open, boxless, three-dimensional imaging that appears to come from across the front wall rather than the ceiling, great care has been taken to minimize deleterious diffraction effects as well as to optimize wave-launch into the room. This is achieved by utilizing and combining GoldenEar's FocusField™ Technology with a unique Non-Periodic Waveform (NPW) Diffraction Control and Wave-Launch construction.
GoldenEar™ Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall speakers that are designed to blend perfectly with their surroundings and virtually disappear. A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format.
Our Take
The GoldenEar Invisa HTR 7000 is a premium in-ceiling speaker designed for high-fidelity home theatres and audiophile music systems. It excels when used as main left, centre, right speakers or as side or rear surround speakers in 5.1 or 7.1-channel systems and as a height-channel speaker for Dolby Atmos/DTS setups. Its magnetically attached micro-perforated grille ensures a sleek, hardware-free appearance, seamlessly integrating into any environment. Utilizing GoldenEar's FocusField™ Technology, the HTR 7000's drivers are precisely angled to produce a wide, three-dimensional soundstage, delivering realistic and immersive audio throughout the room. The speaker features a High-Velocity Folded Ribbon (HVFR) tweeter and a 7-inch high-definition bass/midrange driver, combined with a sophisticated crossover network for exceptional clarity and balanced sound. Engineered to blend invisibly while providing state-of-the-art acoustics, the Invisa Series embodies superior design and sound quality in an architectural format.
Main Features & Specifications
- Design: In-Ceiling LCR Speaker – Sold Individually
- Driver Complement
- One High-Velocity Folded Ribbon AMT Tweeter
- One 7" (178mm) High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Driver
- Efficiency: 88dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 42Hz–25kHz typical (-6dB on axis @ 70Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 10–250Wpc
- Dimensions
- Speaker: 269mm Diameter x 126mm Deep
- Included Round Grille: 268mm Diameter
- Optional Square Grille: 268mm x 268mm
- Cutout: 229mm Diameter
- Weight: 2 kg
- Manufacturer's Warranty: 5 Years
Note: Specifications & Features Subject To Change Without Notice. E&OE.
