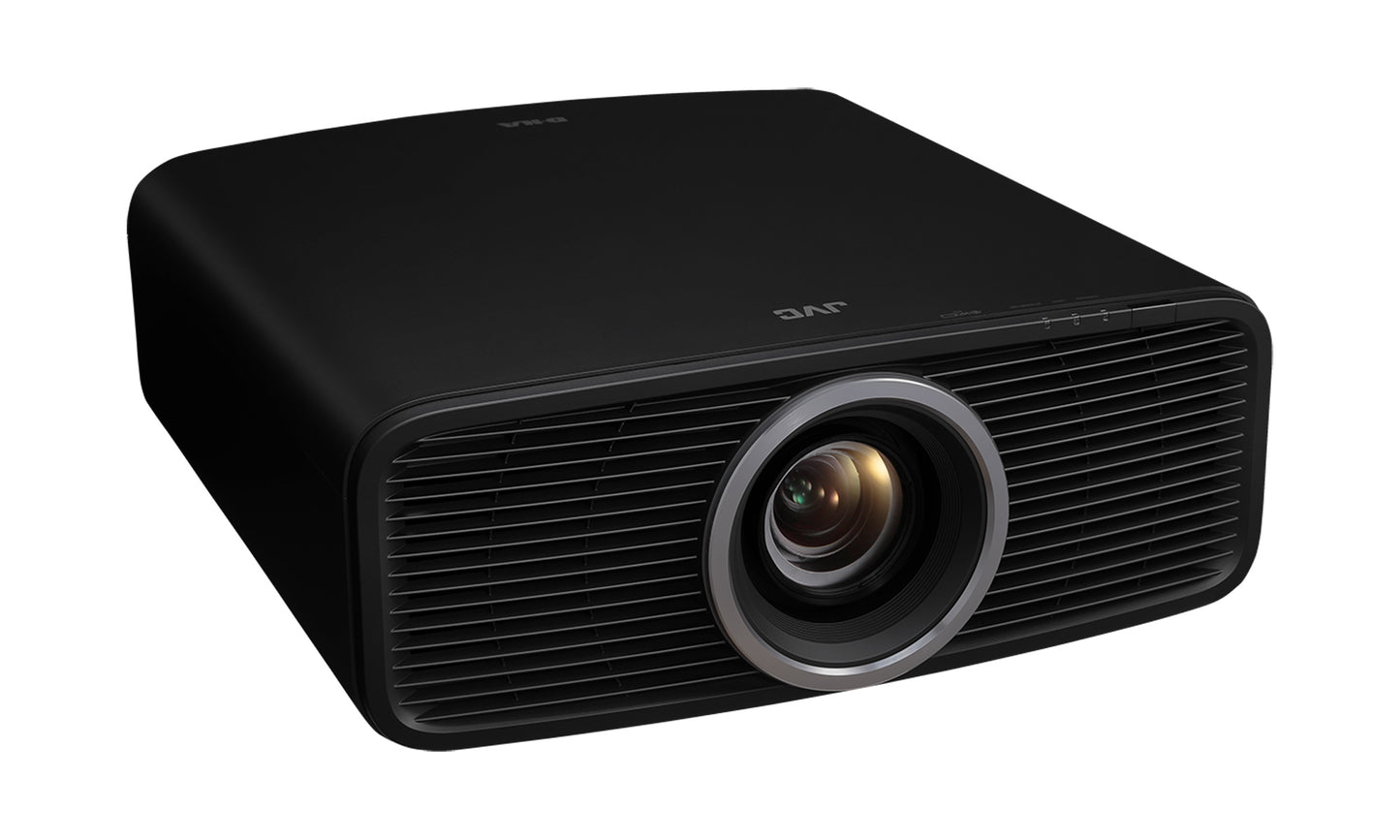

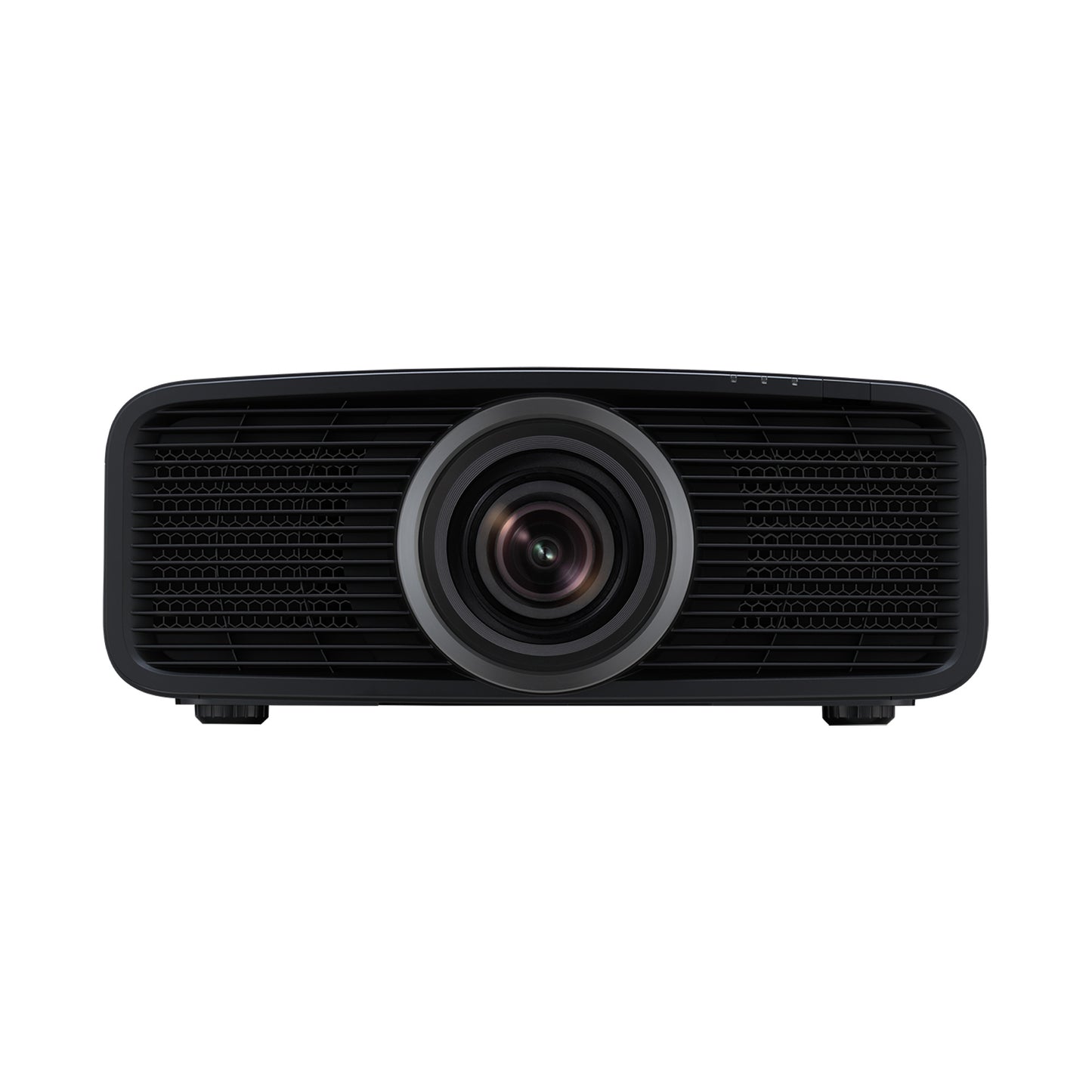

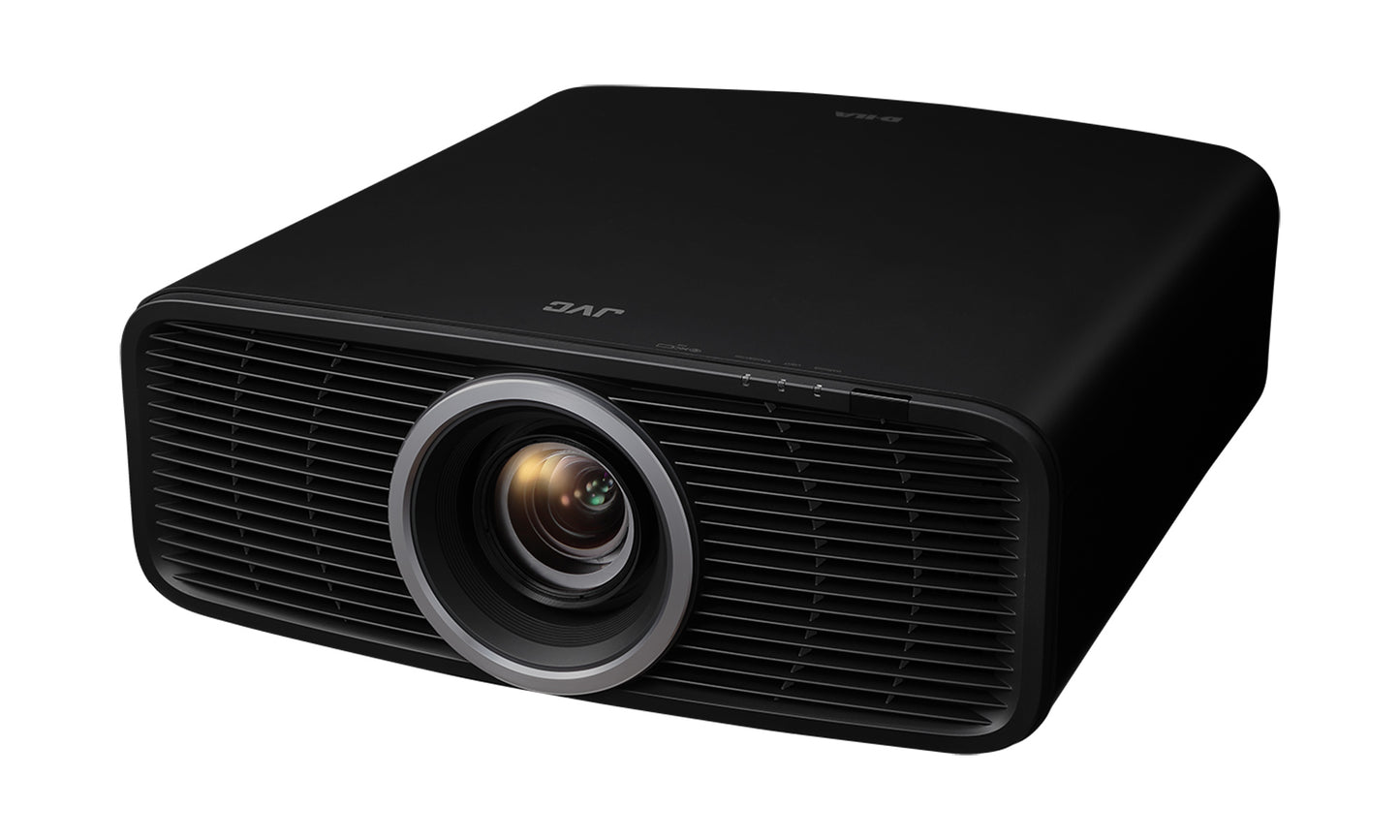

JVC DLA-NZ500 4K Laser Projector
The DLA-NZ500 delivers all the essentials: 2,000 lumen brightness, Native 4K resolution and 32Gbps HDMI inputs which are the latest connectivity standard. It offers impressive HDR even with larger screen sizes. An 80 mm diameter lens provides a wide zoom and shift range for installation flexibility. Add D-ILA imaging chips, HDR10+ and Frame Adapt HDR for an impressive home theatre experience.

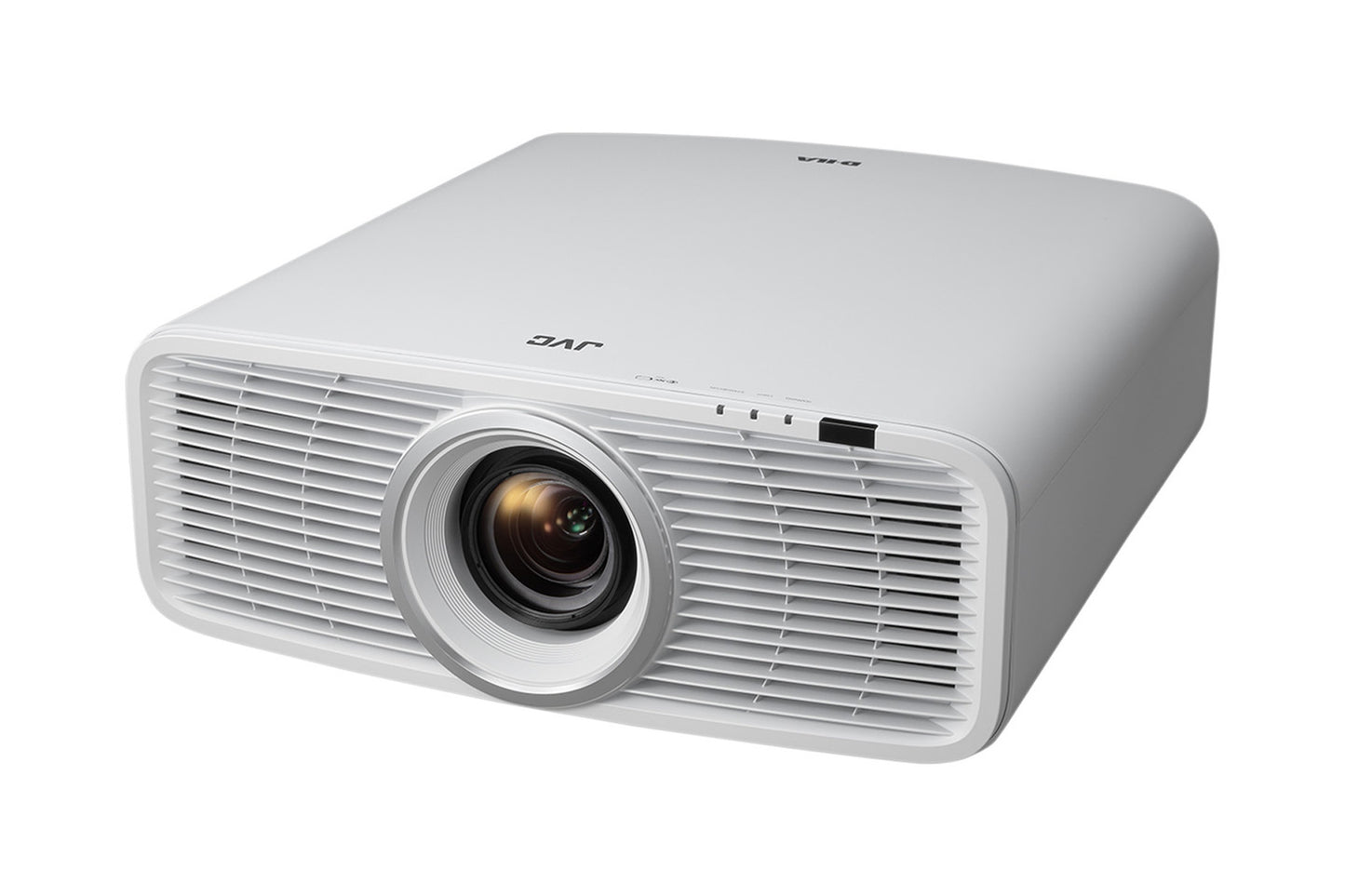

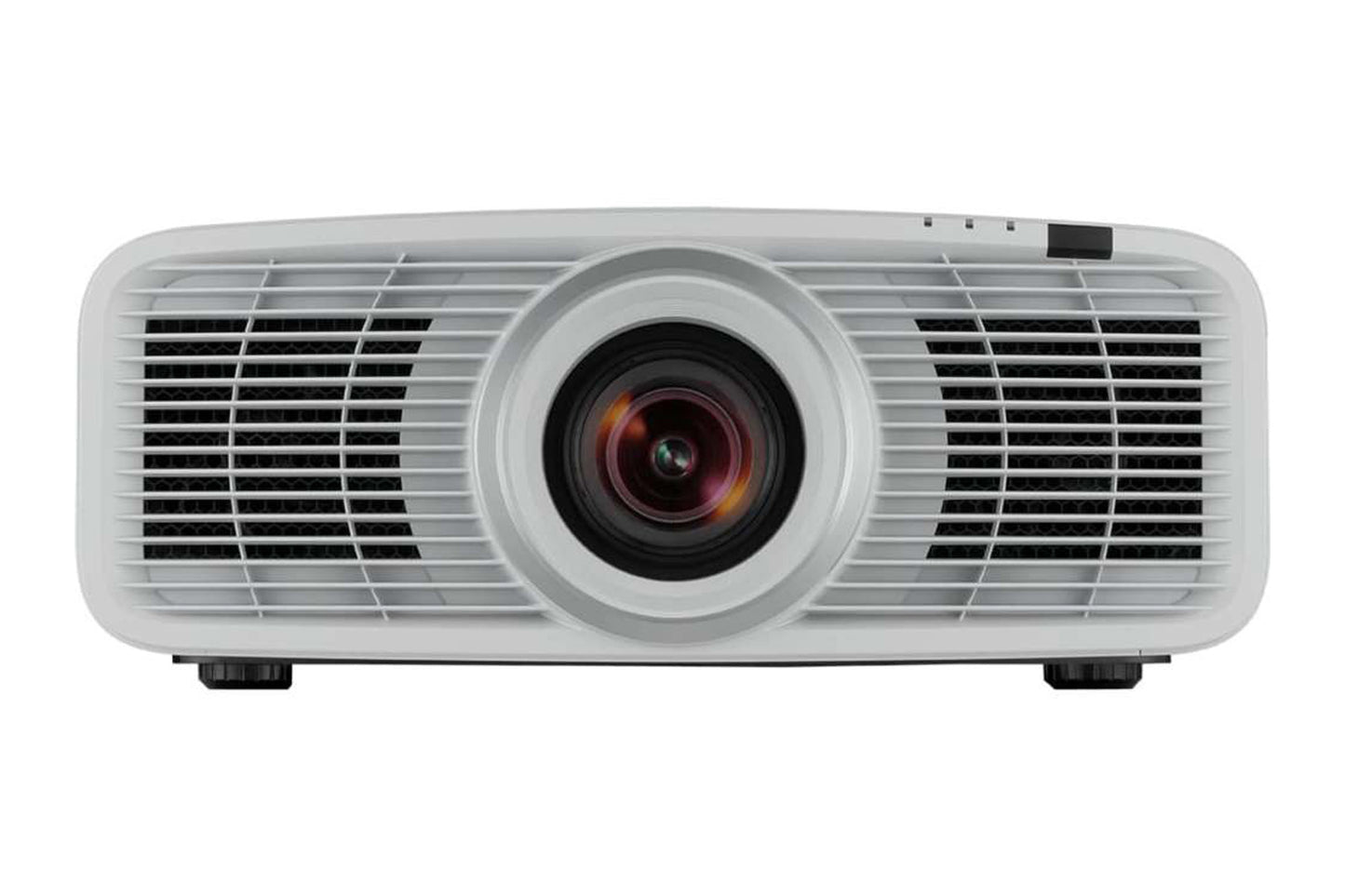

World's Smallest Native 4K Projectors: Completely redesigned with a new chassis, optical units, lens system, and circuit boards, the DLA-NZ700 and NZ500 are the world's smallest native 4K projectors. While maintaining a small footprint, these models incorporate JVC's proprietary BLU-Escent laser light source and native 4K devices found on the DLA-NZ900 and NZ800. The horizontal grille on the front panel expresses the centre lens in a symbolic manner, while the rounded corners of the body emphasize user-friendliness. What's more, the DLA-NZ500 is available in two colours of black and white to match any interior settings.
Superb Intake/Exhaust Layout: A straight cooling system that draws air in from the front and exhausts it out the back has been applied on the DLA-NZ700/NZ500 to emphasize compactness of the body, reduce the impact from heat on the projection screen and enable greater flexibility in installation.
Pixel Perfect Resolution with Native 4K Input and 4K D-ILA Device: Signals input via the 32Gbps 4K/60p HDMI terminal go through the 0.69-inch native 4K D-ILA devices to project full native 4K (4,096 x 2,160 pixels) resolution images on the screen with uniform brightness and more subtle blacks. With the combination of native 4K input and device, improved overall image quality can be achieved.
Unbeatable Black Level and High Luminance: Native contrast of 40,000:1 with dynamic contrast of ∞:1 (infinity to 1) is realized with the combination of the latest 0.69- inch native 4K D-ILA device with wire-grid optical engine and the BLU-Escent laser light source with dynamic laser light control. As a result, images brimming with reality can be achieved.
BLU-Escent Laser for Remarkably Bright Images: JVC's proprietary "BLU-Escent Laser" light source designed exclusively for the new models is featured to achieve exceptional peak brightness of 2,000 lumens with longevity of 20,000 hours.
Controlling the Luminance on BLU-Escent Laser: Luminance of projectors equipped with BLU-Escent Laser can be finely adjusted according to the environment and preference using the Light Source Control with a total of 101 (0 – 100) luminance control steps.
New Fully Motorized 4K Lens: The newly introduced compact projectors feature native 4K lens with a 15-element, 11-group, 80-mm lens with motorized focus, zoom, and shift for faithful reproduction of distortion-free, high-resolution native 4K images. In addition to a wide lens shift range of 70% vertical and 28% horizontal, these projectors are equipped with a 1.6x zoom that enables a projection distance of 3 metres at 100 inches, making these flexible for a variety of installation environments without sacrificing image quality. Its Lens Memory function comes in handy when switching between conventional 16:9 and cinemascope-sized screens.
HDR Drastically Improves Expressive Power of Images: When it comes to reproducing the rich video information of HDR content, rely on the new D-ILA projectors as these models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors' improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.
Gen2 Frame Adapt HDR Function: The Gen2 Frame Adapt HDR function's latest proprietary algorithm instantaneously analyses the maximum brightness of an HDR10 content per scene or frame and performs real-time tone mapping to optimal dynamic range for high-definition video projection. The proprietary algorithm's improved tone curve selection also reproduces HDR images with a wider dynamic range that are brighter and more colourful.
DML (Display Mastering Luminance) for Better HDR Experience: DML (Max Display Mastering Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director's standards, is used to set the dynamic range of the title for improved HDR tone mapping. Both DML and MaxCLL values are used for the HDR levels.
Vivid Reproduction of HDR Sources Containing Wide Colour Gamut: Even when HDR content using a wide colour gamut equivalent to 100% sRGB is projected on this projector, the original cinema filter combined with the BLU-Escent Laser work together to reproduce rich colours, such as the gradations of the sky and ocean, the contrast of red roses, or a row of fresh green trees.
Deeper Blacks for Richer Gradation: The new Deep Black Tone Control on the Gen2 Frame Adapt HDR with a new algorithm further subdues tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.
Picture Mode "Vivid": To reproduce content with a narrow dynamic range in more saturated colours, conventional Natural mode has been improved to the new "Vivid" mode. This mode is excellent for projecting classic SDR works with greater vividness that are yet popular in streaming content and gaming CGs.
Recreating the Creator's Original Intentions: FILMMAKER MODE™ was developed by the UHD Alliance with the aim of faithfully reproducing the filmmakers' intensions in the home. When using the mode, picture quality adjustments such as frame interpolation and noise reduction are turned off, and the colour temperature is set to D65 (6500K), allowing users to enjoy movies and documentaries with picture quality that is faithful to the original master.
Our Take On The JVC DLA-NZ500
The JVC DLA-NZ500 is a compact yet powerful native 4K projector designed to deliver an immersive home theatre experience. With 2,000 lumens of brightness and a native 4K (4,096 x 2,160) resolution, it ensures crisp and vibrant visuals, even on larger screens. Featuring JVC's BLU-Escent laser light source and advanced 0.69-inch D-ILA imaging chips, the NZ500 achieves an impressive native contrast of 40,000:1 and infinite dynamic contrast for deep blacks and stunning brightness. The projector supports all major HDR formats, including HDR10+, HLG, and Frame Adapt HDR, ensuring optimal dynamic range and colour accuracy. Its 80mm lens system, motorised zoom, and wide lens shift range allow for flexible installation, while the straight cooling system enhances compactness and performance. Designed with a sleek, user-friendly chassis available in black or white, the DLA-NZ500 seamlessly blends into any home cinema setup while faithfully reproducing the director's vision with FILMMAKER MODE™ and vivid colour reproduction.
Main Features & Specifications
- Design: 4K Laser Projector
- The JVC DLA-NZ700 and DLA-NZ500 are the world's smallest native 4K D-ILA projectors
- BLU-Escent Laser phosphor light engine delivers ultra-pure light with zero maintenance
- Light Output: 2,000 Lumens
- Native Contrast: 40,000:1
- Three 0.69" D-ILA panels with Full Digital Cinema 4K resolution (4096 x 2160 pixels each)
- High Dynamic Range (HDR10, HDR10+, and HLG) for extended picture contrast and brightness with HDR sources
- Second-generation Frame Adapt feature automatically optimizes HDR10 content with real-time tone mapping for a brighter, more colourful image
- Deep Black Tone Control displays dark areas more realistically
- Widescreen 16:9 Aspect Ratio
- Recommended Image Size: 60" to 200"
- 15-element, 11-group 80mm lens provides excellent sharpness and edge-to-edge focus
- Multiple Pixel Control image processor analyses and optimizes images pixel by pixel
- Clear Motion Drive frame interpolation with Motion Enhance reduces blur and judder and makes motion look smoother
- Filmmaker Mode automatically adjusts picture settings to preserve the director's intent
- Colour management system with 6-axis matrix
- 101-step luminance control slider
- Low Latency Mode suppresses display delay for faster response with signals from PCs and game consoles
Image Adjustments
- 6X powered zoom/focus lens
- ±28% horizontal and ±70% vertical powered lens shift image adjustment
- 5-setting Installation Mode lets you easily customize picture settings/lens positions

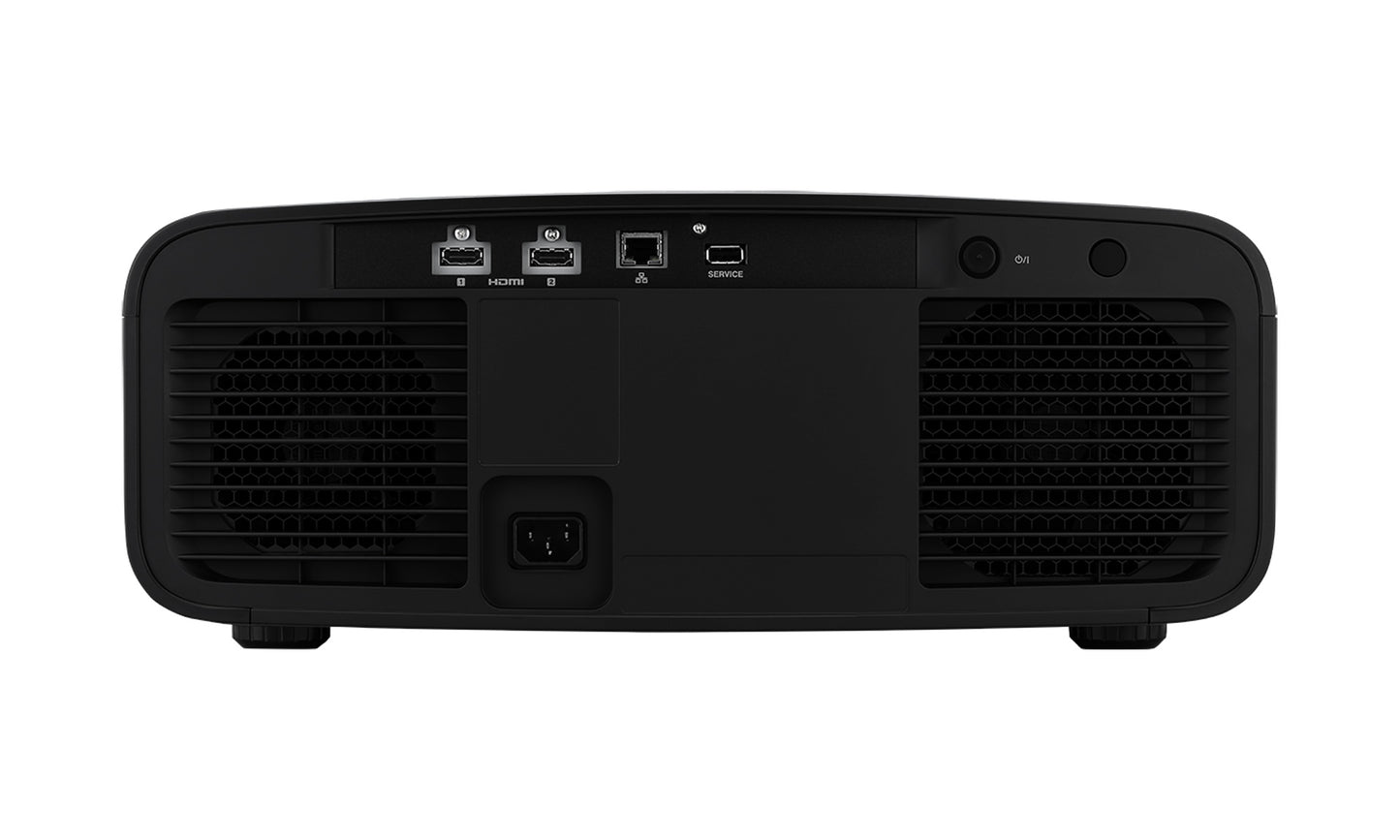

Connections
- 2 HDMI inputs
- Supports 4K/60Hz
- Does not support CEC (remote control via HDMI)
- RJ-45 LAN port for controlling the projector via a network connection
- USB Type-A input for firmware updates
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance
General
- This projector does not include any type of built-in TV tuner
- Can be placed on a tabletop or ceiling-mounted Mounting Bracket (sold separately)
- Available Finishes: Black or White
- Dimensions (WxHxD): 450 x 181 x 479 mm
- Weight: 14.6 kg
- Projector Warranty: 3 Years
- Learn more about JVC
Note: Features & Specifications Subject To Change Without Notice. E&OE.
