Magnetar UDP900 4K UHD Blu-ray Player

Magnetar UDP900 4K UHD Blu-ray Player

The Magnetar UDP900 is built with a high-quality, 6-layer gold immersion PCB design, using an ultra-precise, low-noise TCXO temperature-compensated crystal oscillator, giving it an edge over the UDP800's already impressive power supply. Murata's multilayer ceramic capacitors, TDK magnetic components, and 30 NCC electrolytic capacitors enhance both audio and video performance. The audio boards feature a 4-layer PCB with independent wiring for each channel, fitted with high-precision TCXO oscillators, ELNA, NCC audio capacitors, along with Red WIMA and ELNA SILMIC II capacitors. It also comes with an independent, high-powered linear power supply module with Hi-Fi XLR balanced terminals and gold-plated RCA outputs, delivering superior audiophile-level sound.

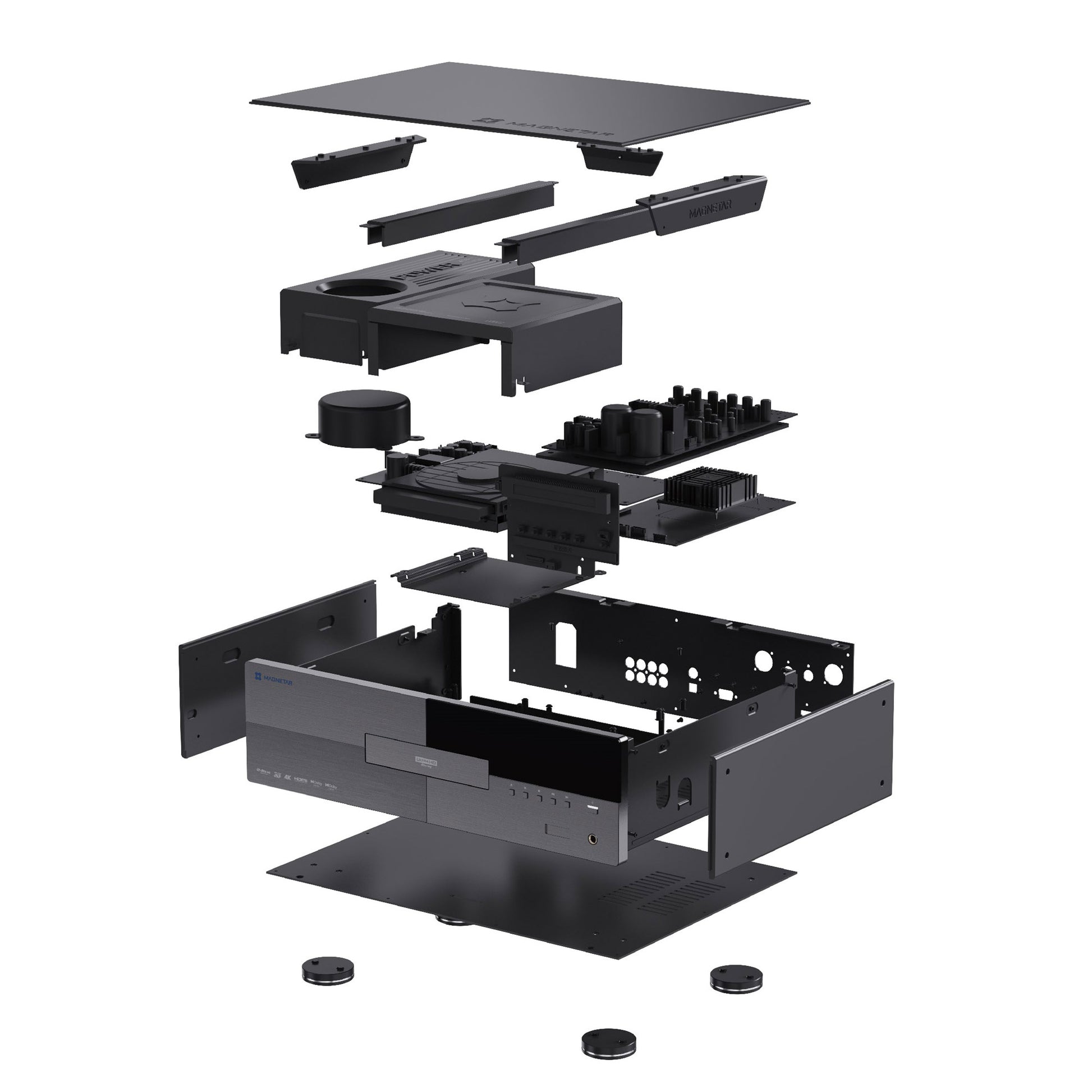

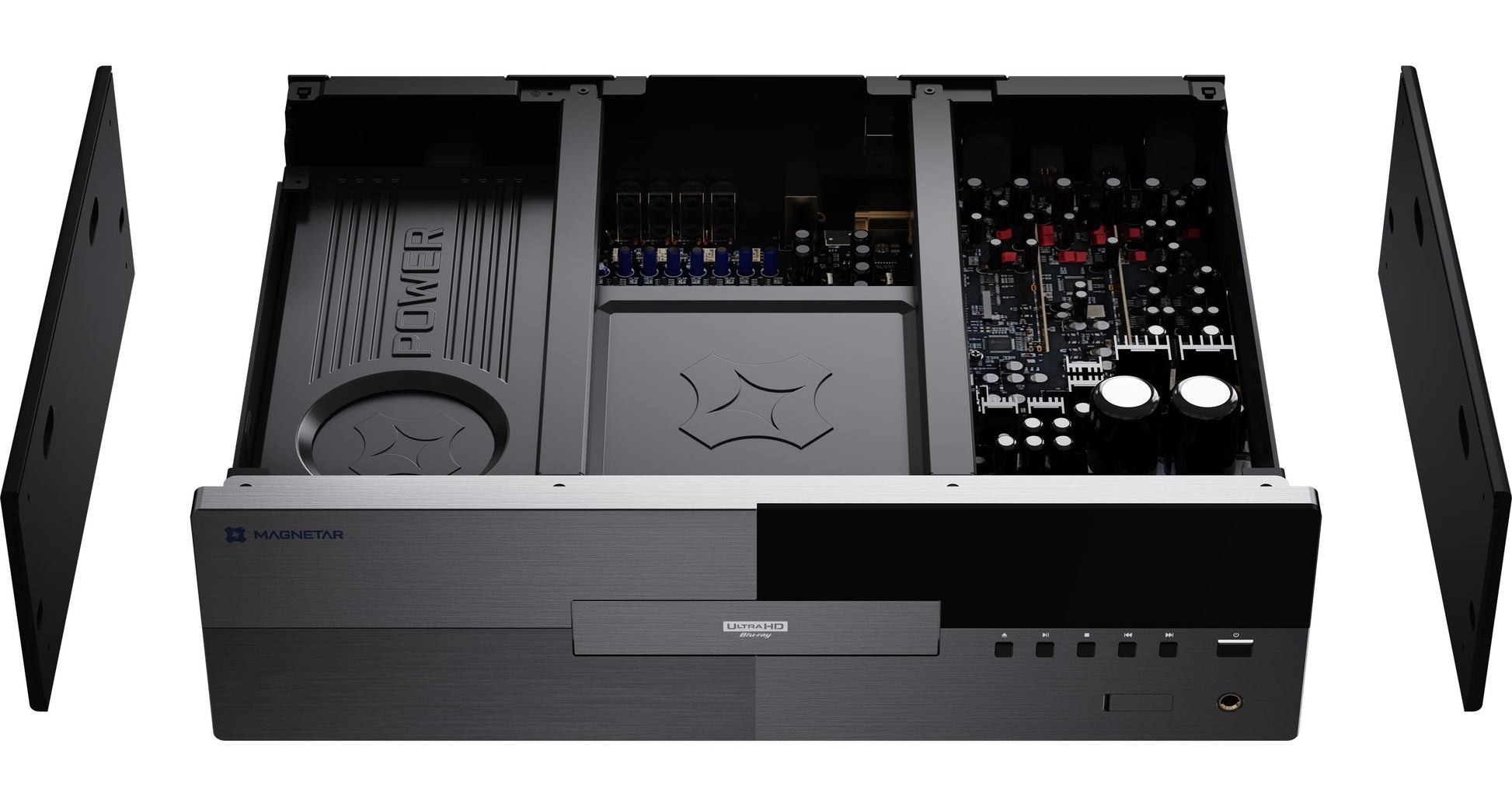

Premium Build Quality: The UDP900 is an imposing yet beautifully styled component, measuring 445 x 133 x 321 mm and weighing in at a substantial 15.4 kg. It sports a robust all-aluminium alloy body, reinforced with a double-layer chassis for added stability. Internal components are housed in a metal shield to minimise vibrations, noise, and interference from external magnetic fields, ensuring pristine audio and video clarity.

Outstanding Picture and Sound Quality: Supporting Dolby Vision and HDR10+ for superior dynamic range, the UDP900 delivers incredible visuals. It's also equipped with ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs, while the ESS9028PRO handles 7.1 RCA output. There's even an XMOS USB audio input for added versatility.

Supports a Wide Range of Media and Connections: The UDP900 is compatible with a variety of disc formats, including 4K UHD BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, and CD-R/RW. With USB 3.0 support, it can handle external drives up to 16TB, and DLNA, SMB, and NFS protocols let you share video, music, and photos easily. It supports a wide array of media formats like MKV, AVI, MP4, WAV, FLAC, APE, and DSD, so you can effortlessly manage and play files stored locally or across your network.

Dual Power Supply Design: A 60W toroidal transformer powers the analogue audio, with an imported magnetic core, oxygen-free copper wiring, metal shielding, and epoxy filling to keep vibrations, noise, and heat in check. Alongside there is a 60W switch mode power supply making sure the digital section gets all the clean power it requires. This thoughtful design improves both power efficiency and overall audio quality.

Our Take On The Magnetar UDP900

The Magnetar UDP900 4K UHD Blu-ray Player stands as a premium offering with its high-end construction and superior audio-visual performance. Built on a 6-layer gold immersion PCB design, it incorporates an ultra-precise, low-noise TCXO crystal oscillator, complemented by Murata ceramic capacitors and TDK magnetic components, to deliver exceptional audio and video quality. With separate audio boards featuring a 4-layer PCB and audiophile-grade capacitors, along with a high-powered linear power supply, it offers pristine, balanced sound. The robust all-aluminium body and reinforced chassis ensure durability, while its support for Dolby Vision, HDR10+, and various media formats solidifies its position as an elite player for those seeking top-tier home theatre experiences.

Main Features & Specifications

• Design: 4K UHD Blu-ray Player
• Also plays BR, 3D BR, DVD, DVD-Audio, CD, SACD etc
• Supports HDR formats - Dolby Vision, HDR10+, HDR10
• Supports Dolby Atmos, DTS-X, Dolby TrueHD and DTS-HD Master Audio
• Quad-core MediaTek MT8581 processor chip
• Sabre ES9038PRO DAC for balanced and unbalanced stereo audio outputs
• Multichannel 7.1 analogue audio RCA outputs via Sabre ES9028PRO DAC
• USB Type B input for hi-res 192kHz playback via computer, NAS HDDs up to 16TBs
• Supports DLNA and SMB protocols
• MKV, AVI, MP4, WAV, FLAC, APE, DSD file support
• 6-layer gold immersion main PCB circuit board
• Stereo XLR & RCA outputs
• Dual Power Supply
• Two-stage filter design with Japanese Rubycon electrolytic capacitors
• Independently shielded power supply and CD mechanism
• All-aluminium alloy body and a reinforced double-layer chassis structure
• Disc formats: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

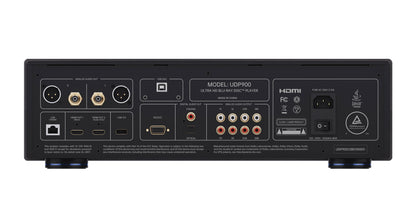

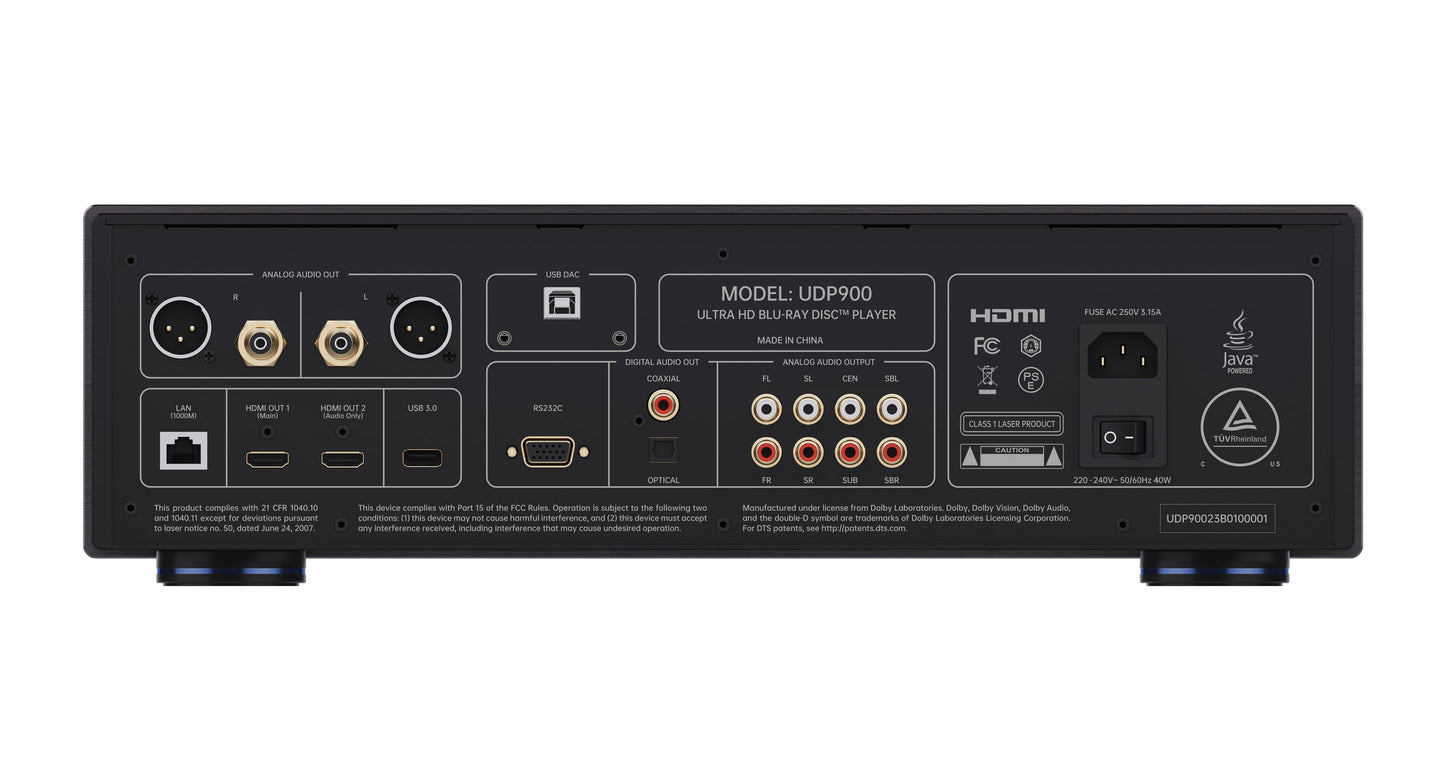

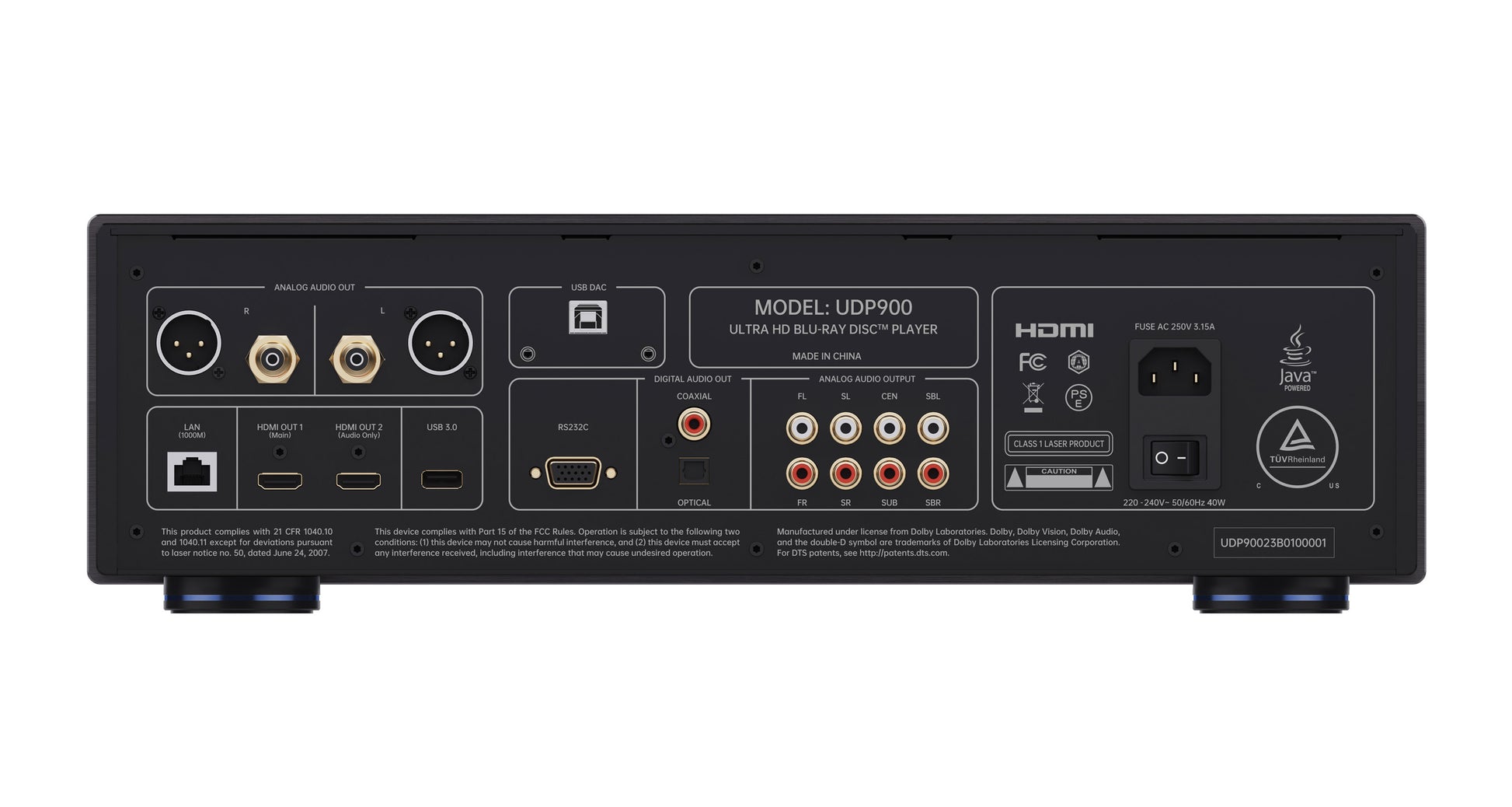

• Outputs
  • Independent Stereo Analogue Audio: XLR Balanced Output, RCA Output
  • 1 Channel RCA Outputs
  • Digital Audio Outputs: Optical, Coaxial, HDMI
  • HDMI Audio: Up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
  • HDMI Video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct
• Technical
  • Frequency Range:
    • 2 Channel: 20Hz-80kHz (±0.03dB)
    • Multichannel: 20Hz-80kHz (±0.05dB)
  • Signal-to-Noise Ratio: ≥120dB (2ch RCA); ≥130dB (2ch XLR)
  • Distortion plus Noise: ≤0.0005%
  • Output Level: (RCA) 2.1±0.2Vrms; (XLR) 4.2±0.4Vrms
  • Dynamic Range: ≥120dB (2ch RCA); ≥130dB (2ch XLR)
  • Channel Separation: ≥110dB (2ch RCA); ≥140dB (2ch XLR)
• General
  • Operating Temperature: 5° C ~ 35° C （41° F ~ 95° F）
  • Operating Humidity: 15% ~ 75%
  • Power Supply: AC 100-240V ~, 50/60Hz
  • Power Consumption: <40W, Standby<0.5W
  • Removable Power Cable: Upgrade to a Premium Power Cable for better performance
  • Included Accessories: AC Power Cable, Remote Control, AAA Batteries, User Manual
  • Dimensions (WxHxD): 445 x 133 x 321mm
  • Weight: 15.4kg
  • Manufacturer's Warranty: 2 Years
  • Learn more about Magnetar

Note: Features & Specifications Subject To Change Without Notice. E&OE.
