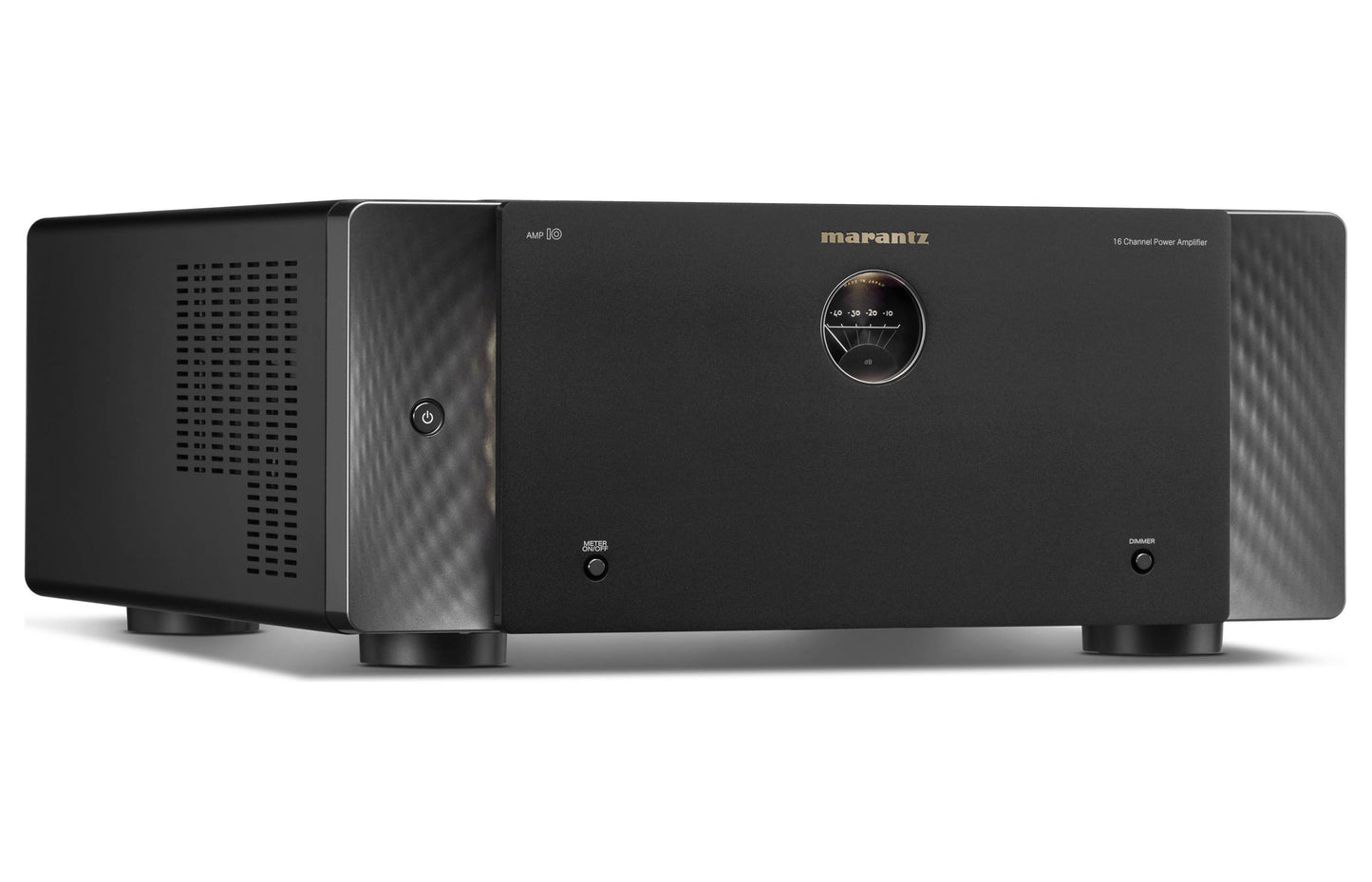

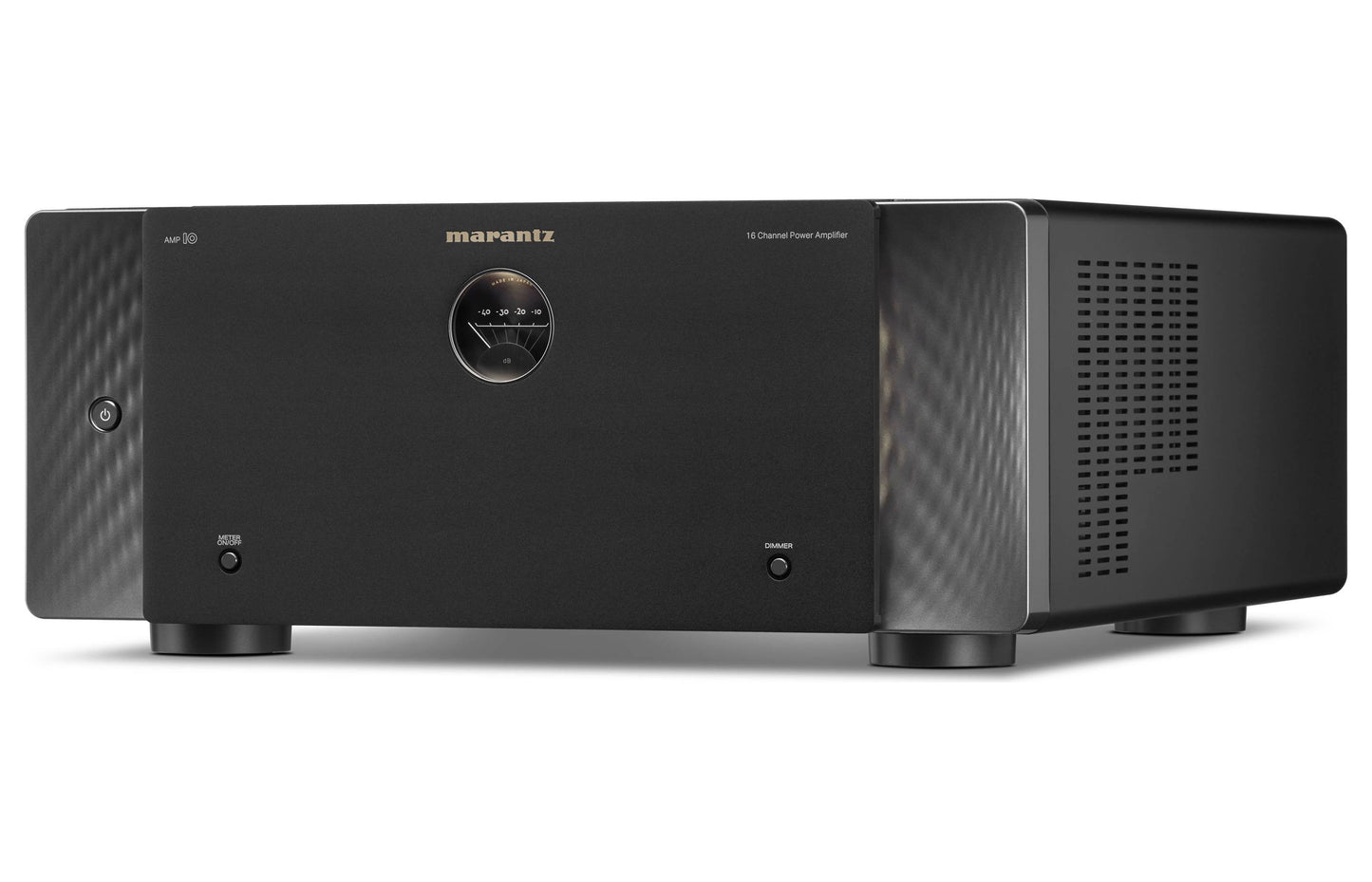

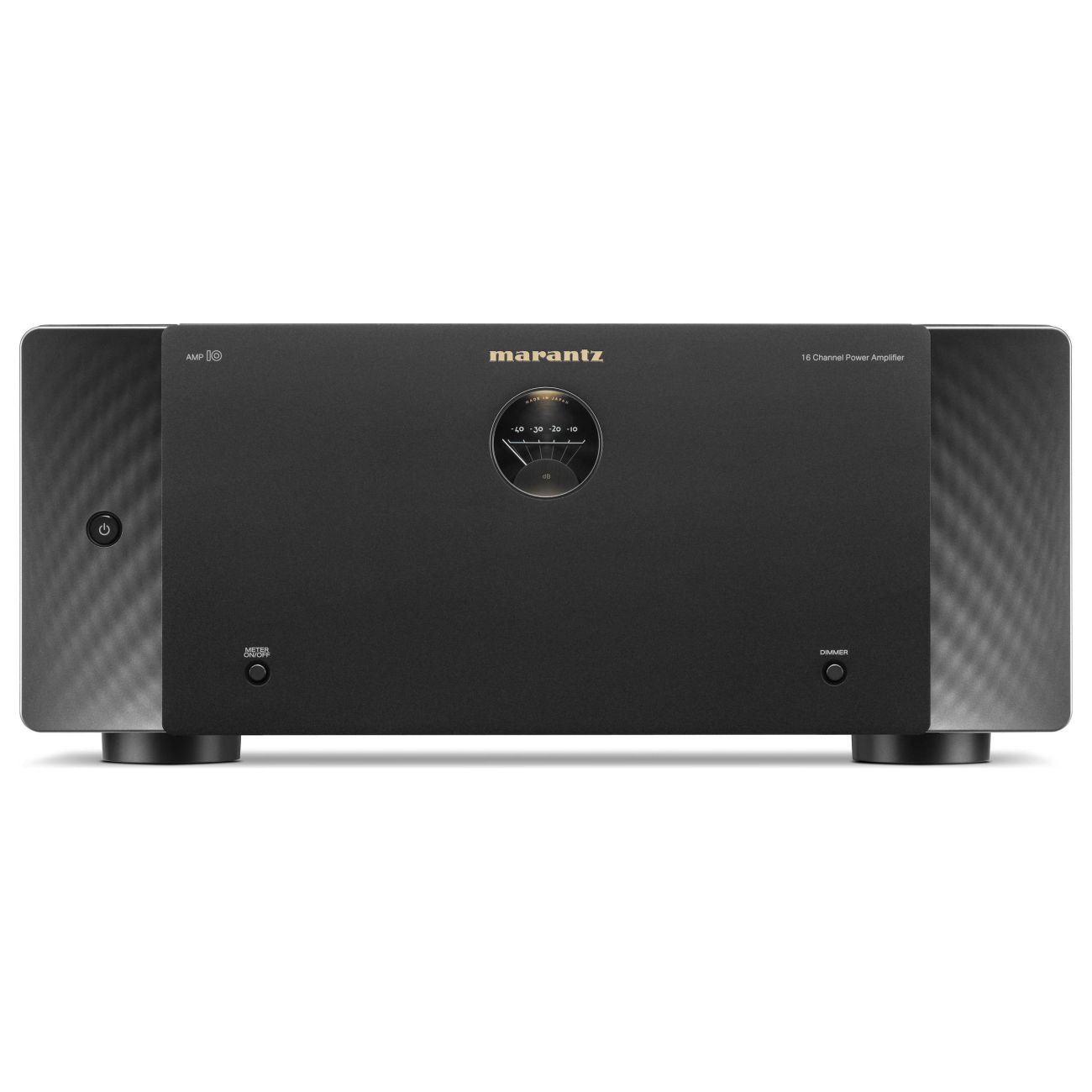

Marantz AMP 10 Multi-Channel Power Amplifier

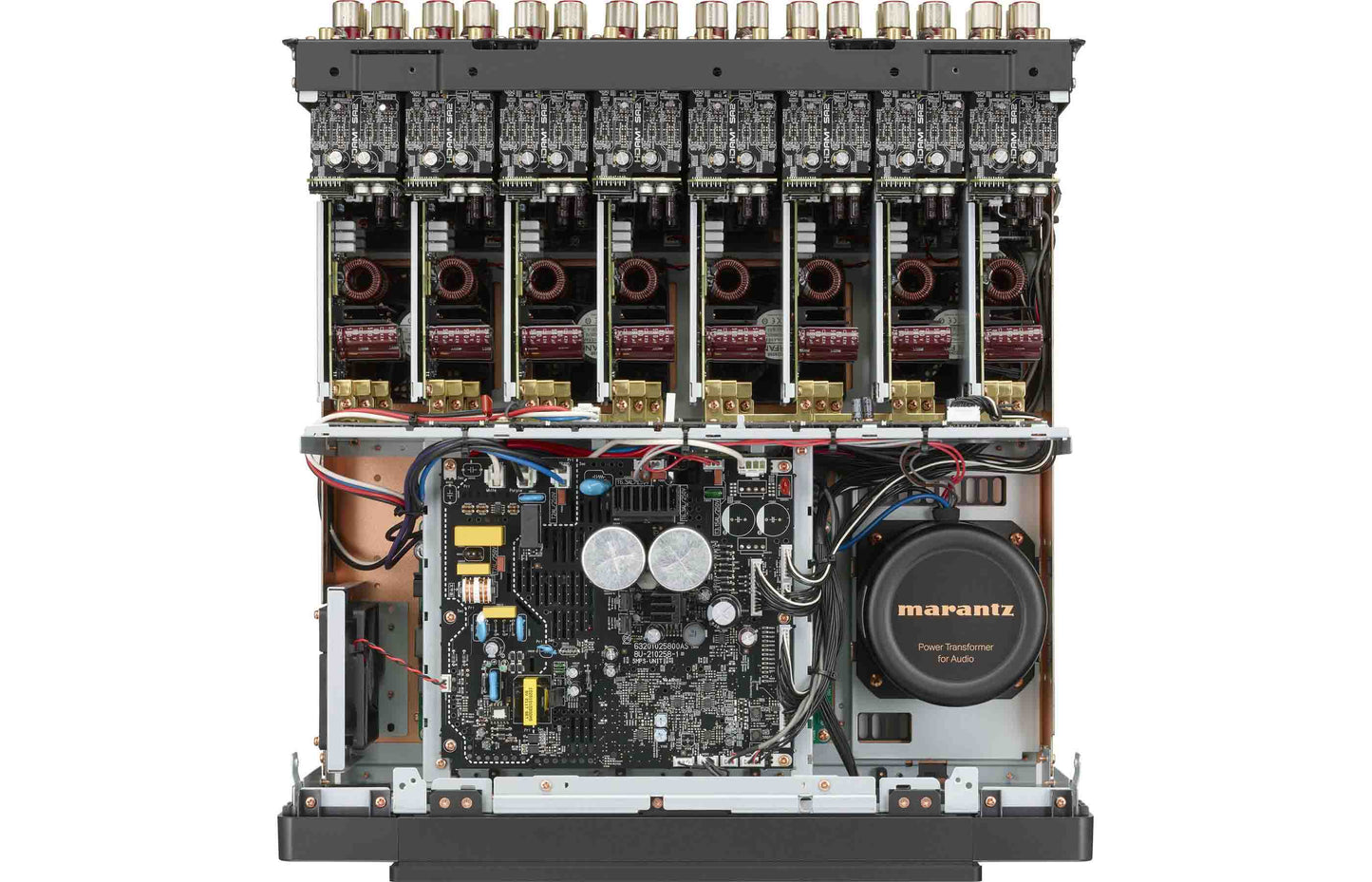

The Marantz AMP 10 is an absolute beast of an amplifier that's built to impress home theatre lovers. It delivers clean, robust power into 16 channels, which can be configured for an expansive 15.2 surround-sound setup, or a muscular bi-amped 7.1 system. The amp's beefy toroidal transformer, Hyper Dynamic Amplifier Module, and current feedback amplification offer impressive accuracy and control under high-drive conditions.
Make the most of its power by pairing it with the Marantz AV 10 home theatre preamp/processor.
Convenient Connections: Each channel features an unbalanced RCA input and a balanced XLR input, and the input to each pair is selectable via a handy switch. Another switch lets you control how each set of output terminals are configured: normal, bi-amp, or BTL. The ability to tailor how power is output allows your speakers to work hard and smart, so they can perform at their peak.

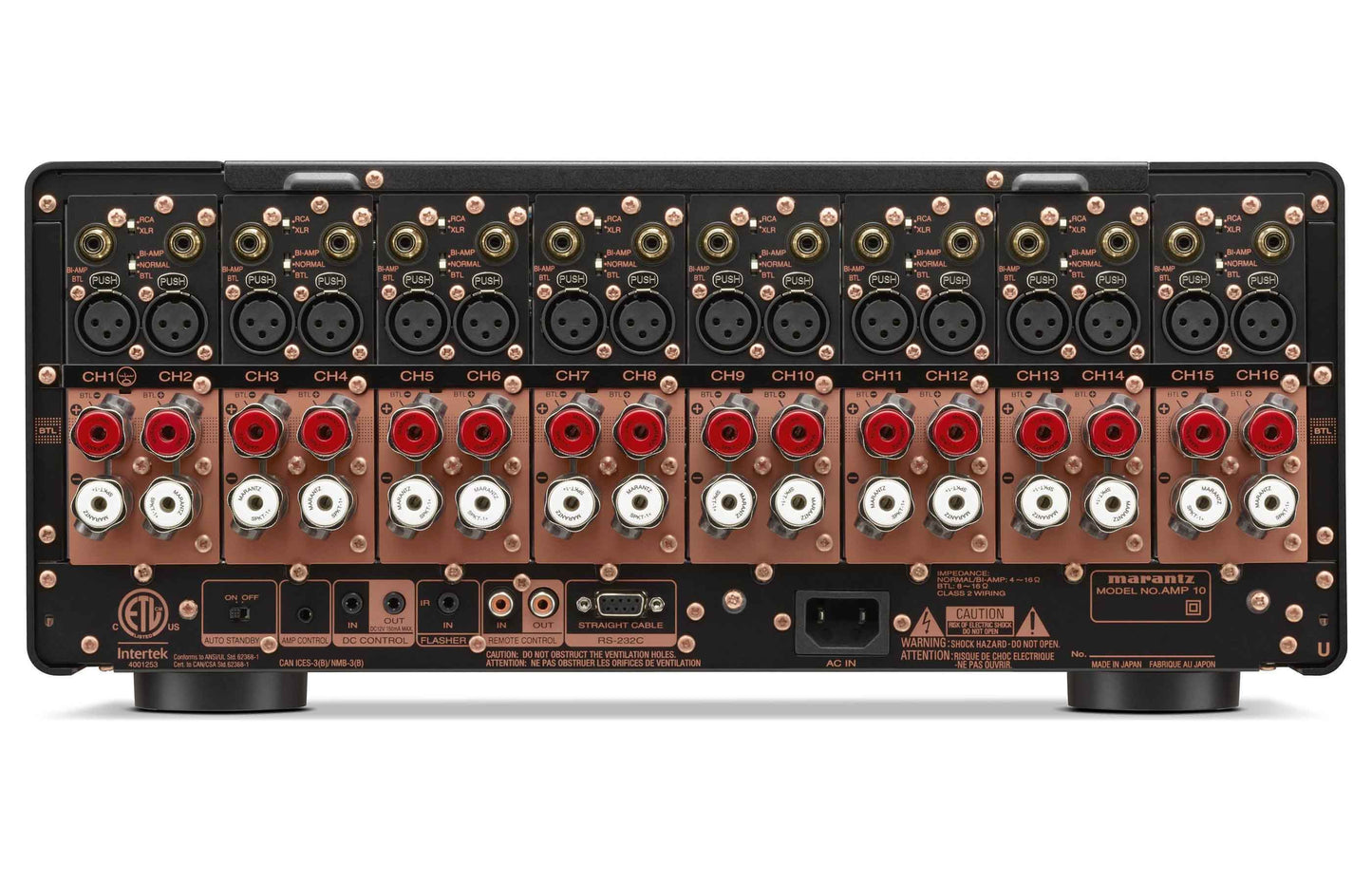

The back panel also gives you multiple options for controlling the amp. There's a 3.5 mm amp control input for syncing functions with a compatible preamp/processor, as well as a 3.5 mm DC trigger input and output. If you use an IR flasher, there's an input for that, too. You'll also find a Marantz RCA remote control input and output and a multi-pin RS-232C port for third-party remote control.
HDAM-SA2 Technology: The AMP 10 is built on Marantz exclusive HDAM-SA2 technology and newly developed Class D amplification. Marantz developed custom Class D amplifiers and refined their own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home. The Marantz Amp 10 cleverly combines very high-power output and 16 channels of commanding power to create a master reference-level amplifier for ultimate home theatre performance.
16 Channels of Amplification: The AMP 10 is rated at 200 Watts x 16 channels (into 8 Ohms @ 1kHz and 0.05% THD with 5 channels driven) and 400 Watts x 16 channels (into 4 Ohms @ 1kHz and 0.05% THD with 2 channels driven). While each of the 16 channels can operate independently, channel pairs can also be switched into bi-amp mode for isolating frequency bands from each other or switched into BTL (Bridge) mode for your highest output demands.
Normal Mode: In Normal mode, each unbalanced or balanced input channel corresponds with a speaker output channel provide up to 200 Watts x 16 channels (into 8 Ohms) or 400 Watts x 16 channels (into 4 Ohms).
Bi-Amp Mode: Bi-Amp mode lets you connect separate amplifier channels to the tweeter terminals and woofer terminal of a loudspeaker that supports a Bi-Amp connection for higher sound quality. When using Bi-Amp mode, be sure to remove the short-circuiting plate or wire between your speakers' woofer and tweeter terminals. Bi-Amp mode supports both 4 Ohm and 8 Ohm loudspeakers, allowing you to send 200 Watts or 400 Watts separately to the tweeter and woofer terminals of your Bi-Amp compatible loudspeaker.
BTL Mode: BTL (or Bridged) mode allows you to use two amplifier channels to drive one 8 Ohm speaker for more powerful sound performance. In BTL mode, the AMP 10 converts its 200 Watts x 2 channel (into 8 Ohms) stereo amplifier channel into a 400 Watts x 1 channel (into 4 Ohms) mono amplifier channel. The two-amplifier circuit construction guarantees an excellent signal-to-noise ratio (SNR) and the full control of any 8 Ohm loudspeaker. Please Note: The AMP 10 only supports 8 Ohm loudspeakers in BTL mode.
Balanced & Unbalanced Analogue Inputs: The Marantz AMP 10 is outfitted with a total of 16 analogue input channels with each consisting of one balanced XLR input and one unbalanced RCA input. There is an Input Switch between each input channel pair that needs to be set to either XLR or RCA - depending on the type of connection needed for your setup and application. You can only use one type of connection (XLR or RCA) per channel; you cannot use both.
Our Take On The Marantz AMP 10
The Marantz AMP 10 is a powerhouse multi-channel amplifier designed for discerning home theatre enthusiasts seeking reference-level performance. With its 16 channels of robust amplification, it can deliver a jaw-dropping 15.2 surround-sound experience or a bi-amped 7.1 setup, pushing 200 Watts per channel into 8 Ohms or an impressive 400 Watts into 4 Ohms. Featuring Marantz's proprietary HDAM-SA2 technology and custom Class D amplification, the AMP 10 ensures exceptional precision and clarity even under high demand. Its flexible configuration options include Normal, Bi-Amp, and BTL modes, empowering users to tailor power output for optimal speaker performance. The AMP 10 also boasts balanced XLR and unbalanced RCA inputs, switchable per channel pair, alongside comprehensive control features like RS-232C and DC trigger support. Pair it with the Marantz AV 10 preamp/processor to unlock its full cinematic potential and create a stunning theatre experience in your home.
Main Features & Specifications
- Design: Reference Multi-Channel Power Amplifier for Home Theatres
- Best used with the matching Marantz AV 10 Home Theatre Preamp/Processor
- 16 Channel Power Amplifier
- 200 Watts per channel into 8 Ohms (1k Hz) at 0.05% THD, with 2 channels driven
- 400 Watts per channel into 4 Ohms
- Hyper Dynamic Amplifier Module (HDAM® SA2) and current feedback amplification for accuracy and control under high-drive conditions
- Massive Toroidal Power Transformer for high current and low noise
- Selectable auto-standby function
Connections
- Unbalanced Stereo RCA and Balanced Stereo XLR inputs for each channel
- Binding Post Speaker Terminals for each channel
- 5mm amp control input for syncing functions with a compatible preamp/processor
- 5mm DC trigger input and output
- IR flasher input
- Marantz RCA remote control input and output
- RS-232C port for third-party remote control
General
- Detachable power cord
- Included Accessories: Quick Start Guide, Mains Power Cable, Amp Control Cable, Remote Control Cable, Speaker Terminal Wrench
- Dimensions (WxHxD): 440 x 188 x 503 mm
- Weight: 19.8 kg
- Manufacturer's Warranty: 5 Years
- Lean more about Marantz
Note: Features & Specifications Subject To Change Without Notice. E&OE.
