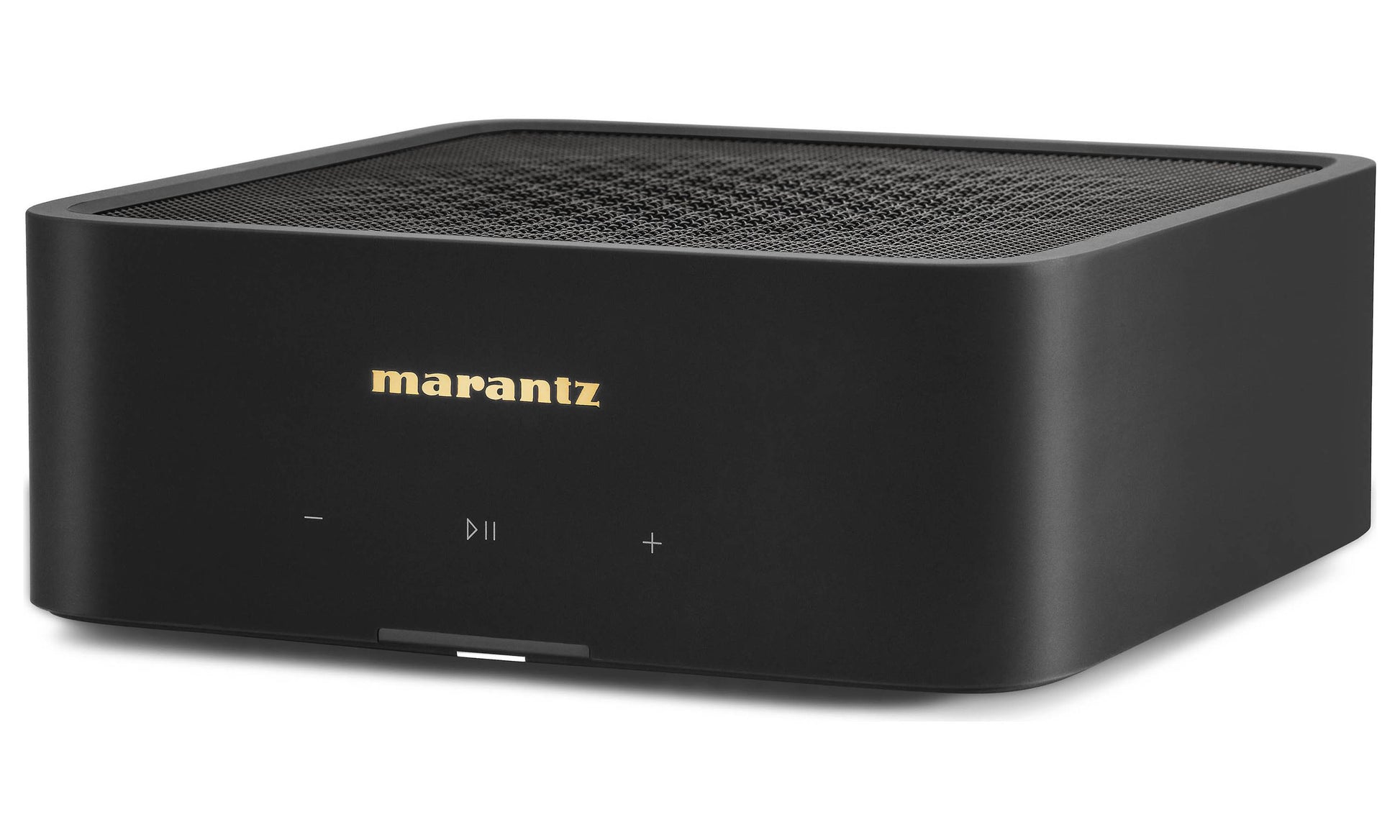

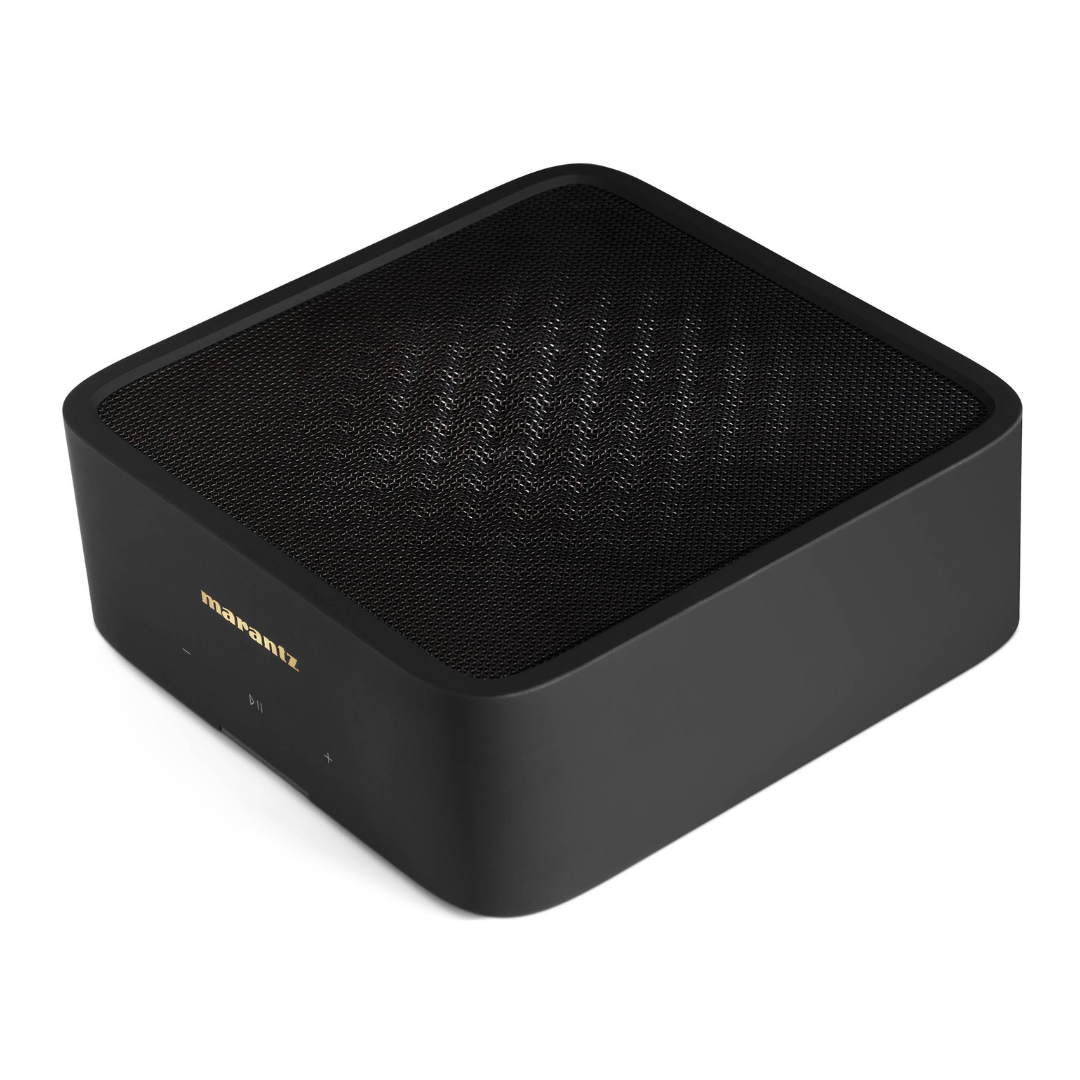

Marantz MODEL M1 Wireless Streaming Amplifier
The ultra-compact, versatile and high-performance MODEL M1 is a new generation of wireless streaming amplifier that has been carefully engineered to offer great sound from a wide range of streamed music services. Thanks to its analogue and digital input sockets, it can also be connected to both physical music sources and your TV.
This flexible design and comprehensive feature set is backed by the heritage, engineering skill and renowned sonic expertise of a world-leading audio brand, ensuring MODEL M1 is uniquely positioned in the market as a wireless streaming amplifier that appeals to both first-time hi-fi buyers and the experienced audio enthusiast.
The Power to Impress: MODEL M1 has the power and quality to suit a wide range of loudspeakers, from compact designs to substantial towers, or if you prefer, ceiling or wall-mounted speakers. Its high-power amplification is highly efficient and offers 100W of stereo output with phenomenally low distortion – just 0.005% THD via its digital inputs, a figure typically found in amplifiers costing a great deal more. If desired, you can add a subwoofer for a 2.1-channel experience, and MODEL M1's advanced configuration options allow for full adjustment of both high-pass-filter and low-pass-filter frequencies independently, along with +/-15dB of subwoofer level trim.
This powerful amplification is complemented by full high-resolution music support. Many compact digital amplifiers are limited to CD-quality 16-bit/44.1kHz resolution, but MODEL M1 supports the full high-resolution music experience over streamed services, your network or even USB, including 24-bit/192kHz PCM support and provision for DSD. To ensure these high-resolution signals are delivered in the best possible quality, MODEL M1 operates in the digital domain from end to end. This simplifies the signal flow and eliminates errors caused by the inexpensive DACs typically found in traditional hi-fi. It also means all sources leverage the powerful DSP technologies built in, including Marantz Music Digital Filtering (MMDF), first developed for the brand's reference-grade audiophile CD players and designed to ensure the characteristic warmth and musicality of any Marantz product.
High Resolution, Your Way: However you want to listen, MODEL M1 has you covered. Use the HEOS app to access all the music services available on the HEOS platform, including the soon-to-be-released updates for TIDAL and Roon Ready support.
In addition to HEOS, MODEL M1 supports Bluetooth, Spotify Connect and AirPlay 2, ensuring wide-ranging wireless music streaming for almost any content you may wish to access, and from almost any device. You can even play audio from a locally connected USB-A drive, making this compact product a powerhouse of connected, streamed and network-served high-resolution audio.
If you prefer the sound of vinyl, you can even connect in a compatible record player (a MODEL with an included phono stage or a separate, external phono preamplifier) via the MODEL M1's line-level RCA analogue inputs.
The Heartbeat of Your Home: When you're not listening to music, MODEL M1 is a perfect alternative to a soundbar or to an AVR for high-quality TV watching. Its included eARC HDMI input means simple one-remote control over system volume levels and power management using your TV's supplied handset. The onboard Dolby Digital+ decoding supports the latest audio codecs typically used by broadcast and streamed TV services in high quality and a range of useful adjustment functions provide for an optimized experience whatever and whenever you are watching. That includes a Dialogue Enhancer option to make voices more easily discernible when listening at low volume levels, plus a Virtual mode that utilizes Dolby processing to generate a large, three-dimensional sound field from stereo-only content – perfect for homes where a larger full-sized surround sound system simply isn't an option.
Every Room, in Great Quality: Naturally, MODEL M1 can also share your HEOS music across your home with other HEOS-enabled products in the Marantz portfolio, including both stereo and AVR components, so whole-home Marantz sound quality (scalable to up to 32 discrete zones) is simplicity itself. Of course, it can also be partnered with other MODEL M1s and its compact design means two units can be installed side-by-side in a standard 19in equipment rack if desired. Its effective passive thermal management means no intrusive fan noise or issues with heat build-up in cabinets and a threaded mounting point on the rear of the amplifier means you can even install the unit on a wall-mount bracket if required.
The HEOS app gives full control over MODEL M1's functionality even when the amplifier is installed out of line-of-sight, but for more extensive integration in custom installation environments, MODEL M1 is also compatible with a broad range of third-party control systems, including such industry- renowned brands as Crestron, Control4 and URC. HEOS also provides for IR learning, so you can use other brands of remote control handset too, if you wish.
Our Take on the Marantz MODEL M1
The Marantz MODEL M1 Streaming Amplifier is an ultra-compact, high-performance device designed for exceptional sound quality across a variety of streaming music services. Engineered with both analogue and digital inputs, it connects seamlessly to physical music sources and TVs. With its powerful 100W stereo output and advanced digital signal processing, the MODEL M1 delivers low-distortion audio typically found in much higher-priced amplifiers. It supports high-resolution audio formats up to 24-bit/192kHz PCM and DSD, and offers flexible streaming options via HEOS, Bluetooth, Spotify Connect, and AirPlay 2. Additionally, its eARC HDMI input, Dolby Digital+ decoding, and dialogue enhancement make it an excellent alternative for TV audio. Compact and versatile, the MODEL M1 integrates easily into custom installations, supporting multiple zones with HEOS and compatibility with major third-party control systems.
Main Features & Specifications
- Design: Compact Streaming Amplifier with HDMI eARC
- 1 channel output allows for loudspeaker and subwoofer connection
- 100W per channel high power and crystal clarity
- Switching, digital end-to-end amplifier topology
- Enhanced performance with Marantz Musical Digital Filtering (MMDF)
- Effortless streaming with HEOS® Built-in, Wi-Fi, AirPlay 2, Spotify Connect
- Toslink Optical audio and HDMI eARC digital audio inputs
- Digital decoding with Dolby Digital+
- 1 pair RCA analogue audio inputs with gold-plated brass terminals
- Sound Master tuned, designed, and built by Shirakawa Audio Works in Japan
- Small footprint, rack-mountable, high-end materials, and refined Marantz industrial design
- Amplifier
- Power Amplifier Rated Output & THD (8 Ohms): 100W+100W (8Ω/Ohms, 20 Hz to 20 kHz, T.H.D. 0.05%)
- Power Amplifier Rated Output & THD (4 Ohms): 125W + 125W (4Ω/Ohms, 1 kHz, T.H.D. 0.05%)
- Frequency Response: 20 Hz to 20 kHz: ±1 dB
- Connected Loudspeaker Impedance: 4 – 16 Ω/Ohms

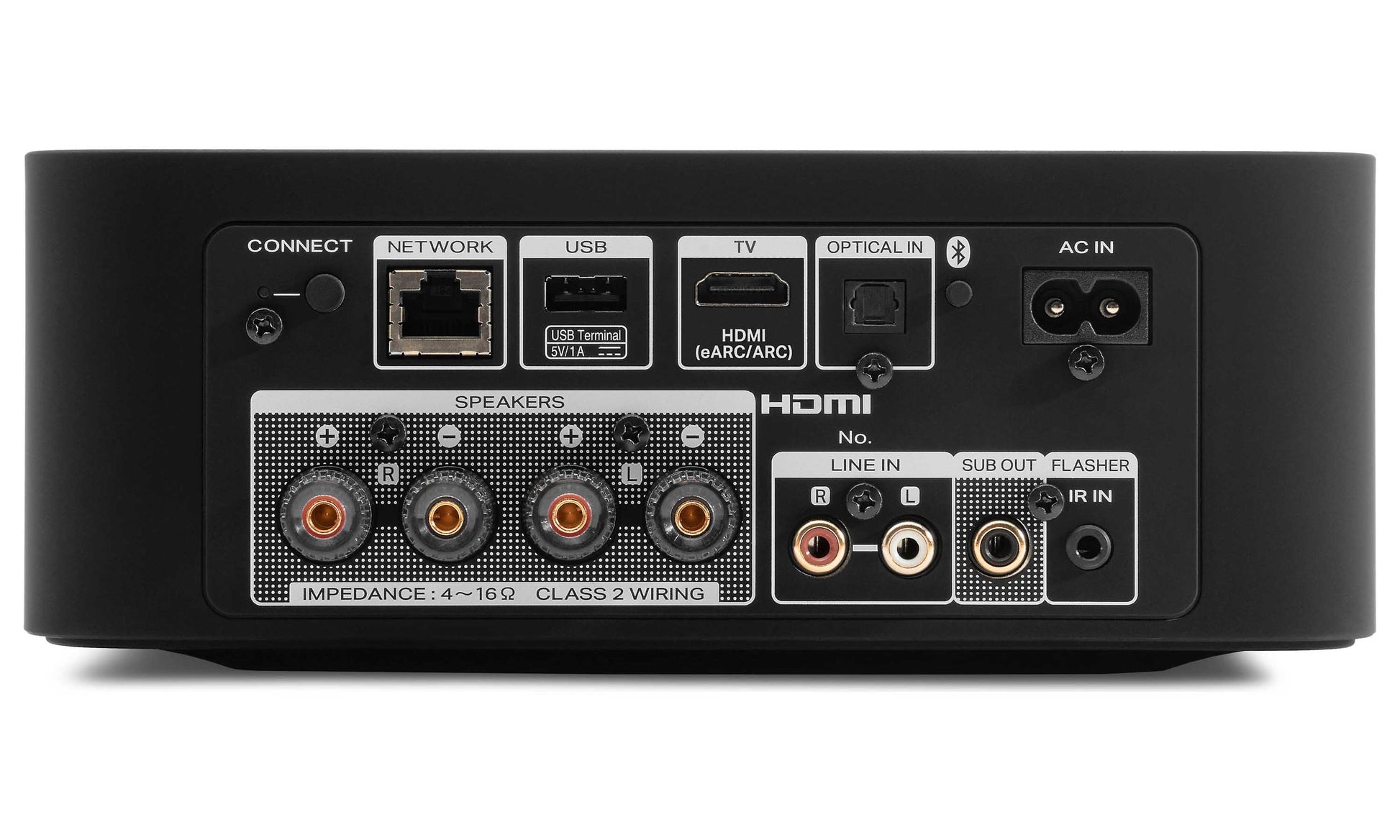

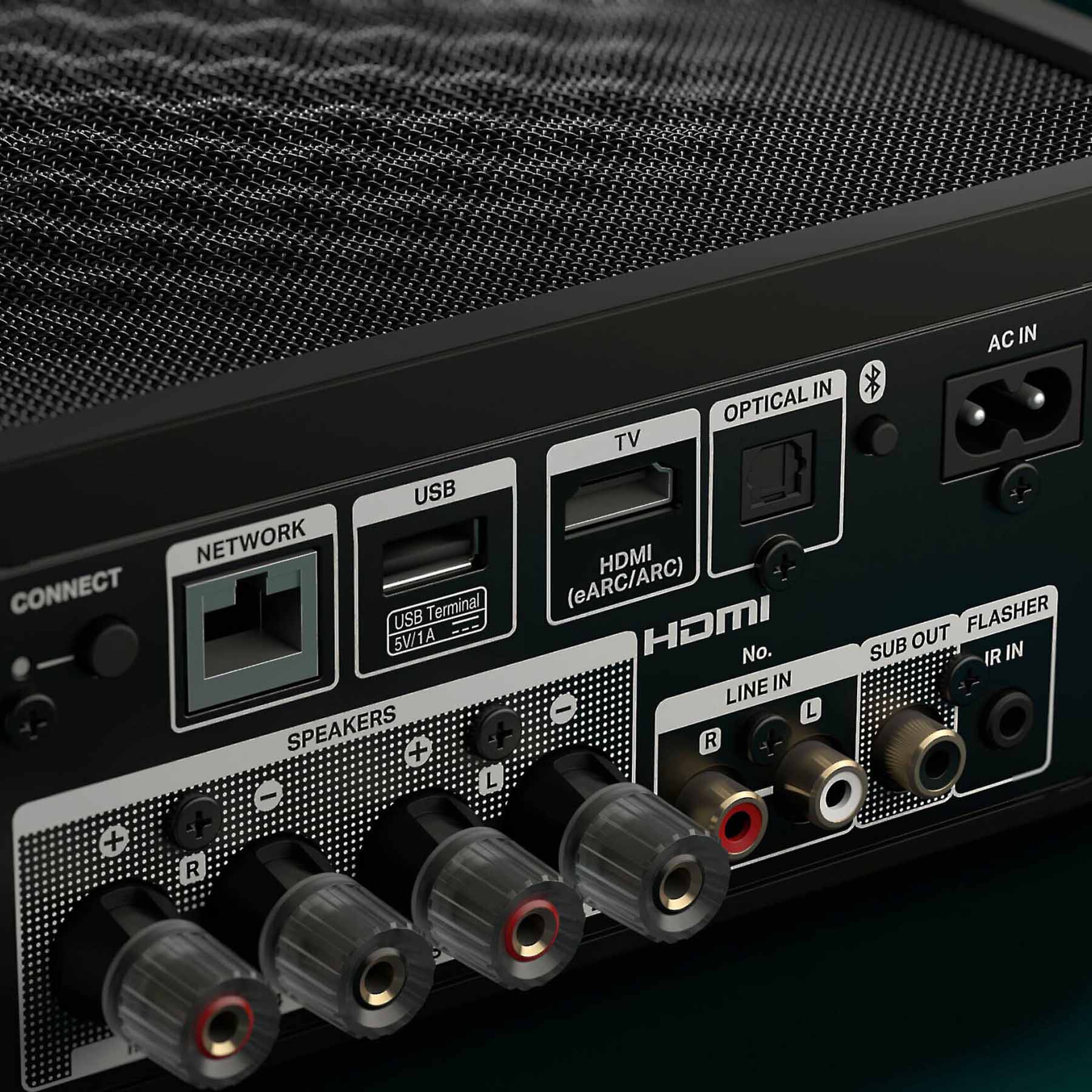

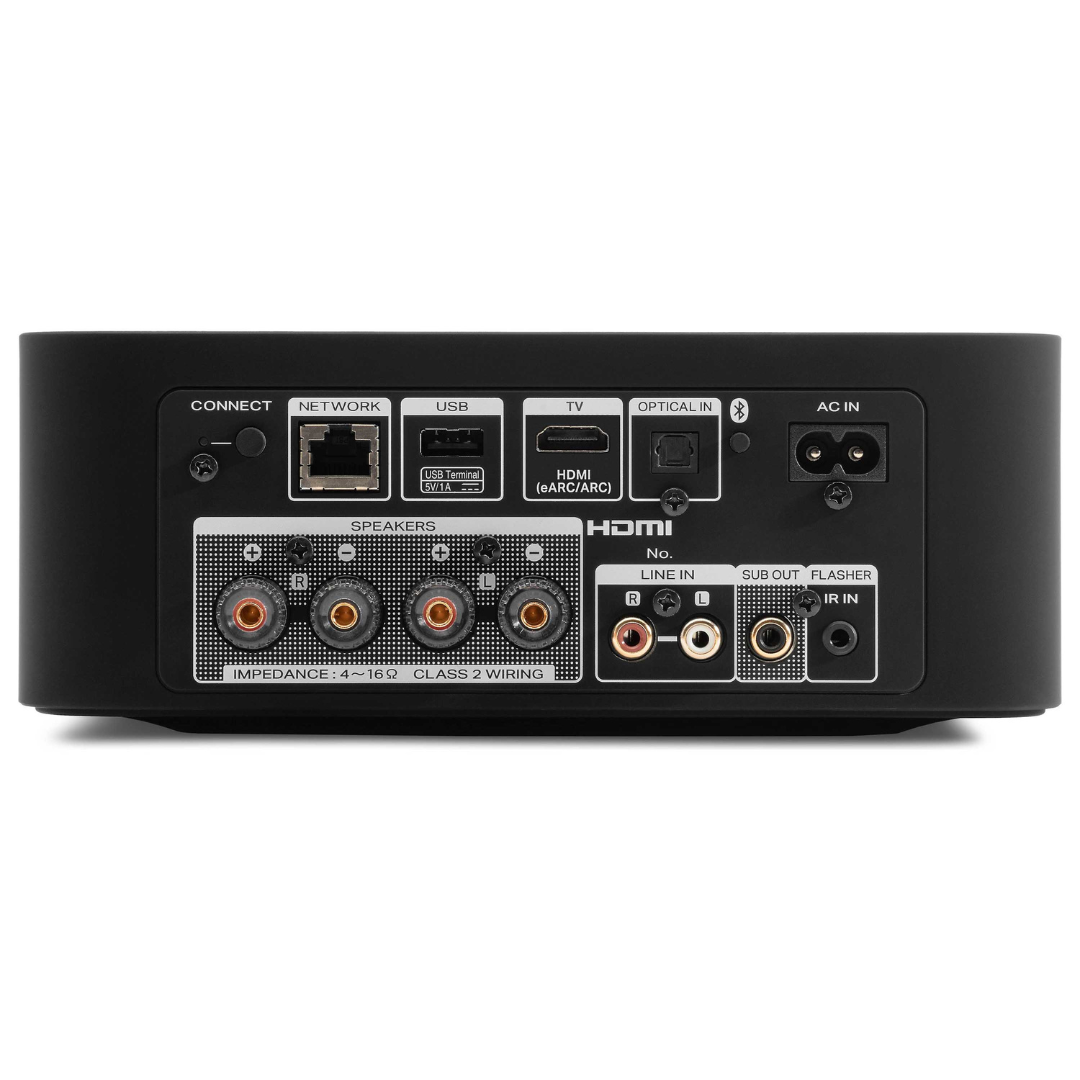

- Audio Inputs / Outputs
- Loudspeaker Binding Posts: 4-Way Binding Posts
- Digital Inputs: HDMI (eARC), Toslink Optical, USB-A
- Analogue Inputs: Stereo RCA
- Subwoofer Out: Mono RCA
- Audio Options
- Channel Assignments: Stereo (Default), Dual Mono
- Volume Limit: 80-100%
- Balance: -15dB to +15dB
- Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
- EQ: Bass, Treble -5dB to +5dB
- Sound Modes: Stereo, Direct, Virtual, Dialogue Enhancer, Night Mode
- TV Sound Grouping: Yes
- Audio Format Support
- Decoding: Dolby Digital +, Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-Channel PCM: Yes / Yes
- Stereo File Formats (HEOS Network Share or USB): WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz DSD: 2.8 MHz, 5.6MHz
- Streaming Technologies
- Bluetooth Receive: BT 5
- Bluetooth Transmit: No
- AirPlay: AirPlay 2
- Spotify: Spotify Connect
- Roon Ready
- Music Services & Sources
- Music Services Supported (HEOS, subject to change and local availability): Spotify, TuneIn, Amazon Music, Tidal, Tidal HiRes, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, SoundCloud
- Music Stored on Mobile Device: Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage): Network share, DLNA
- USB Storage Device Playback: Yes (FAT32, NTFS formatted drives)
- Networking & Control
- Wired Connectivity: Ethernet
- Wireless Connectivity: Dual Band, 802.11 a/b/g/n/ac
- IR Input: 3.5mm
- IR Learning: Yes
- Control System Compatibility via TCP/IP: Crestron, Control4, AMX
- HEOS App: iOS, Android
- General
- Finish: Black

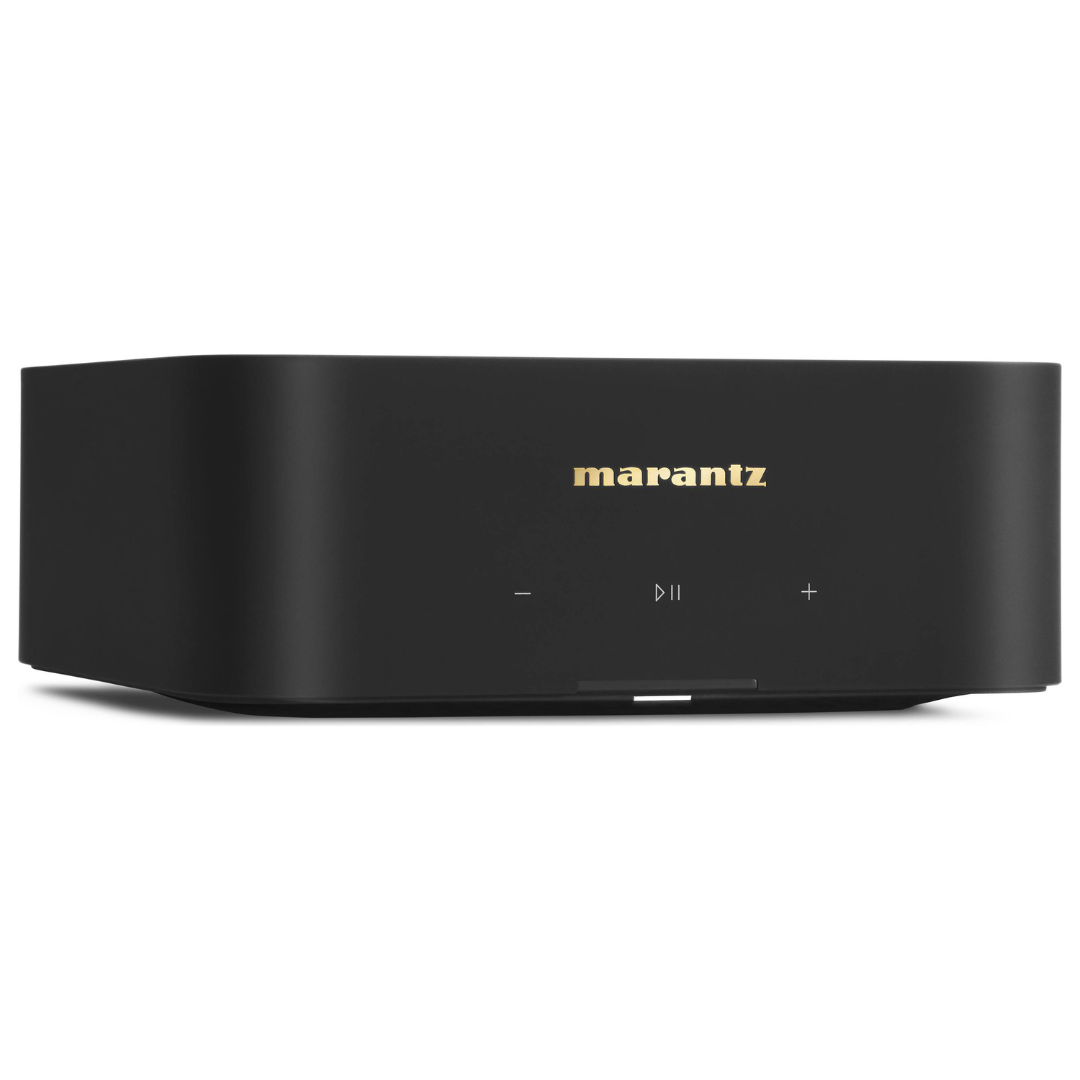

- User Interface: Volume up/down, Play / Pause, Multi coloured LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (WxHxD): 217 x 84 x 239 mm
- Weight: 2.2 kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
