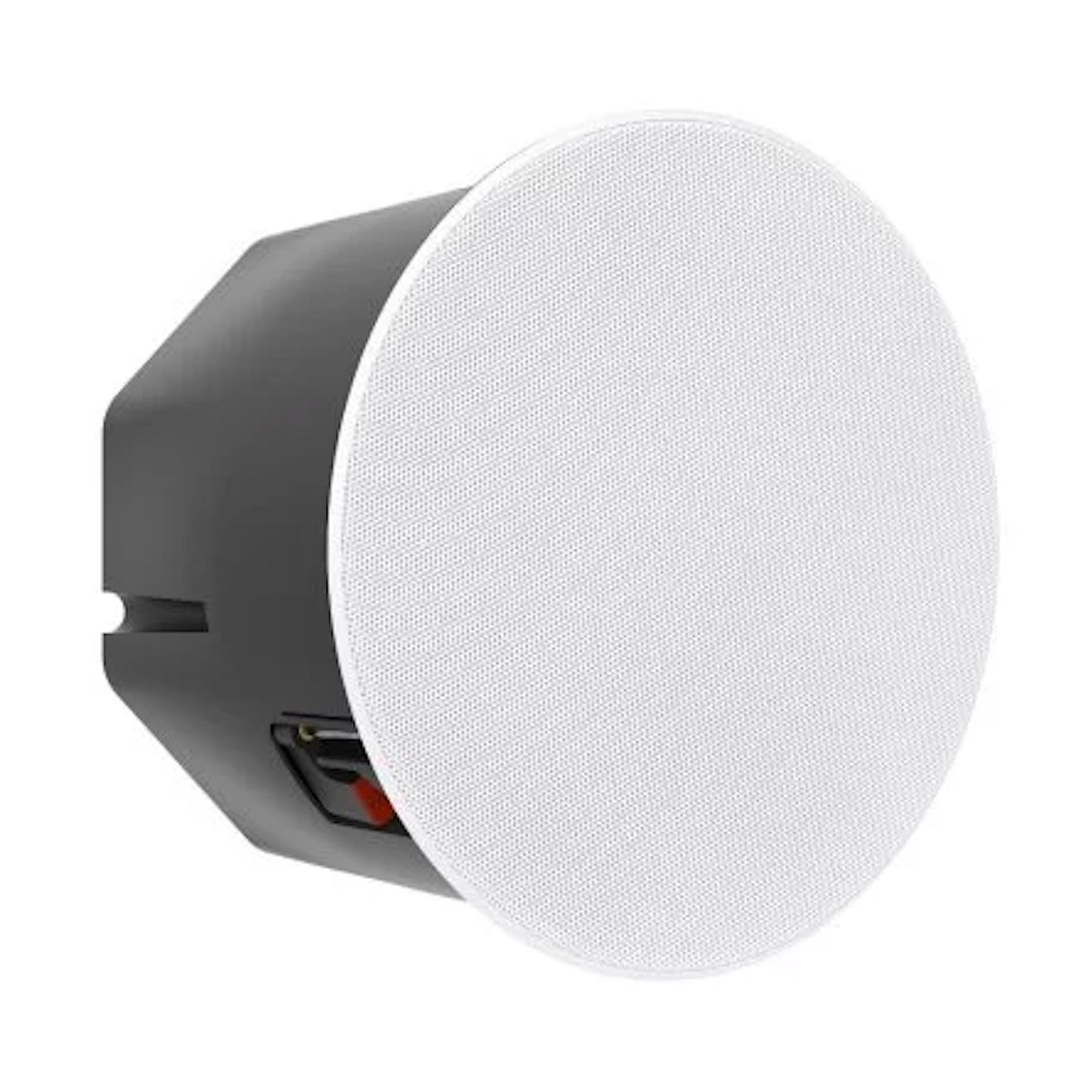

About The Monitor Audio C3L-CP In-Ceiling Speaker
This large in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. Its fully sealed back box delivers consistently high performance, no matter where it is used. It has a cut out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.
The application of key Monitor Audio acoustic technologies more usually found in their premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation. If you thought you knew custom installation, think again; Creator Series redefines British high-fidelity architectural sound.
Controlled Performance (CP): Controlled Performance (CP) models are fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30dB. This range guarantees excellent audio quality and versatility, and offers superior sound isolation between rooms and floors.
Tri-Grip II: Tri-Grip II is a new dog-leg fixing mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.
Quik-Link: Monitor Audio's innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It's that easy.
Boundary EQ: All the Creator Series in-wall models perform exceptionally well in a variety of locations, including when close to secondary walls. However, the C3L-CP features enhanced technologies such as boundary correction and high- and mid-frequency cut/boost that allows it to be placed in trickier locations such as corners. Because sound performance shouldn't be compromised by placement.
Easy to Install: Using Monitor Audio's enhanced Tri-Grip II installation system, the C3L-CP is quick and easy to install. Once in position, the multi-point support holds the speaker securely. Patented Quik-Link speaker cable connectors speed up installation, saving considerable time when wiring up a multi-room system.
Discreet Design: With its flush-fitting, magnetically attached grille, the C3L-CP blends seamlessly with the wall. For an even more discreet finish, the grille can be spray painted to precisely match your wall's colour.
Our Take
The Monitor Audio C3L-CP in-ceiling speaker combines cutting-edge audio technology with discreet installation, making it an ideal choice for immersive audio experiences in home entertainment systems. Engineered to an exceptionally high standard by Monitor Audio, the C3L-CP boasts a three-way design featuring an IDC II tweeter, a 4-inch IDC II midrange driver, and a 9-inch RDT III bass driver. This configuration delivers a balanced and articulate sound reproduction across the frequency spectrum. This Controlled Performance (CP) model is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising midrange and bass performance while maintaining sonic consistency regardless of interior wall construction. With a flush-fitting, low-profile design, the C3L-CP seamlessly integrates into ceilings, maintaining a sleek aesthetic while providing exceptional audio performance for discerning audiophiles and home theatre enthusiasts.
Main Features & Specifications
- Design: 3-Way 3-Driver In-Ceiling Speaker – Sold Individually
- Ideal for installations where pristine acoustic performance is required
- Fitted back box delivers consistent performance regardless of interior wall construction
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
- Mid-frequency ‘mid-pod array’
- Frequency Response, Installed (-6dB): 80 Hz – 35 kHz
- Nominal Impedance: 6 Ohms
- Minimum Impedance (20Hz to 20kHz): 4.9 Ohms @ 2 kHz
- Sensitivity (2.83Vrms@1m, Installed): 89 dB
- Maximum Peak SPL (single speaker @ 1m Z-Weighted): 122 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 120 W
- Recommended Amplifier Power (RMS into 8 Ohms, Music Signal): 45 – 180 W
- Corner Switch: On/Off
- HF Switch: - /0/ +
- HF Switch: - /0/ +
- Drive Unit Complement
- 9" (229mm) RDT III Bass Drivers for full bass
- 4" (102mm) IDC II Midrange Driver
- 1" (25mm) IDC II Tweeter with UD Waveguide II for lifelike sound
- Crossover Frequencies
- LF/HF: 700 kHz
- MF/HF: 3.5 kHz
- Bass Alignment: Sealed
- Pre-Construction Bracket: CL-B
- Flush-Fitting, Magnetically Attached Grille
- Finish: Black
- Mounting Depth: 177.5mm
- Cutout Hole Diameter: 248mm
- External Dimensions Including Grille (WxHxD): 278 x 278 x 181mm
- Weight: 5.7 kg
- Manufacturer’s Warranty: Lifetime Warranty - applies to the original purchaser only
Note: Features & Specifications Subject To Change Without Notice. E&OE
