Monitor Audio WSS130 In-Wall Speaker
Marking the entry point into the Super Slim in-wall speaker range, the WSS130 is perfectly suited to multi-room audio and home cinema installations. A 25 mm Gold Dome tweeter augments MMP II cone drivers, enabling a smooth overall sonic character.
The WSS line offers a refreshingly simple 'good, better, best' menu. The Super Slim WSS speakers offer unique flexibility, performance, and elegant aesthetics to achieve perfect results for the most technical demanding applications.
The WSS130 is the entry-point, and is ideal for general home theatre and music applications. Featuring three bass/mid-range drivers plus one tweeter, the speakers have been smartly designed to enable the performance of a significantly larger monitor. The three-driver layout is key here, as it helps keep the frontal profile look slender, as well as deliver a depth of a mere 50 mm. The WSS130 features MMP II cone drivers, augmented by a 25 mm Gold Dome tweeter. This MMP cone technology allows for a simple crossover design and smooth overall sound character.
The WSS130 includes Monitor Audio's patented 'tri-grip' mounting system meaning you get a robust fixing. This system has been proven over the last decade in the CT and WT ranges, so you know it works brilliantly. All three models share the same footprint and pre-construction bracket, providing simplicity as well as the option of specifying a higher performance model in the range before completion.
Key Features
- Good, better, best performance levels
- Super-Slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140 mm wide
- Three, 3" (76 mm) bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
- The WSS130 uses a 1" (25 mm) C-CAM Gold Dome tweeter
- High quality crossover components – Selected and voiced for amazing sonic performance

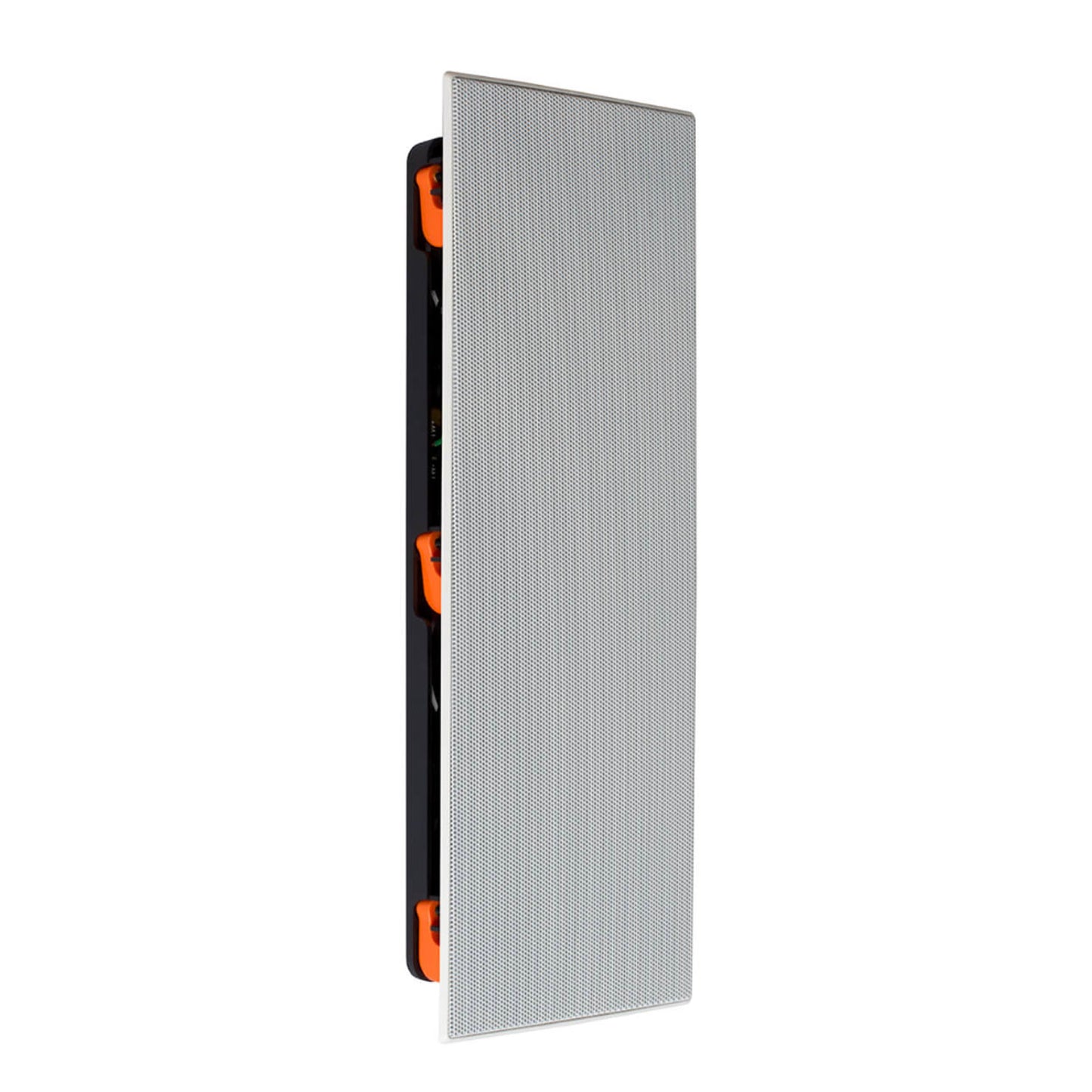

- Magnetically attached 'trim-less' grille – discreet, reliable, and easy servicing
- Tri-Grip Dog leg fixings – reliable, robust, and quick to install
- Gold plated sprung push terminals – easy to connect and reliable
- Paintable grille – to complement and blend with décor
- WB3 (dark blue) pre-construction bracket
Our Take On The Monitor Audio WSS130
The Monitor Audio WSS130 In-Wall Speaker is an ideal choice for multi-room audio and home cinema installations, marking the entry level of the brand's Super Slim speaker range. Designed with a 25 mm Gold Dome tweeter paired with MMP II cone drivers, it produces a smooth, well-rounded sonic profile. Its smart three-driver layout helps maintain a sleek frontal profile and keeps the depth to just 50 mm, making it perfect for space-restricted areas like 2" stud walls. The speaker's installation is simplified by Monitor Audio's proven tri-grip mounting system, ensuring secure and efficient fixing, while the magnetically attached, trim-less grille provides a clean, unobtrusive look that can be painted to blend with any décor. With an elegant 385 x 140 mm profile and versatile orientation options, the WSS130 is suitable for both portrait and landscape setups, offering flexibility and quality sound performance in any space.
Main Features & Specifications
- Design: High Performance Shallow Mount In-Wall Speaker – Sold Individually
- Frequency Response (-6 dB): 75 Hz – 30 kHz
- Sensitivity (1W@1M): 87 dB
- Nominal Impedance: 8 Ohms
- Maximum SPL: 105.6 dBA
- Power Handling (RMS): 60 Watts – full range (100 Watts with crossover set to 100 Hz @ 12 dB/Octave)
- Recommended Amplifier Requirements: 10 - 100 Watts
- Drive Unit Complement
- 3 x 3" (76 mm) C-CAM Cone Mid/Bass Drivers
- 1 x 1"(25 mm) C-CAM Gold Dome Tweeter
- Crossover Recommendation using AVR/Processor: 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
- Connections: Gold Plated Sprung push terminals – for bare wire connection up to 3 mm2
- Fixing Type: 6 Position Tri-Grip Dog Leg Fixings
- Construction Material: Mineral filled ABS Plastic, RoHS2 Compliant, Painted steel grille
- Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
- Overall Dimensions: 385 x 140.5 mm
- Overall Depth (Including Grille): 54.25 mm
- Cut-Out Dimensions: 346 x 101 mm
- Mounting Depth: 50 mm
- Weight: 1.4 kg
- Manufacturer's Warranty: Lifetime Warranty - applies to the original purchaser only
- Learn more about Monitor Audio
Note: Features & Specifications Subject To Change Without Notice. E&OE.
