Monitor Audio WSS230 In-Wall Speaker
The WSS230 design brings with it Monitor Audio's renowned C-CAM metal cone drivers, resulting in added sonic precision and detail. Offering a step-up from the WSS130, this Super Slim in-wall model is one for projects where (even) more critical music reproduction is required.
The mid-point WSS230 offers a step-up in performance – additions here include Monitor Audio's renowned C-CAM metal drivers, delivering increased precision and detailed sonic characteristics.
The WSS230 makes you think again – the possibility of installation in constructions featuring 2" studs slips effortlessly into view. Mounting restricted by AVC ducts, cabling or pipework? No problem to this in-wall speaker, or any of the speakers in this range. These models can also be installed between a standard 14" stud bay, when used in a horizontal (portrait) orientation. Consequently, the same speakers can be installed around a screen, keeping the same neat visuals, as well as identical L-C-R performance.
To provide protection from damage by residual masonry or building materials, Monitor Audio designed a protective cover to keep the drivers and crossover safe. And the trim-less grille not only provides protection, it also adopts an incredibly discreet and low-profile aesthetic appearance. These covers can be painted to achieve seamless décor integration, with the supplied replacement scrim maintaining the stealthy presence of the speaker once decorating is done. Nice and neat. Super strong, magnetically attached rare earth magnets ensure long-term security, coupled with easy installation and servicing.
Key Features
- Good, better, best performance levels

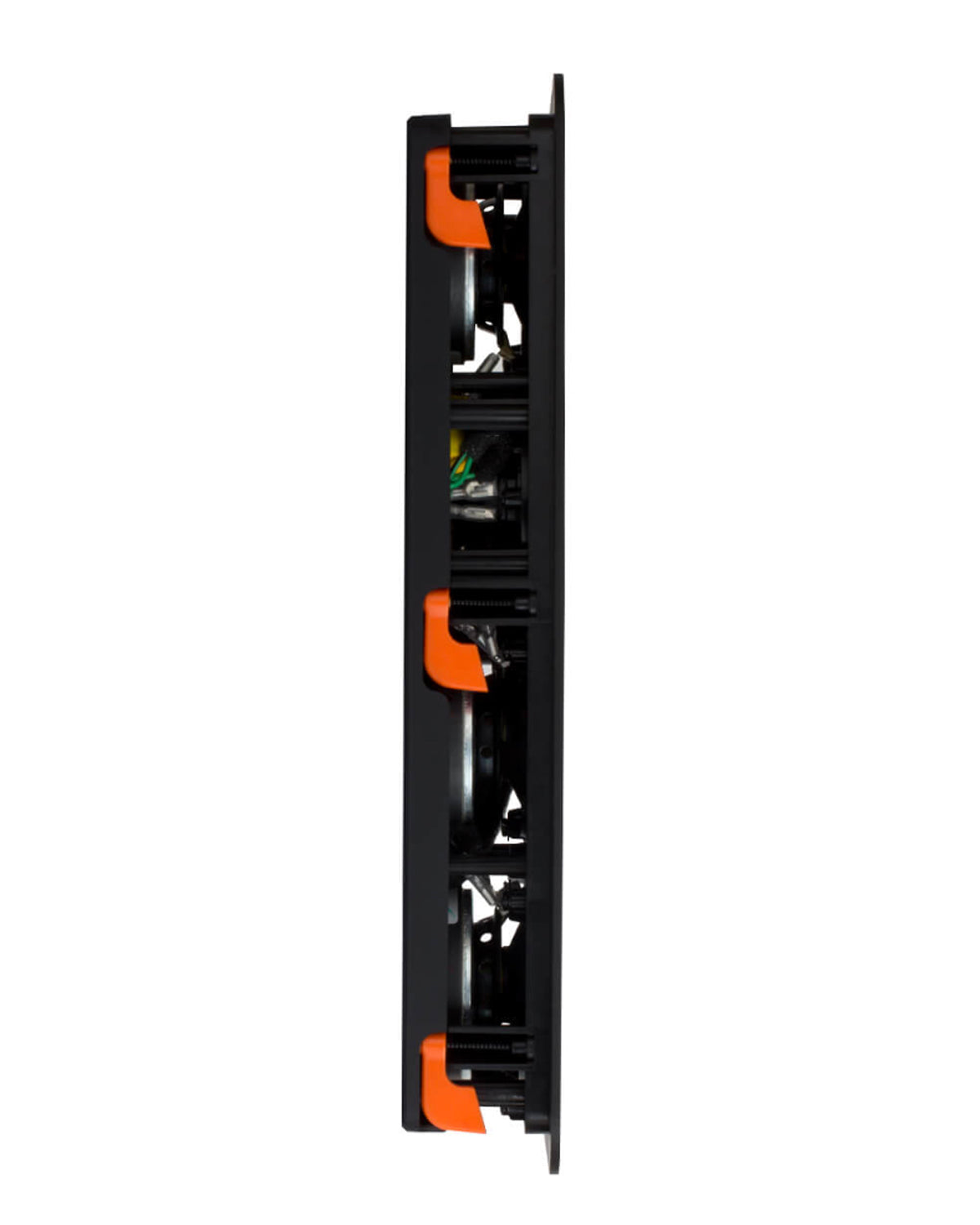

- Super-slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140 mm wide

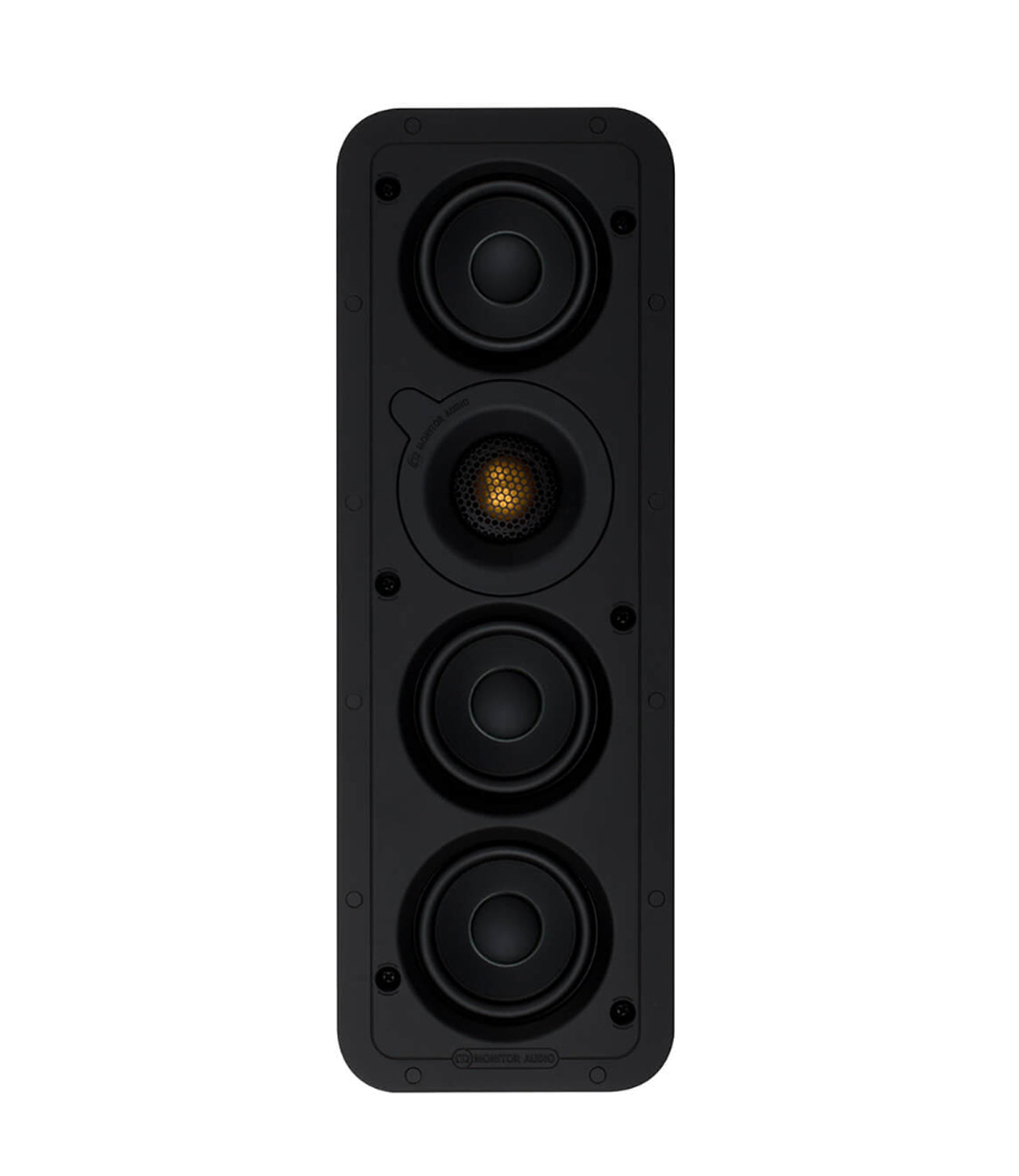

- Three, 3" (76 mm) bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
- The WSS230 uses a 1" (25 mm) C-CAM Gold Dome tweeter
- High quality crossover components – Selected and voiced for amazing sonic performance

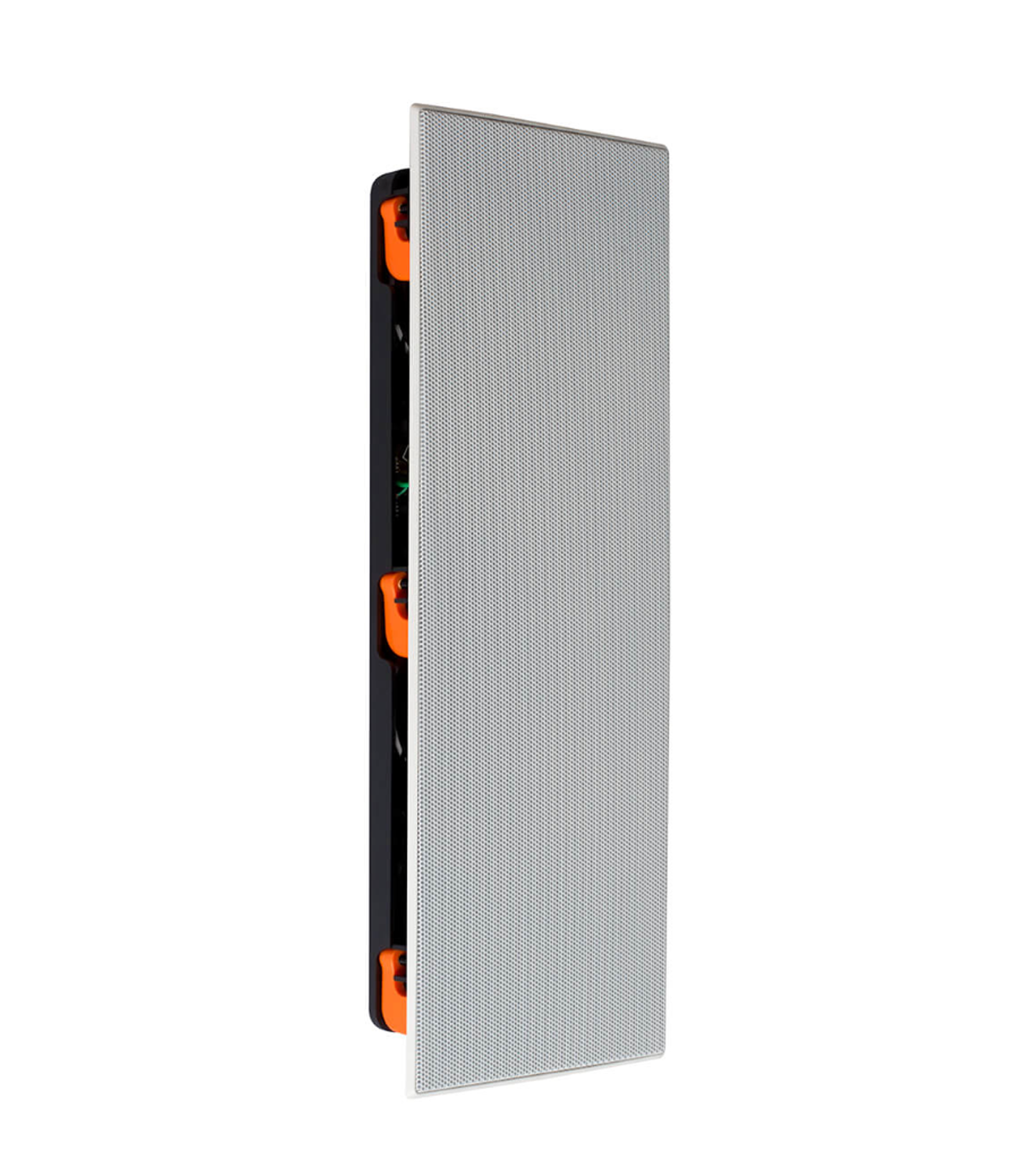

- Magnetically attached 'trim-less' grille – discreet, reliable, and easy servicing
- Tri-Grip Dog leg fixings – reliable, robust, and quick to install
- Gold plated sprung push terminals – easy to connect and reliable

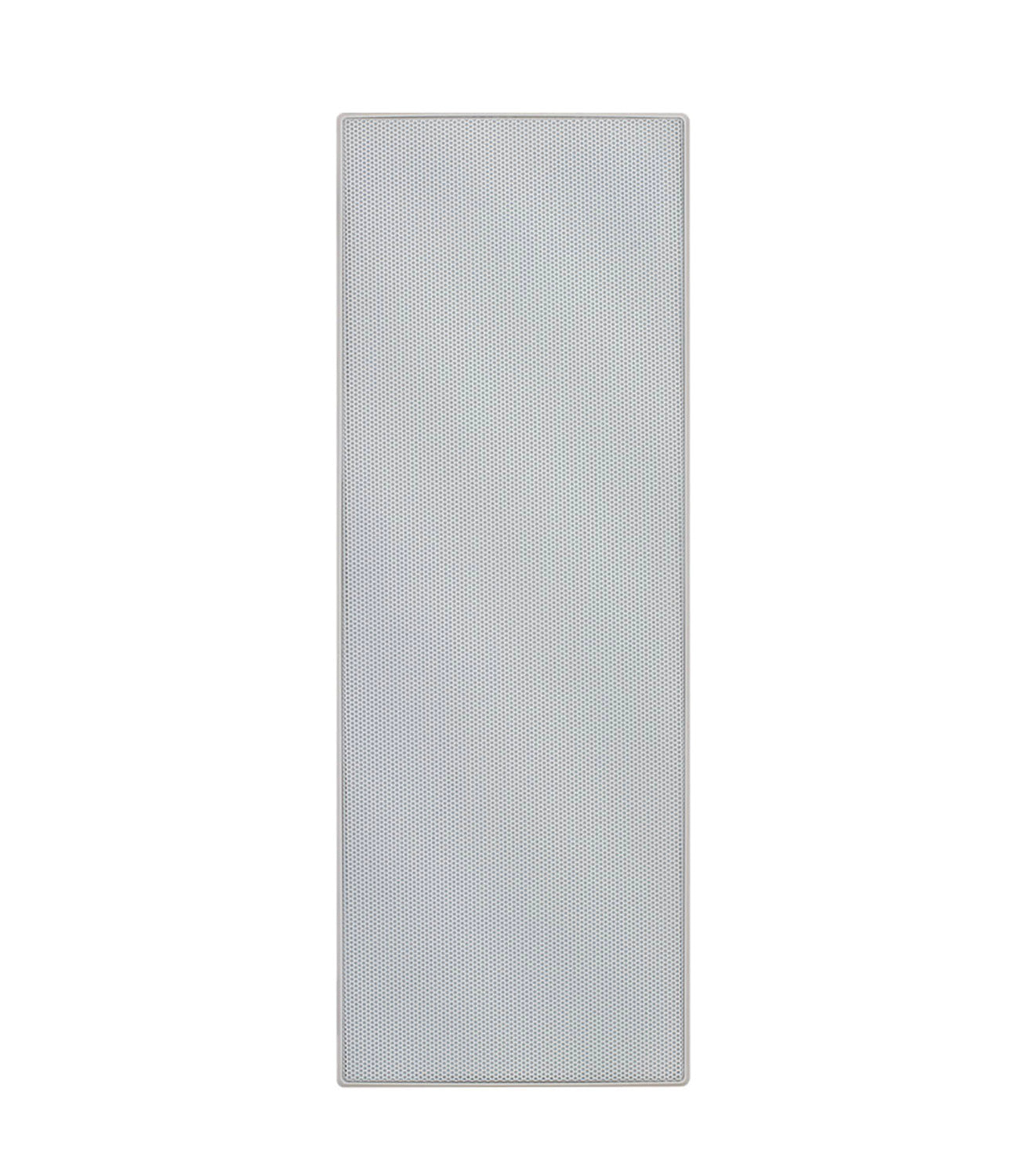

- Paintable grille – to complement and blend with décor
- WB3 (dark blue) pre-construction bracket
Our Take On The Monitor Audio WSS230
The Monitor Audio WSS230 in-wall speaker is a refined choice for high-quality audio installations, combining precision engineering with versatile design. Built with Monitor Audio's signature C-CAM metal cone drivers, the WSS230 delivers enhanced sonic clarity and depth, making it ideal for projects requiring meticulous music reproduction. This super-slim speaker, just 50 mm deep, is designed to fit seamlessly into 2" stud walls and between standard 14" stud bays, even in portrait or landscape orientation. Its trim-less grille attaches magnetically for a clean, discreet appearance and can be painted to match any décor, while the speaker's advanced construction features, like Tri-Grip Dog leg fixings and gold-plated terminals, ensure easy installation and reliable performance. Durable and sleek, the WSS230 is a superb choice for audio enthusiasts seeking both aesthetic and acoustic excellence.
Main Features & Specifications
- Design: High Performance Shallow Mount In-Wall Speaker – Sold Individually
- Frequency Response (-6 dB): 75 Hz – 30 kHz
- Sensitivity (1W@1M): 87 dB
- Nominal Impedance: 8 Ohms
- Maximum SPL: 105.6 dBA
- Power Handling (RMS): 60 Watts – full range (100 Watts with crossover set to 100 Hz @ 12 dB/Octave)
- Recommended Amplifier Requirements: 10 - 100 Watts
- Drive Unit Complement
- 3 x 3" (76 mm) C-CAM Cone Mid/Bass Drivers
- 1 x 1"(25 mm) C-CAM Gold Dome Tweeter
- Crossover Recommendation using AVR/Processor: 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
- Connections: Gold Plated Sprung push terminals – for bare wire connection up to 3 mm2
- Fixing Type: 6 Position Tri-Grip Dog Leg Fixings
- Construction Material: Mineral filled ABS Plastic, RoHS2 Compliant, Painted steel grille
- Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
- Overall Dimensions: 385 x 140.5 mm
- Overall Depth (Including Grille): 54.25 mm
- Cut-Out Dimensions: 346 x 101 mm
- Mounting Depth: 50 mm
- Weight: 1.4 kg
- Manufacturer's Warranty: Lifetime Warranty - applies to the original purchaser only
- Learn more about Monitor Audio
Note: Features & Specifications Subject To Change Without Notice. E&OE.
