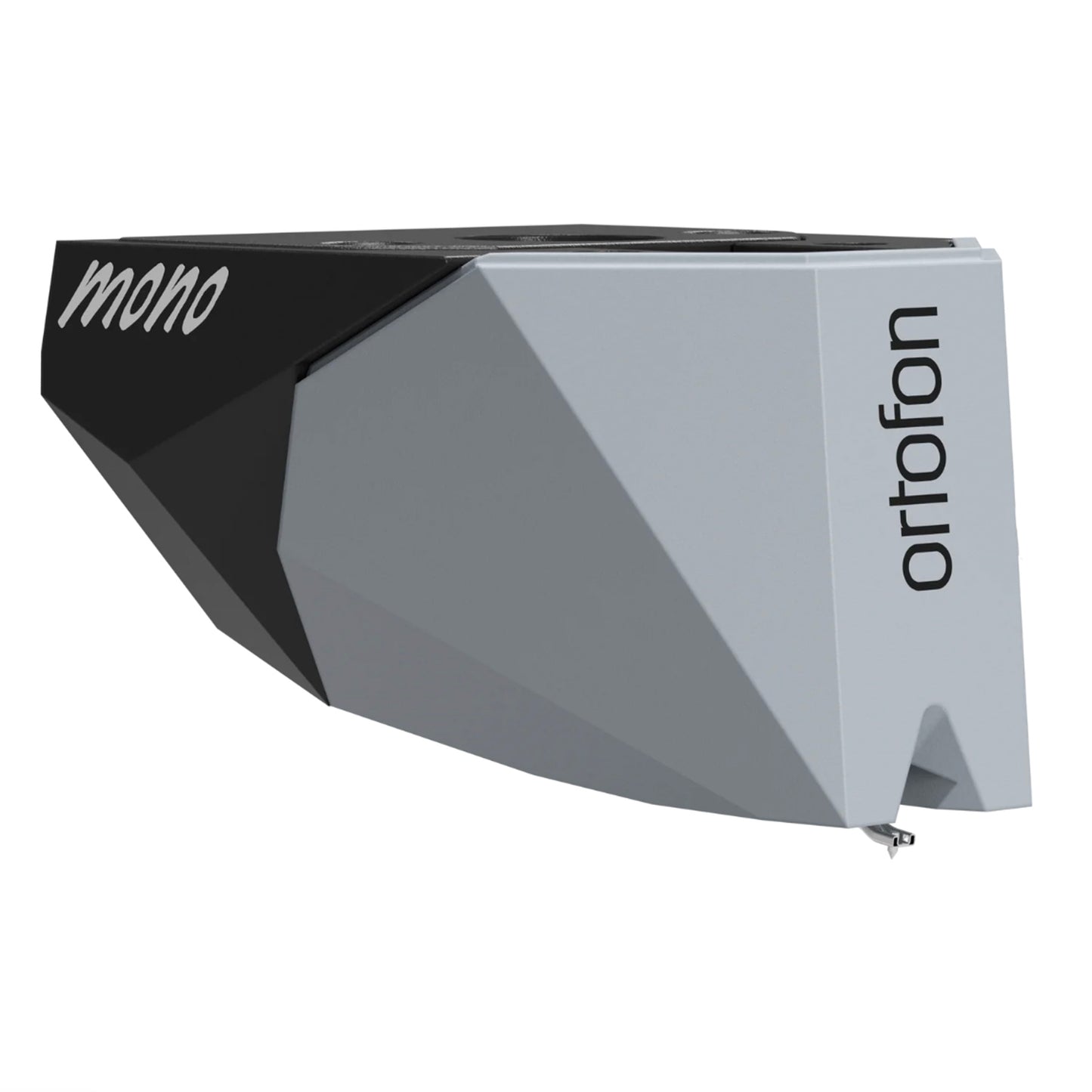

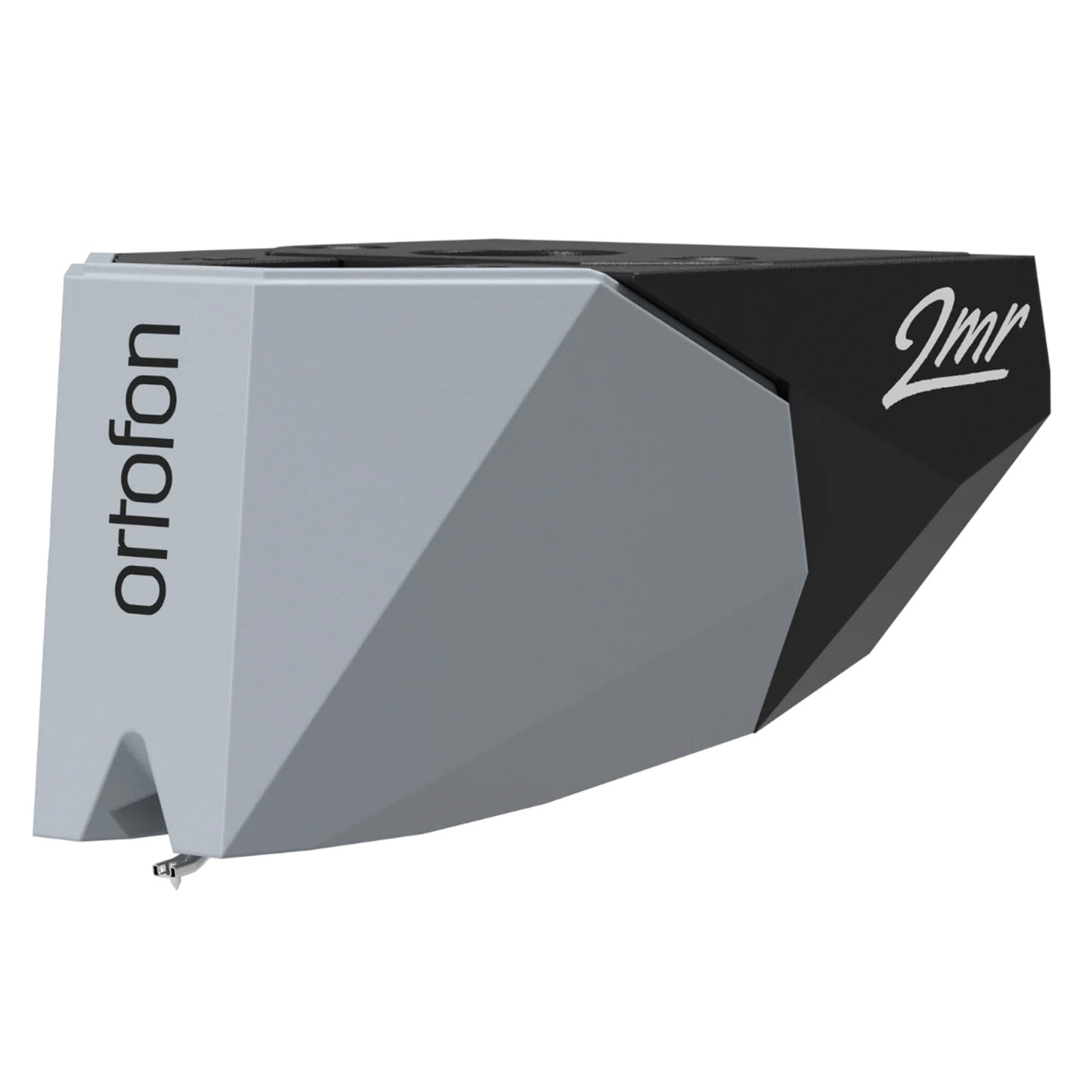

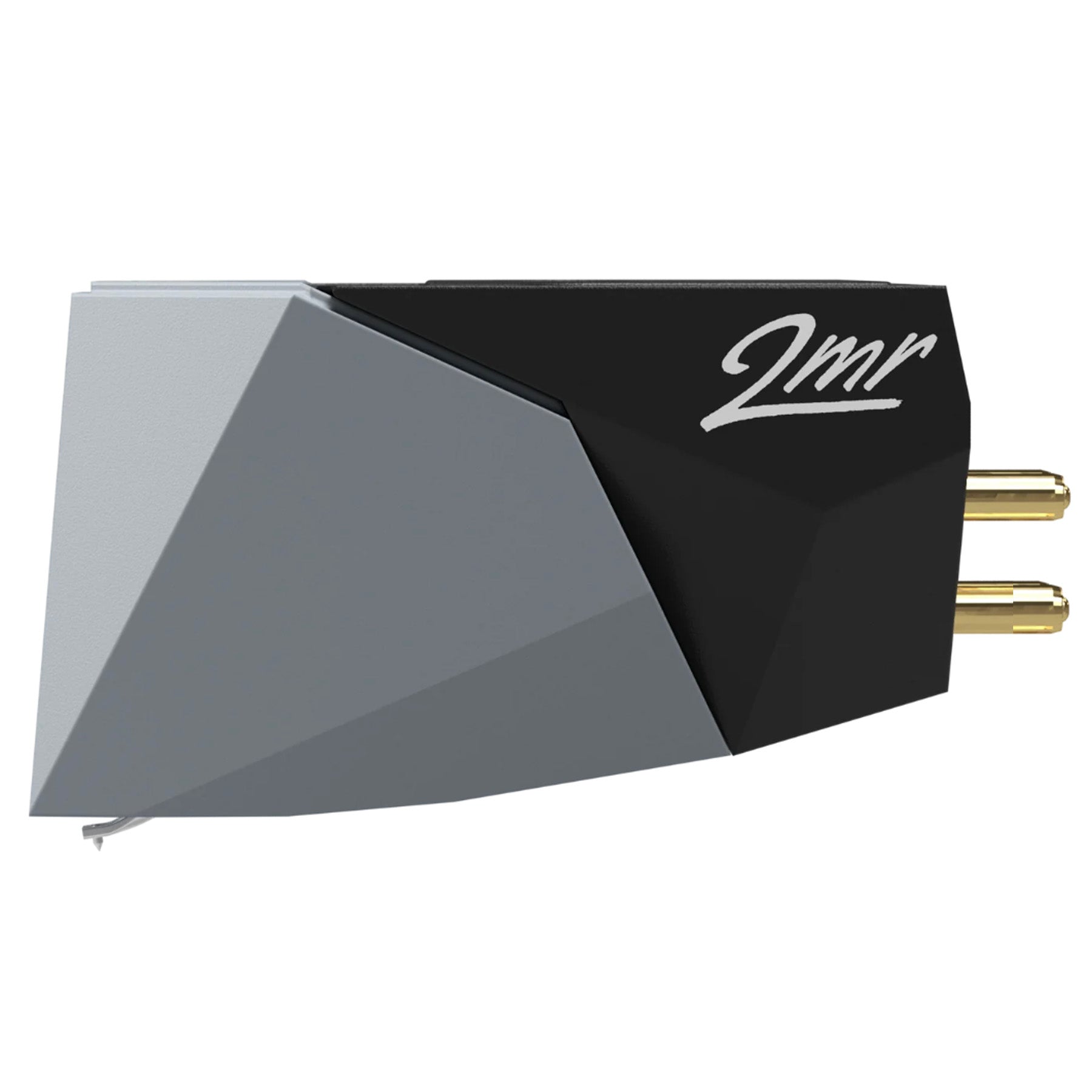

Ortofon 2MR 78 Moving Magnet Cartridge
Journey back in time with the 2MR 78 Mono Cartridge, specially designed for playing 78 rpm shellac records on a the Rega Planar 78 Turntable. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with unparalleled precision and fidelity.
Stylus: The 2MR 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2MR 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.
Output: The 2MR 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Compatibility: The 2MR Series is specifically designed for easy mounting of the cartridge onto Rega turntables.
The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
Main Features & Specifications
- Design: Mono Moving Magnet Phono Cartridge for playing 78 rpm Shellac Records on the Rega Planar 78 Turntable
- Output Voltage at 1 kHz, 5cm/sec: 4 mV
- Frequency Response: 20Hz-20kHz + 3 / - 1 dB
- Tracking Ability at 315Hz at Recommended Tracking Force: 70 µm
- Compliance, Dynamic, Lateral: 18 µm/mN
- Stylus Type: Spherical
- Stylus Tip Radius: R 65 µm
- Tracking Force Range: 1.6-2.0 grams (16-20 mN)
- Tracking Force, Recommended: 1.8 grams (18 mN)
- Tracking Angle: 20°
- Internal Impedance, DC Resistance: 700 Ohm
- Internal Inductance: 350 mH
- Recommended Load Resistance: 47 kOhm
- Recommended Load Capacitance: 150-300 pF
- Cartridge Colour, Body/Stylus: Black/Black
- Cartridge Weight: 7.2 grams
- Replacement Stylus Unit: 2M 78 Stylus - designed to play 78 rpm shellac records
- Interchangeable With: 2M Mono Stylus - designed to play mono microgroove vinyl records
- Warranty: 12 Months - Cartridge only
- Learn more about Ortofon
Note: Features & Specifications Subject To Change Without Notice. E&OE.
