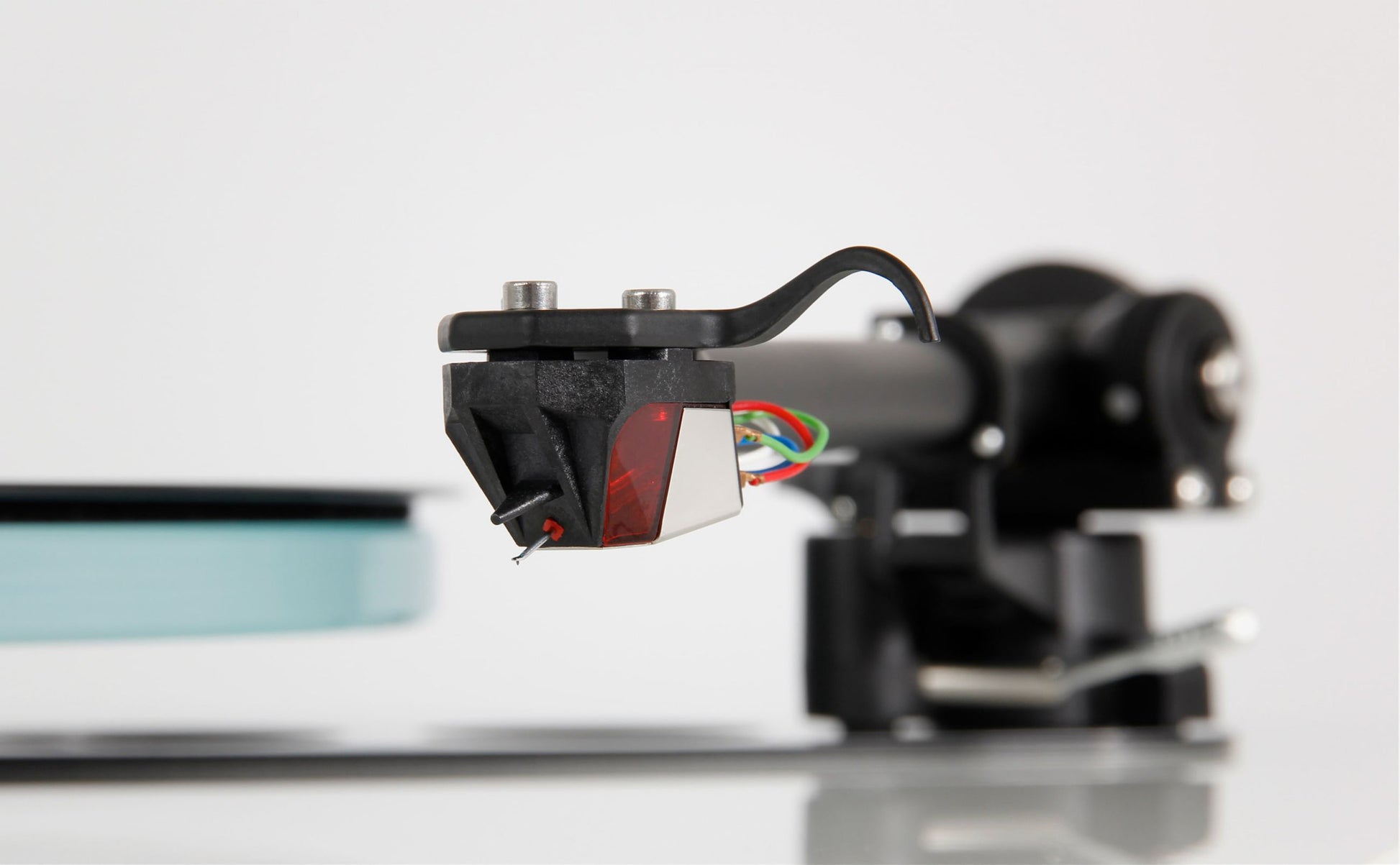

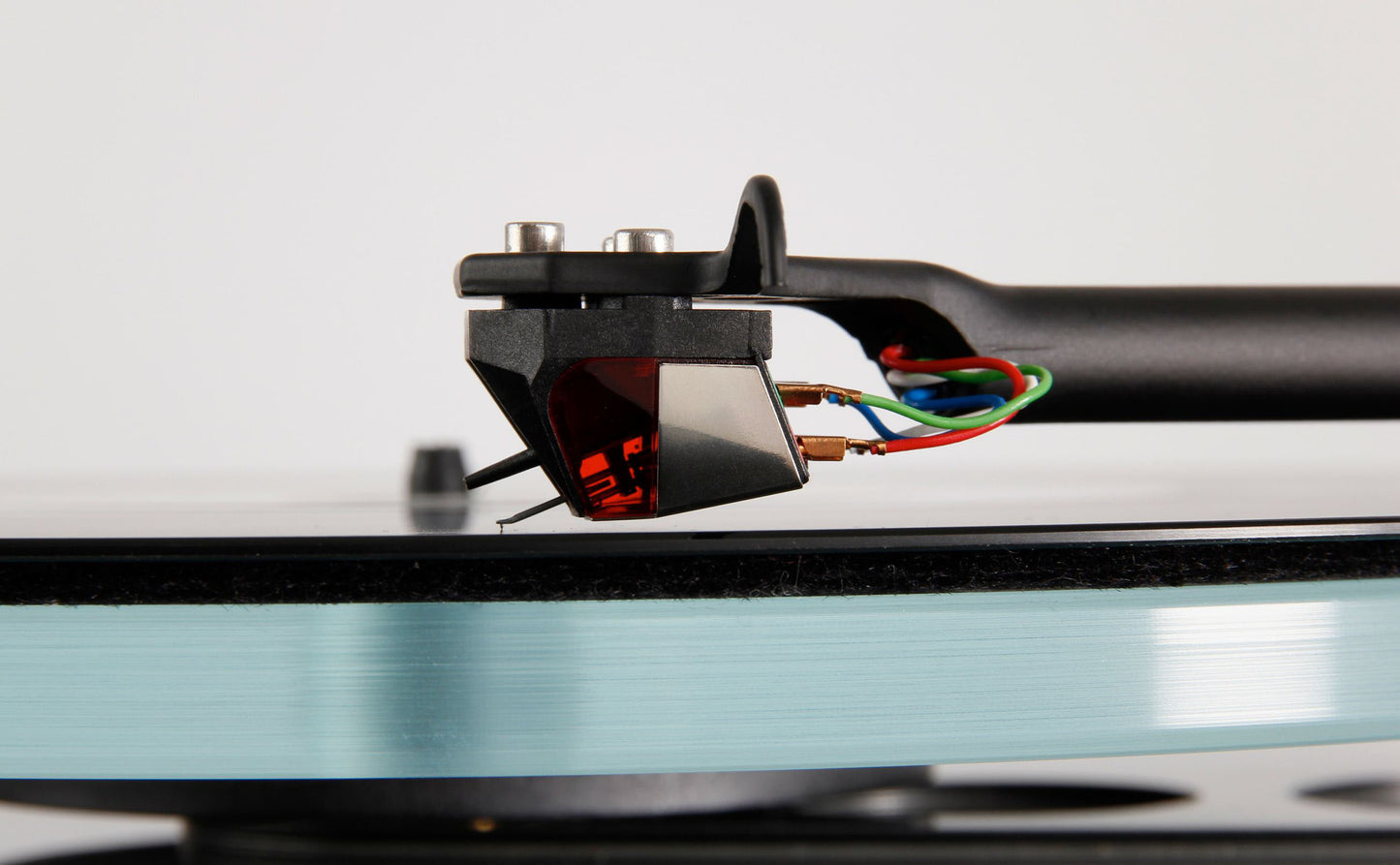

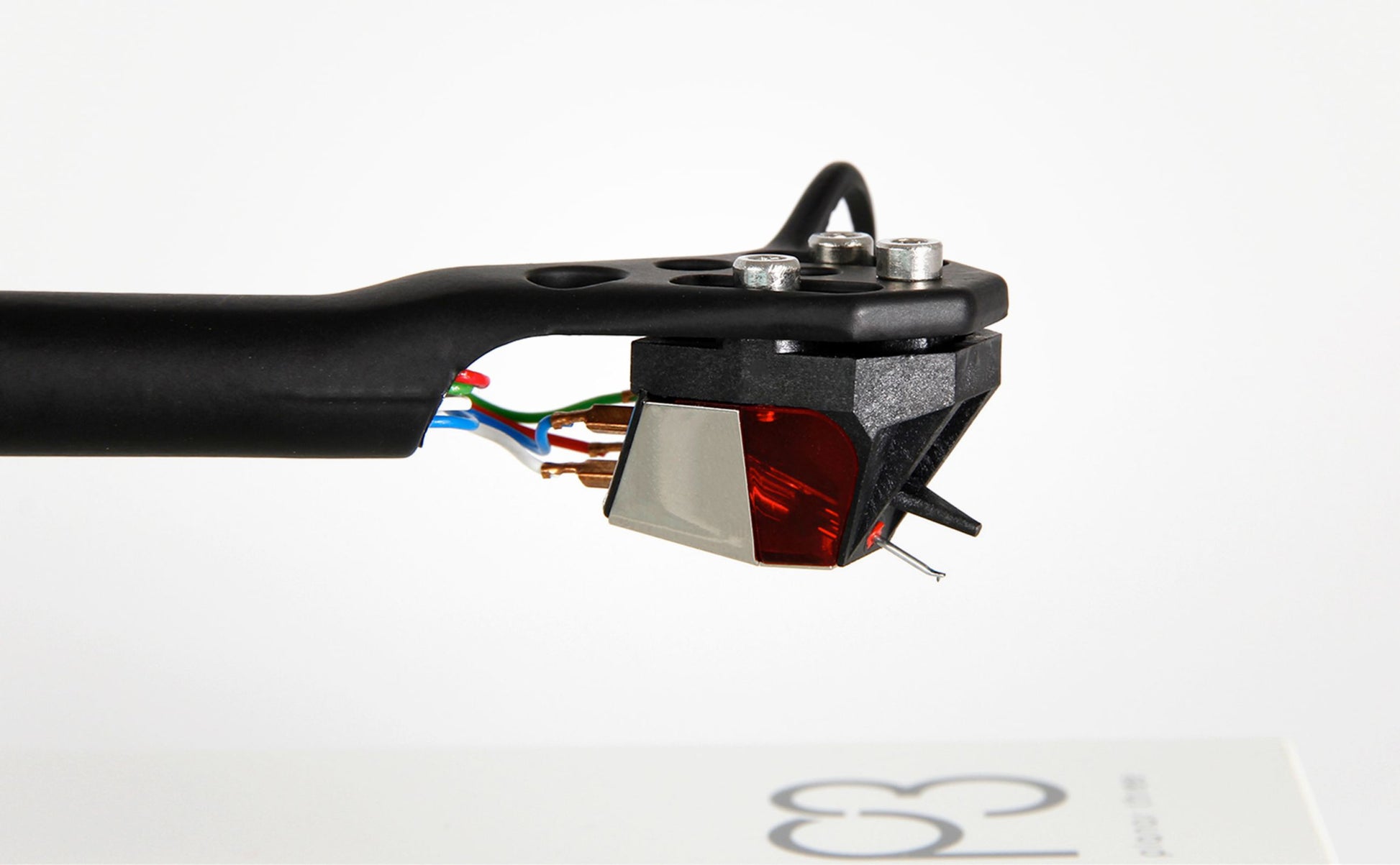

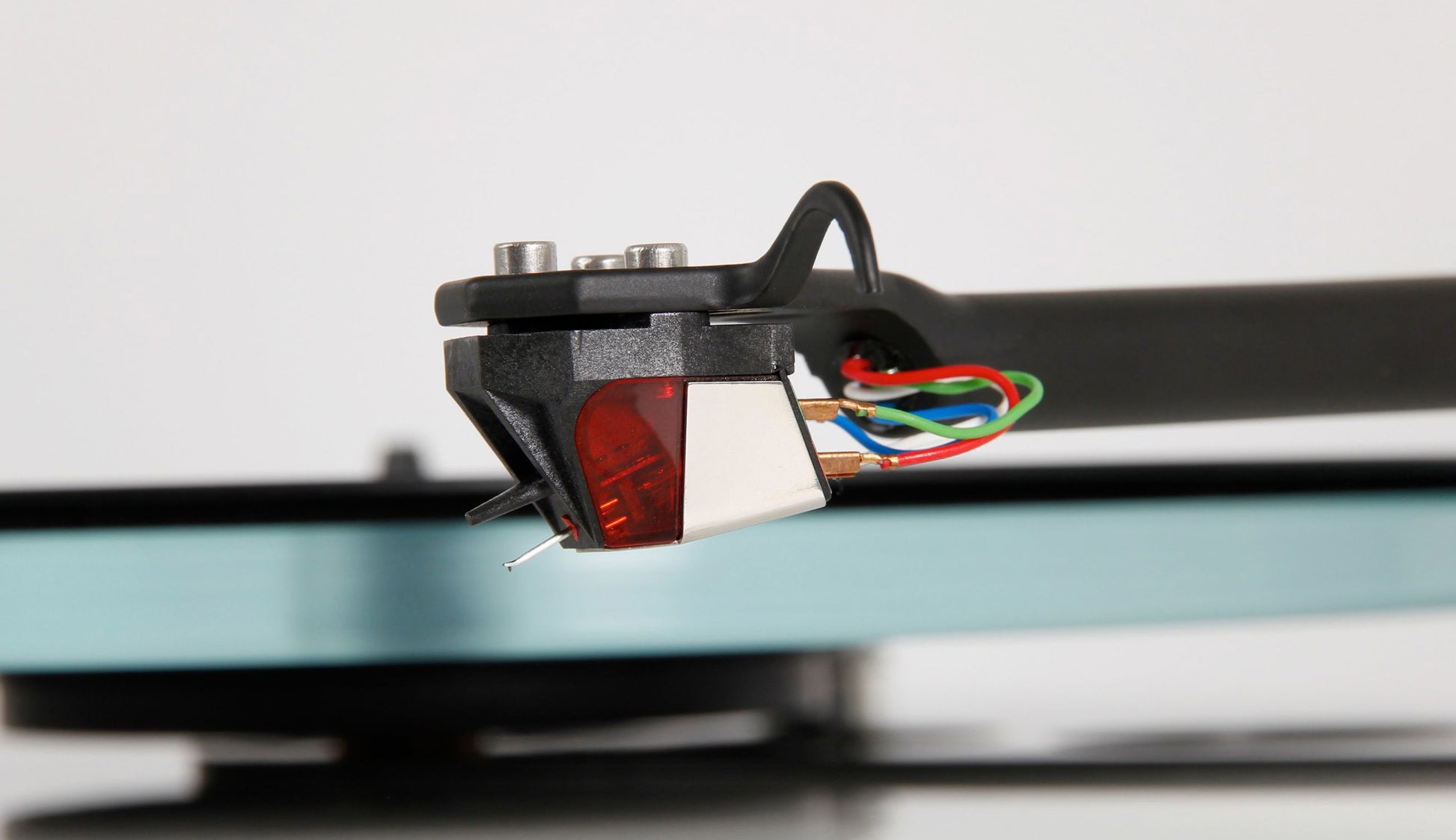

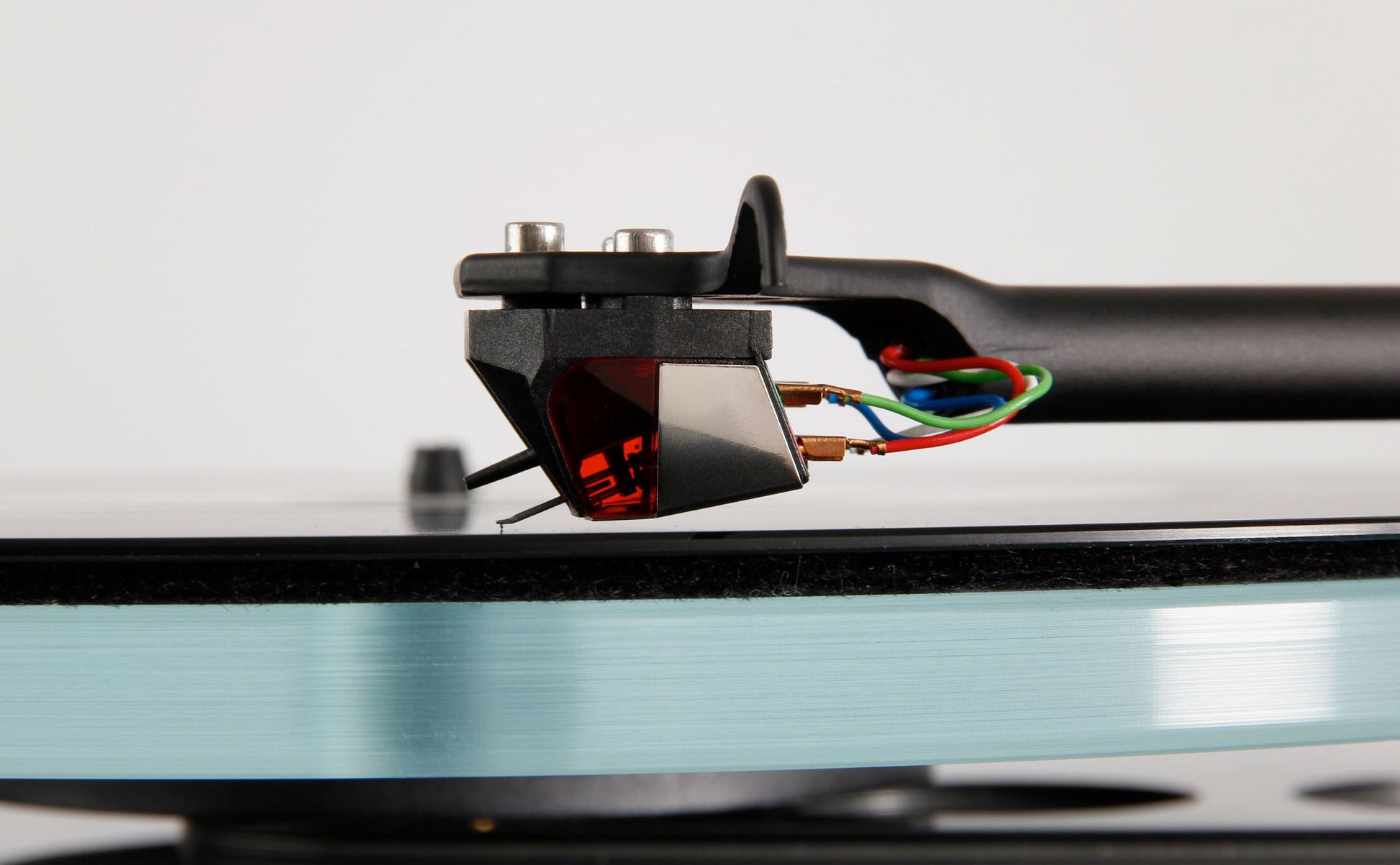

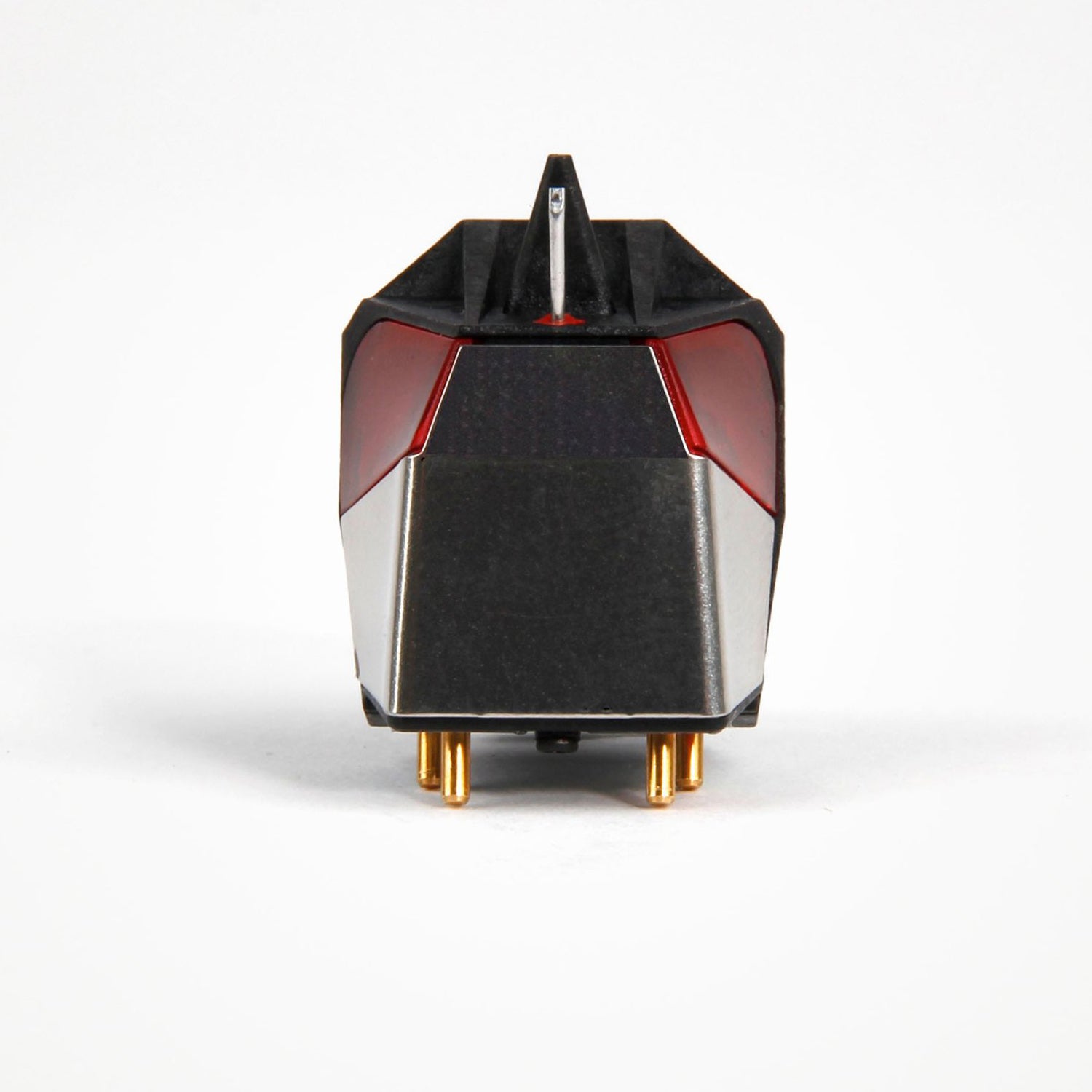

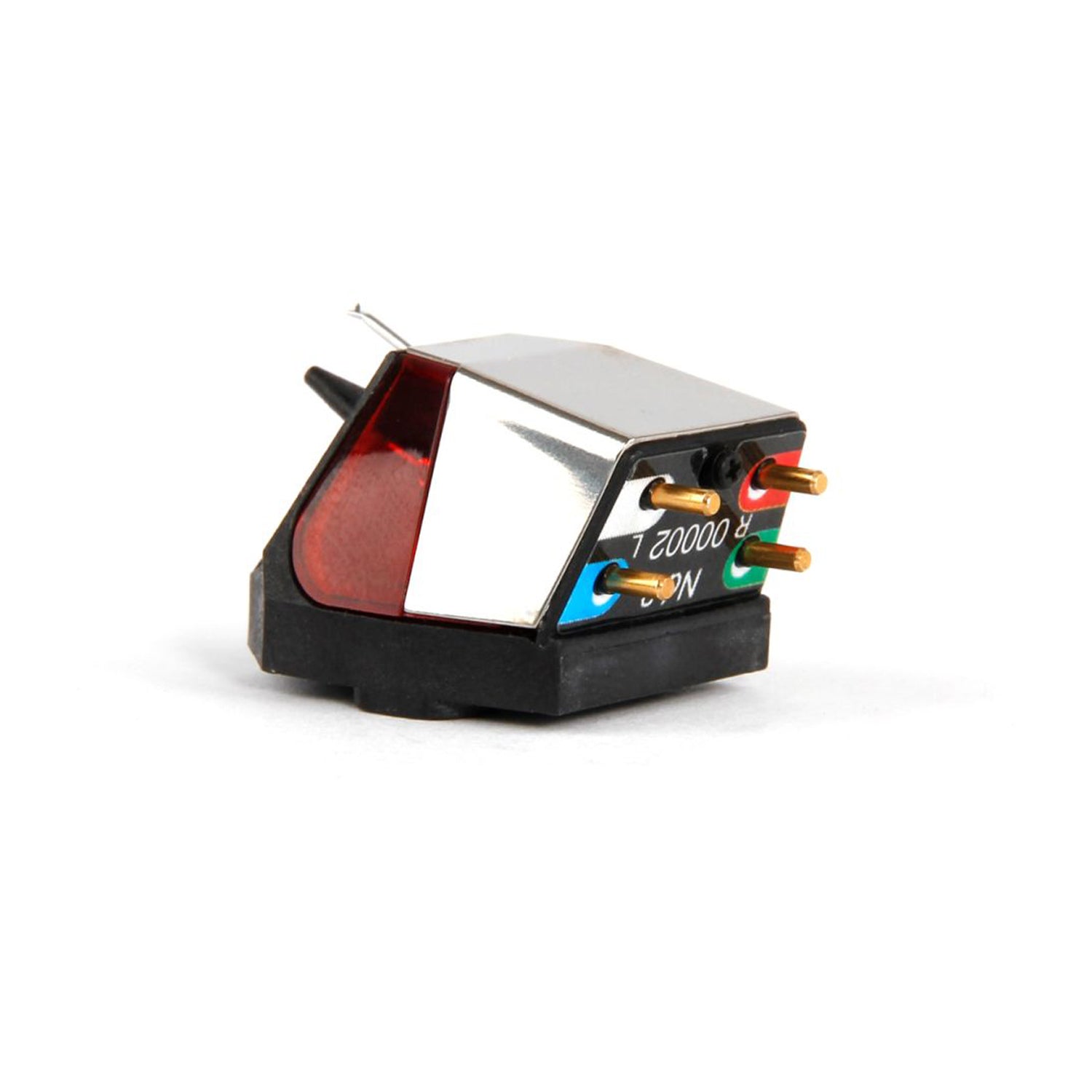

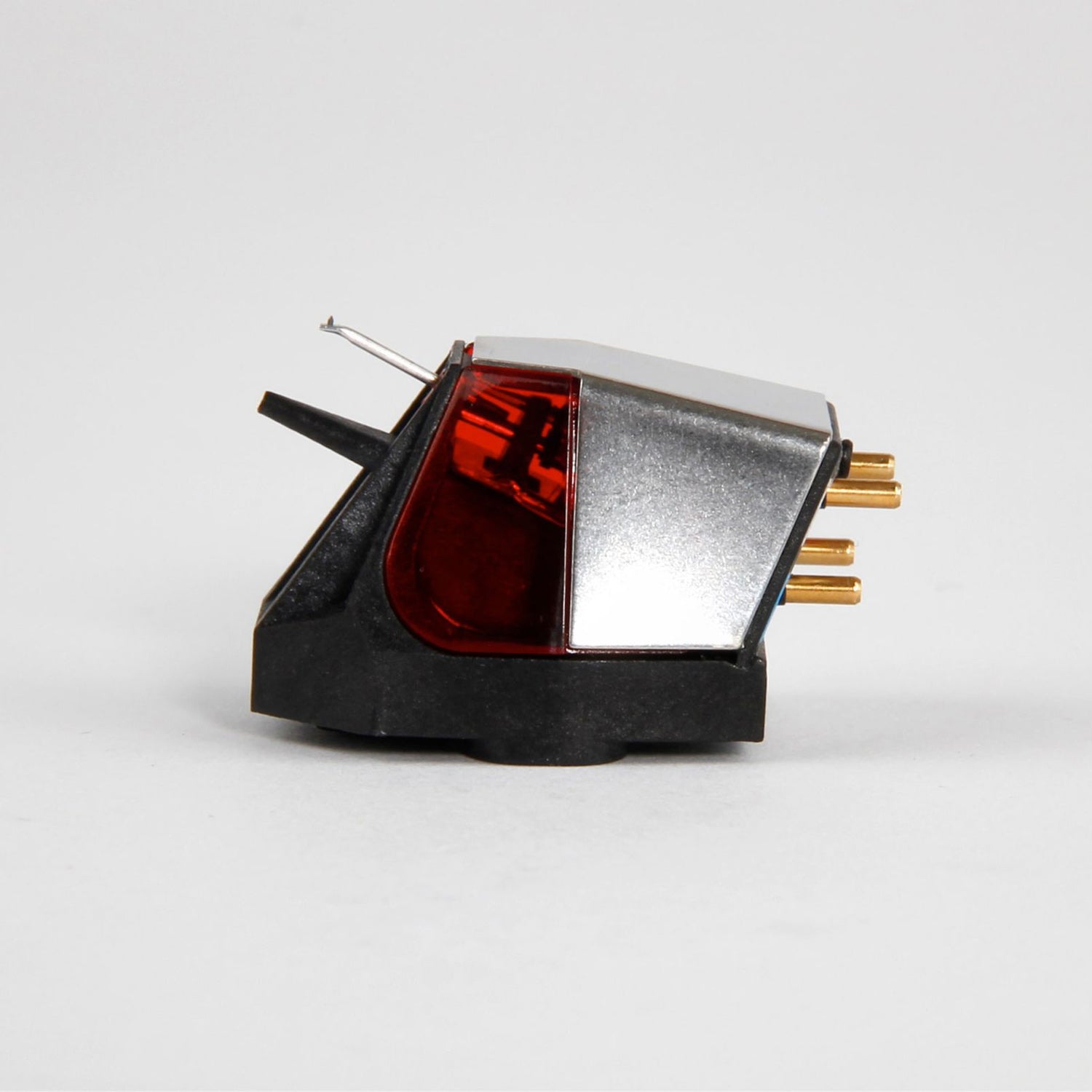

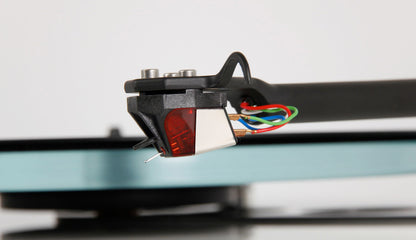

Rega Nd3 Moving Magnet Cartridge
The Nd3 Moving Magnet Cartridge was developed over 10 years and promises to deliver 'next level' performance from moving magnet technology. The Nd range (patent pending) is a world first in its use of ultra-high powered Neodymium magnets which allowed Rega to create this totally unique design.
Each Nd3 is meticulously hand-made by Rega's highly skilled technicians. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd3 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with Rega's commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.
Nd Magnet Technology: Often used in Moving Coil designs (including Rega's own) Rega believe the Nd3 is the first moving magnet to utilise a Neodymium (Nd) N55 magnet. This is the world's most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.

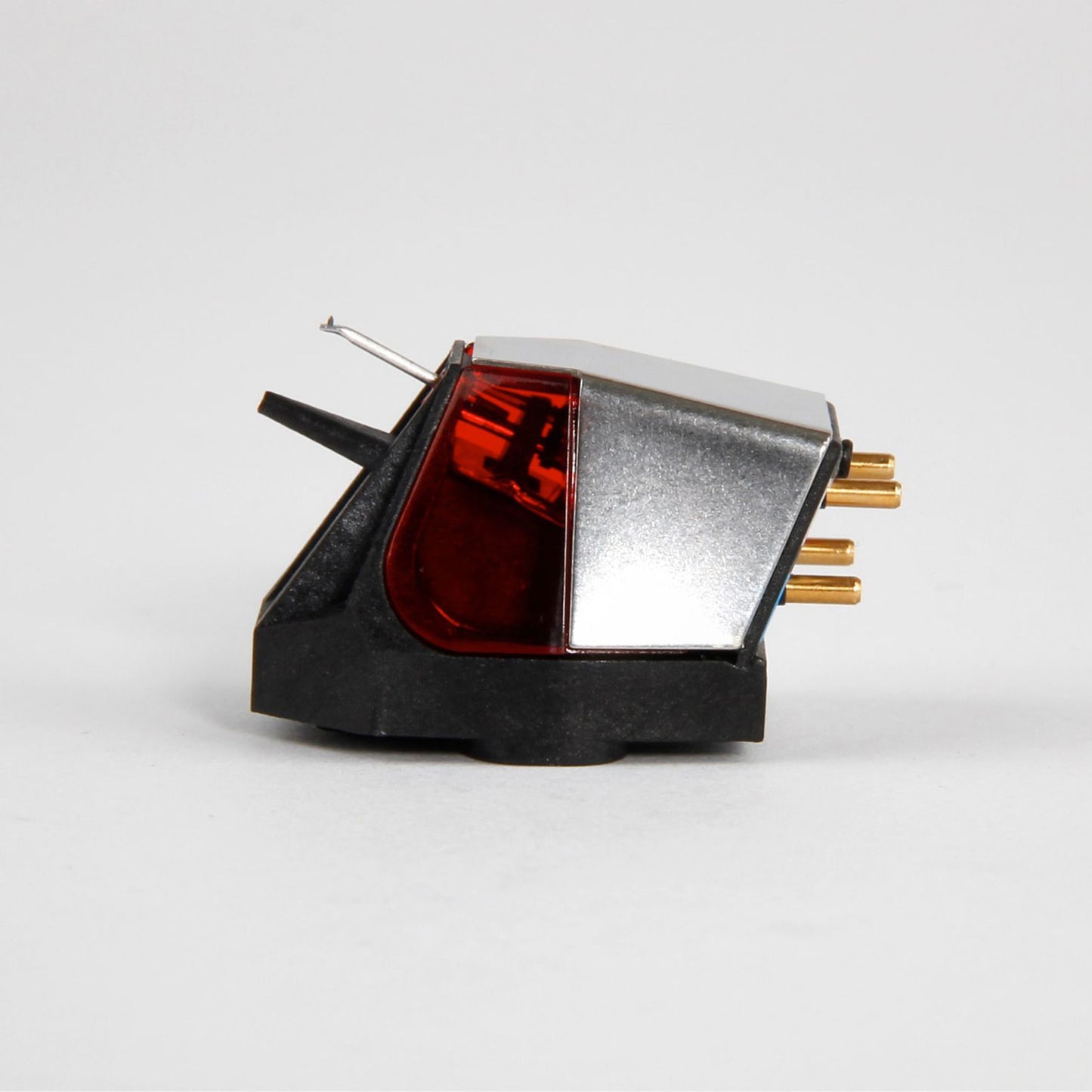

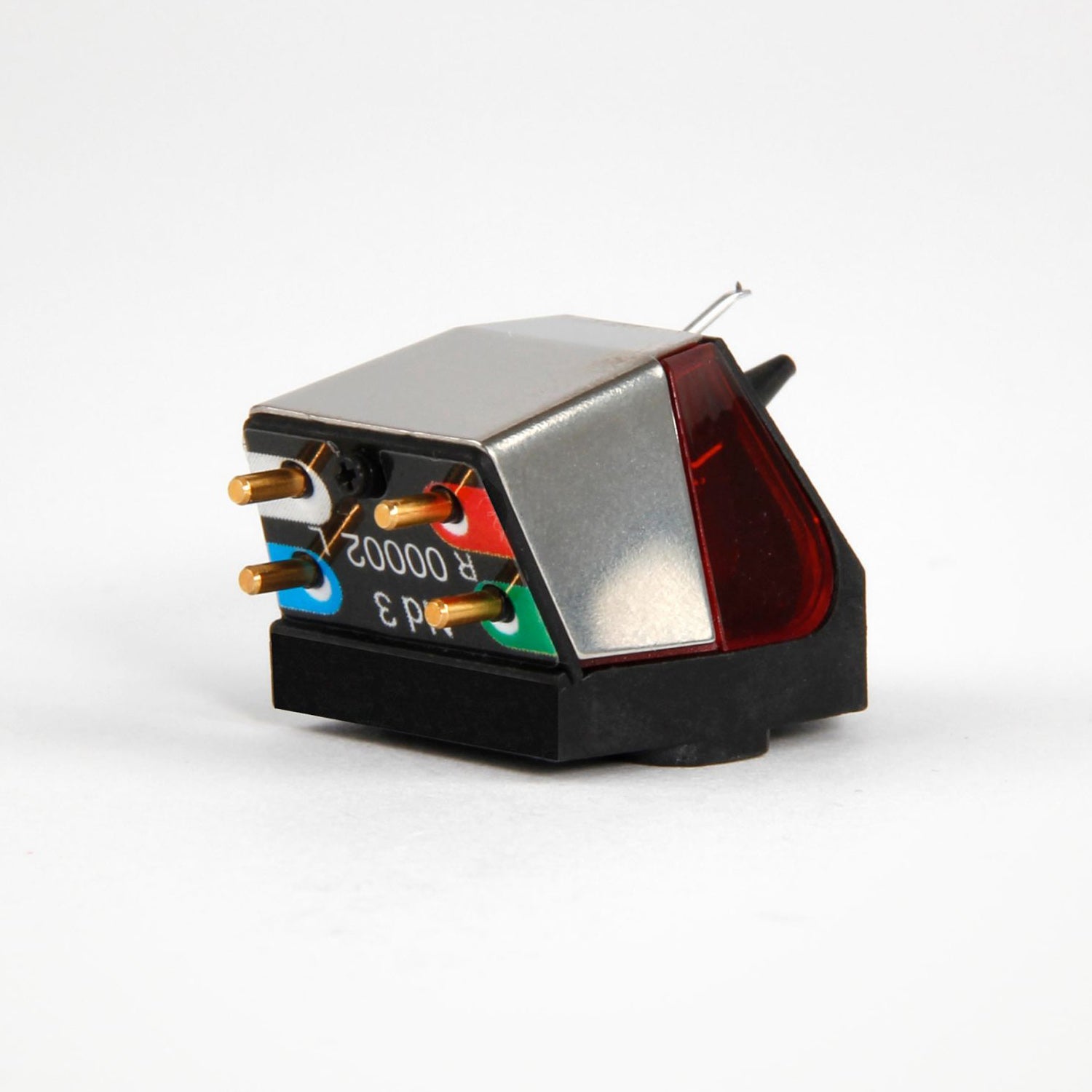

Glass Filled PPS Body: The complete assembly is housed in Rega's zero tolerance injection moulded glass filled polyphenylene sulphide (PPS) body which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by Rega's hugely successful MC range.

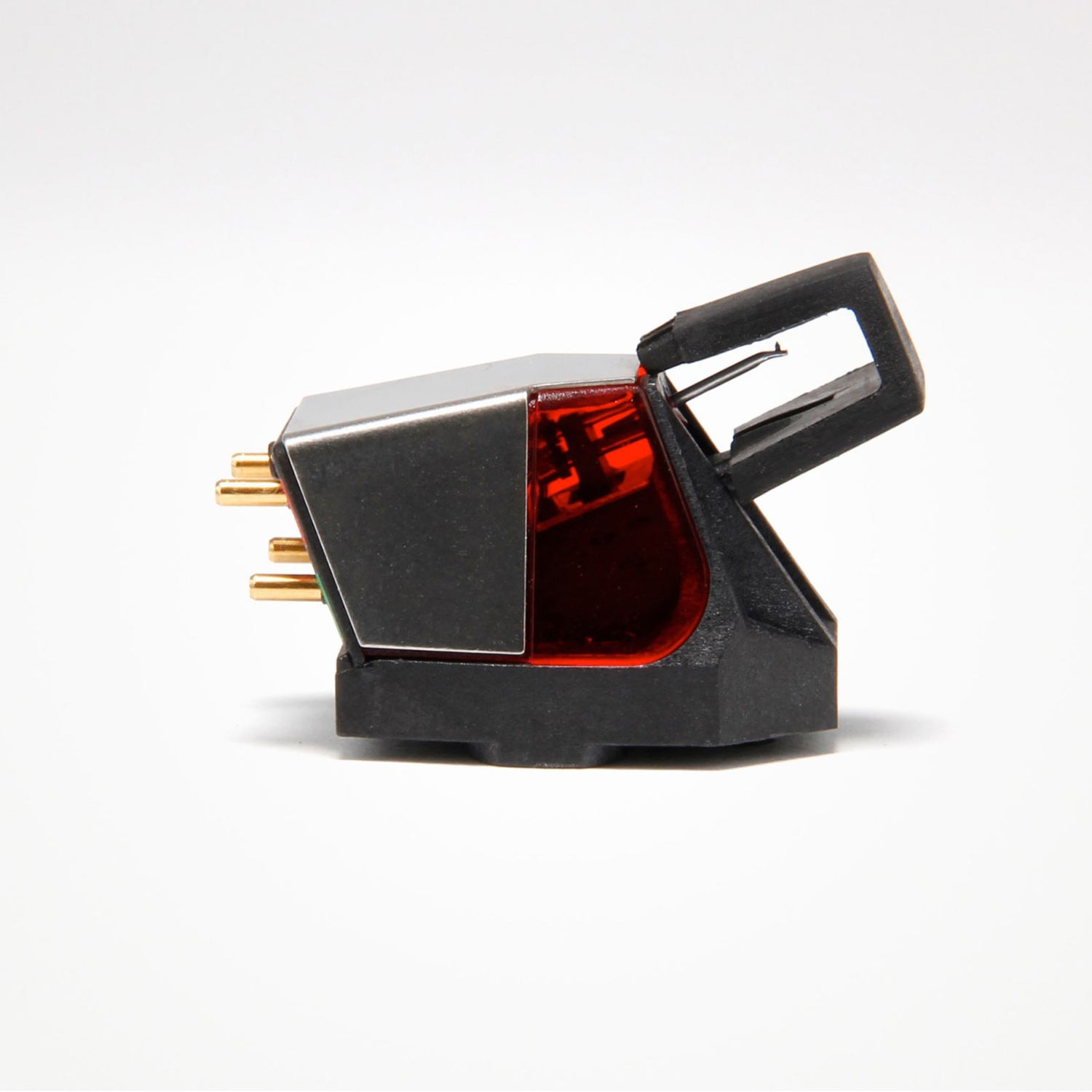

Cantilever & Stylus Profile: The Nd3 aluminium cantilever is fitted with a precision elliptical stylus. This profile provides exceptional tracking accuracy and extracts great levels of detail from the vinyl surface.
Nd3 Replacement Stylus: The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. It also means that the stylus in the Nd3 is not user replaceable which means you need to return your whole cartridge to Audio Trends and purchase a brand new Rega Nd3 Cartridge at a reduced price. If you don't live near us you are welcome to post us your cartridge and we will send the replacement Nd3 cartridge anywhere in Australia freight free.
Rega Nd3 Review
"Replacing something that has been part of the audio landscape as long as the Rega moving magnet designs have been is not without risk but it doesn't take long to realise that what the talented souls in Southend have been working on is a worthy successor. What the Nd3 does very effectively is bring some of the sheer energy that the moving coil designs deliver down a much lower price point with a huge helping of convenience at the same time. Where the Elys was something you chose because it arrived perfectly set up on your Rega turntable and sounded pretty decent, the Nd3 is something that warrants consideration on a host of affordable turntables. The Nd3 is deeply impressive and an unquestionable Best Buy." AV Forums
Our Take on the Rega Nd3
The Rega Nd3 Moving Magnet Cartridge is a high-fidelity component designed for audiophiles seeking superior sound quality in their turntable setups. Known for its precision and durability, the Nd3 features an advanced stylus profile and a meticulously engineered cantilever, which together ensure exceptional tracking ability and accurate sound reproduction across the entire frequency range. This cartridge is praised for its clarity and detail, providing a warm and dynamic listening experience that enhances the nuances of vinyl records. Its straightforward installation and compatibility with a variety of tonearms make it a popular choice among both novice and experienced vinyl enthusiasts.
Main Features & Specifications
- Design: Handmade Stereo Moving Magnet Cartridge
- Bonded Elliptical Profile Stylus
- Aluminium Cantilever
- Neodymium Magnet
- Unique Generator
- Rega 3 Point Mounting System
- Highly Rigid Lightweight PPS Body
- 100% Recyclable Packaging
- Tracking Pressure: 1.75g
- Nominal Output Voltage: 5-6mV
- Stylus: Elliptical
- Fixing: 3 Point Fixing
- Coils: Miniaturised Parallel Coils
- Window Colour: Red
- Learn more about Rega
Note: Specifications Subject To Change Without Notice. E&OE.
