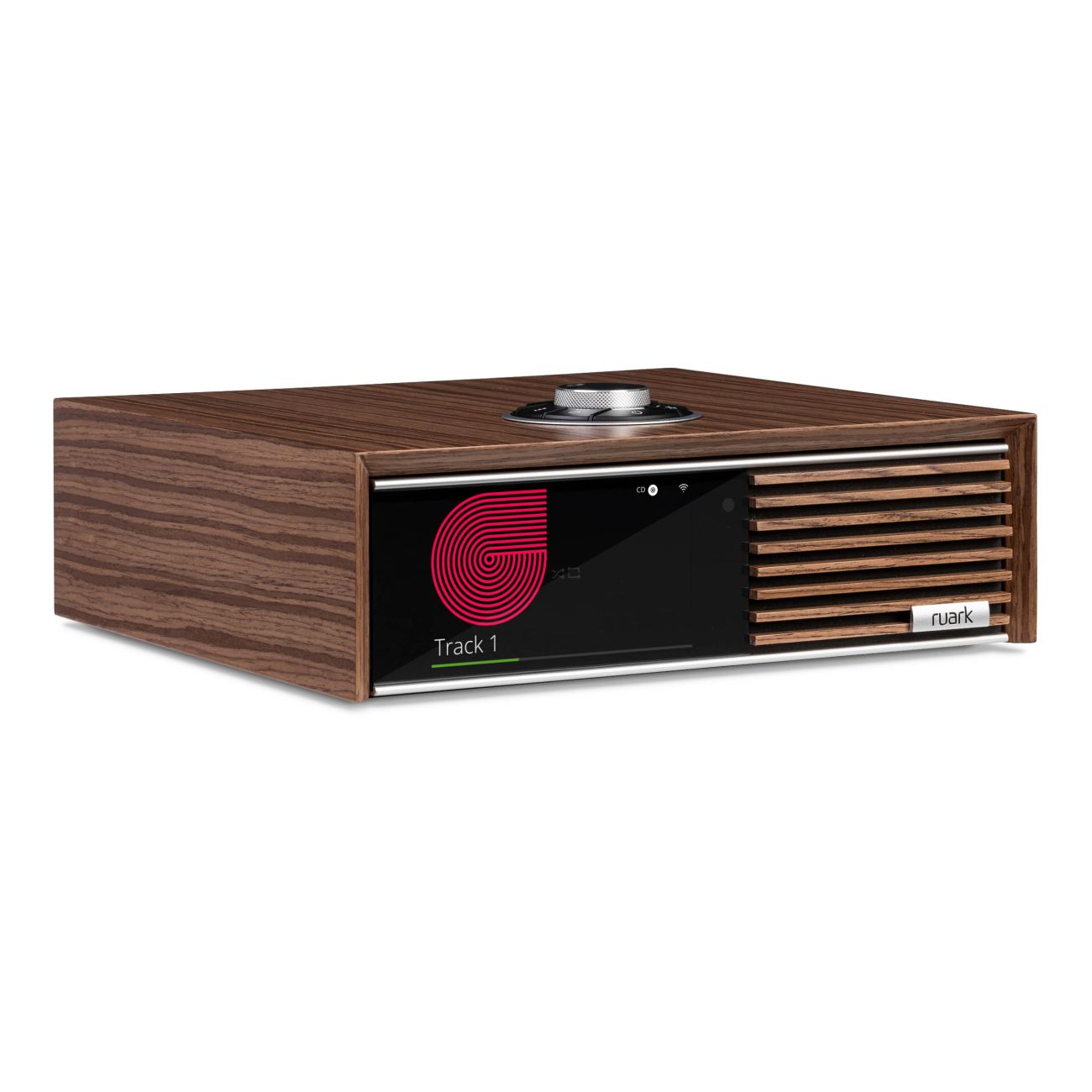

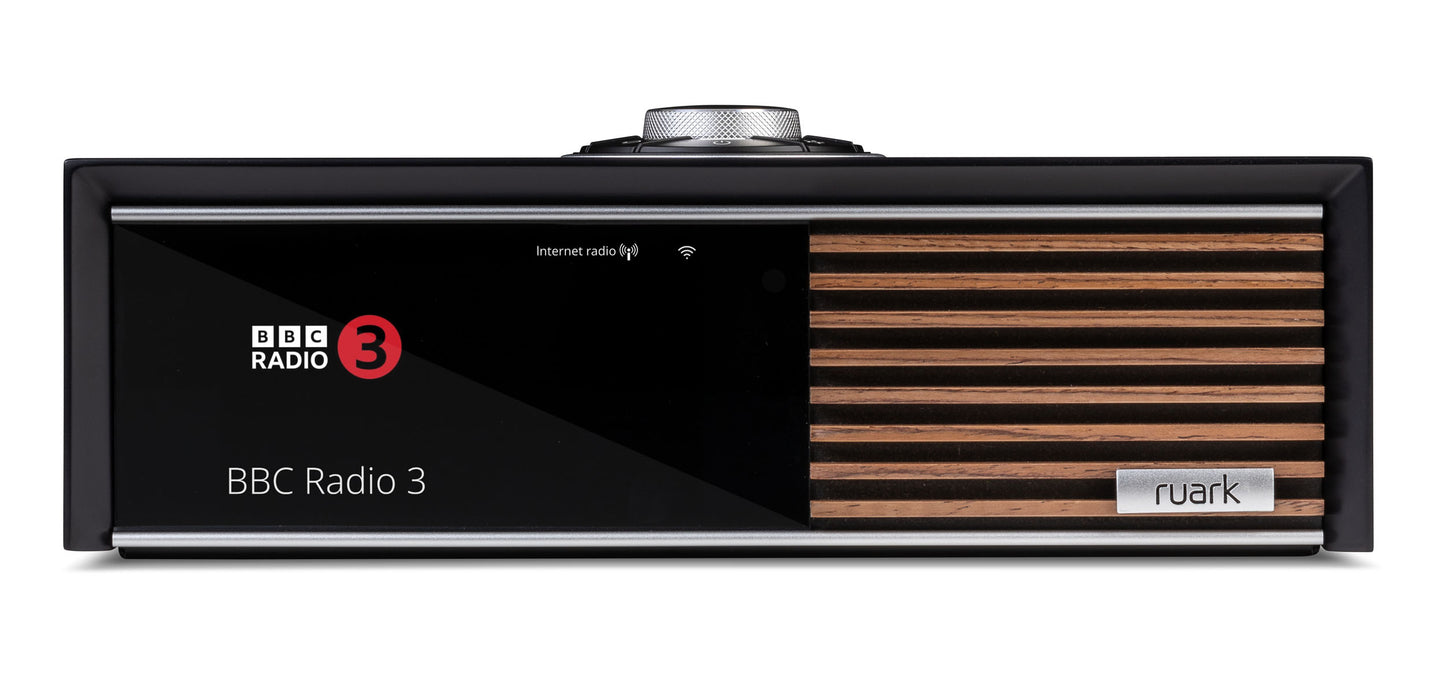

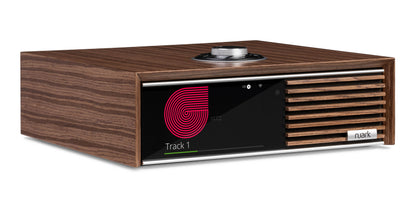

Ruark Audio R610 Music Console
The Stereo Music Centres of the 1970s started the hi-fi revolution and the Ruark R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.
The R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system's motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 Watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.

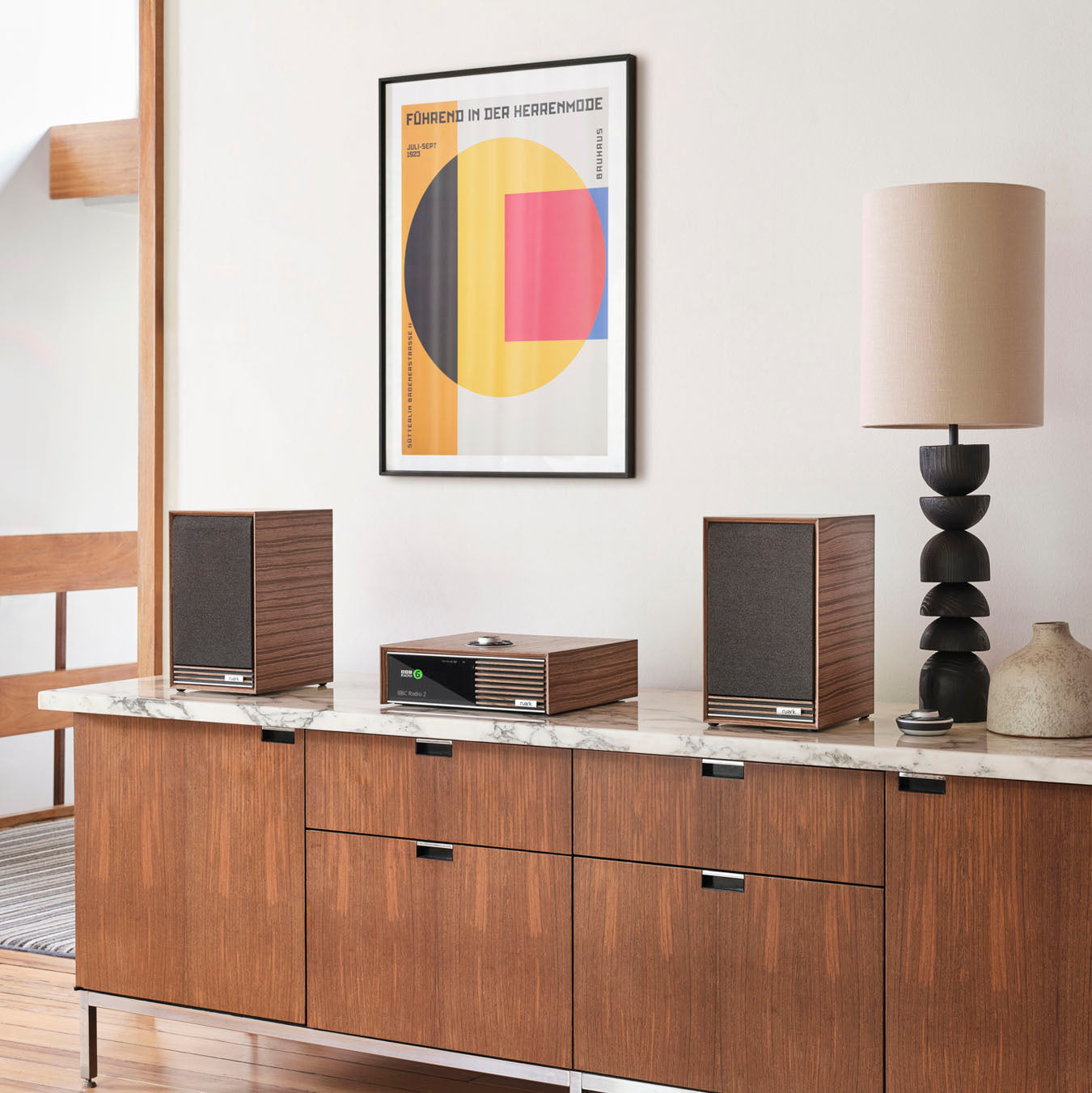

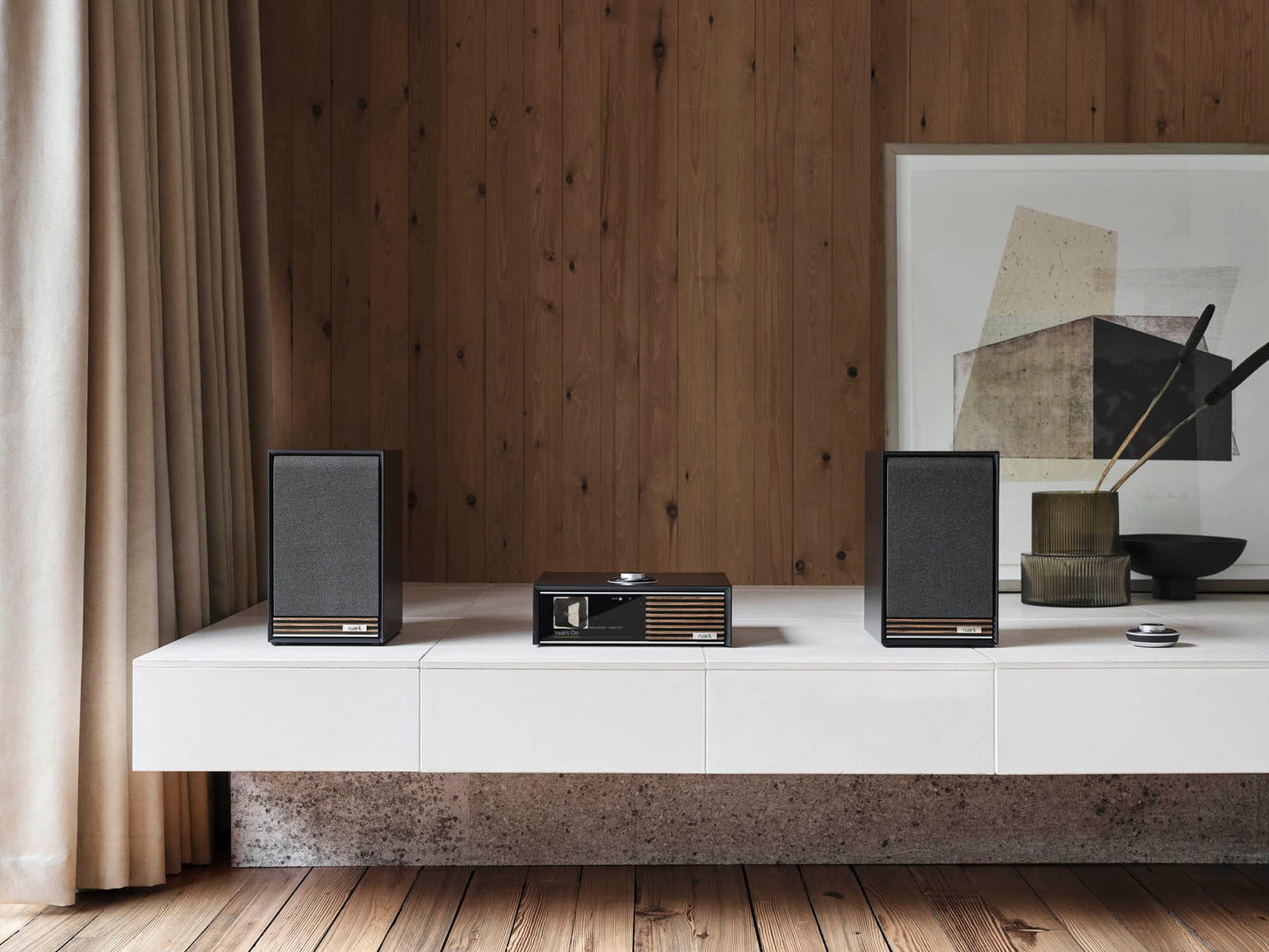

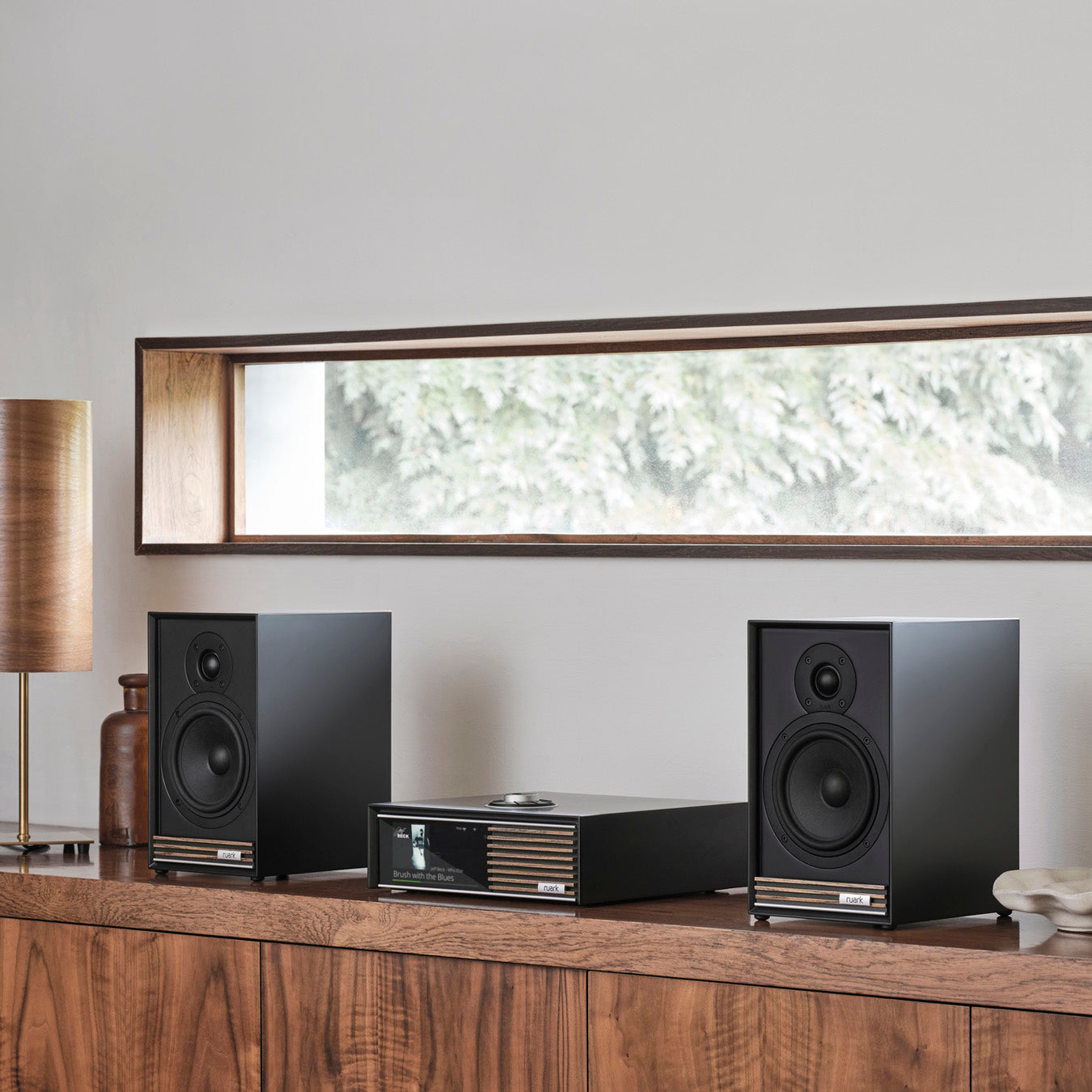

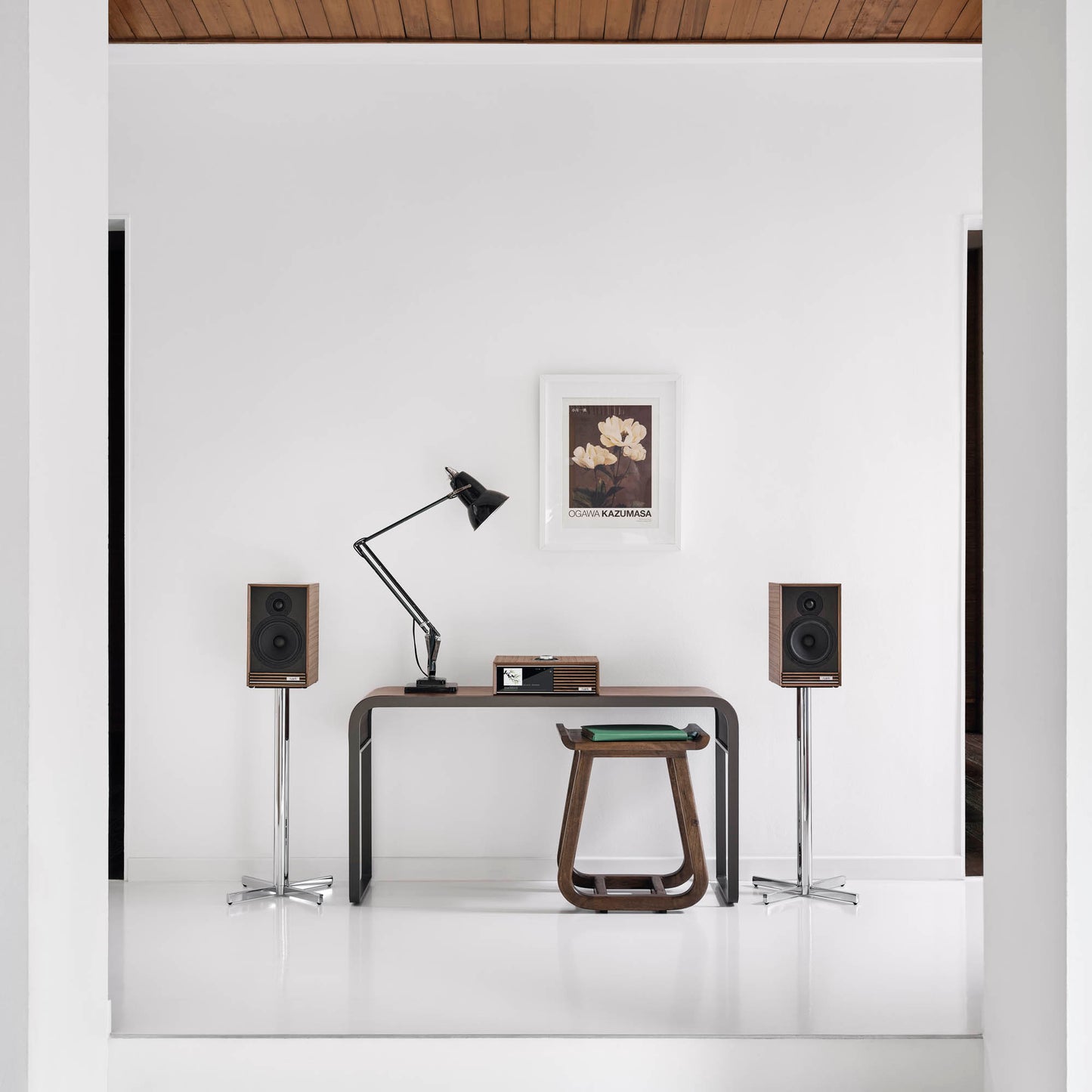

R610 + Sabre-R - Perfect Partners: First introduced in 1985, Ruark are proud to announce the return of one of their original iconic loudspeaker names. Uniting sonic excellence with elegant aesthetics, the R610 Music Console and Sabre-R Bookshelf Speakers partner perfectly to create a complete music system for the modern era and embody Ruark's ethos of making products with soul that customers will cherish and enjoy for years to come.

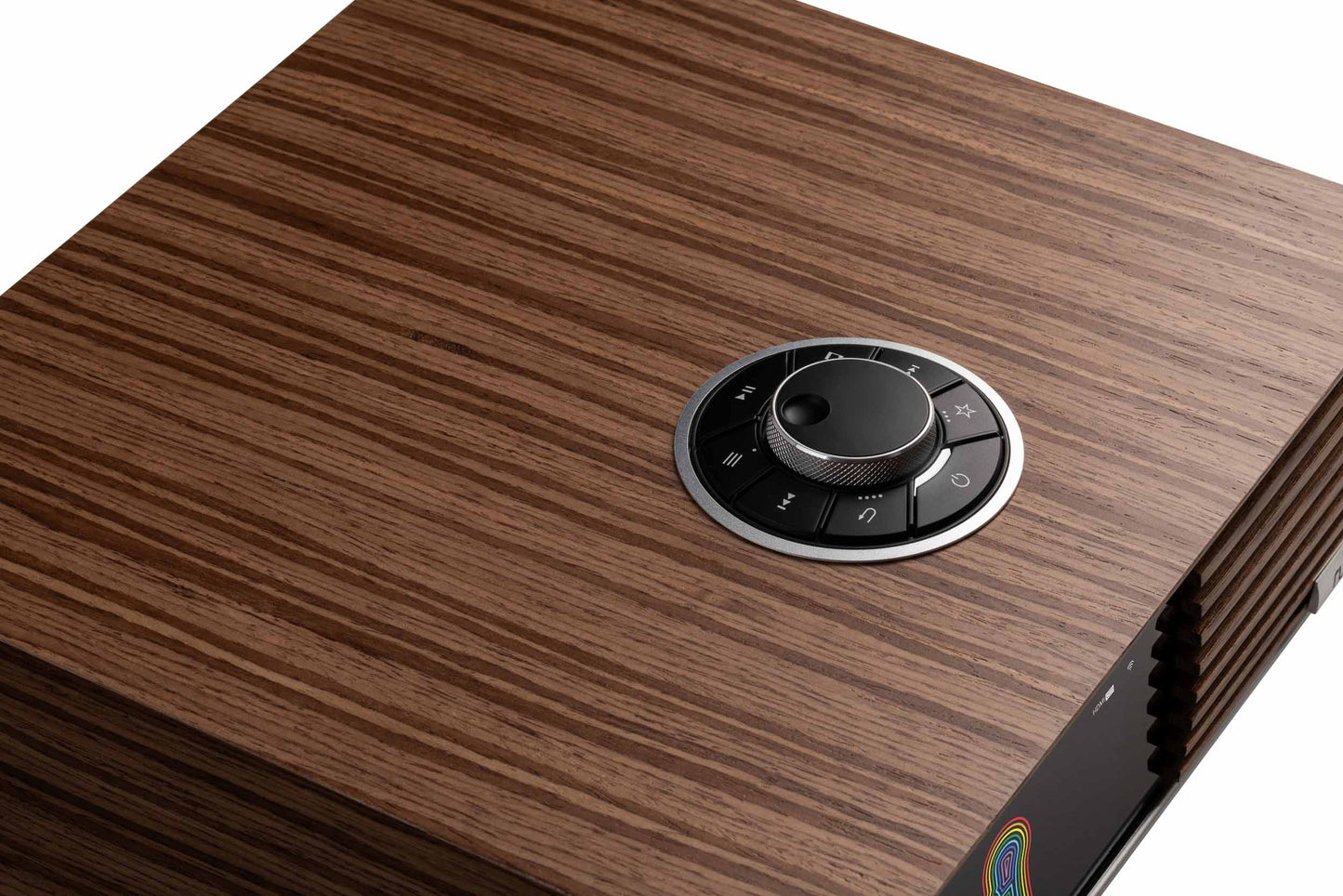

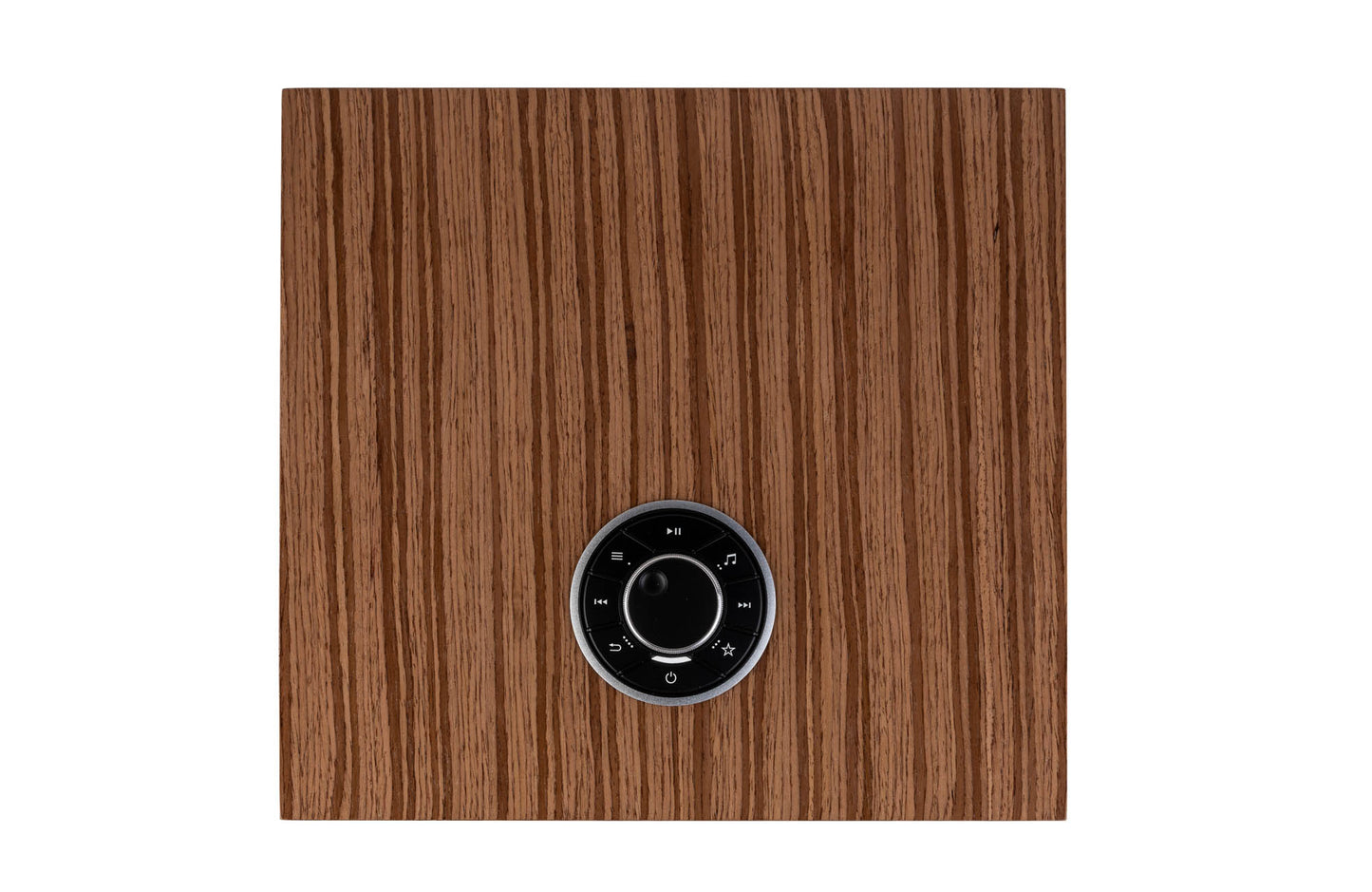

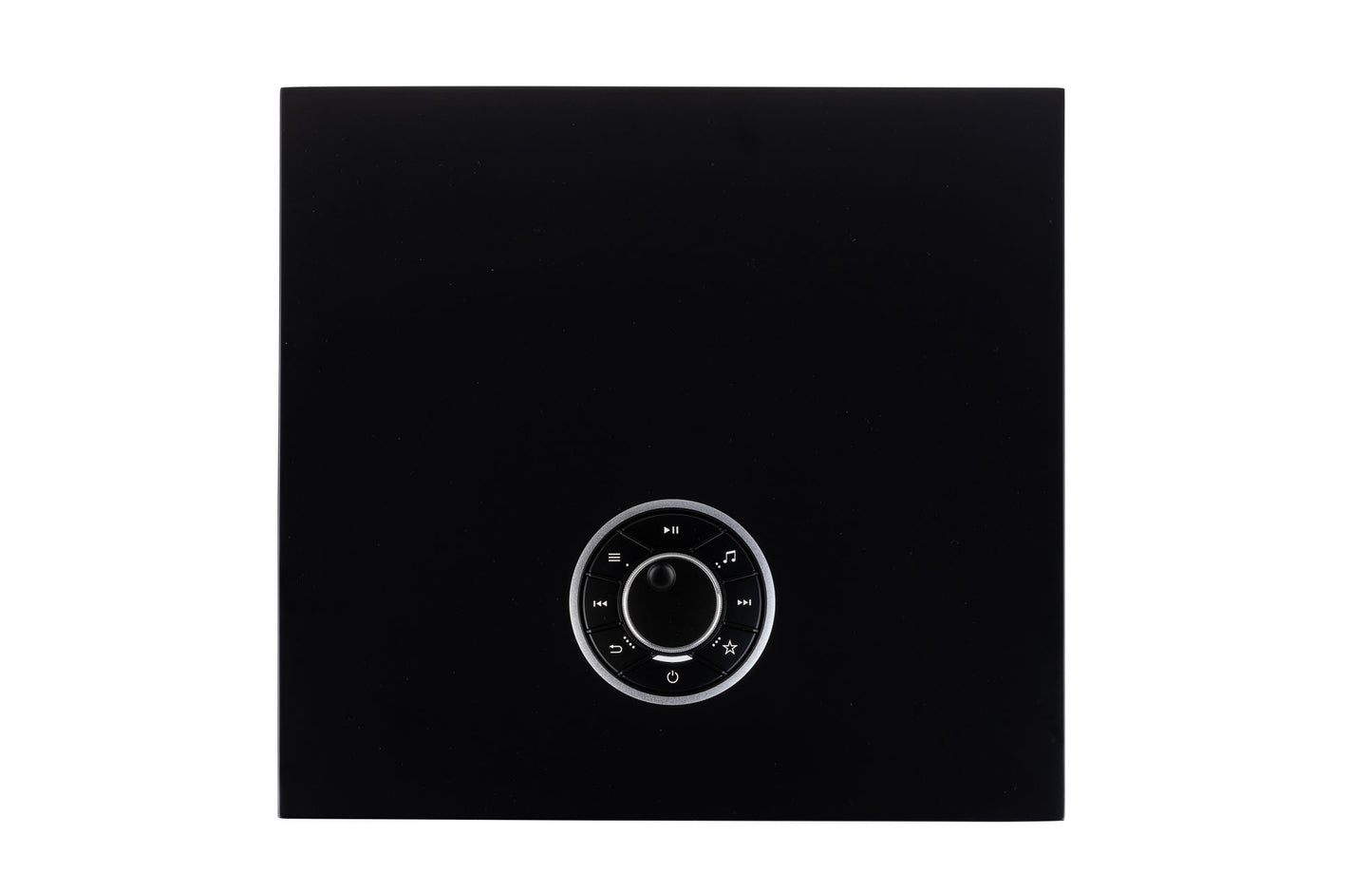

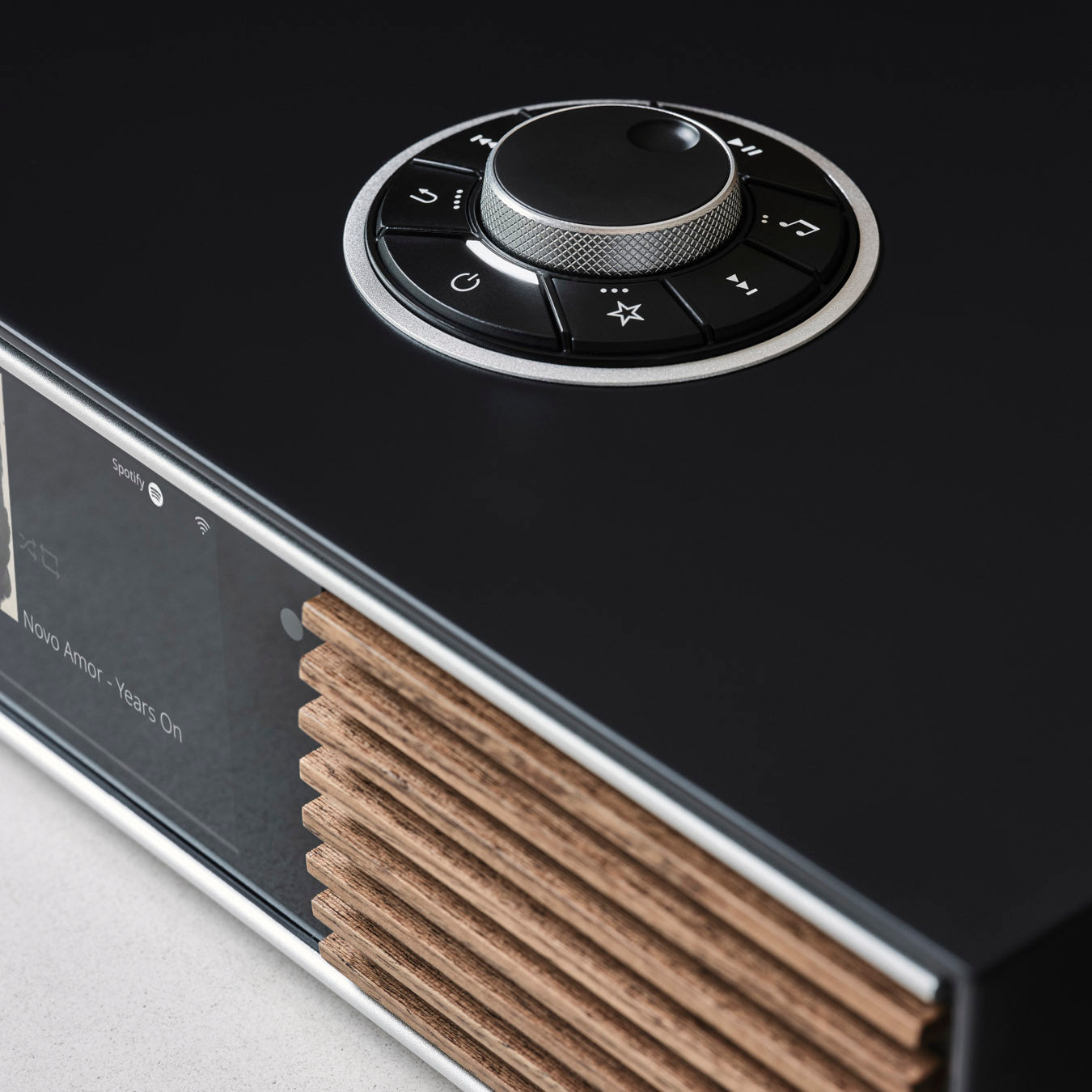

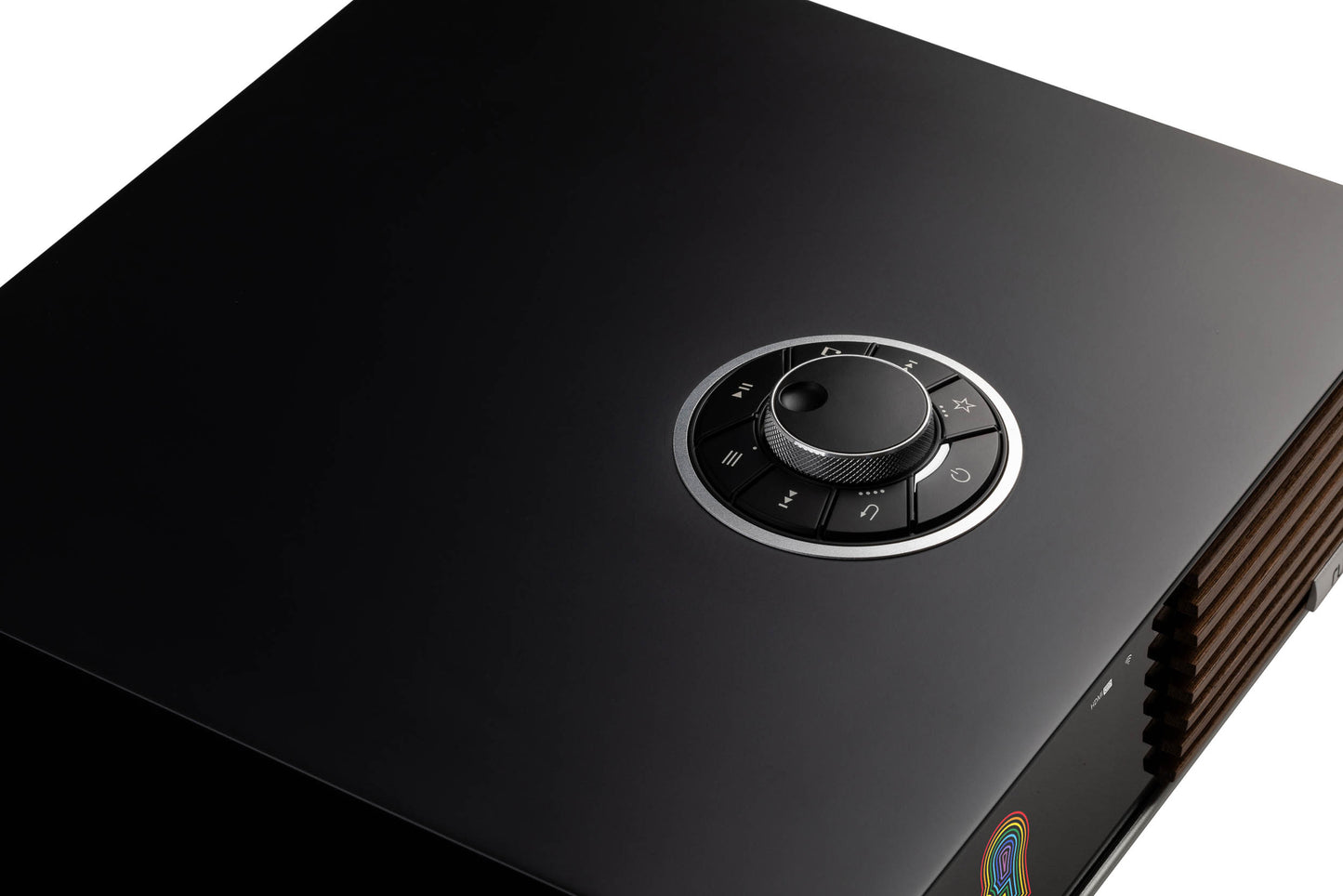

You're in Control: The RotoDial controller has been a distinctive part of Ruark's products since 2006. For 100 Series Ruark have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5" TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.
Divine Connection: The R610 streaming amplifier provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.
R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback Ruark will soon be unveiling their own Compact Disc Player called R-CD100. This will integrate and connect with R610 and other 100 Series models via the USB socket on the rear. Last but not least, R610's HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.
Apple AirPlay: AirPlay is a proprietary wireless technology developed by Apple Inc. that lets you stream music directly over Wi-Fi to the R610 from iOS apps such as Apple Music, Deezer, BBC Sounds, TuneIn Radio and many more in high-resolution sound quality.
Google Cast: Google Cast is a wireless technology developed by Google. It is primarily used in Android devices but also works with many iOS apps.
With Google Cast you can stream music directly over Wi-Fi to the R610 from apps such as Amazon Music and BBC Sounds in high-resolution sound quality.

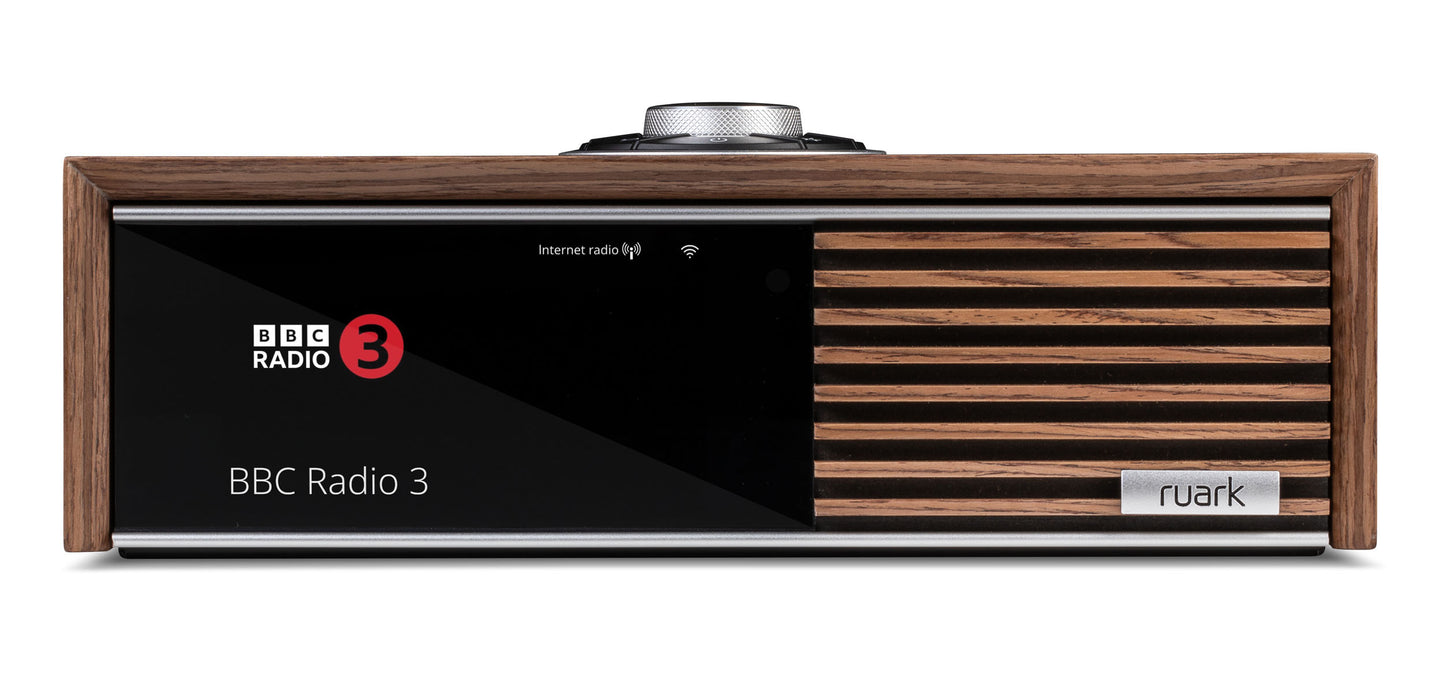

Also with a Google Nest Hub or smart speaker, you can control playback with your voice. Setting this feature up requires the Google Home app, but once done you can simply say "Hey Google, play BBC Radio 3 on my R610" or suchlike and the system will respond as instructed.
Spotify Connect: Spotify Connect (currently the world's most popular streaming platform) allows you to stream music over Wi-Fi to the R610. Unlike Bluetooth, it does not drain your device battery power, because Connect technology pushes music directly from the Spotify cloud to the R610 rather than playing through the device. This means that you can take calls and messages without interruption or even switch off your device completely.
TIDAL Connect: TIDAL Connect is a high-resolution music streaming service that allows you to stream music over Wi-Fi to the R610. Unlike Bluetooth, it does not drain your device battery power, because the TIDAL Connect technology pushes music directly from the TIDAL cloud to the R610 rather than playing through the device. This means that you can take calls and messages without interruption or even switch off your device completely.
Apple Music: Apple Music is Apple's own music streaming service. Subscribe to Apple Music and you have access to over 100 million songs which you can stream wirelessly to the R610 using Apple AirPlay with better than CD sound quality.
Amazon Music: If you are an Amazon Music user you can browse music/playlists and control playback directly from within the Amazon Music app to the R610 using either Apple AirPlay or Google Cast for better than CD quality sound.
BBC Sounds: BBC Sounds is a great app that puts everything BBC radio-related into one easy-to-use package. Compatibility with both AirPlay and Google Cast devices means you can browse, control and playback directly from within the BBC Sounds app to the R610 with high-resolution sound.
Deezer: Deezer users can browse music/playlists and control playback directly from within the Deezer app to the R610 using either Apple AirPlay or Google Cast for better than CD quality sound.
Qobuz: Qobuz users can browse music/playlists and control playback directly from within the Qobuz app and stream straight to the R610 using either Apple AirPlay or Google Cast for better than CD quality sound.
Internet Radio: The choice of Internet radio stations is vast and in general, sound quality is superior to that of DAB or FM. Have fun browsing, national and international stations and save your favourites as presets for easy access using the R610's intuitive RotoDial controller. Up to 20 stations can be stored for quick recall.
DAB+ Radio: Internet radio is rapidly becoming the choice for most radio listening, as an aerial is not required, but DAB+ is easy to use and offers a greater selection of stations than FM.
FM Radio: FM radio is still a great way to listen to radio as it exhibits a natural analogue warmth that is missing in low-bitrate DAB radio. In particular, it works well with spoken word and classical music, but a professionally installed good quality external aerial is highly recommended for best reception and sound.
Bluetooth HD: With a super high-quality aptX Bluetooth receiver built-in, it means you can wirelessly stream music from your smartphone or computer to the R610 with better-than-CD sound quality without the need for a Wi-Fi connection. The R610 remembers up to eight previously connected devices, making it easy to switch and connect quickly as required. Ideal in a busy family environment.
Wi-Fi: The R610 is 2.4 GHz and 5 GHz compatible so it will wirelessly connect and communicate with the latest dual-band home Wi-Fi routers.

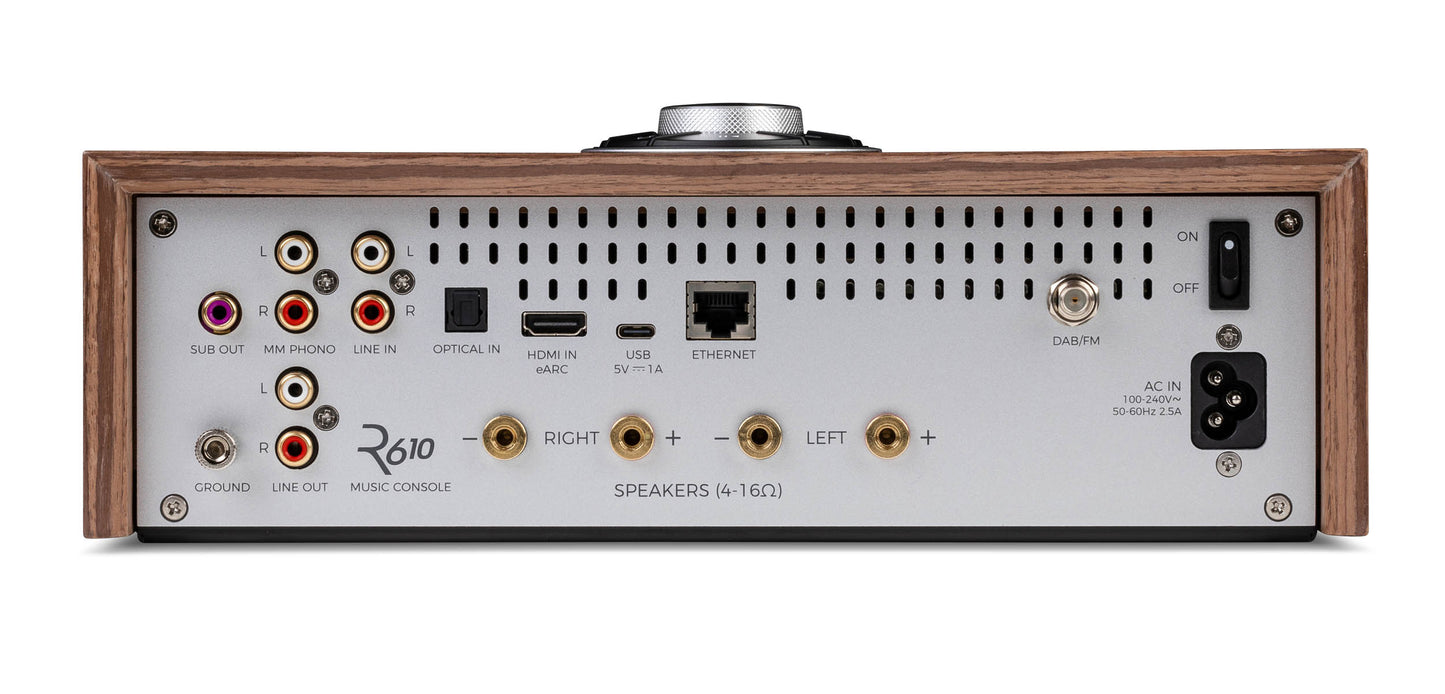

Ethernet: The ethernet connector on the rear of the R610 allows you to connect directly into the internet. This is done by plugging directly into one of the ethernet sockets on your home router or if you have a home wired with ethernet, connect to a convenient socket. Ethernet connection provides optimum performance and eliminates Wi-Fi strength issues around the home. Another option is to use ethernet powerline adaptors which are easy to obtain and good to use, particularly if your device is located some distance from your Wi-Fi router.

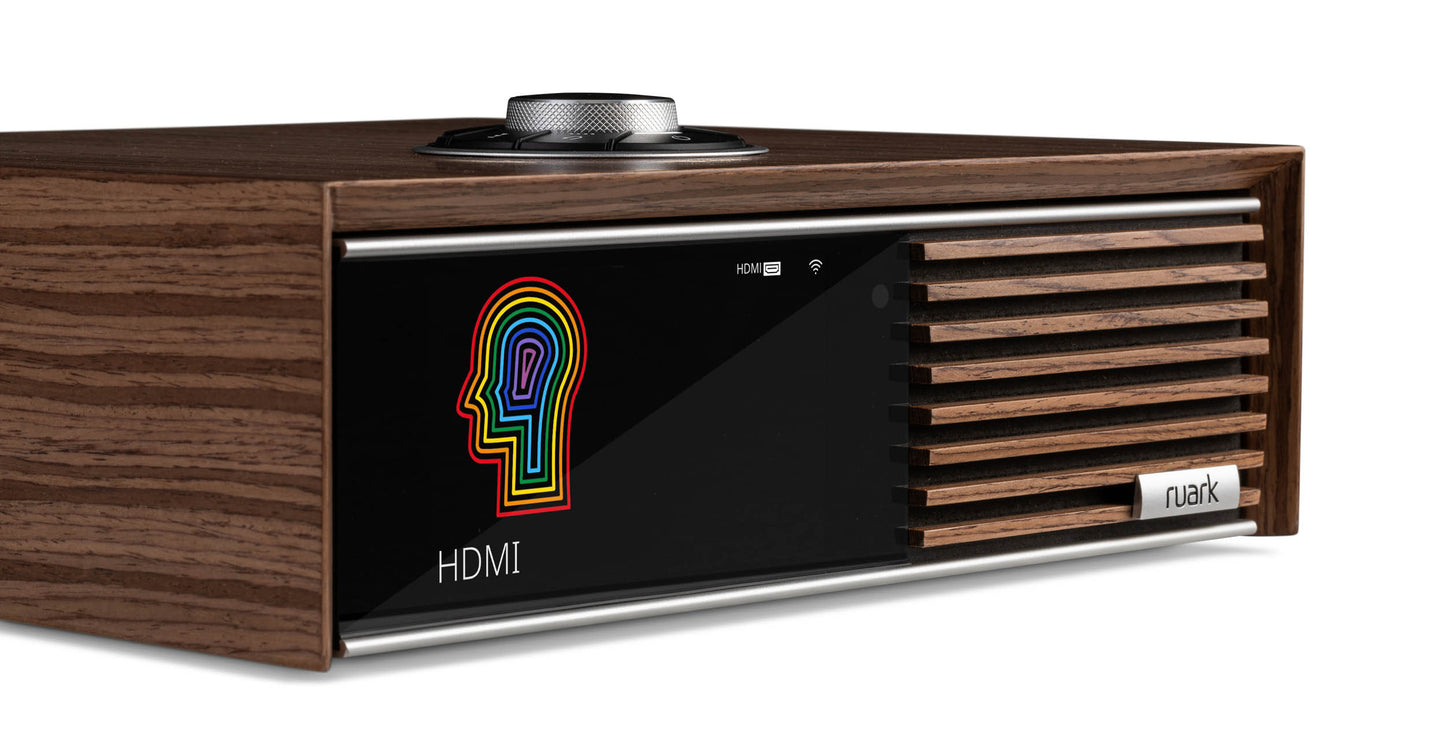

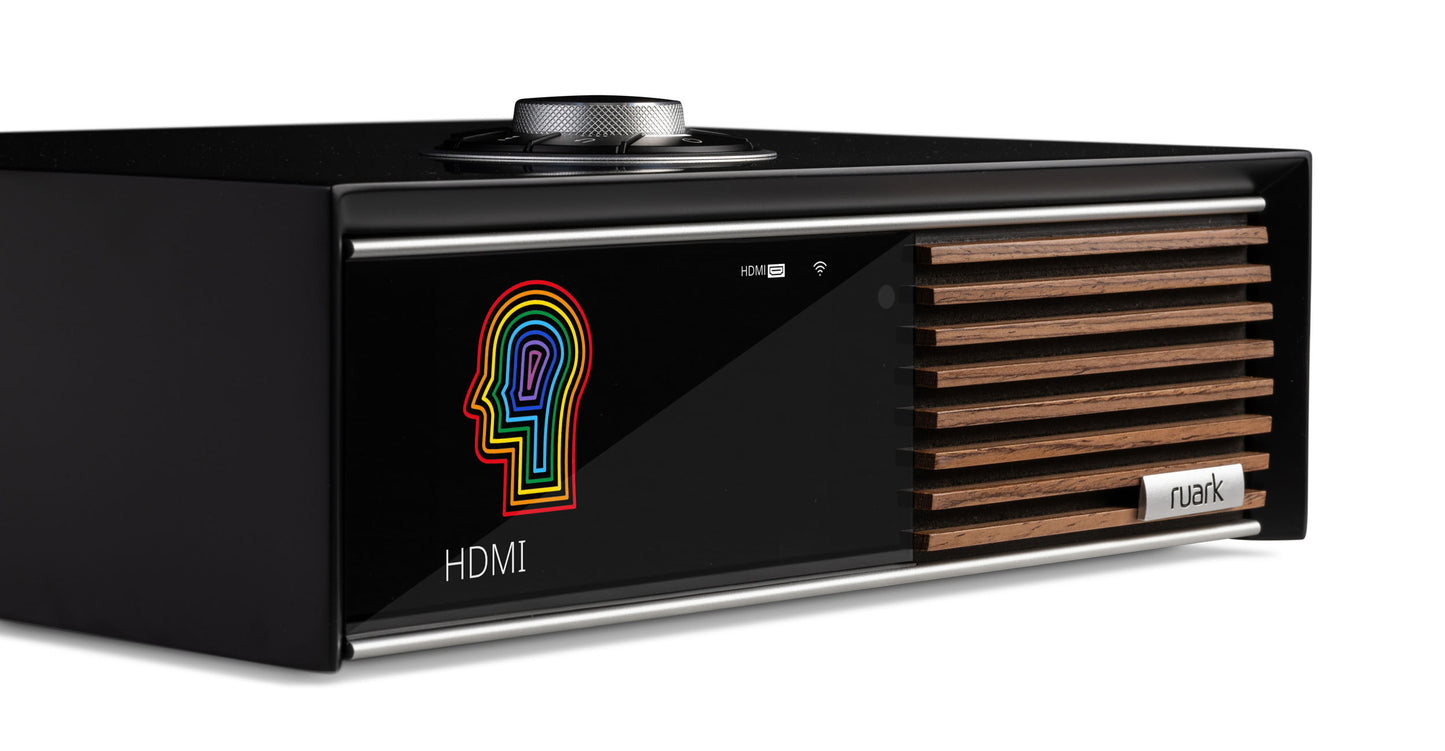

HDMI: With HDMI ARC/eARC connectivity, the R610 makes a superb sound system for TVs and a complete solution for your entertainment needs. HDMI ARC/eARC connection also syncs the R610 with your TV, so you can use the TV remote to adjust volume as well as turn on and off.
Optical Input: The switchable optical input on the R610 allows you to easily connect devices such as CD players or external streamers with optical outputs for optimum sound quality.
Phono Input: The R610 features two sets of switchable RCA inputs.
The phono-in input is a dedicated turntable input which has an RIAA phono gain stage allowing a turntable with a moving magnet cartridge to be directly connected without the need for a separate preamplifier.
The line-in input allows you to connect a variety of auxiliary devices with line-level outputs such as a standard CD player or gaming console.
Subwoofer Output: When the R610 is connected to a pair of high quality speakers such as the Ruark Sabre-R Bookshelf Speakers you will get very good bass, especially for the size of the speakers. However, if you require even greater bass performance an active subwoofer can be easily connected to the subwoofer output. Of course the Ruark RS1 Subwoofer is ideal for this task.
CD Connectivity: For CD fans Ruark will soon be unveiling their own compact disc player called R-CD100. This will integrate and connect with all Ruark 100 Series products via the USB socket on the rear. When connected, CD is automatically added to the list of sources and then using the RotoDial controller you can control playback just as you would a built-in player.
Multi-Room: With Apple AirPlay and Google Cast built-in, you can build an easy-to-manage multi-room system, linking 100 Series models together or with other AirPlay and Google Cast compatible speakers.
Wireless Updates: Wireless updates mean that Ruark can provide over the air updates to the R610. This may be to add a new feature or to fix a reported issue, but most importantly it ensures that the R610 is always working as it should.
UPnP Streamer: With the R610 you can rip your CDs or store downloaded music on a PC, Mac or network-attached storage device to create your own home music library and then browse and playback using the Media Player source.
Audio Formats: The R610 is capable of supporting all the most popular audio file formats to the highest resolutions, providing true high-fidelity reproduction. MP3 up to 48kHz 320kbps, AAC up to 96kHz 320kbps, FLAC, ALAC & WAV up to 32bit 384kHz.
Our Take On The Ruark Audio R610
The Ruark R610 Music Console is a modern revival of the classic stereo music centres from the 1970s, offering both retro charm and cutting-edge technology. Its sleek design and superior craftsmanship reflect Ruark's attention to detail, ensuring it stands out as an elegant addition to any space. Under the hood, the R610 is powered by a switch-mode power supply and features Burr-Brown DACs, which are known for their high-quality sound reproduction. With 75 Watts per channel and high-grade audio components, the R610 delivers a rich, natural sound that enhances the listening experience, whether you're streaming music or using its multiple input options.
One of the standout features of the R610 is its comprehensive connectivity, making it a versatile hub for all your audio needs. With support for popular streaming platforms like Spotify Connect, TIDAL Connect, Apple Music, and Amazon Music, as well as AirPlay and Google Cast, users can enjoy a wide variety of high-resolution audio with ease. It also includes DAB+, FM radio, Bluetooth HD, and Wi-Fi, ensuring that all playback options are covered. The R610 is future-proof with wireless updates and multi-room capabilities, allowing users to expand their system as desired. Whether you're rediscovering physical formats with its phono input or integrating it into a home theatre setup via HDMI ARC/eARC, the Ruark R610 is a complete and versatile audio solution.
Main Features & Specifications
- Design: High Performance 75 Watt Streaming Amplifier
- Perfect Visual & Sonic Match with the Ruark Audio Sabre-R Speakers
- Optional Ruark Audio R-CD100 CD Player Available
- Apple AirPlay and Google Cast
- Spotify Connect and TIDAL Connect built-in
- Apple Music, BBC Sounds, Deezer, Qobuz and more
- Hi-Res music file support up to 32-bit 384kHz
- Internet/DAB/DAB+ and FM tuners
- HDMI ARC/eARC connection
Audio
- Amplifier: 2 × 75W per channel Class-D
- Frequency Response: 22Hz-22kHz +0/-3dB
- Enhancements: Stereo+, bass, treble, loudness
- DAC: Up to 32-bit/384kHz resolution
Features
- Display: Hi-contrast 5" colour TFT
- Auto-Standby: Automatic power saving mode
- Adjustable Input Levels: Line-in, phono-in, optical and HDMI
- USB Charge Port: USB-C 5V 1A (5W)
- Software Updates: Over-the-air and USB
- Controller: Ruark RotoDial control system
- Remote Control: Ruark RotoDial Bluetooth rechargeable remote
- Presets: 20 global presets
- App Control: Via Spotify, BBC Sounds and more
- User Interface Languages: Multilingual

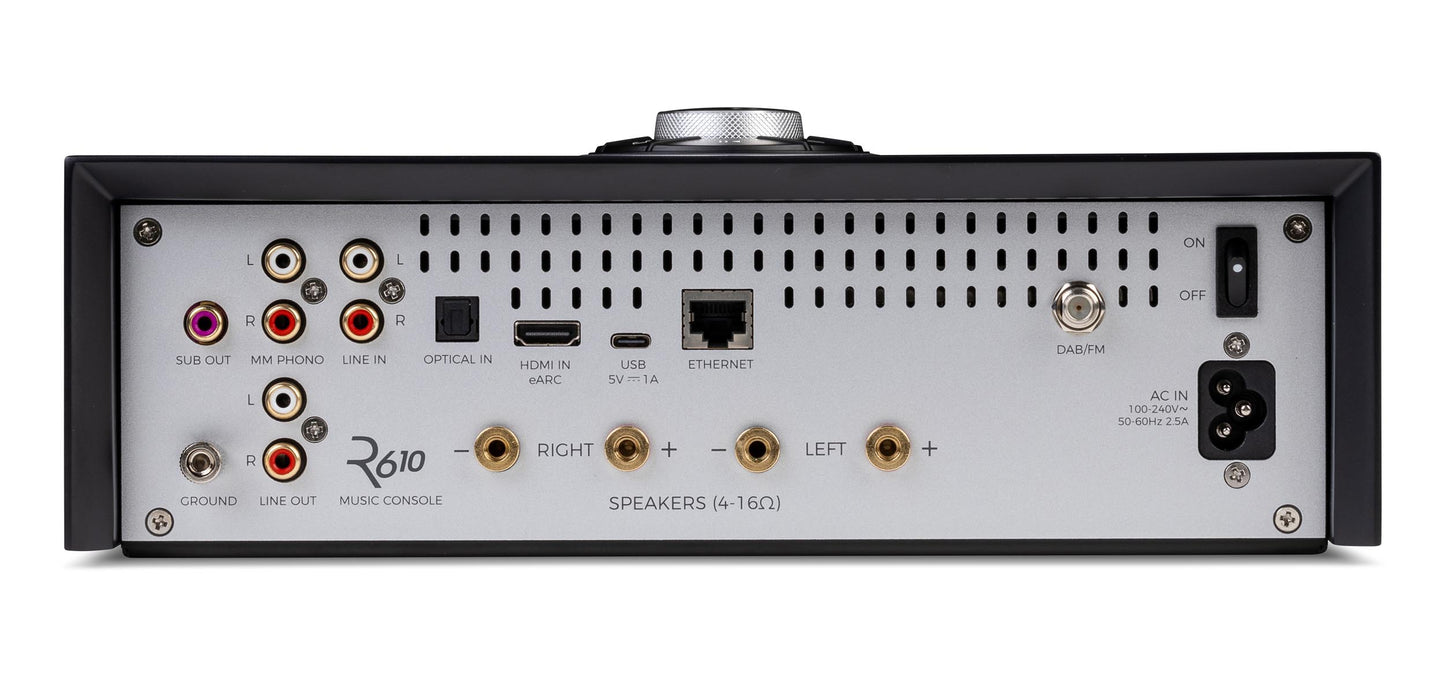

Connectivity
- Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
- Multi-Room Capable: Via Apple AirPlay and Google Cast
- Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
- Streaming: Apple AirPlay and Google Cast
- Built-In Music Services: Spotify Connect and TIDAL Connect
- Supported Music Services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
- Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
- Ethernet: RJ45 connector 10/100 Mbps
- DLNA: UPnP™ DLNA media server compatible
- CD Support: CD playback via external USB CD drive (optional)
- HDMI: ARC and eARC
- Line Input: Stereo RCA input (up to 2.3Vrms)
- Turntable Input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
- Line Output: Selectable Line-out/Pre-out, via stereo RCA connectors
- Subwoofer Output: Volume related full-frequency mono RCA connector
- Optical Input: TOSLINK digital input up to 24-bit 192kHz
- USB-C: Playback port
- Aerial Connector: 75Ω F-type
Supported Audio Formats
- FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
- MP3: up to 48kHz 320kbps
- AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General
- Power Input: 90-240VAC, 50-60Hz, 2.5A
- Power Consumption: 2.0W network standby, 8.0W idle
- Included Accessories: 3m Speaker Cables, Rechargeable Bluetooth RotoDial Remote with Charge Cable, Telescopic Aerial, Aerial Spanner, Mains Power Cable, User Guide
- Available Finishes: Fused Walnut veneer or Satin Charcoal lacquer
- Dimensions (WxHxD): 300 x 95 x 280 mm (cabinet)
- Dimensions (WxHxD): 300 x 107 x 280 mm (with Rotodial controls)
- Weight: 4.1 kg
- Manufacturer's Warranty: 2 Years
- Learn more about Ruark Audio
Note: Features and Specifications Subject To Change Without Notice. E&OE.
