Sonus faber Palladio PC-562 In-Ceiling Speaker
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantee a total sound immersion with versatile models which are also aesthetically pleasing in design.
The Sound Of Sonus faber: Sonus faber are renowned for the timbre of their loudspeakers, especially in the mid to high frequencies where there is a warm and fascinating sound bought about by the unique design solutions that identify the DNA of the brand. The Palladio PC-562 uses a 29 mm silk dome tweeter characterized by DAD (Damped Apex Dome™) technology and a mid/bass driver equipped with a custom diaphragm made in natural fibre and cellulose pulp, a special Sonus faber recipe. The crossover network is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Level 5 & Sonetto - Harmonic Integration: The sound character of the Level 5 architectural speakers is designed to align with the Sonetto collection. Additionally, the satin aluminium trim that frames tweeter, create the "Voice of Sonus faber" aesthetic.
Easy To Install & Customize: The Palladio PC-562 is equipped with a magnetic, edgeless metal grille, designed to make it as discreet as possible. The grille can be painted to match your décor and there is the option of specifying square grilles if they better suit the environment.
Main Features & Specifications
- Design: 2-Way In-Ceiling Speaker – Sold Individually
- The PC-562 directly refers to the Sonetto Collection for the choice of materials, the electroacoustic characteristics and the design. The satin aluminium trim that frames the tweeter recalls the aesthetic of the "Voice of Sonus faber".
- The PC-562 is equipped with a magnetic edgeless round metal grille, ready to be painted. A square metal grille is optionally available.
- Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
- High Frequency Driver: 29 mm (1.1") - DAD (Damped Apex Dome) silk dome tweeter

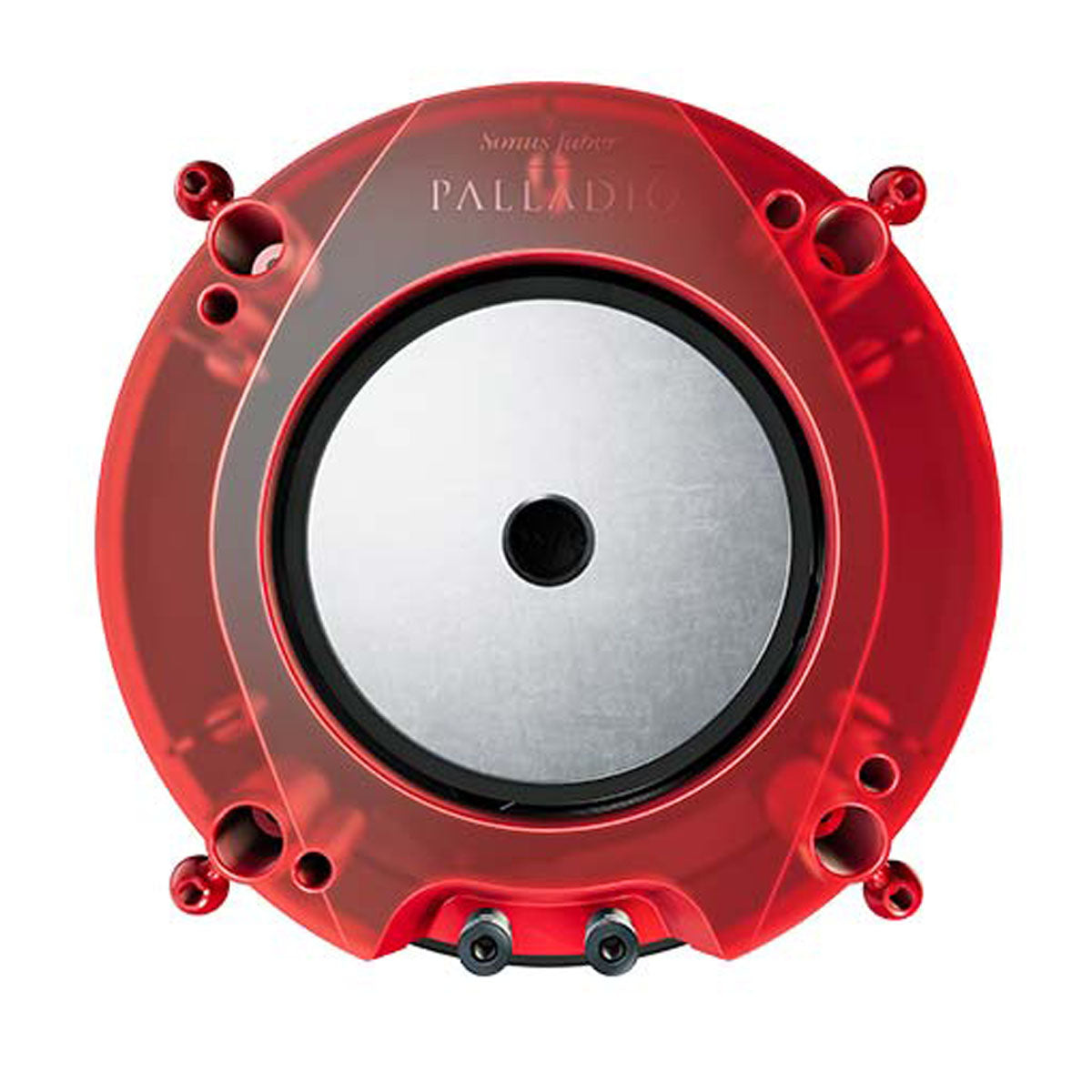

- Mid/Bass Driver: 165 mm (6.5") - Custom diaphragm is made in natural fibre and cellulose pulp in order to produce the most natural sound
- Crossover Frequency - 3,000 Hz - The anti-resonant design of the crossover network features the Paracross Topology circuitry, to guarantee better definition and purity of sound
- Frequency Response 50 – 25,000 Hz
- Sensitivity (2.83 Vrms @ 1m): 90 dB
- Nominal Impedance: 4 Ω
- Coverage Angle (1 kHz, @-6 dB): ± 60° H - ± 60° V
- Suggested Amplifier Power Output: 40 – 200W without clipping
- Included In The Box: Bezel-Free round magnetic metal grille
- Optional Additional Accessories: Pre-mount kit, Bezel-Free square magnetic metal grille
- Frame Outer Diameter: 234mm
- Cut Out Diameter: 208mm
- Depth Behind Surface: 115mm
- Protrusion: 10mm
- Weight 3.1Kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
