Stealth Acoustics LR6g Invisible Speakers
Stealth Acoustics LineaResponse G™ (LRg) are cost-effective, proven invisible loudspeakers that rival the sound quality of comparably priced visible speakers. The award-winning LRg series is a no-compromise invisible audio solution boasting broad coverage and ultra-smooth extended frequency response.
All LineaResponse speakers are handmade in the USA. They feature an innovative design, quality hardware, and Stealth's patented FidelityGlass™ face panel material to achieve industry-leading performance metrics and a 170-degree sound dispersion pattern that makes them the benchmark for all invisible speakers.
LineaResponse Technology: LineaResponse invisible speakers use a combination of three sound-generating technologies. The first (and common to all other invisible speaker products currently on the market) is the direct coupling of an exciter/transducer driver to the speaker's front surface panel (radiating diaphragm). This method works very well for higher frequencies, but direct-coupled transducers become less efficient as the frequency drops and limit bass response.
Second, Stealth combines the direct-coupled transducer technology with an acoustic lever technology driven by a traditional woofer to overcome the loss of bass response. The acoustic lever energizes the radiating diaphragm of the speaker panel for impactful bass. The greater surface area translates to a lower frequency response.
The third technology is the unique FidelityGlass™ radiating diaphragm. Stealth Acoustics developed FidelityGlass™ as a flat, durable, proprietary material with superior sound reproduction characteristics that also allows the speakers to finish invisibly into a wall.

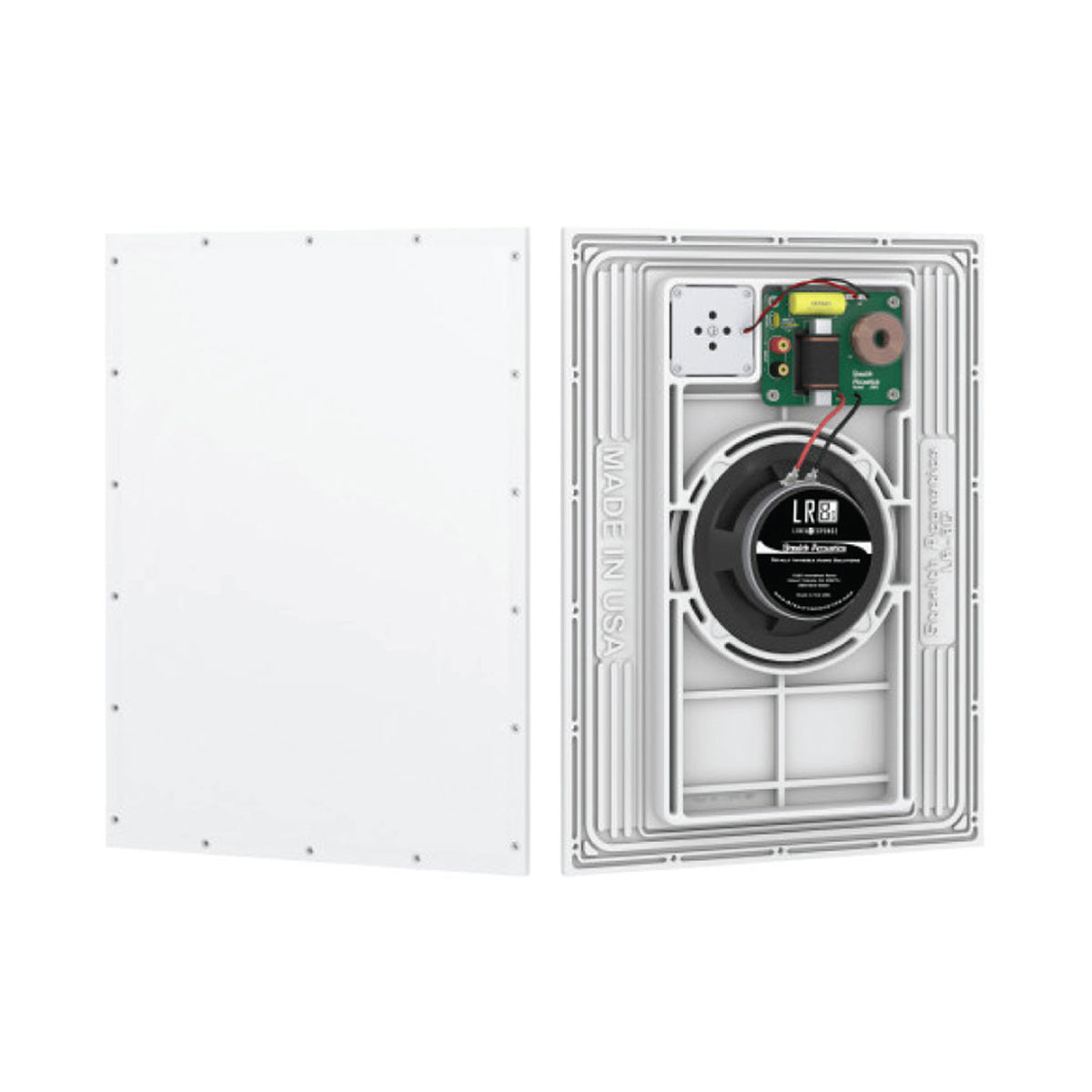

The Stealth Acoustics Model LR6g is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
The LR6g may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods may be supported using special techniques.
The Stealth Acoustics LR6g incorporates an acoustically coupled high quality, high-power 165 mm (6.5") cone woofer and a direct coupled 30 mm neo-magnet high-frequency tweeter. Advanced internal materials allow for smooth frequency extension to 20kHz. When the LR6g is installed in standard insulated 2" × 4" framing and allowed to function in a full 8 foot stud bay, frequency response below 45Hz can be achieved. The LR6g contains two independent protection circuits (high frequency and low frequency sections) that automatically reset upon reduction of excessive amplifier power.
For proper registration, each speaker must be installed so that the surface of the perimeter edge is flush with the adjoining wallboard. When correctly in place, the surface of the speaker face panel extends above the height of the wallboard by 1/16" (1.6 mm). This is done to allow space for the tape and joint compound needed to blend the panel into the wall. Shims are included to allow for mounting in wallboard thicker than ½" (12.7 mm).
Stealth Acoustics' invisibility offers a powerful advantage over traditional loudspeakers because they can be placed wherever they sound best, free of visual concerns that may conflict with architectural features. Accompanying the full range panels, Stealth Acoustics offers the B22g and B30g – completely invisible companion subwoofers for extended low frequency response.
All Stealth Acoustic products are covered by a 5 year manufacturer's warranty as well as an optional 15 year extended warranty. The LR6g also has 100, 70 and 25 volt constant voltage transformers available as factory installed options.
Want To Know More?: If you're planning to build or renovate a project of any size in the greater Melbourne area, you can contact us for a free consultation. We can meet you at your location or ours, or even arrange a video conference, whichever suits you best. If you wish to involve your architect, builder or electrician, it's not a problem as we can work with your team. Alternatively, we can take care of everything ourselves, and offer fair and reasonable pricing. Contact us today: shop@audiotrends.com.au
About Stealth Acoustics
Stealth Acoustics is a division of Dimensional Communications, Inc., a premier systems integration company based in Mount Vernon, WA USA. For over 37 years the direct experiences derived from countless systems integration projects have framed everything Stealth Acoustics do. In short, even though they are a world-class speaker manufacturer, they have systems integration in their blood and know what works and what doesn't towards a great sounding and reliable system.
As an outgrowth of needing a true-sounding, full-range invisible speaker solution, and finding none up to their expectations, they went into their fabrication shops and began a 2-year R&D cycle to develop their first invisible speaker which debuted in 2003 to accolades from CEDIA show attendees. Since then they have constantly continued to improve the sound quality, form factoring and ease of installation, culminating – at least for now – in the stunning LRg series of invisible speakers and subwoofers.
This continuous improvement based mindset has brought the company many past awards from CEDIA Lifestyles (AX3 model), Residential Systems' RESI award (B1630 subwoofer) and the CE TechHome Mark of Excellence Award (FX8 model).
Our Take On The Stealth Acoustics LR6g
The Stealth Acoustics LR6g invisible speakers redefine audio aesthetics by seamlessly blending cutting-edge technology with discreet design. Engineered to be concealed within walls or ceilings, these speakers utilize patented invisible technology to deliver exceptional sound without compromising the visual integrity of the space. The LR6g speakers boast a unique combination of high-performance audio reproduction and an unobtrusive presence, making them an ideal choice for those who seek a premium audio experience without the intrusion of visible speaker elements. With their sleek, paintable surface, the LR6g speakers can be seamlessly integrated into any décor, offering an immersive audio solution that remains virtually unseen while delivering impressive, room-filling sound.
Main Features & Specifications
- Design: 2-Way Invisible Speakers – Sold as a Pair
- Frequency Response: 45Hz to 20kHz
- Power Capacity: 100 Watts RMS
- 50 Watts minimum recommended power
- Protection: Two independent self-resetting devices (low and high frequency)
- Sensitivity: 83 dB (1 watt / 1 metre)
- System Impedance: 8Ω Nominal
- High Frequency Driver: 1.125 (30mm) Neodymium Motor
- Mid/Bass Driver: 6.5" (165mm) Woofer (38mm Voice Coil, 425 gr Ceramic Magnet)
- Polar Dispersion: 170 degrees vertical and horizontal
- Included Accessories: Mounting Shims, Shim Tape, Mounting Screws, Terminal Wrench
- Width: 403mm
- Height: 302mm
- Mounting Depth: 58mm
- Weight: 3.9 kg each
- Manufacturer's Warranty: 5 Years (Optional 15 Year Warranty also available)
Note: Features & Specifications Subject To Change Without Notice. E&OE.
